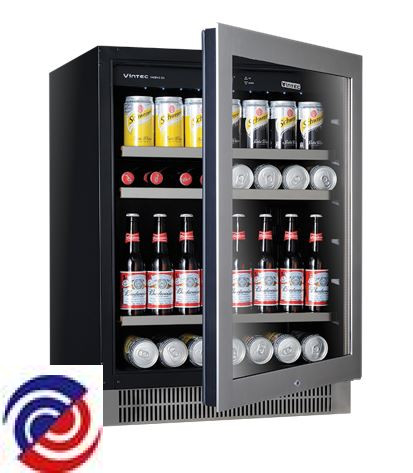

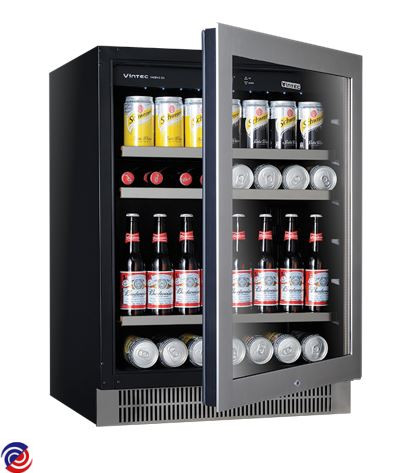

V40BVCS3 — 95600350800
VINTEC — Fridge

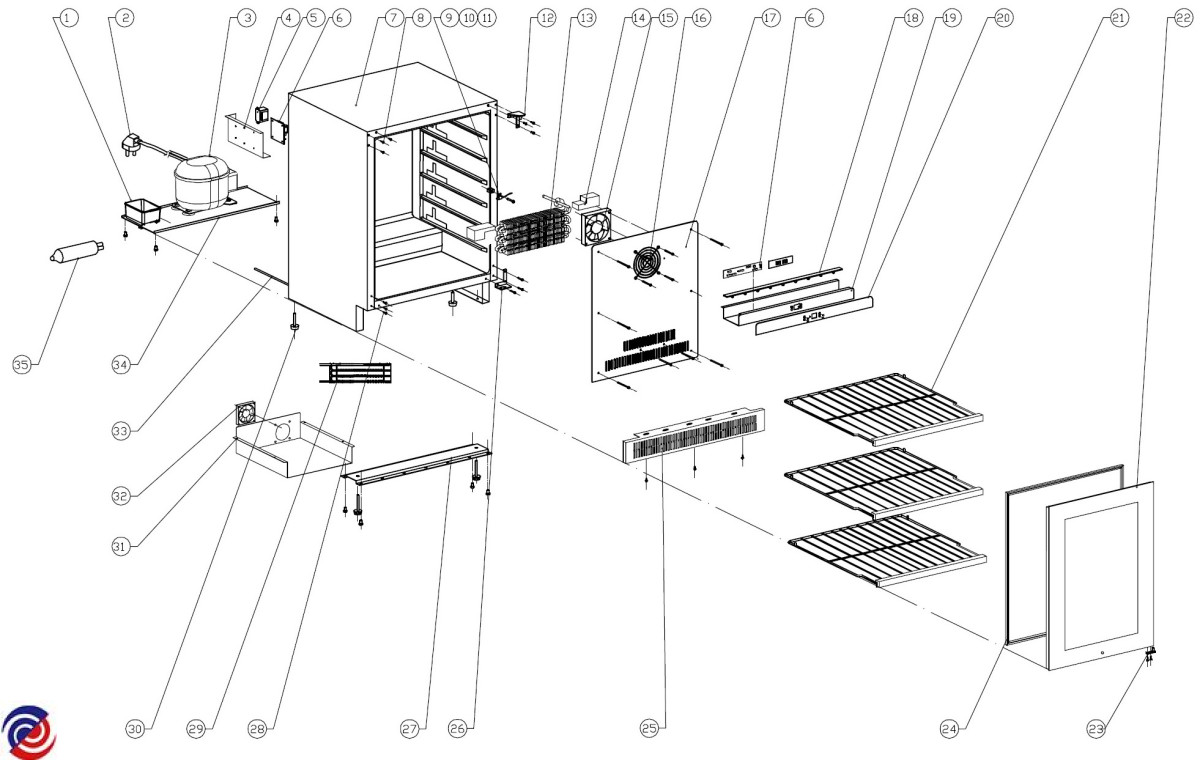

Parts for V40BVCS3

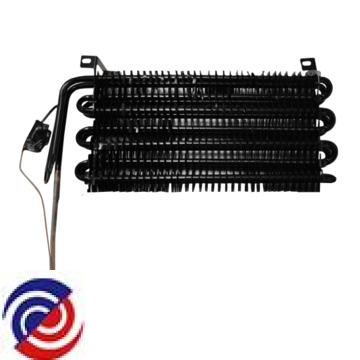

W0031593 EVAPORATOR ASSY W/CAP TUBE
W0031709 KEYS NSX SET OF 2 KEYS
$37.00
W0031784 DOOR LIMITED
W0031860 LED -BLUE

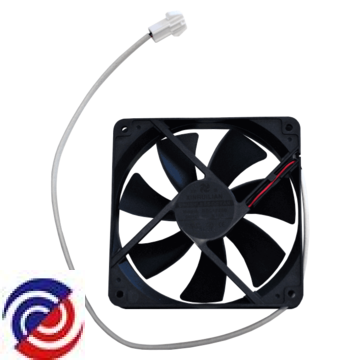

W0031921 FAN 12V LOW CURRENT

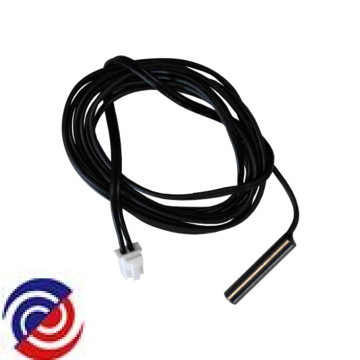

W0031931 SENSOR TEMP(WHITE JACK PLUG)
$26.20
W0159670 DRIER 12GM(XH9)DBLE/SGLE TAIL
W0275870 LEG CABINET V40S
$30.15
W0276119 OVERLOAD
W0031609 COMPRESSOR R134A V40/50
$276.40
W0031612 WATER TANK
$30.40
W0031630 DECORATIVE CAP UPPER
$10.75
W0031632 PCB BOARD COVER
$22.00
W0031644 SPACER BACK
W0031652 PLUG, SCREW DECORATIVE
$5.00
W0031693 HINGE BOTTOM LEFT V40 / V20
W0031694 HINGE BOTTOM RIGHT V40 / V20
$9.85
W0031695 HINGE LEFT TOP V40 / V20
W0031696 HINGE RIGHT TOP V40 / V20
$14.15
W0031717 SHELF WIRE V40 BVC
$198.45
W0031745 COMPRESSOR V26/30/40 R600A
W0031746 COVER FAN
$16.50
W0031747 COVER CONDENSER
$10.00
W0031748 CLIP
$11.00
W0031764 POWER CORD
$29.80
W0031783 PIN DOOR V20 BK, V40 EBK/S3
$21.85
W0031801 FRAME GRILL V40 S3 BK
$38.50
W0031818 DOOR V40 S3 - & GASKET/SEAL
$434.80
W0031895 PCB V40BVCSS/S3
W0031907 TRANSFORMER V40S
W0033344 GASKET V40S3 / BK NEW
$68.45
W0033703 RELAY COMPRESSOR R600A
W0275850 PIPE AIR CIRCULATING
$15.00
W0275851 CONDENSER
$85.85
W0275873 SUPPORT, SHELF
W0275910 TRIM WOODEN FRONT
W0275920 FOAM BLOCK
$9.00
W0275922 COVER FAN
W0275943 DISPLAY PANEL
$22.00
W0275948 COVER AIR DUCT
$15.40
W0275965 SUPPORT BRKT FRONT LEGS
$11.00
W0275966 COMPRESSOR BRACKET
$25.00
W0275972 BOX ELECTRICAL
$16.00
W0278816 TRIM ST. STEEL FRONT
$32.15
