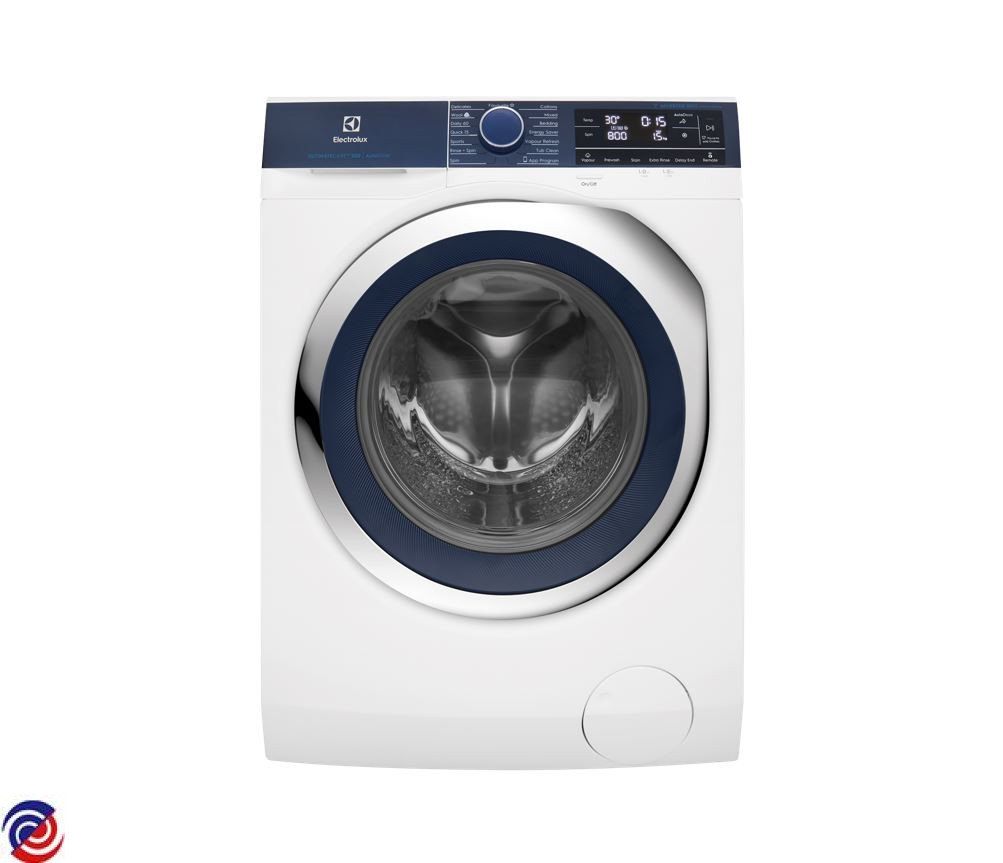

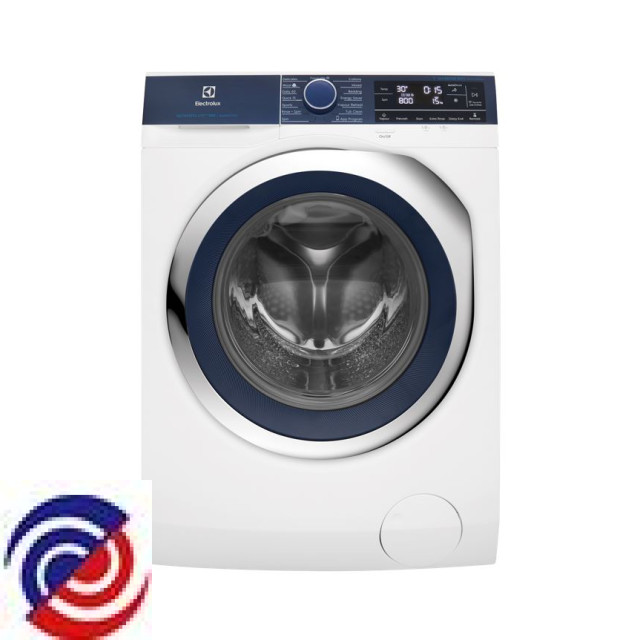

EWF1041ZDWA — 914900813 00
WESTINGHOUSE — Washing Machine
Parts for EWF1041ZDWA
W0016971 TRANSIT BOLTS KIT
W0017029 SPRING, BELLOW, TUB, G33
$15.00
W0017076 ELEMENT HEATING
W0017114 SHOCK ABSORBER WITH SENSOR
$167.20
W0017173 SPRING, SUSPENSION, TUB
$17.00
W0017214 PUMP ASSEMBLY RECIRCULATION
W0017224 LOW FREQENCY ANALOG PRESSUR
W0026627 BEARING DRUM (6206Z)
W0026630 BEARING DRUM (6207Z)
W0027221 HOSE DRAIN ASSY
W0056543 SIMPSON WESTINGHOUSE TOP LOADER WASHER DRAIN PUMP
W0075951 BELT DRIVE
W0075967 PULLEY PLASTIC
$27.50
W0076089 HOSE FILLER
W0274160 HOSE ASSY INLET COLD GREY
W0284368 LOCK DOOR
W0016544 WASHER, PLAIN
$30.00
W0016559 SCREW PULLEY
$4.50
W0016928 LEG ASSY
$18.90
W0016944 CAP REAR PANEL
$16.00
W0017098 CLAMP DET DISPENSER GASKET
W0017108 SUPPORT,HOSE DRAIN,LOW
$8.75
W0017116 GASKET DRUM SHAFT
W0017132 LAMP DRUM LIGHTING ASSY
$22.00
W0017148 SHOCK ABSORBER ASSEMBLY
$64.00
W0017154 BRACKET SHOCK ABSORBER RH
$6.60
W0017171 SCROLL RECIRCULATION
$21.60
W0018732 CORD POWER SUPPLY AUSTRALIA
$18.25
W0027045 STRIP, DOOR LOCK, EMERGENCY
$6.15
W0027079 LATCH, DOOR
$8.80
W0027099 PROTECTION DOOR LOCK
$4.50
W0029602 BRACKET SPRING SUPPORT
$19.75
W0029815 LIFTER DRUM
W0029988 SPIDER ASSEMBLY+BUSHING
$160.05
W0074340 SCREW BEARING SPIDER
W0074343 SCREW MOTOR 5.5 X 38 EWF1092
W0075275 CLAMP CABLE
W0075935 HOSE CLAMP ID=20.5
W0076221 PANEL REAR
W0089302 HOSE SET,PRESSURE SWITCH L550
W0274360 HOOK OUTLET HOSE
W0275188 PUMP BODY KIT CW2.0 JET
$19.00
W0275691 COVER DRAIN PUMP PROTECTION
W0282257 CLAMP HOSE
$4.50
W0282314 BOLT SHOCK ABSORBER
$9.00
W0282595 SPANNER KEY,HEC B.I.
$11.00
W0282849 INTERNAL DRAIN ASSY G60XC JET
W0283301 BELLOW DOOR 3XL WM JET LIGHT
W0283303 HINGE REINFORCEMENT
$4.50
W0283309 FRONT PANEL PCM WHT 0.7MM
$129.25
W0283327 GLASS, DOOR
W0283329 BUSHING HINGE
$4.50
W0283330 PIN DOOR HINGE
$4.50
W0283336 HINGE
$21.65
W0283339 BUTTON PUSHFILTER DOOR
$21.00
W0283343 FRAME REAR DOOR
$26.50
W0283360 COVER HINGE GREY
$4.00
W0283427 PCB ASSY WIFI NIUX
$206.60
W0283625 EXTERNAL FRAME ASSY CHR+BLUE
W0283627 PCBA X SELECTOR-TC1 TC2-EAX
$73.90
W0283643 JET NOZZLE ASSY EVO
$4.50
W0283729 CLAMP BELLOWS WITH SPRING
W0284152 FLOAT SWITCH
W0296510 FILTER DOOR
$18.90
W0296511 HOSE CW CW2.0 EVO
$11.50
W0296538 Motor AL PM HP
W0296542 KNOB ASSY UNDER BLUE
$4.50
W0296546 KNOB ASSEMBLY TC2
$40.00
W0296549 HOSE RECIRCULATION ASSY
W0359287 DRAIN FILTER
W0361058 BRACKET CONTROL PANEL
$11.95
W0361061 SUPPORT DRAIN HOSE HIGH
W0361735 HOSE RECIRC INTAKE
$14.50
W0361849 BUTTON ON/OFF
$12.60
W0361872 PUMP CW 2.0 SCROLL ASSY
W0361901 GROMMET INLET VALVE
$4.50
W0361908 PCBA USER INTEFACE TC1 WM
W0361909 CONTROL PANEL ASSY EWF1041ZDWA
W0361952 PCBA MOTOR CONTROL EMC18 PMM
W0362047 HARNESS WIRING TC1 G60
$228.65
W0362359 WORK TOP ASSY
$94.25
