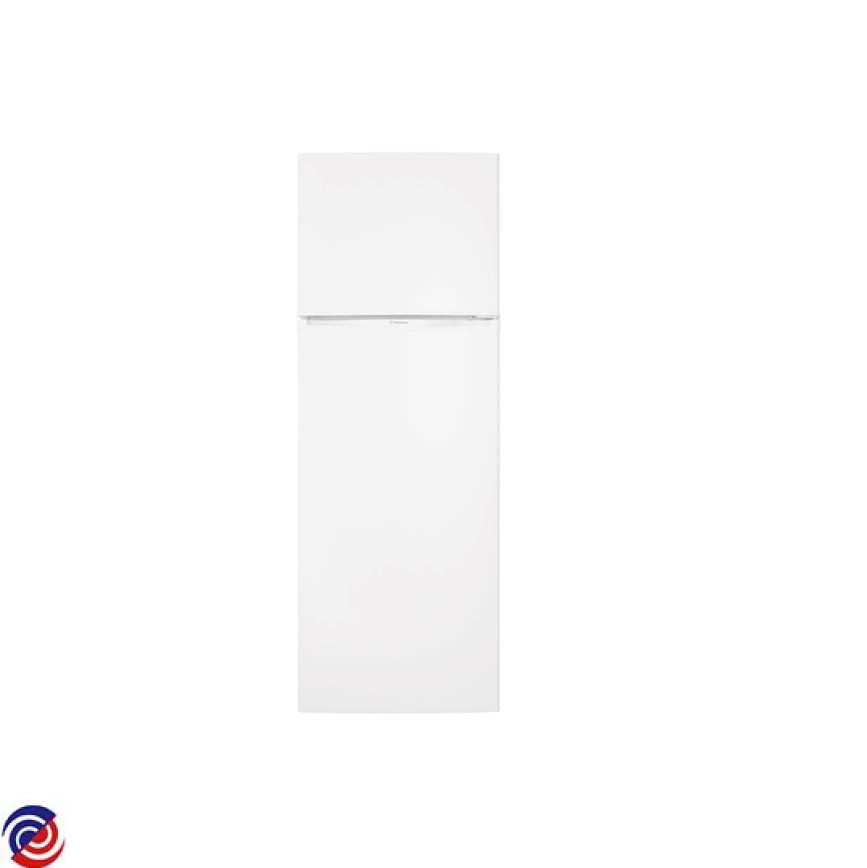

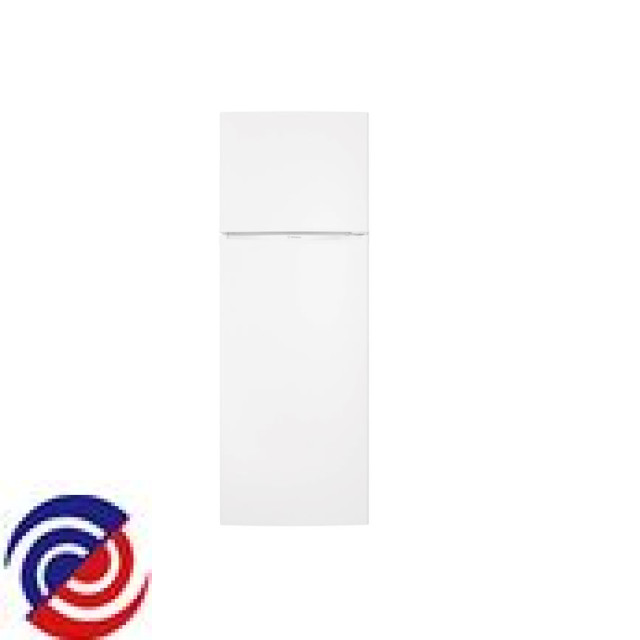

WTM3300WB ML08
WESTINGHOUSE — Fridge
Parts for WTM3300WB ML08
W0018095 BIN DOOR FZR
$50.00
W0018098 BIN HALF WIDTH
.JPG)
W0018109 COVER HINGE RH
W0018129 BIN DELI SHALLOW
W0018179 CONTROL HUMIDITY
$8.00
W0018465 CAPAC 4UF 400V WIRED CLIP
.JPG)
W0018581 ROLLER ADJUSTABLE
W0020709 HOLDER BOTTLE WHT
$10.00
W0034671 TRAY ICE CUBE
.JPG)
W0083263 STOP DOOR
.JPG)
W0085600 CAP LEG
$12.90
W0085609 LEG STABILISING
W0086637 HOSE DRAIN (SLIT 130MM)
$11.90
.JPG)
W0086638 BLADE FAN
.JPG)
W0086775 SWITCH LAMP
W0086833 WESTINGHOUSE FRIDGE DOOR BOTTOM HINGE PLATE R/H
W0087213 HINGE TOP RH
.JPG)
W0088096 MOTOR FAN EVAP
W0088200 HEATER DEF & DTT R600A 595W
$80.90
W0088487 STOP RAIL DELI BIN
W0159670 DRIER 12GM(XH9)DBLE/SGLE TAIL
W0018042 BRACKET FAN MOTOR
$7.00
W0018049 CLIP SELF ADHESIVE
$9.00
W0018081 SHROUD FAN MOULDED RJ393V
W0018166 GROMMET FAN MOTOR
$16.45
W0018170 GROMMET COMPRESSOR
W0018180 LID CRISPER
W0018193 TRAY EGG
$11.95
W0018228 PLUG END CAP WHITE WTM2800WB-X
W0018243 HOLE PLUG WTM2900WB-X
W0018252 GASKET DOOR FC
$87.90
W0018253 CAP CORNER WHT
$17.05
W0018383 GASKET LAMP SEALING
$7.70
W0018624 PAN DRAIN WANBAO ETZ110
$21.10
W0018641 CORD SERVICE INSUL EBE5100SC
W0020710 RUNNER SHELF FZR LH
$14.30
W0020711 RUNNER SHELF FZR RH
$14.90
W0020713 SCREW FZR SHELF WTM2800PB-X
$4.50
W0081199 TIE CABLE 140MM LONG
W0081263 PIN COMPRESSOR MTG RS652M*6
W0081396 CAP SNAP C195F
W0082523 RIVET
W0082722 FOAM TAPE RJ393V
W0083235 CLIP-HEATER-ALUMINIUM BJ414Q
W0083869 PLUG DRAIN WHT
W0084491 SEAL BYPASS PLASTIC N410F
W0084558 DAMPER NOISE
W0084749 CLAMP-CORD BJ385T
W0085286 INSULATION EVAP COVER N280J
W0085293 EVAPORATOR COVER RJ282V
W0085458 DOOR DAIRY RH RJ282V
W0085460 DOOR DAIRY LH RJ282V
W0085499 SHELF FC 505.47MM X 334.79MM
W0085518 BIN CAN RJ282V
W0085590 RUNNER DELI SHALLOW RH
W0085654 ROLLER CRISPER LID
W0085947 PLUG SCREW
$3.90
W0086012 BIN BOTTLE RJ282V
W0086053 THIMBLE FILLER ASSY CLOSED
W0086056 THIMBLE CAM ASSY CLOSED RJ393V
W0086131 COVER TOGGLE LOCK SR300B
W0086339 SCREW M4 X 8 MUSH RJ393V
W0086352 RUNNER DELI SHALLOW LH
$11.90
W0086441 GASKET DEL TOP N280J
W0086579 TAPE FOAM SEALING SBM3800MA
W0086607 SCREW 6GA 3/4 PAN PH BJ384V
W0086791 BASE PLATE COMPRESSOR
W0086801 BIN CRISPER RP372V
W0087334 PAD STOP SKID ROLLER
W0087402 SCREW 8/32 X 3/8 ETM3600WB
W0087403 CLIP MOUNTING COMPRESSOR
W0087405 SCREW 12/14 16MM ETM3600WB
W0087406 SCREW-HINGE/CAM-BTM ETM3600WB
$4.50
W0087407 SCREW 8/32 X 1/2THREAD FORMING
W0087409 SCREW EVAP COVER 8 X 1/2
$4.00
W0087410 SCREW DELI RUNNER RJ393V
W0087411 SCREW HINGE CENTRE
$4.50
W0087412 SCREW ETM3600WB
W0087416 SCREW 8 X 1/2 T/F ETM3600WB
W0087417 NUT ETM3600WB
W0087425 DOOR ASSY FC WTM3300WB-X
$209.00
W0087431 DOOR ASSY FZR RH WTM3300WB-X
W0087477 HINGE CENTRE N280J WHITE
W0087634 GASKET DOOR FZR
W0087676 TROUGH DRAIN ASSY WTM2800PB-X
W0087733 SHIELD LIGHT
W0087800 TRAY ICE CUBE ASSY
W0088018 SENSOR ASSY ETM4200SC
W0088080 CONTROL T/STAT ASSY TOP
$89.90
W0088172 SOCKET LAMP ERM4307SC
W0088407 TRAY DRIP CONTROL HOUSING TOP
W0088414 COVER EVAPORATOR ASSY
$40.00
W0088430 ROLLER REAR GREY
W0088431 SHAFT ROLLER
W0088466 SPACER ROLLER STRIKESIDE
W0088488 BOTTLE FINGER WTB2800
W0088495 BIN DAIRY
$54.90
W0088654 LAMP 30W ES14 SES 240V T25
W0088750 EVAPORATOR ASSY 595W R600A
W0088785 COMPRESSOR KIT-WANBAO ETY95A
W0096151 SHELF ASSY FZR
$54.90
W0096154 BIN ICE
$55.00
W0134824 TAPE TESSA MOL 4761
W0134832 TAPE-FOAM SEAL18X4 14M/RLL.
W0163904 KNOB ICE B6565WTB2800WA-XAU
W0166429 SPRING ICE CUBE TRAY
