WTB5400WB — 925060535 00
WESTINGHOUSE — Fridge

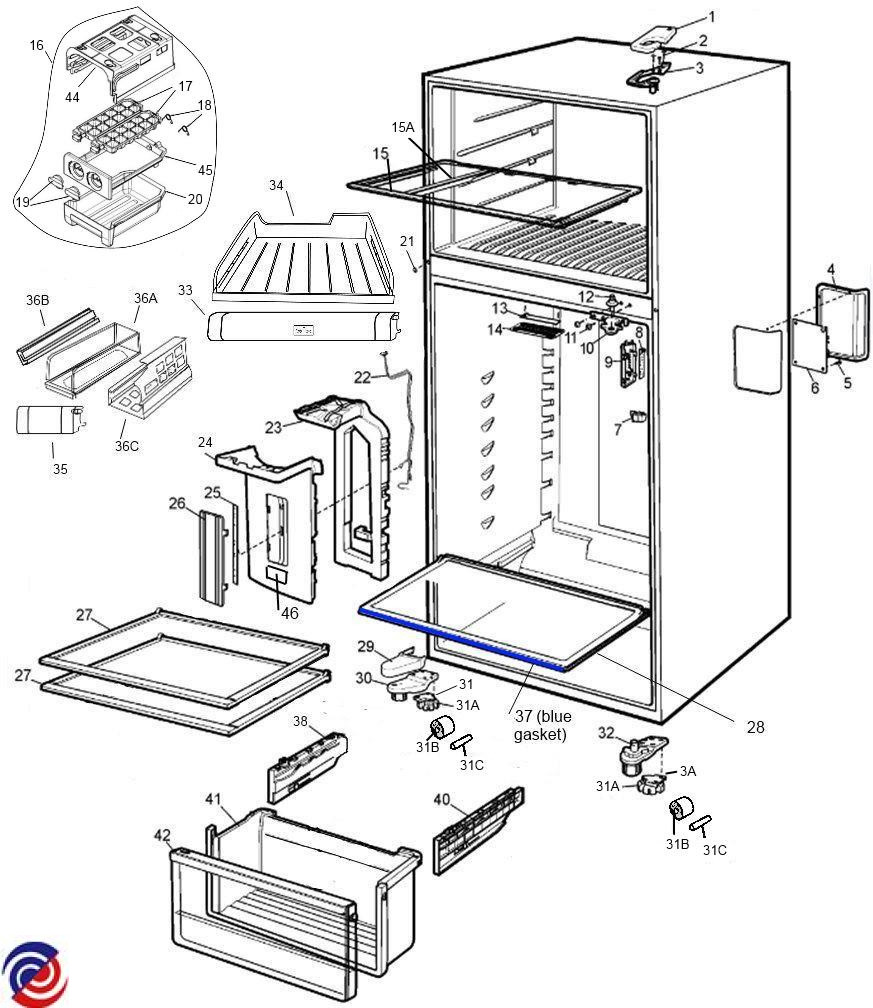

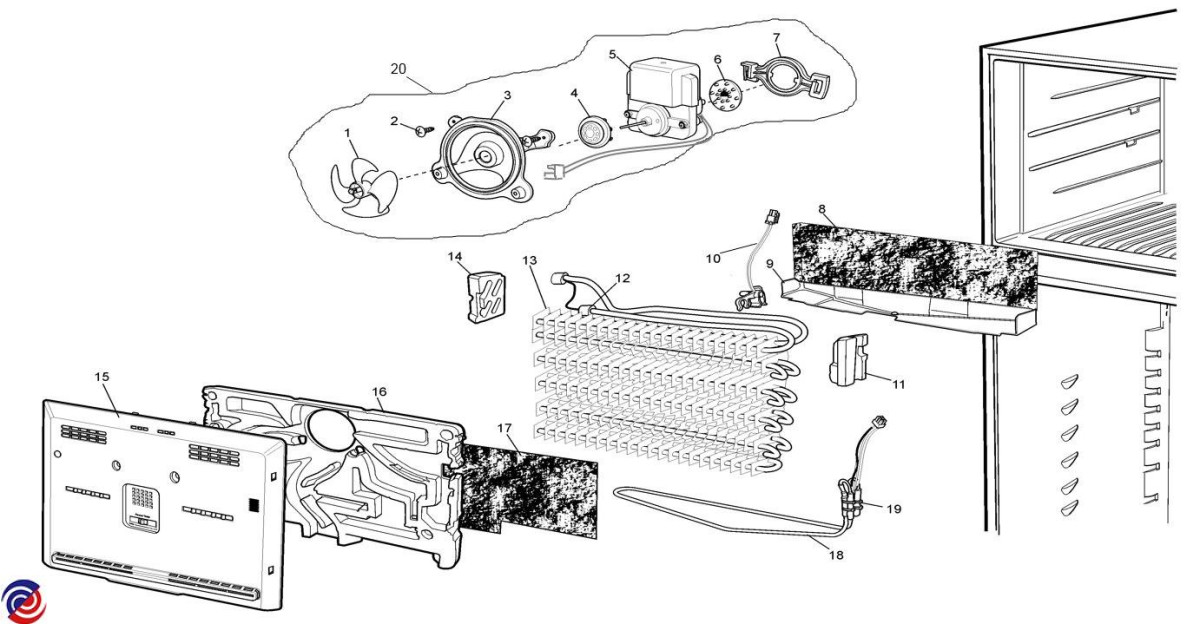

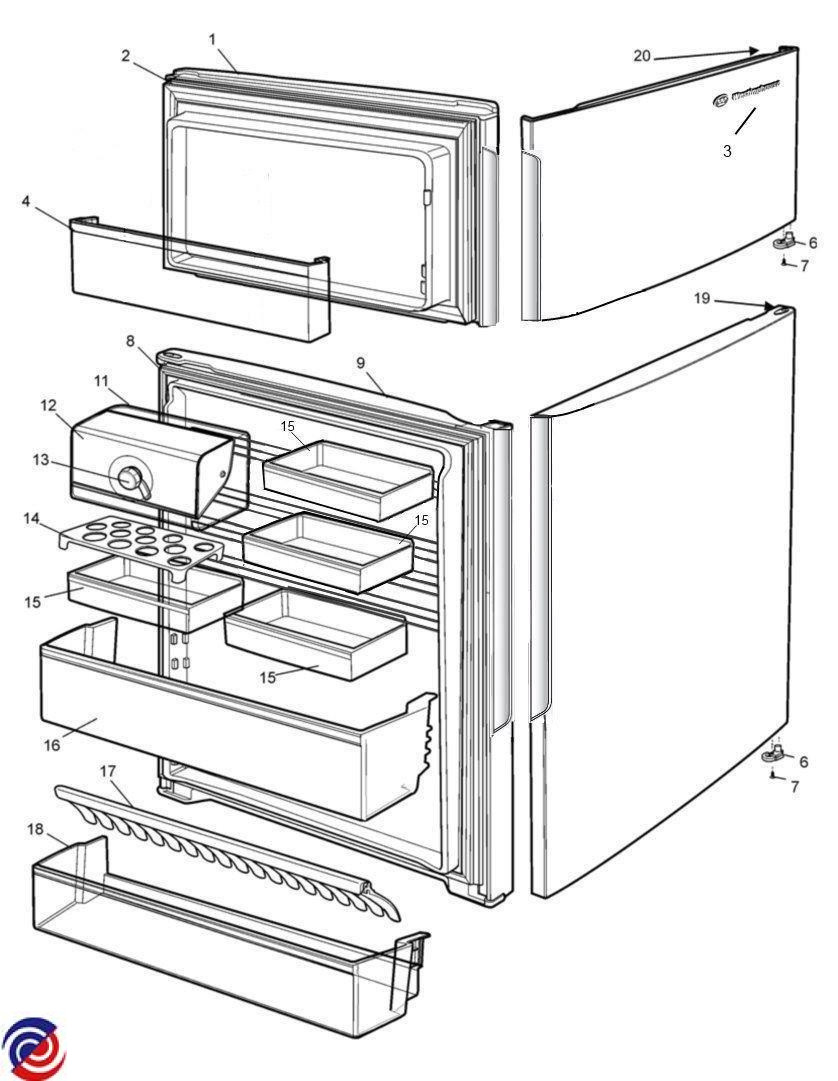

Parts for WTB5400WB
.JPG)
W0018582 BADGE NAMEPLATE
W0020667 PCBA 3 LEDS CLUSTER GALAGA
W0027096 BOARD G SSLB WBE4500SA
$179.85
W0027439 SCREW TRILOB M5X16
$4.50
W0027522 COVER SCREW
$4.50
W0027529 GROMMET FAN SIDE
$8.75
W0027532 MOTOR FAN L 240V/50HZ 350MM TY
W0027540 SHROUD FAN
$55.00
W0027560 GROMMET COMPRESSOR
$11.50
W0027562 CLAMP NTC EVAPORATOR
W0027610 CLAMP COMPRESSOR
$4.50
W0029335 COVER EVAP ASSY TF80 WH/KL
$34.15
W0029415 BIN DOOR FC SHALL 80 1-HOTFOIL
W0029435 TRAY EGG 80W
.jpg)
W0029560 HEATER RAD DEF R600 240V TF80W
W0029587 HARNESS-ASSY SENSOR DEFROST
W0029667 DOOR BIN FC BOTTLE TF80 EL
W0029694 SHAFT ROLLER FRONT WTB4600
$7.60
W0029699 FOOT BASE THREAD
$8.75
W0029700 ROLLER FOOT
$17.10
W0029701 FOOT LEVER
W0087752 BLADE FAN
W0154019 WESTINGHOUSE FRIDGE MAIN PCB WTB4600 WTB5400
W0159670 DRIER 12GM(XH9)DBLE/SGLE TAIL
W0294684 SHROUD FAN ASSY BF DC 50HZ
W0018166 GROMMET FAN MOTOR
$16.45
W0020669 LENS 3 LEDS CLUSTER GALAGA
$26.80
W0027223 TUBE PROCESS 100MM
$4.50
W0027441 SCREW TRUSS 4.2X13
W0027461 BIN ICE COOL MINT
W0027539 BRACKET MOUNT FAN SURROUND
$14.50
W0027553 VALVE DRAIN ASSY BF
$184.20
W0027598 GASKET FZR TF80
$106.75
W0027600 GASKET FC TF80
$120.00
W0029310 HINGE TOP LEFT
$6.40
W0029333 DUCT EVAPORATOR
$96.00
W0029373 SUPPORT EVAPORATOR LEFT TF
$6.20
W0029398 DOOR BIN LOCKABLE TF80 WH ASSY
W0029407 BIN DOOR FLEX 80 1-HOTFOIL
W0029439 SHELF FZR TF80 ASSY
$79.00
W0029442 SUPPORT ICE T&S SHELF TF
W0029444 MULTIFLOW ASSY LED TF
$105.25
W0029446 SHELF FC TF80W
$79.80
W0029450 SHELF FC TF80W WH ASSY DELI
W0029468 COVER TOP HINGE LEFT WHT
$12.95
W0029537 BEARING AUTO CLOSER L TF WHT
$8.80
W0029562 BEARING HINGE FC TOP TF WHT L
W0029567 BEARING HINGE FZR TOP CLOSED
$8.15
W0029583 SUPPORT SHELF DOUB T&S TF EL
$12.25
W0029586 FRAME T & S TRAY ASSY WHITE
$33.50
W0029596 DRAIN PAN SD
W0029597 PAN DRAIN DYN CON
W0029599 TWIST&SERVE 2 ICETRAY KIT TOP
$82.70

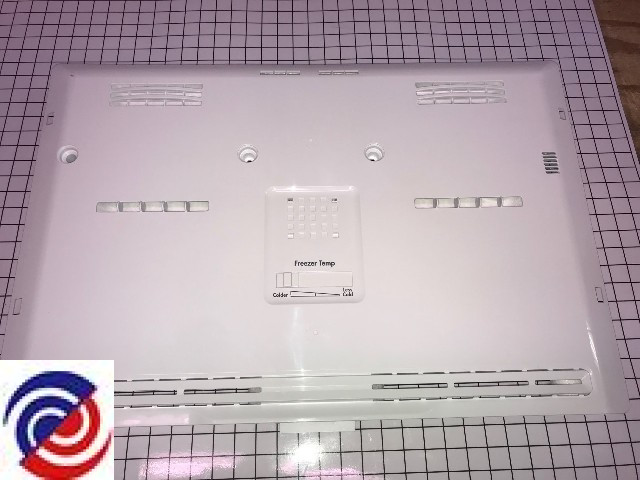

W0029603 REAR HOUSING PCB COVER
$164.80
W0029604 REAR HOUSING PCB ADAPTER
W0029668 TRAY EVAP DRAIN TF80W
$18.00
W0029674 HINGE CENTRE BASE ASSY
$37.75
W0029675 HINGE CENTRE PIN SWING DOOR
$8.15
W0029696 COVER FOOT RIGHT HINGE WHITE
$4.50
W0029703 HINGE BASE LEFT ASSY
$29.00
W0029708 FOOT LEFT ASSY
$20.10
W0029731 SCREW TRILOBULAR M4X12
$4.00
W0029740 DRAWER DELI FC HALF WH ASSY
$77.25
W0029830 SUPPORT EVAPORATOR RIGHT TF
$6.20
W0029842 TUBE CORRUGATE TF
$16.95
W0029926 CRISPER GASKET 80
$22.00
W0147520 SWITCH DOOR
$26.50
W0147552 ROLLER REAR WTB4600WA RAYONG
$7.20
W0147553 SHAFT ROLLER
W0154026 LENS COVER BLUE ASSY
$27.50
W0273634 RUNNER RAIL CRISPER SLIDE RH
W0273635 RUNNER RAIL CRISPER SLIDE LH
W0275534 DOOR BIN FINGER TF80 WH
W0275612 CLAMP COMPRESSOR SINGLE
$4.50
W0283480 HEATER TUBE DRAIN PAN SD LOK
$32.85
W0283821 DOOR SPARE FC WTB5400WB-L
$381.55
W0283871 DOOR SPARE FZR WTB5400WB-L
$382.70
W0284102 SEAL FOAM
$8.70
W0296482 DRAWER FR TF80 FLAT WH ASY
