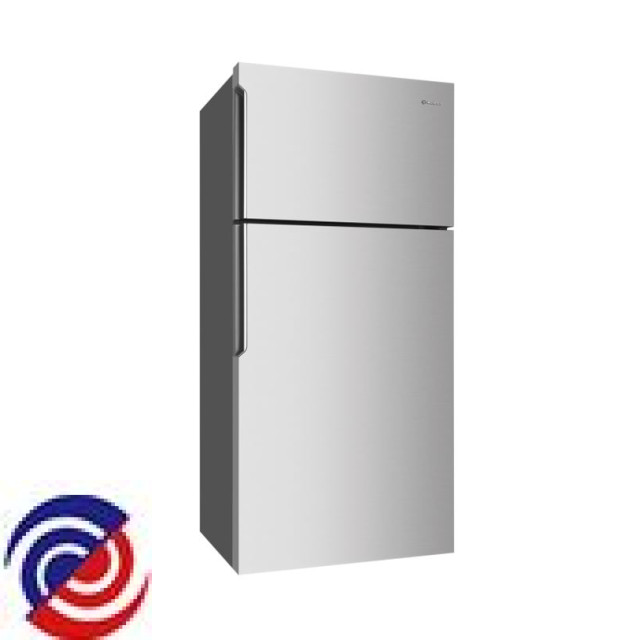

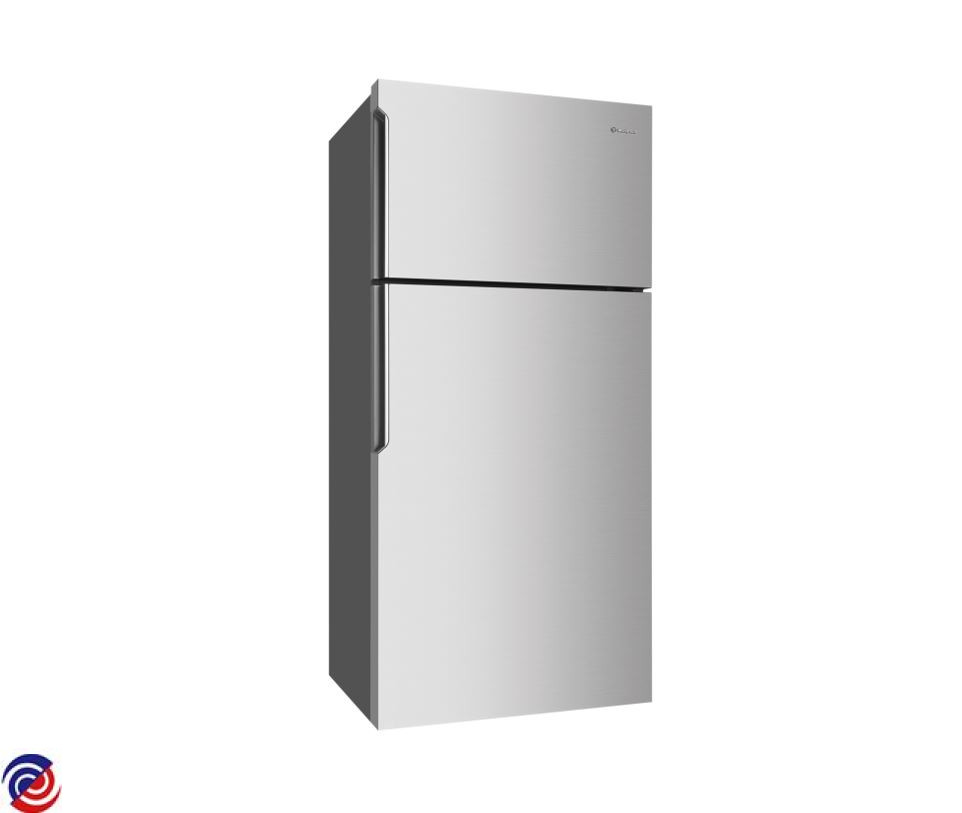

WTB5400SC-R — 925060840 02
WESTINGHOUSE — Fridge

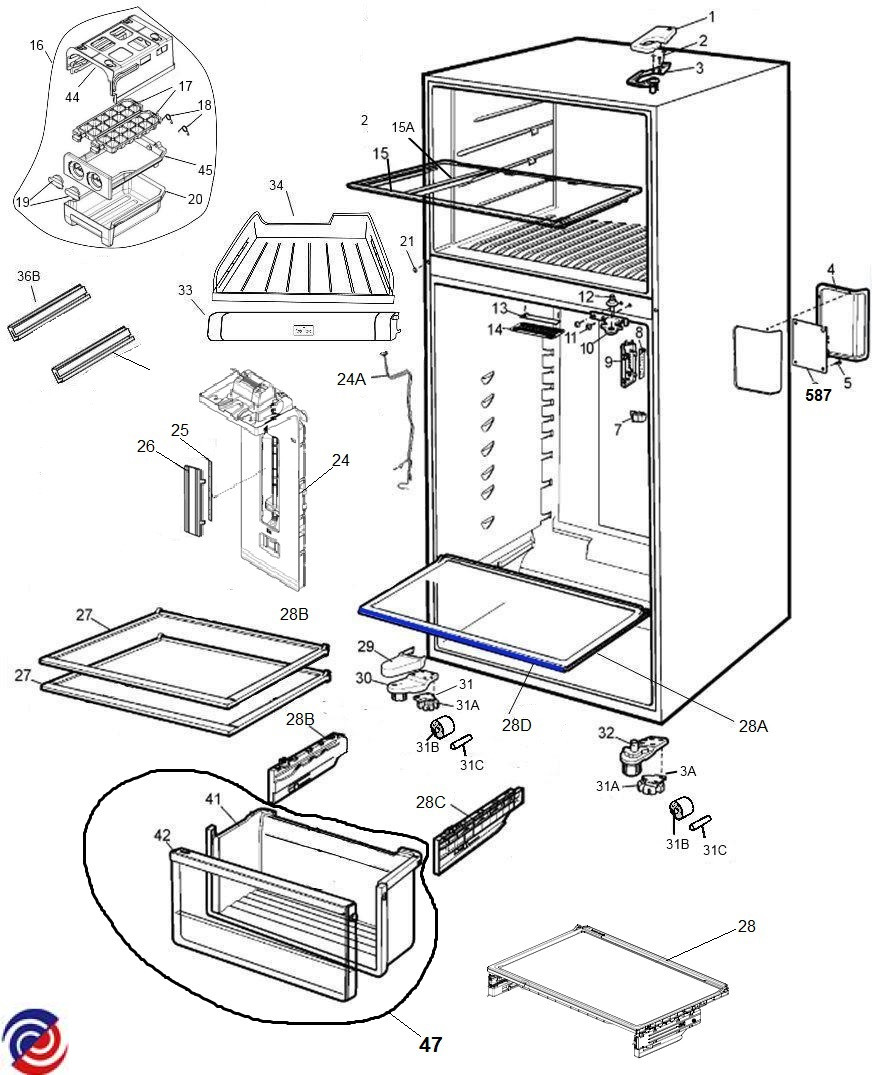

Parts for WTB5400SC-R
W0368433 MOTOR FAN DC 3W
W0368686 BIN DOOR FC SHALL 80 1-HOTFOIL
$68.00
W0371506 DRAWER C/COVER TF80 WH ASSY
$81.00
W0376337 FRIDGE FAN BLADE
$35.00
W0365693 NAMEPLATE WHITE WEST
$12.00
W0365812 GROMMET COMPRESSOR
$14.00
W0365942 GROMMET FAN MOTOR
W0366316 LENS 3 LEDS CLUSTER GALAGA
$21.00
W0367795 COVER SCREW
$4.00
W0367948 RETAINER CLIP
$4.00
W0367952 CLAMP COMPRESSOR SINGLE
$4.00
W0368003 SCREW TRILOBULAR M4X12
$4.00
W0368006 SCREW TRILOB M5X16
$5.50
W0368009 CLAMP COMPRESSOR
$4.50
W0368335 DRAIN PAN SD
$33.00
W0368380 BEARING AUTO CLOSER R TF SL
$11.00
W0368396 HINGE BASE ASSY RIGHT WITH ADJ
$46.00
W0368443 TRAY EGG 70W
$18.00
W0368469 FOOT LEVER
$10.00
W0368758 RUNNER RAIL CRISPER SLIDE RH
$20.00
W0368793 DRAWER CRISPER BODY TF80
W0368808 SUPPORT SHELF DOUB T&S TF EL
$13.00
W0368860 PCBA # LED CLUSTEER GALGA
$25.00
W0368883 RUNNER RAIL CRISPER SLIDE LH
$20.00
W0368898 PAN DRAIN DYN CON
$26.00
W0368937 LID CHILL ROOM LARGE TF80E-ART
$20.00
W0368949 BIN DOOR LOCKABLE TF80 SEA ASY
$24.00
W0369887 PCB, LED, SIDE, L=342MM
$40.55
W0369890 COMPRESSOR PLATE, ASSEMBLY, 17
W0369918 BAFFLE, SLIDE, FRZ TF CLOSED W
W0369926 DOOR GASKET, FREEZER, TF80
$510.05
W0369927 DOOR GASKET, FRICTION DISC, TF
$468.75
W0369968 COVER, EVAPORATOR, ASSEMBLY
W0369979 RAIL BASKET, RIGHT, TF
$13.00
W0369980 RAIL BASKET, LEFT, TF
$13.00
W0369982 COVER, HINGE, TOP RIGHT GR
$4.00
W0369996 BEARING, HINGE, RIGHT
$4.00
W0370007 COVER, CRISPER
W0370014 TRAY, EVAPORATOR, DRAIN, TF80W
W0370089 PAN, DRAIN, ASSEMBLY
$30.10
W0370092 PAN, DRAIN, ASSEMBLY
$25.50
W0370163 HARNESS, ASSEMBLY
W0370401 DRIER REFRIGERATION 280 LTR
$23.85
W0371067 CONFIGURED ELECTRONIC
W0371446 COVER FOOT LEFT HINGE GREY
$14.00
W0371448 FOOT BASE THREAD
$10.00
W0371534 HEATER RAD DEF R600 176W TF80W
$92.00
W0371580 DOOR BIN FINGER TF80 WH
$11.00
W0372382 TUBE CORRUGATE SD
$5.50
W0372497 COVER DEODORIZER WHITE FS
$5.80
W0372534 COVER TOP CABINET WH GR
$8.00
W0372540 ROLLER REAR WTB4600WA RAYONG
$8.00
W0372544 SUPPORT ICE T&S SHELF TF
$7.30
W0372577 SHAFT ROLLER FRONT WTB4600
$9.00
W0372579 BEARING HINGE FZR TOP CLOSED
$9.00
W0372590 HINGE TOP RIGHT
$10.00
W0372604 HINGE CENTRE PIN SWING DOOR
$10.00
W0372686 TUBE JUMPER H/X 80W FMXY
$12.40
W0372762 GROMMET FAN PANA DC FAN
$17.00
W0372768 LENS COVER BLUE ASSY
$16.60
W0372799 ROLLER FOOT
$19.00
W0372822 TUBE PROCESS
$21.00
W0372830 FOOT LEFT ASSY
$22.00
W0372906 PAN DRAIN MD & HEATER TUBE ASY
$24.60
W0372912 POWERCORD INVERTER REF AU/NZ
$27.00
W0373048 BIN FZR DOOR TF80
$36.00
W0373078 HINGE CENTRE BASE ASSY
$40.00
W0373087 TRAY CHILL ROOM LARGE TF80 EL
$41.00
W0373295 BIN DOOR FLEX 80 1-HOTFOIL
$68.00
W0373398 SHELF FC TF80W
$91.00
W0373456 EVAPORATOR FF TF80 N
$101.00
W0373502 MULTIFLOW ASSY LED TF
$111.00
W0374200 SHROUD FAN
$58.00
W0374342 DRAWER FR TF80 FLAT WH ASY
$72.00
W0374881 SUPPORT EVAPORATOR LEFT TF
$7.00
W0374882 SUPPORT EVAPORATOR RIGHT TF
$7.00
W0374933 SEAL FOAM
$8.75
W0375170 SWITCH DOOR
$28.00
W0375225 FRAME T & S TRAY ASSY WHITE
$36.00
W0375442 SHELF FZR TF80 ASSY
$83.00
W0375877 DOOR SPARE FC+FZR WTB5400SB-R
$799.00
W0376265 PCBA DRIVE EMBRACO FMXY9C
$295.00
W0380093 DRAWER, CRISPER, TF80 FLAT WH ASY
$100.00
W0382697 FAN MOTOR,ASSEMBLY
$131.00
W0382921 COMPRESSOR EMBRACO FMXD9C
$399.90
