WTB4600SC-R — 925060834 02

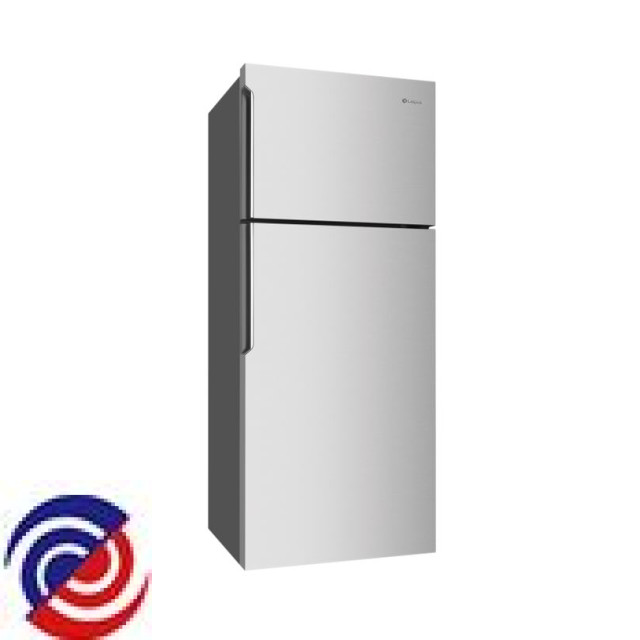

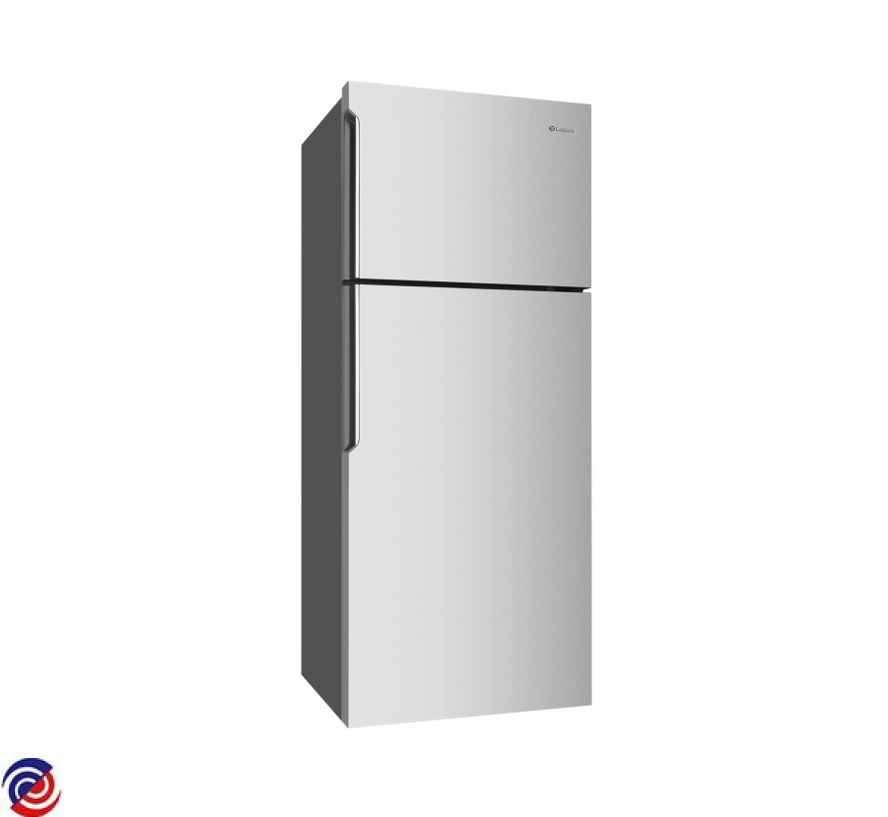

WESTINGHOUSE — Fridge

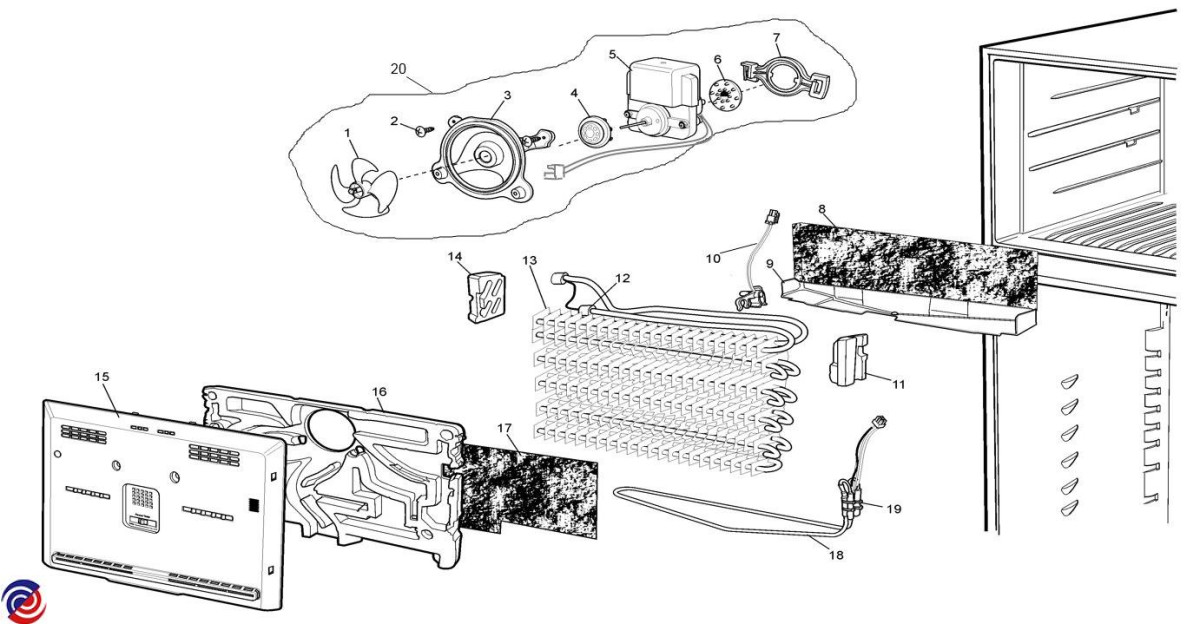

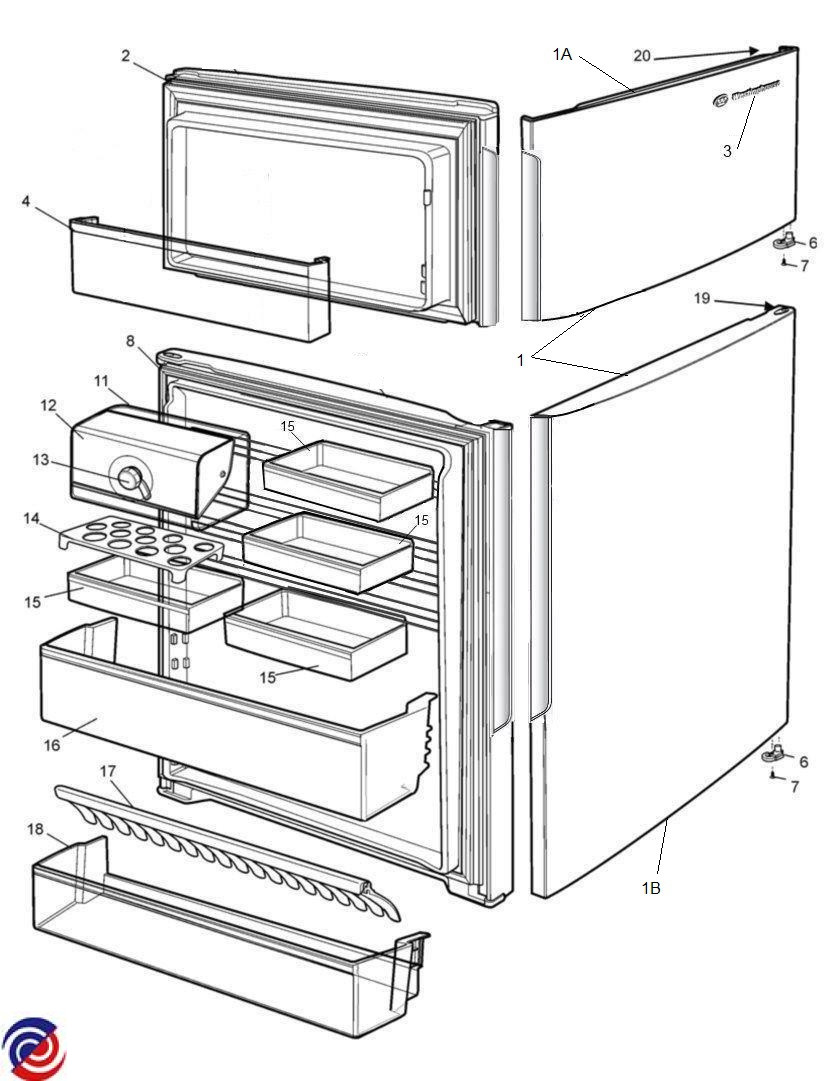

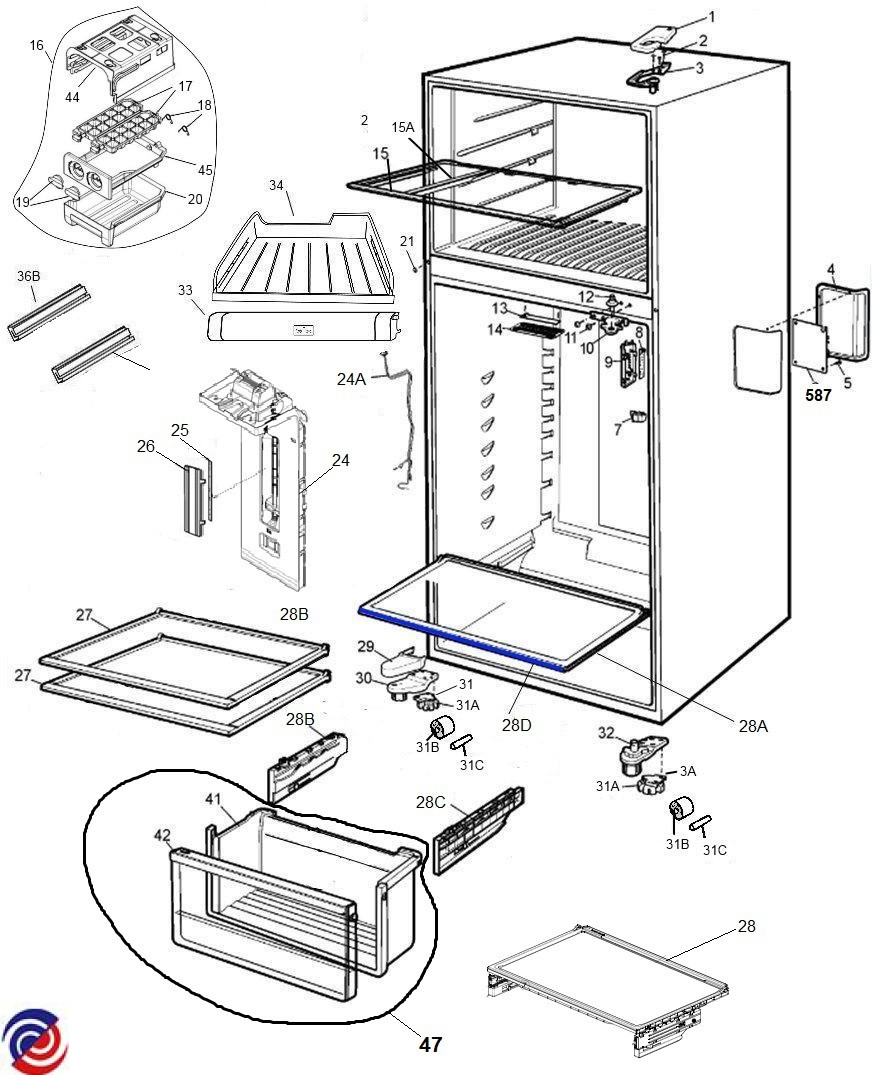

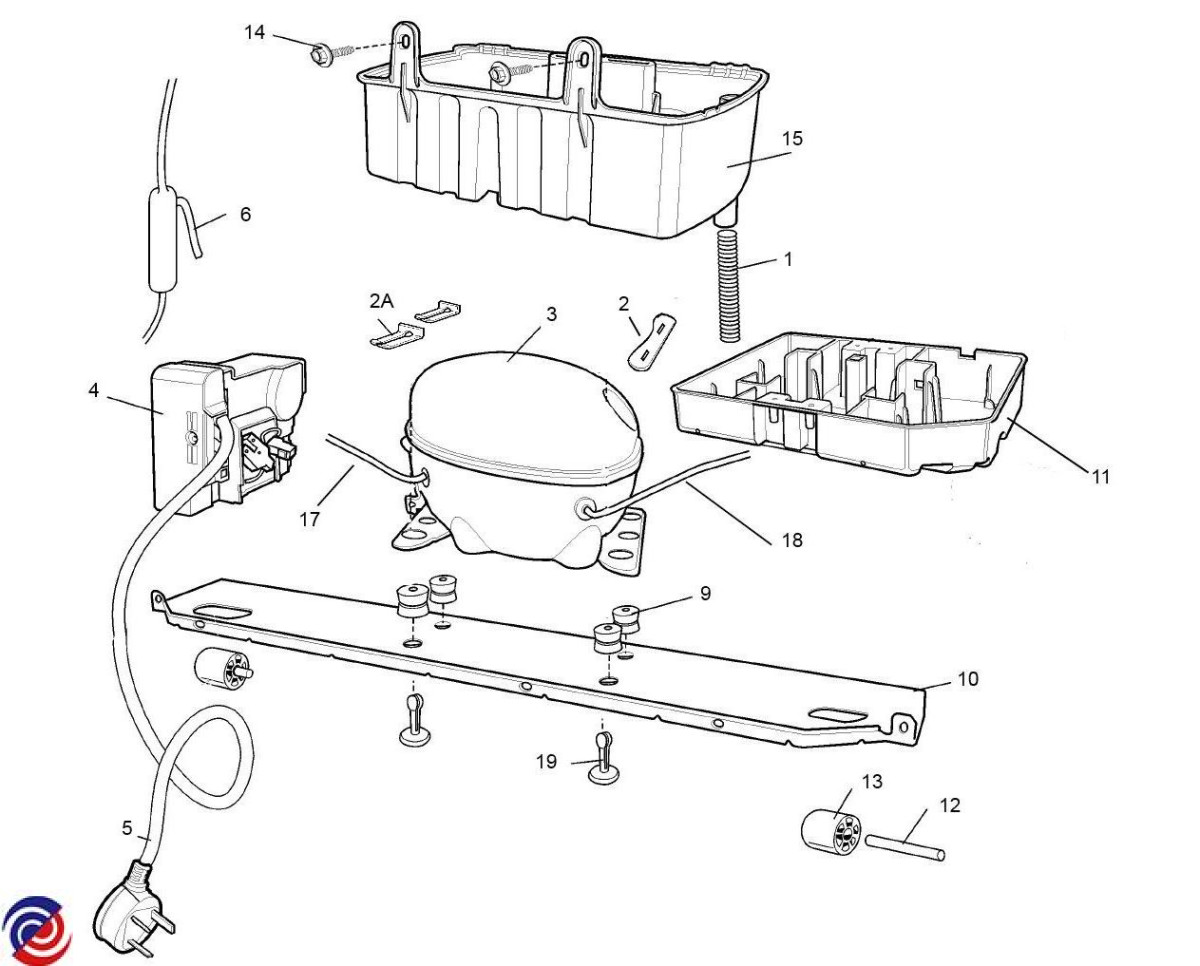

Parts for WTB4600SC-R
W0368350 BIN DOOR FC SHALL 70 1-HOTFOIL
$78.57
W0368433 MOTOR FAN DC 3W
W0368871 DRAWER CRISPER BODY TF70
$87.00
W0373326 BIN DOOR FC BOTTLE TF70W EL
$77.00
W0376337 FAN BLADE, 100 MM
$38.00
W0365693 BADGE 16X75.5 MM WESTINGHO
$12.00
W0365812 DAMPER, COMPRESSOR, 28.6MMX17MM
$14.00
W0365942 GROMMET FAN MOTOR
W0366316 LENS,LED PCB,SIDE,116.02X50.5M
$21.00
W0367795 COVER SCREW
$4.00
W0367948 CLIP,RETAINER
$3.50
W0367952 FIXING BRACKET,COMPRESSOR,42X2
$3.50
W0368003 SCREW,M4X12 PH
$3.50
W0368009 CLAMP COMPRESSOR
$4.50
W0368335 DRAIN PAN SD
$33.00
W0368380 BEARING AUTO CLOSER R TF SL
W0368396 HINGE,BOTTOM,ASSEMBLY,RIGHT
$46.00
W0368443 EGG HOLDER,WHITE,254.8X116.8MM
$19.00
W0368444 SHELF FC TF70W HLZT
$95.00
W0368469 LEVER,FOOT
$10.00
W0368758 DRAWER CRISPER SLIDE COVER
$20.00
W0368808 BRACKET,ICE-MAKER
$13.00
W0368860 LED PCB
W0368883 DRAWER CRISPER SLIDE COVER
$20.00
W0368898 DRAIN,TRAY,276.5X205.3MM
$26.00
W0369887 PCB, LED, SIDE, L=342MM
$40.65
W0369918 BAFFLE, SLIDE, FRZ TF CLOSED WHT
$3.50
W0369967 COVER EVAP FR TF70 WH-ART
$22.55
W0369979 RAIL BASKET, RIGHT, TF
$13.05
W0369980 RAIL BASKET, LEFT, TF
$13.05
W0369982 COVER, HINGE, TOP RIGHT GR
$3.50
W0369996 BEARING HINGE FC TOP TF DG R
$3.50
W0370006 DRAWER CRISPER COVER TF70 WH
$61.10
W0370089 DRAIN PAN SD & HEATER TUBE ASY
$30.20
W0370092 DRAIN PAN & HEATER TUBE ASY L
$25.50
W0370163 HARNESS,ASSEMBLY
$10.60
W0370214 CENTRE HINGE REVERSIBLE ZINC
$4.00
W0370401 FILTER,DRYER
$22.50
W0371061 CONFIGURED ELECTRONIC, ERF1600 FCT 6W
$140.00
W0371415 DRAWER FR TF70 FLAT WH ASY
$71.00
W0371446 COVER,FOOT,LEFT
$14.00
W0371448 BASE,FOOT
$10.00
W0371509 LID CHILL ROOM LARGE TF70-ART
$18.00
W0371514 DUCT EVAPORATOR REAR TF70W
$33.00
W0371548 DRAWER C/COVER TF70 WH ASSY
$100.00
W0371549 DRAWER,CRISPER,TF70 FLAT WH ASY
$90.00
W0372382 TUBE,NOTCH
$3.50
W0372497 COVER DEODORIZER WHT FS
$5.80
W0372534 COVER TOP CABINET WH GR
$8.00
W0372540 ROLLER REAR WTB4600WA RAYONG
$8.00
W0372544 SUPPORT ICE T S SHELF TF
$7.35
W0372577 SHAFT,ROLLER
$9.00
W0372579 BEARING,HINGE,TOP
$9.00
W0372590 HINGE,TOP,RIGHT
$10.00
W0372604 PIN,HINGE,MIDDLE
$10.00
W0372611 BIN DOOR FINGER TF70W WH
$11.00
W0372664 CONNECTING PIPE H/X 70W FMXY6C
$11.25
W0372762 BUSHING,FAN,D30MM
$17.00
W0372768 COVER,LENS,ASSEMBLY,385.4X90.4
$16.60
W0372799 ROLLER
$19.00
W0372822 TUBE PROCESS
$21.00
W0372830 FOOT,LEFT
$22.00
W0372877 BIN DOOR LOCKABLE TF70 WH ASY
$26.00
W0372906 TUBE EXTRA
$24.60
W0372912 POWERCORD INVERTER REF AU/NZ
$27.00
W0373294 BIN,SLIDING TYPE,DOOR,SP8008,2
$72.00
W0373319 EVAPORATOR FF TF70 N
$73.85
W0373343 SHELF FZR TF70 ASSY
$80.00
W0373502 MULTIFLOW ASSY TF B SEA FLAT
$111.00
W0373949 DOOR SPARE FC+FZR WTB4600SB-R
$751.00
W0374200 CASING, FAN
$58.00
W0374610 HEATER RAD DEF R600 240V TF70W
$94.00
W0374881 SUPPORT EVAPORATOR LEFT TF
$7.00
W0374882 SUPPORT EVAPORATOR RIGHT TF
$7.00
W0374974 CRISPER GASKET 70
$12.00
W0375030 TRAY EVAP DRAIN TF70W
$14.85
W0375170 SWITCH, DOOR
$30.00
W0375225 ICE-MAKER
$38.00
W0375452 BIN DOOR FZR TF70 ELUX
$99.00
W0375459 TRAY CHILL ROOM LARGE TF70W
$92.00
W0375496 GASKET, FREEZER DOOR, TF70
$105.00
W0376265 PCBA DRIVE EMBRACO FMXA9C
$295.00
W0382697 FAN MOTOR,ASSEMBLY
$138.00
W0382921 COMPRESSOR,EMBRACO FMXY9C
$278.00
