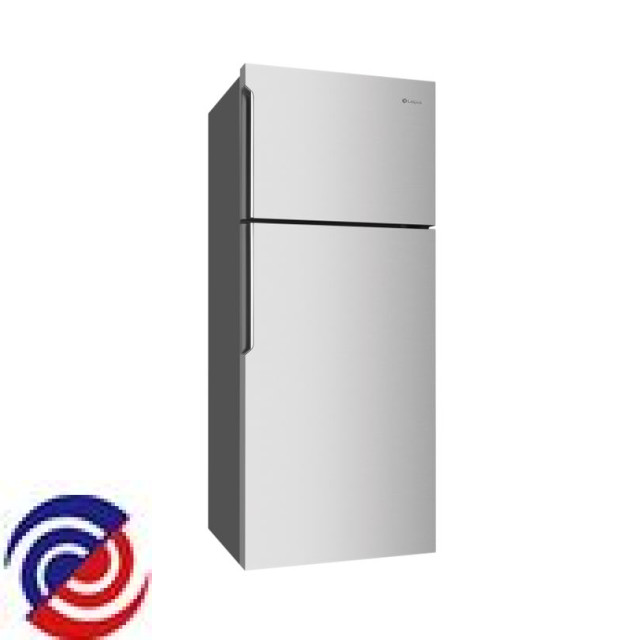

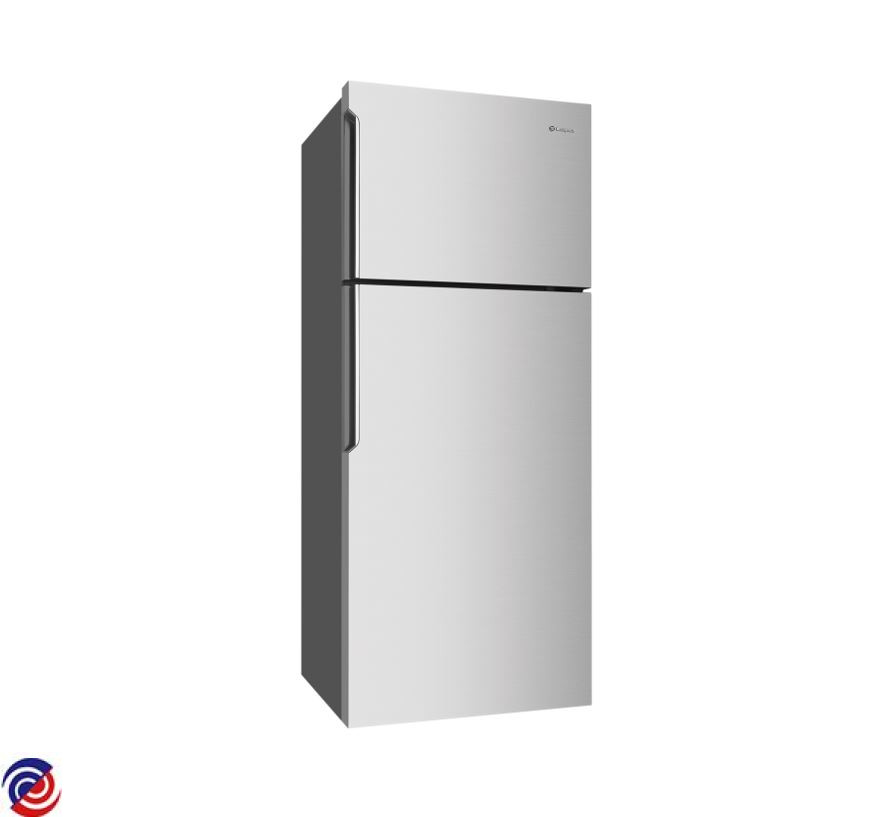

WTB4600SC-R — 925060834 01
WESTINGHOUSE — Fridge
Parts for WTB4600SC-R
W0368350 DOOR BIN FC SHALL 70 WH-HOTFOI
$88.00
W0368433 MOTOR FAN DC 3W
W0368871 DRAWER CRISPER BODY TF70
$82.00
W0376337 FRIDGE FAN BLADE
$35.00
W0365693 NAMEPLATE WHITE WEST
$12.00
W0365812 GROMMET COMPRESSOR
$14.00
W0365942 GROMMET FAN MOTOR
W0366316 LENS 3 LEDS CLUSTER GALAGA
$21.00
W0367795 COVER SCREW
$4.00
W0367948 RETAINER CLIP
$4.00
W0367952 CLAMP COMPRESSOR SINGLE
$4.00
W0368003 SCREW TRILOBULAR M4X12
$4.00
W0368009 CLAMP COMPRESSOR
$4.50
W0368335 DRAIN PAN SD
$33.00
W0368380 BEARING AUTO CLOSER R TF SL
$11.00
W0368396 HINGE BASE ASSY RIGHT WITH ADJ
$46.00
W0368443 TRAY EGG 70W
$18.00
W0368444 SHELF FC TF70W
$90.00
W0368758 RUNNER RAIL CRISPER SLIDE RH
$20.00
W0368808 SUPPORT SHELF DOUB T&S TF EL
$13.00
W0368860 PCBA # LED CLUSTEER GALGA
$25.00
W0368883 RUNNER RAIL CRISPER SLIDE LH
$20.00
W0368898 PAN DRAIN DYN CON
$26.00
W0369887 PCB, LED, SIDE, L=342MM
$40.55
W0369979 RAIL BASKET, RIGHT, TF
$13.00
W0369980 RAIL BASKET, LEFT, TF
$13.00
W0369982 COVER, HINGE, TOP RIGHT GR
$4.00
W0369996 BEARING, HINGE, RIGHT
$4.00
W0370006 DRAWER, CRISPER, COVER, TF70 W
W0370089 PAN, DRAIN, ASSEMBLY
$30.10
W0370092 PAN, DRAIN, ASSEMBLY
$25.50
W0370163 HARNESS, ASSEMBLY
W0370401 DRIER REFRIGERATION 280 LTR
$23.85
W0371415 DRAWER FR TF70 FLAT WH ASY
$67.00
W0371448 FOOT BASE THREAD
$10.00
W0371509 LID CHILL ROOM LARGE TF70-ART
$17.00
W0371514 DUCT EVAPORATOR
$33.00
W0371548 DRAWER C/COVER TF70 WH ASSY
$100.00
W0371549 DRAWER CRIS TF70 FLAT WH ASY
$90.00
W0372382 TUBE CORRUGATE SD
$5.50
W0372497 COVER DEODORIZER WHITE FS
$5.80
W0372540 ROLLER REAR WTB4600WA RAYONG
$8.00
W0372544 SUPPORT ICE T&S SHELF TF
$7.30
W0372577 SHAFT ROLLER FRONT WTB4600
$9.00
W0372579 BEARING HINGE FZR TOP CLOSED
$9.00
W0372590 HINGE TOP RIGHT
$10.00
W0372604 HINGE CENTRE PIN SWING DOOR
$10.00
W0372611 DOOR BIN FINGER TF70W WH
$10.00
W0372664 TUBE JUMPER H/X 70W FMXY6C
$11.70
W0372762 GROMMET FAN PANA DC FAN
$17.00
W0372768 LENS COVER BLUE ASSY
$16.60
W0372799 ROLLER FOOT
$19.00
W0372822 TUBE PROCESS
$21.00
W0372830 FOOT LEFT ASSY
$22.00
W0372877 BIN DOOR LOCKABLE TF70 SEA ASY
$24.00
W0372912 POWERCORD INVERTER REF AU/NZ
$27.00
W0373078 HINGE CENTRE BASE ASSY
$40.00
W0373294 BIN DOOR FLEX 70 1-HOTFOIL
$68.00
W0373319 EVAPORATOR FF TF70 N
$71.05
W0373326 BIN DOOR FC BOTTLE TF70W EL
$73.00
W0373343 SHELF FZR TF70 ASSY
$80.00
W0373502 MULTIFLOW ASSY LED TF
$111.00
W0373949 DOOR SPARE FC+FZR WTB4600SB-R
$751.00
W0374200 SHROUD FAN
$58.00
W0374610 HEATER RAD DEF R600 141W TF70W
$89.00
W0374881 SUPPORT EVAPORATOR LEFT TF
$7.00
W0374882 SUPPORT EVAPORATOR RIGHT TF
$7.00
W0374974 CRISPER GASKET 70
$12.00
W0375030 TRAY EVAP DRAIN TF70W
$16.50
W0375170 SWITCH DOOR
$28.00
W0375225 FRAME T & S TRAY ASSY WHITE
$36.00
W0375452 BIN DOOR FZR TF70 ELUX
$94.00
W0375459 TRAY CHILL ROOM LARGE TF70W
$92.00
W0375496 GASKET FZR TF70
$105.00
W0376265 PCBA DRIVE EMBRACO FMXY9C
$295.00
W0382697 FAN MOTOR,ASSEMBLY
$131.00
W0382921 COMPRESSOR EMBRACO FMXD9C
$399.90
