WTB3700WF — 925053156 00

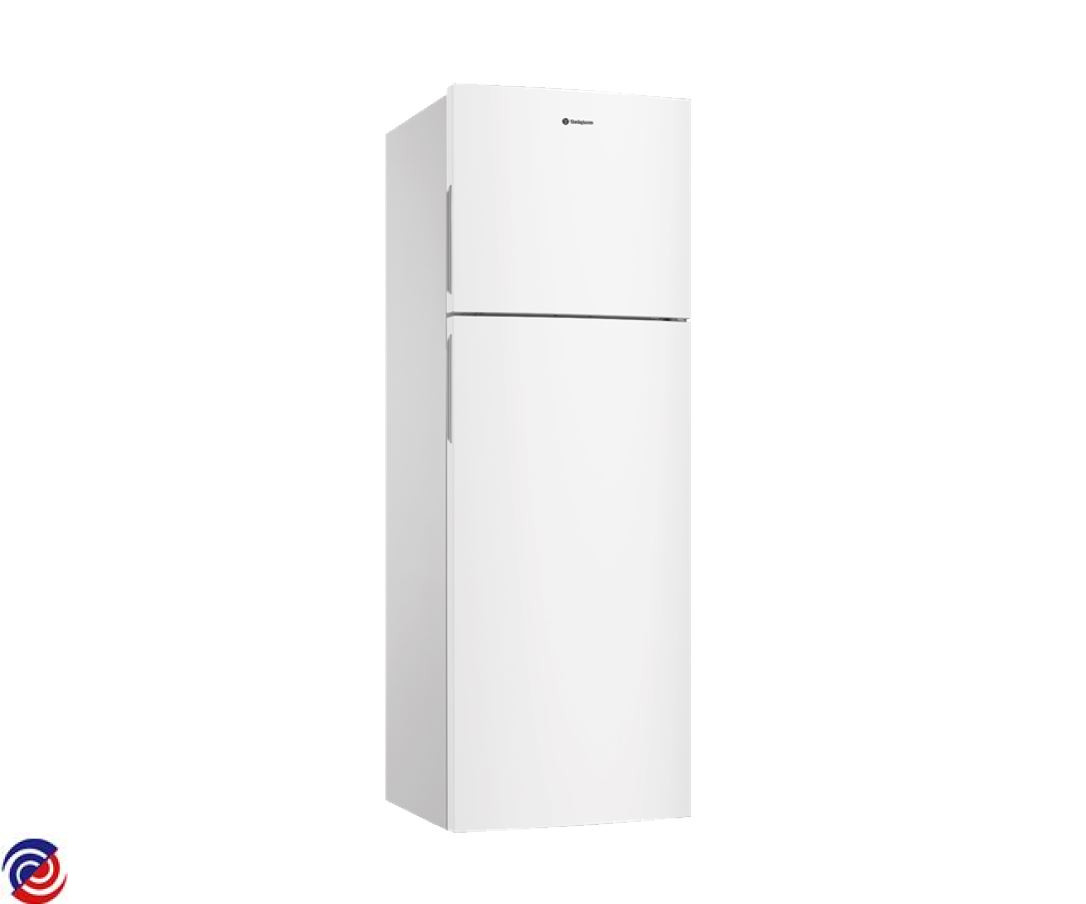

WESTINGHOUSE — Fridge

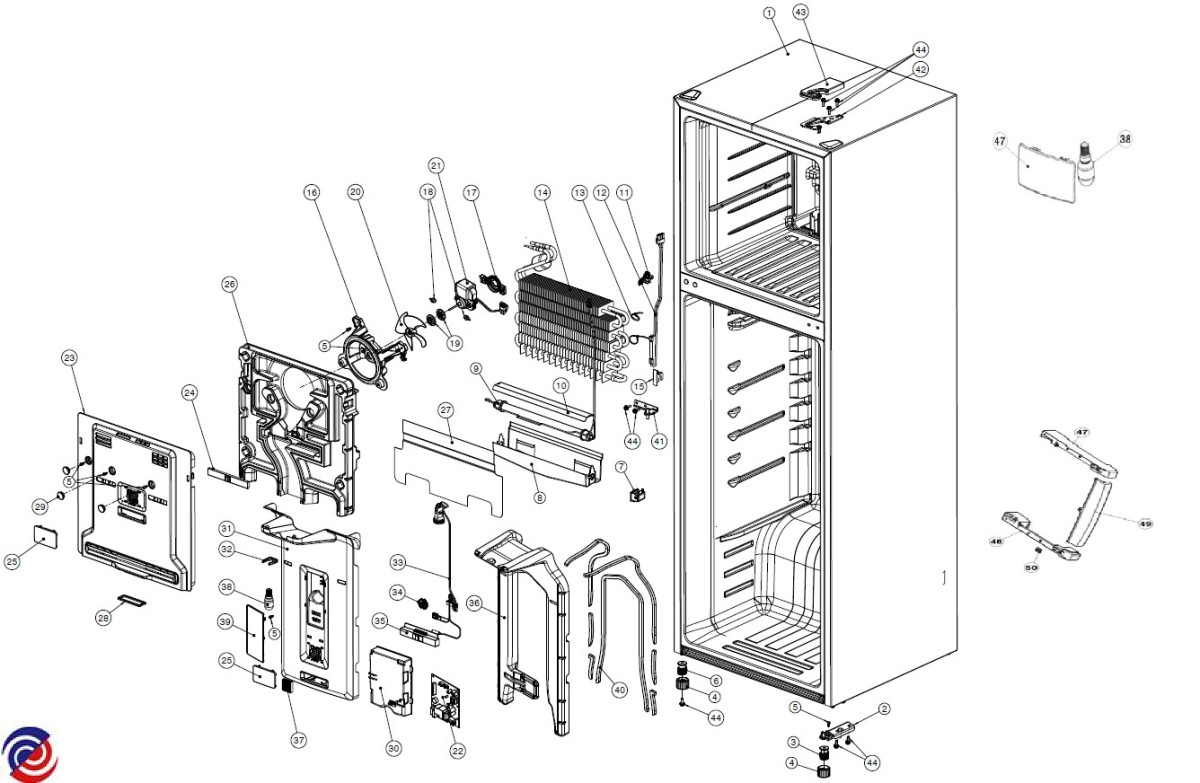

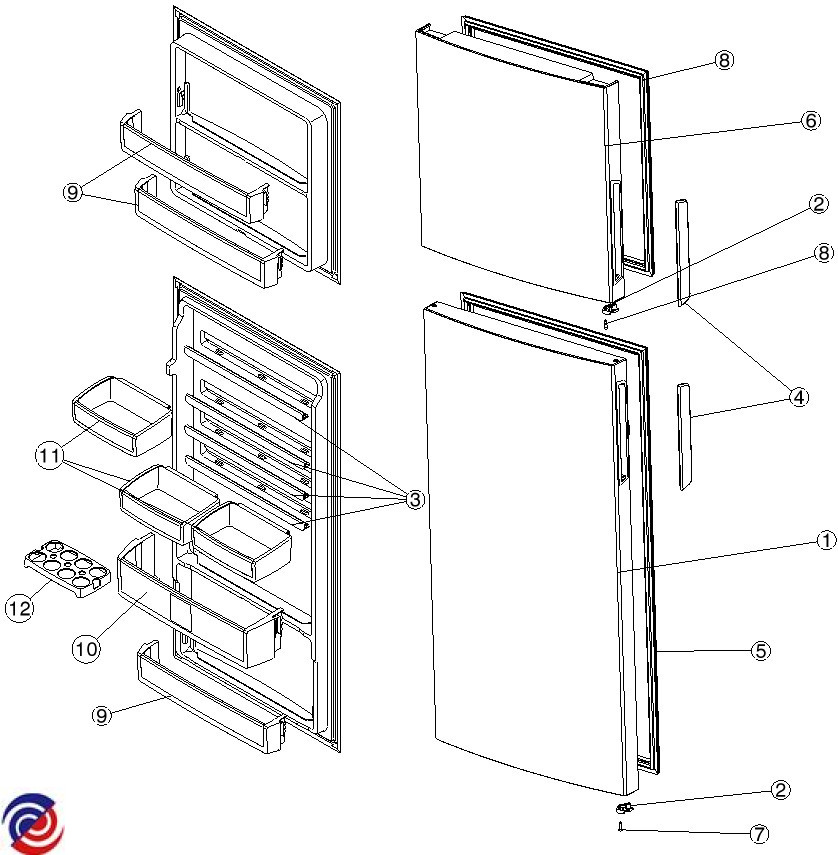

Parts for WTB3700WF
W0027322 POWERCORD FRIDGE AU/NZ F
W0027417 RACK WINE
W0027422 COVER DEODORIZER WHITE
$4.50
W0027432 HARNESS THERMO FUSE
W0027435 CAP RUN 3UF
$23.20
W0027439 SCREW TRILOB M5X16
$4.50
W0027460 BIN ICE
W0027462 SUPPORT ICE T&S
$15.50
W0027465 TRAY CHILL ROOM 60W L
$86.95
W0027468 LID CHILL ROOM 60W
W0027477 CRISPER HANDLE TF 60W
W0027484 TRAY EGG
$11.90
W0027507 GEAR CONTROL TEMP
$18.30
W0027521 LENS MULTIFLOW TF
$7.00
W0027522 COVER SCREW
$4.50
W0027529 GROMMET FAN SIDE
$8.75
W0027535 DUCT MULTIFLOW TF SMALL
$18.20
W0027540 SHROUD FAN
$55.00
W0027559 CLAMP DRYER
$4.50
W0027560 GROMMET COMPRESSOR
$11.50
W0027561 CLAMP NTC EVAPORATOR
$4.50
W0027567 HEATER DEFROST R600A 240V
W0027577 RAIL DOOR SUPPORT 60W WHT
$9.35
W0027585 GASKET FZR TF60W 549 X 471
$90.00
W0027591 GASKET FC TF350L 549 X 1146
$101.55
W0027610 CLAMP COMPRESSOR
$4.50
W0027617 HINGE CENTRE RIGHT
$40.50
W0027618 HINGE TOP RIGHT
$37.50
W0029837 BIN DOOR BOTTLE 60W
W0029839 BIN DOOR FLEX 2/3 EL
W0029915 SHELF GLASS ASSY 60W
$66.00
W0029986 PAN DRAIN EMBRACO EMT40
W0030030 PCB ERF1500 LUXURY TF 260/320

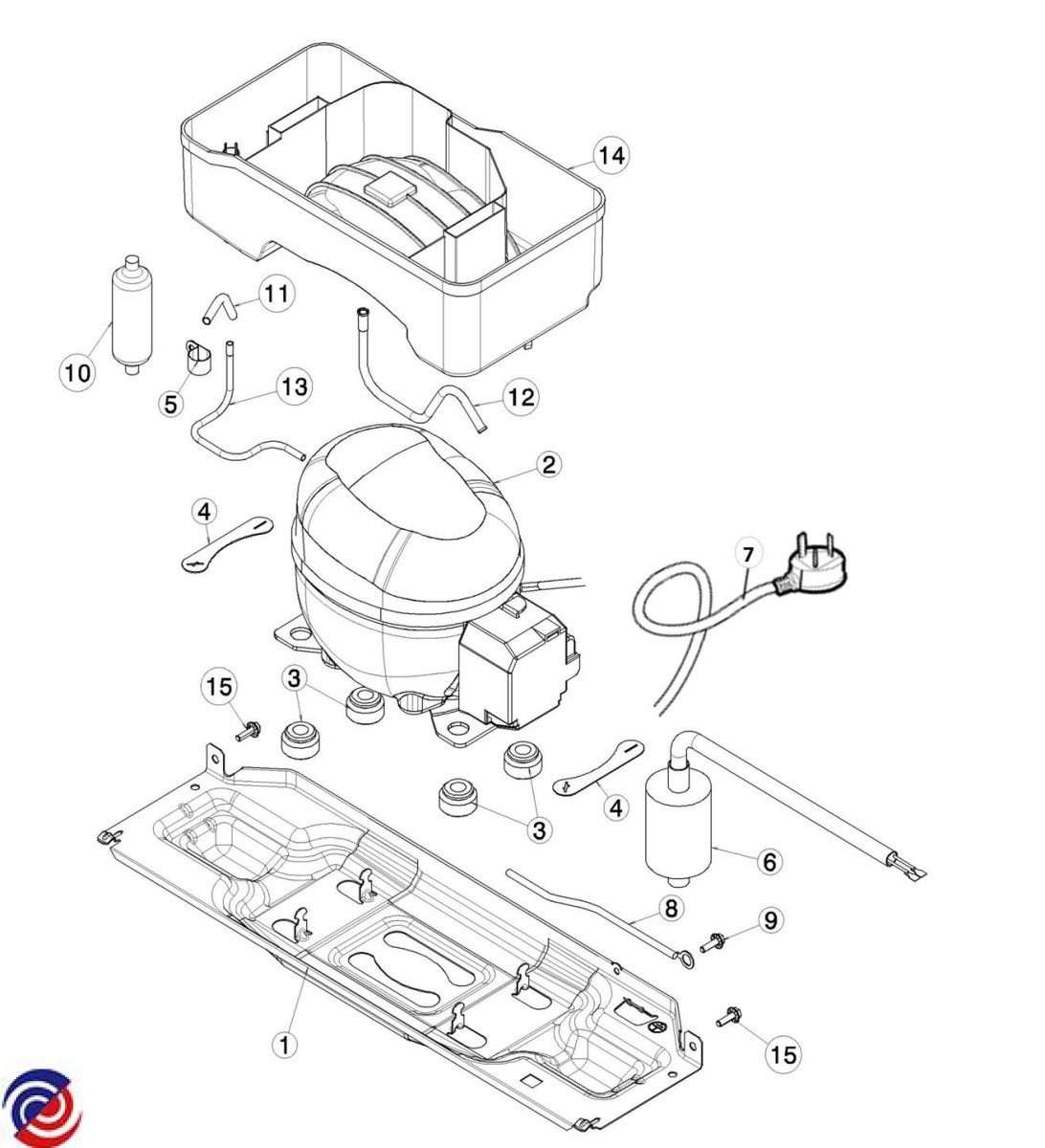

W0030063 COMPRESSOR EM2C40CLT
W0087752 BLADE FAN
W0147528 HARNESS MULTIFLOW TF BASIC
W0147530 TRAY TWIST AND SERVE ASSY ICE
W0154347 WESTINGHOUSE FRIDGE DOOR HINGE CONVERSION KIT
W0018166 GROMMET FAN MOTOR
$16.45
W0027043 TUBE AUXILIARY DRAIN EM
$11.00
W0027424 HARNESS EARTH
$17.60
W0027426 SWITCH DOOR TF DOUBLE
$20.00
W0027427 SWITCH DOOR TF SINGLE
W0027437 CABLE TIES 2.5X120
$4.50
W0027438 SCREW COUNTERSUNK M4.8X19
$4.50
W0027441 SCREW TRUSS 4.2X13
W0027442 SEAL FOAM EVC SEALER
$7.45
W0027443 SEAL FOAM 6X8
$7.70
W0027463 SHELF FZR 60W ASSY
W0027472 COVER CRISPER ASSY 60W
W0027474 KNOB HUMIDIFIER
$15.95
W0027478 CRISPER BODY TF 60W
$94.00
W0027480 CRISPER FRONT TF 60W
W0027503 HOUSING MAIN PCBA TF
$24.40
W0027504 LOCK HOLDER LAMP
$4.50
W0027508 SLIDE CONTROL TEMP
$26.50
W0027520 LENS FREEZER TF
$4.50
W0027534 DUCT MULTIFLOW TF LARGE
$21.90
W0027536 COVER MULTIFLOW FRONT BAS TF L
W0027538 COVER MULTIFLOW FRONT BAS TF S
$23.90
W0027539 BRACKET MOUNT FAN SURROUND
$14.50
W0027542 DUCT EVAPORATOR REAR TF
$22.95
W0027543 COVER EVAPORATOR FRONT TF
$12.90
W0027563 COVER HEATER R600A
$14.90
W0027565 SUPPORT HEATER TF R600A
$28.00
W0027566 RETAINER THERMAL FUSE
$9.00
W0027569 EVAP ONLY. 7 PASSES 0.22MM FIN
$110.00
W0027582 COVER HANDLE POCKET WH WHT
$11.00
W0027606 BEARING AUTO CLOSER R
$10.20
W0027613 COVER HINGE TOP RIGHT WHT
$14.80
W0027614 HINGE TOP COVER LEFT GR
$33.00
W0027615 COVER HINGE TOP LEFT WHT
$12.95
W0027616 HINGE BOTTOM BASE RIGHT
$37.50
W0029838 BIN DOOR SHALLOW 60W E
$54.00
W0029964 TUBE AUXILARY PAN DISCHARGE
$11.00
W0030065 COVER EMBRACO
$8.75
W0030118 VALVE DEFROST WATER DRAIN TUBE
$11.00
W0030311 RELAY STARTING DEVICE EMBRACO
$52.00
W0077550 INSULATION - DIVIDER RJ522Q
W0085339 DRIER REFRIGERATION 280 LTR
W0087781 SPRING TWIST&SERVE
W0096152 TRAY ICE CUBE
W0096153 KNOB ICE T&S WHITE
W0147486 DEODORIZER NANO COPPER
W0147492 DOOR FOAMED FZR TF60W W WHT
W0147507 DOOR FOAMED FC TF350 W WHT
$242.50
W0147529 SCREW TRILOB M3X10
W0147531 FRAME ICE T&S
W0147535 MOTOR FAN 240V/50HZ
W0147549 FOOT BASE HINGE
W0147554 BASE COMPRESSOR 60W
W0147555 FOOT LEVER
W0147557 FOOT BASE
W0154059 BIN DOOR FLEX 1/2
W0275465 COVER TOP CABINET WHT WRB5004
$29.05
