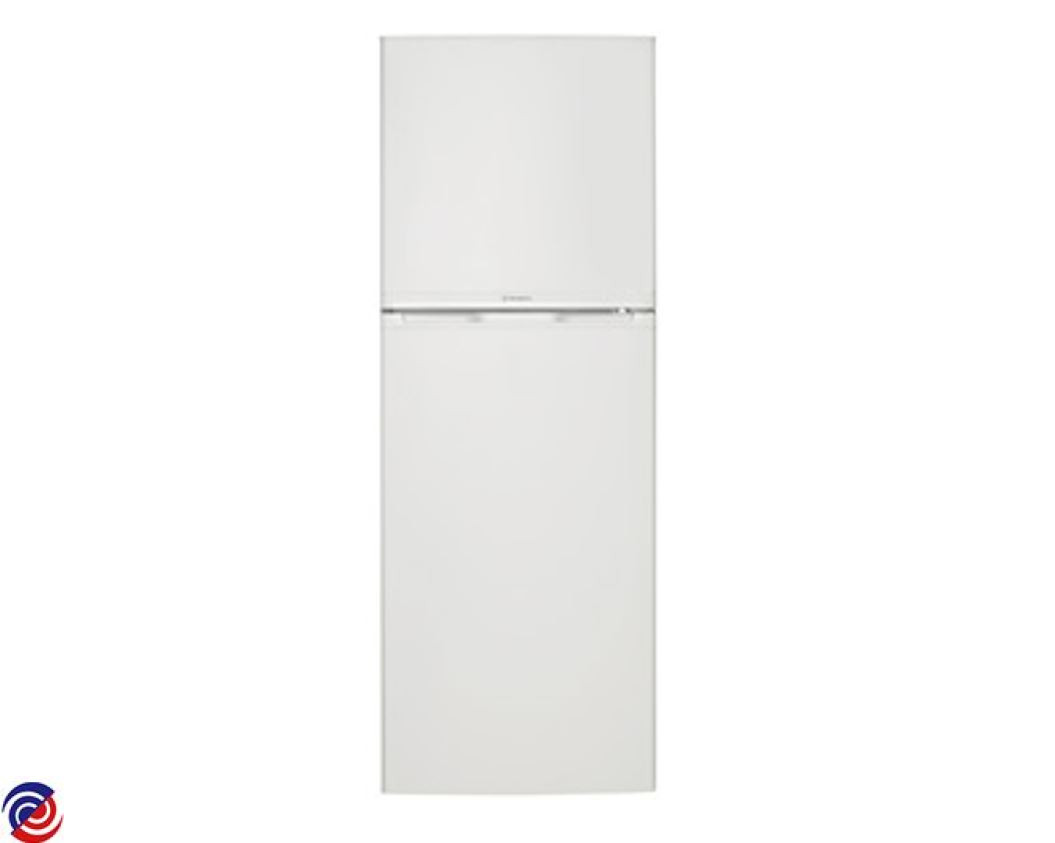

WTB2500WA-XAU — 934000015 00
WESTINGHOUSE — Fridge
Parts for WTB2500WA-XAU
W0032819 BOARD ASSY MAIN
W0034671 TRAY ICE CUBE
W0084747 TAPE 3M ALUM FOIL 35M RL 50MM
W0171295 F-SHELF WTB2500WA-XAU
W0012524 SCREW M6 X 10MM HEX TT W/HD SS
$4.50
W0012967 SPACER TUBE 12MM
$4.00
W0018170 GROMMET COMPRESSOR
W0031940 HINGE ASSY TOP
$33.00
W0032749 LEG ADJUSTABLE
W0032753 RELAY WIRE ASSY WTB20000WA-XA
$33.00
W0032805 GASKET DOOR FC
$88.90
W0032843 TRAY ICE CUBE
$30.00
W0032975 LEG NON ADJUSTABLE
$8.75
W0033032 R-DEO-LOUVER WTB2000WA-XAU
$29.70
W0033034 COVER LOUVRE F- DEO
$29.00
W0033036 F- LOUVER WTB2500WA-XAU
$22.00
W0033156 SLIDE HUMIDITY CONTROL
$12.90
W0033316 RAIL SHELF FZR RH
$11.90
W0033325 STOPPER DOOR
$8.60
W0033332 SCREW HINGE CENTRE WTB2800PA
$4.00
W0034113 SWITCH DOOR
W0034162 THERMISTOR
W0034175 MOTOR FAN
W0034201 STARTER DEVICE PTC
$29.05
W0034672 PAN DRAIN
$24.90
W0044125 NUT M6 HEX ZN
W0047463 SCREW PAN HEAD
W0047651 SCREW #10 X 5/8' PHI PAN HD
W0050792 CONNECTOR
$4.50
W0065404 SCREW M5 X 16MM SS
W0079067 DAMPER NOISE-EVAPORATOR RS652M
W0084342 TAPE (9MM 3M TAPE)
W0084558 DAMPER NOISE
W0084640 ALUMINIUM FOIL SRT3650
W0084952 TIE CABLE 300MM X4.8MM
W0087402 SCREW 8/32 X 3/8 ETM3600WB
W0087416 SCREW 8 X 1/2 T/F ETM3600WB
W0096321 CLIP-DRYER PLASTIC HEYCO #3330
W0110637 SCREW M6 X 30MM
W0111507 SCREW NO 8 X 3/8 WAFER ZNC
W0157510 HINGE LOWER ASSY
W0157511 HINGE CENTRE
$33.00
W0159870 DRIER 10GM(XH9)DBLE/SGLE TAIL
W0160428 PLATE CENTRE ASSY
W0160433 COMPRESSOR ASSY
W0160444 DOOR FZR WTB2500WA-XAU
W0160453 DOOR ASSY FIP FC WHT
$253.00
W0160476 FUSE ASSY
$34.95
W0160480 DEFROST HEATER WTB2500WA-XAU
$79.90
W0160519 GASKET DOOR FZR
W0160573 LID CRISPER
W0160574 SHELF ASSY FC
$87.90
W0160578 LEAD EV COVER WTB20000WA-XAU
W0160579 HARNESS RC-BOX
W0163198 COVER EVAP WTB2000WA-XAU
$29.70
W0163201 COVER TOP HINGE
W0163204 LAMP COVER SML WTB2000WA-XAU
W0163209 COVER F-LOUVRE
W0163210 RC-BOX COVER WTB2000WA-XAU
W0163213 COVER HINGE HOLE LH WHT
W0163216 DOOR DELI BIN
W0163595 R-LOUVER-S WTB2000WA-XAU
W0163900 KNOB CONTROL
$15.40
W0163902 F-CONTROL SLIDE KNOB WTB2000WA
W0163904 KNOB ICE B6565WTB2800WA-XAU
W0166009 FASTENING BAND A STB2300WA-XAU
W0166011 FAN CLAMP WTB2000WA-XAU
W0166013 BASE PLATE COMPRESSOR
W0166015 HOLDER TERMINAL BOX
$9.90
W0166016 MOTOR CUSHION WTB2000WA-XAU
W0166026 FAN MOTOR HOLDER A
W0166027 FAN MOTOR HOLDER B
W0166072 HEATER SUPPORT WTB2000WA-XAU
W0166076 RAIL SHELF FZR LH
W0166078 RAIL SHELF CENTRE
W0166110 SCREW HINGE TOP WTB2800PA
W0166111 WASHER
$4.50
W0166429 SPRING ICE CUBE TRAY
W0166438 BEARING NYLON BEARING 2
W0166439 BEARING NYLON BEARING 3
$14.30
W0166448 PROPELLER FAN 90
W0167092 TERMINAL BOX WTB2000WA-XAU
W0167124 CAP SCREW LOUVRE
W0167126 CAP BEARING
W0167127 COVER SCREW WTB2000PA-XAU
$12.95
W0167129 CLIP BAG
W0167137 COVER TERMINAL WTM2000WA-XAU
W0167138 SLEEVE WIRING
$16.50
W0167140 HOLDER BOARD A
W0167141 HOLDER BOARD B
W0167257 EVAPORATOR WTB2500WA-XAU
W0167404 DEODORISER WTB2000WA-XAU
W0167407 R-LOUVRE-S DUCT
W0168092 GASKET DAMPER N480FF
W0169187 RING O KNOB
W0169189 HEATER COVER WTB2000WA-XAU
W0169956 SOURCE CORD WTB2000PA-XAU
W0170038 CAPAC RUN WTB2000PA-XAU
W0170241 THERMISTOR DEFROST
$34.90
W0170244 PROTECTOR WTB2000PA-XAU
$59.95
W0170256 LAMP 15W SES BLUE
$19.00
W0171269 CAN POCKET WTB2000WA-XAU
W0171271 FREEZER POCKET WTB2000WA-XAU
W0171272 BOTTLE POCKET WTB2000WA-XAU
W0171274 HALF POCKET WTB2000WA-XAU
W0171276 DAIRY LID WTB2000WA-XAU
W0171278 DAIRY BIN WTB2000WA-XAU
W0171297 TRAY EGG
W0171304 BIN DELI
W0171305 FREEZER CASE WTB2800WA-XAU
W0171306 VEGETABLE CASE WTB2800WA-XAU
W0171308 ICE CUBE BOX WTB2800WA-XAU
