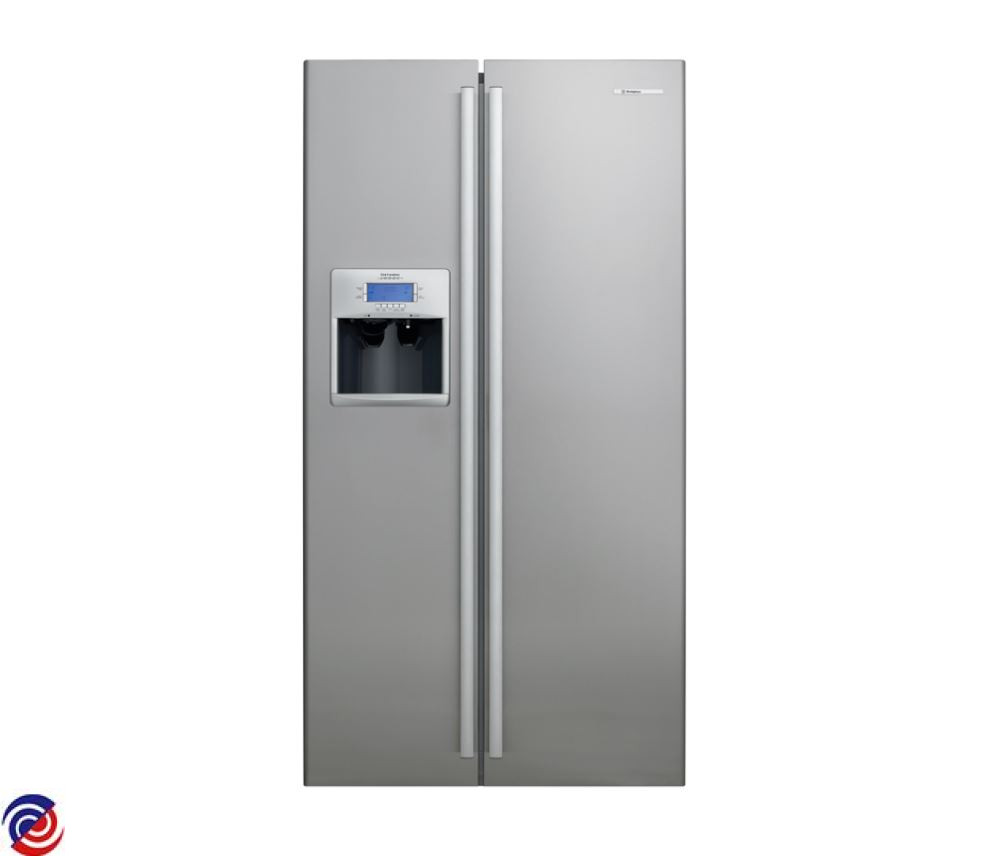

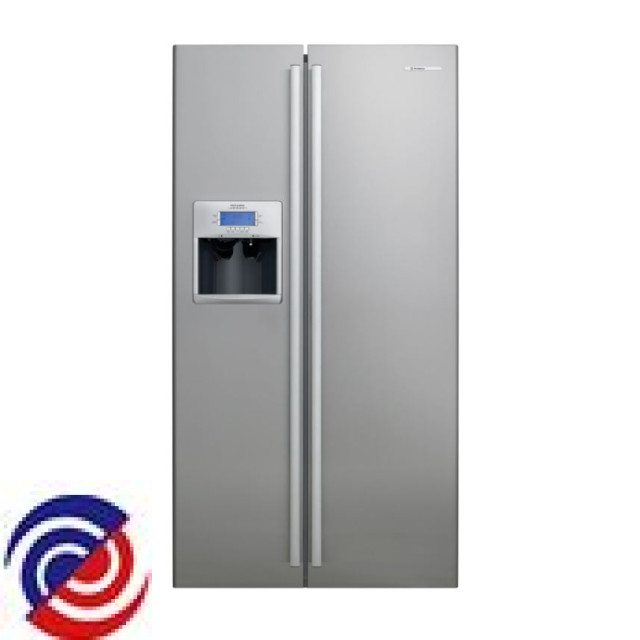

WSE6070SB*07
WESTINGHOUSE — Fridge
Parts for WSE6070SB*07
W0018132 INSERT PEDESTAL HANDLE
W0018157 BIN DOOR FREEZER
.JPG)
W0018158 BIN FULL WIDTH SHALLOW
.JPG)
W0018159 DOOR DAIRY
$79.00
W0018160 BIN BOTTLE
.JPG)
W0018161 BIN DELI
W0018162 DRAWER STORE SAFE
$40.90
W0018163 FINGERS BOTTLE
W0018167 GASKET CONTROL HOUSING
W0018171 BIN STORE SAFE
W0018204 FACIA BIN CRISPER
.JPG)
W0018255 FILTER WATER INLINE ELECTROLUX
W0018260 VALVE PUSH FIT
W0018261 BOARD DISPLAY CONTROL I&W ASSY
W0031284 TAP FITTING 1/2
.JPG)
W0081301 ROLLER ADJUSTABLE RS652G
.JPG)
W0082733 STARTER DEVICE PTC EMBRACO
W0084476 COUPLING CONNECTOR STR 5/16
$15.00
.JPG)
W0084662 CAM DOOR STOP FC
W0084747 TAPE 3M ALUM FOIL 35M RL 50MM
.JPG)
W0086080 LAMP 40W SES E14
W0086083 BAFFLE KIT MOTORISED
.JPG)
W0086775 SWITCH LAMP
W0087161 TRAY EGG
W0087199 BIN CRISPER UPPER POSITION
W0087216 HANDLE ASSY FZR SS
.JPG)
W0087223 SWITCH OVERLOAD PROTECT
$50.00
.JPG)
W0087327 THERMOSTAT DEFROST TERM
W0087464 ROLLER REAR GREY
W0087539 PEDESTAL HANDLE SS
.JPG)
W0087544 COM 134A EGYS100 EMBRACO 245W
W0087741 LAMP 25W SES BLUE 240V E14
W0087752 BLADE FAN
W0088109 BOARD/BOX BUZZER CONTROL ASSY
W0088144 BADGE WESTINGHOUSE
W0088218 VALVE WATER DUAL
$60.00
W0088244 TANK & WATERLINE ASSY
W0088487 STOP RAIL DELI BIN
W0096100 BIN ICE
.JPG)
W0096125 ICE MAKER ASSY
W0159670 DRIER 12GM(XH9)DBLE/SGLE TAIL
W0018049 CLIP SELF ADHESIVE
$9.00
W0018060 GASKET CONTROL HOUSING ROUND
$103.95
W0018164 LENS LIGHT CONTROL HOUSING
W0018170 GROMMET COMPRESSOR
W0018207 RIVET ESE6977SC
$0.40
W0018210 CONDENSER & TAILS
$109.90
W0018214 PAN DRAIN
$24.90
W0018224 SHROUD FAN MOULDED
$22.15
W0018235 FUSE THERMAL & HARNESS
W0018254 CAP CORNER GREY SYD1212A
$23.80
W0018259 TUBING (5 METRES)
W0018274 NUT M5 NYLOC
$4.50
W0018360 SUMP
$28.70
W0018411 SWITCH LAMP/FAN
W0018450 HINGE ASSY TOP RH
W0018451 HINGE ASSY TOP LH
$40.00
W0018482 COVER REAR ROLLER REAR GRY
$7.00
W0018499 RUNNER LH STORE SAFE WSE6070WA
$9.90
W0018500 RUNNER RH STORE SAFE WSE6070WA
$9.90
W0020645 ARM BAIL EXTENSION
W0080603 SCREW-STOP-DOOR RJ522Q
W0081199 TIE CABLE 140MM LONG
W0081816 GASKET (6MM TESSA TAPE) BJ414Q
W0083235 CLIP-HEATER-ALUMINIUM BJ414Q
W0084092 EXTRUSION PLASTIC 97MM
W0084342 TAPE (9MM 3M TAPE)
W0084558 DAMPER NOISE
W0084619 STICKER MAX 25 WATTS N280J
W0084695 CLIP GUIDE TUBE
W0084749 CLAMP-CORD BJ385T
W0085377 DECORATIVE LIGHTING RJ393V
W0085461 KNOB LOCK
W0085462 LOCK LATCH
W0085867 COVER ELECTRICAL EMB ECU60
$32.00
W0086053 THIMBLE FILLER ASSY CLOSED
W0086057 THIMBLE FILLER OPEN RJ423V
W0086229 HEAT SHIELD LIGHT REAR
W0086396 SCREW & WASHER RS645V
W0086447 CAP
$12.90
W0086511 CLIP FACIA
W0086512 GASKET TUBE ENTRY
$5.50
W0086549 SHELF FZR
W0086563 DOOR ASSY FIP FC SS WSE6070SA
W0086564 THIMBLE CAM ASSY CLOSED
W0086581 END CAP HANDLE SS
W0086602 HINGE ASSY TOP LH
W0086623 SEAL BY PASS
W0086641 BASKET FZR MIDDLE
W0086642 PANEL FRONT FZR BASKET
W0086643 BASKET FREEZER LOWER COATED
W0086644 SHELF ASSY GLASS FRZ
W0086649 THIMBLE CAM ASSY OPEN
W0086651 SHELF FZR SHALLOW
W0086652 SHELF ASSY DELI
W0086705 ICE CRADLE PLASTIC WSE6070WA
W0086721 ROLLER SHELF
W0086736 SCREW M4 X 12 MUSH SSM6100MA
W0086780 BOLT WSE6070WA
W0086814 CAM LH WSE6070WA
W0086815 CAM RH WSE6070WA
W0086843 NUT NYLOC M8 WSE6070WA
W0087000 HINGE ASSY BOTTOM LH WSE6070WA
W0087001 HINGE ASSY BOTTOM RH WSE6070WA
W0087167 GROMMET FCWATER TUBE WSE6070WA
W0087182 GUIDE TUBE WATER WSE6070WA
W0087184 TROUGH DRAIN WSE6070WA
W0087236 SPANNER RING
W0087248 SCREW 8 - 32 * 3/8 PAN HD PHIL
W0087275 SHELF FC
W0087298 CHANNEL DRAINAGE
W0087300 COVER RELAY BOARD ESE6070WA
W0087311 HARNESS FEATURE LIGHTING
$32.90
W0087325 CAPAC 4*0UF 400V WIRED CLIP
W0087363 HEATER DEFROST WSE6970WA
W0087372 WINE RACK ESE6107SA
W0087377 HOTPLATE HEAT SINK DRAIN PAN
W0087384 CORD SERVICE INSULATED
W0087402 SCREW 8/32 X 3/8 ETM3600WB
W0087403 CLIP MOUNTING COMPRESSOR
W0087405 SCREW 12/14 16MM ETM3600WB
W0087407 SCREW 8/32 X 1/2THREAD FORMING
W0087408 SCREW NO8 X 3/4 PAN HD ETM3600
W0087409 SCREW EVAP COVER 8 X 1/2
$4.00
W0087411 SCREW HINGE CENTRE
$4.50
W0087412 SCREW ETM3600WB
W0087416 SCREW 8 X 1/2 T/F ETM3600WB
W0087417 NUT ETM3600WB
W0087418 SCREW 8 X 19 T/CT TBT
$5.50
W0087466 SCREW PEDESTAL
$1.90
W0087500 COVER HINGE LH
W0087501 COVER HINGE RH
W0087505 TUBE 28MM ID 680MM
W0087506 BIN CRISPER LOWER BASE
W0087508 EVAPORATOR & DRAIN PAN ASSY
W0087603 RELAY BOARD ESE6077SA
W0087615 COVER SENSOR FZR
$19.65
W0087690 WATER INSTALLATION KIT
W0087692 HARNESS COMPRESSOR I&W WSE6070
$54.95
W0087702 HOUSING CONTROL REAR ASSY
W0087704 EPS HOUSING CONTROL REAR
W0087709 HARNESS CONTROL LOW VOLTAGE
W0087710 HARNESS CONTROL HIGH VOLTAGE
W0087729 STICKER ICEMAKER INS
W0087747 MOTOR FAN EVAP ESE6107SA
W0087748 FAN SHROUD WSE6070WA
W0087749 BRACKET FAN MOTOR WSE6070WA
W0087750 WASHER SLINGER NYLON
W0087751 GROMMET FAN MOTOR
W0087762 DOOR ASSY FIP FZR SS WSE6070SB
W0087822 SHAFT ROLLER
$7.00
W0087897 BASEPLATE COMPRESSOR
W0087921 COVER EVAPORATOR ESE6107SA
$39.00
W0087922 UPPER AIR DUCT WSE6970WA
W0088060 SHELF ICE CREAM WSE6070WA
W0088075 COVER-MACHINE COMP ENL60810X
W0088185 GRILLE LOWER AIR DUCT
W0088243 GASKET DOOR FC
W0088343 GASKET DOOR FZR
$68.20
W0088463 PIN COMPRESSOR MTG WCM1500WC
W0095269 BRACKET SUPPORT
W0096083 RUBBER MOUNTING CONDENSER
W0096089 ICE & WATER PADDLE ASSY BLK
W0096115 MOTOR CONDENSER & FAN & SHROUD
W0096117 PLATE PLENUM ICE MAKER
$4.50
W0096122 SUMP
$60.00
W0096124 AUGER MOTOR ASSY (NO RAILS)
W0096129 TUBE EXTENSION ICE WATER
W0096321 CLIP-DRYER PLASTIC HEYCO #3330
W0169835 SCREW 5X8' X #8 SELF TAP SH
