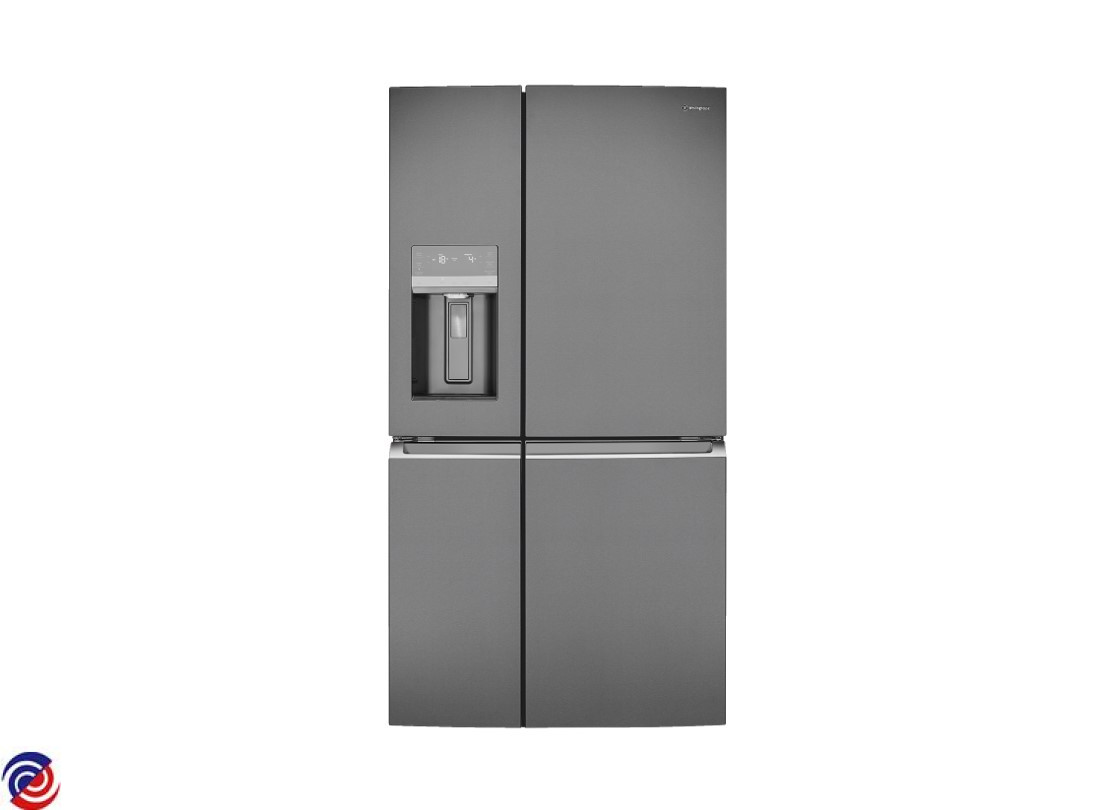

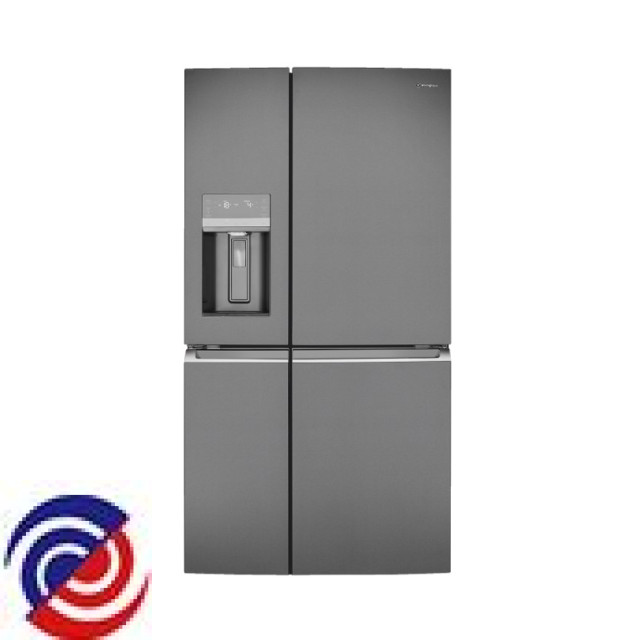

WQE6870BA — 925060612 00
WESTINGHOUSE — Fridge

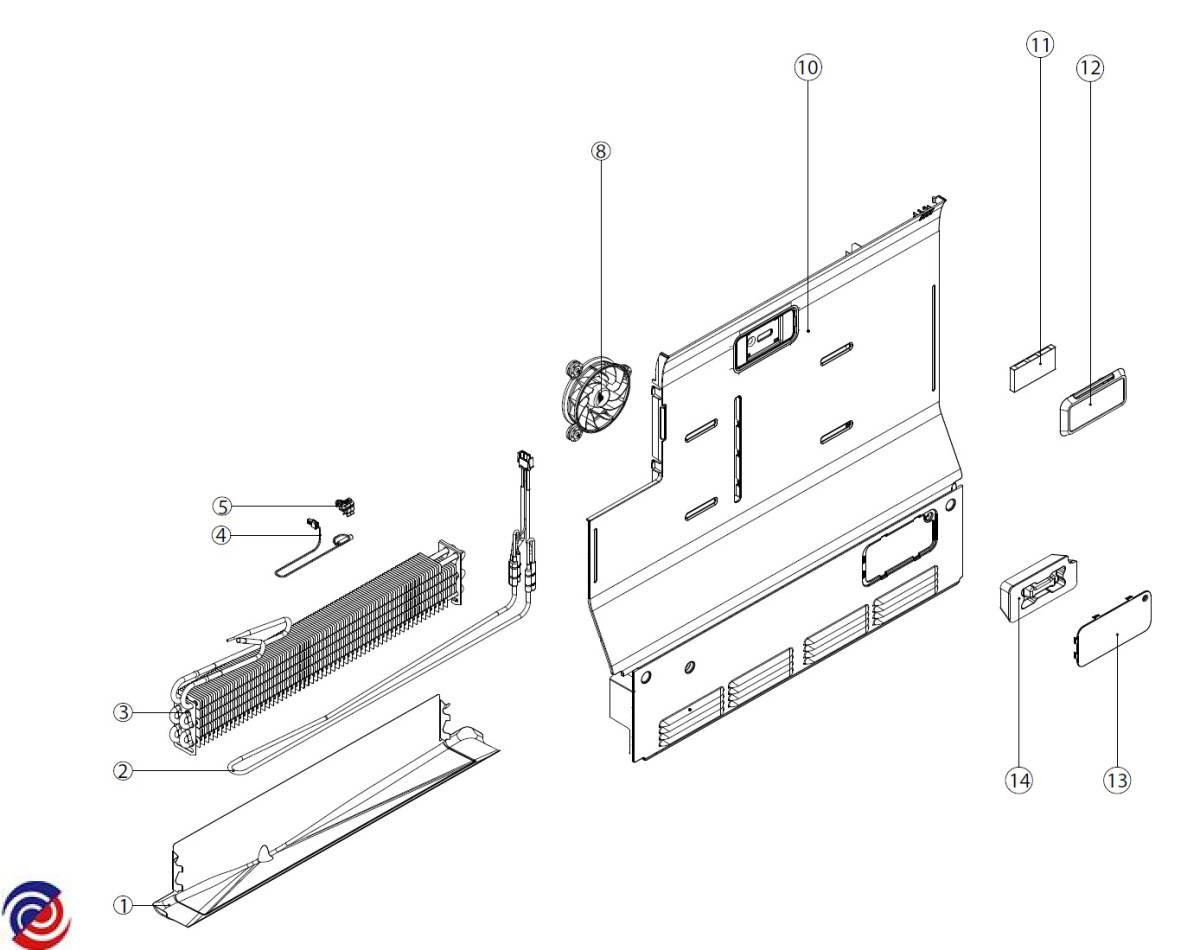

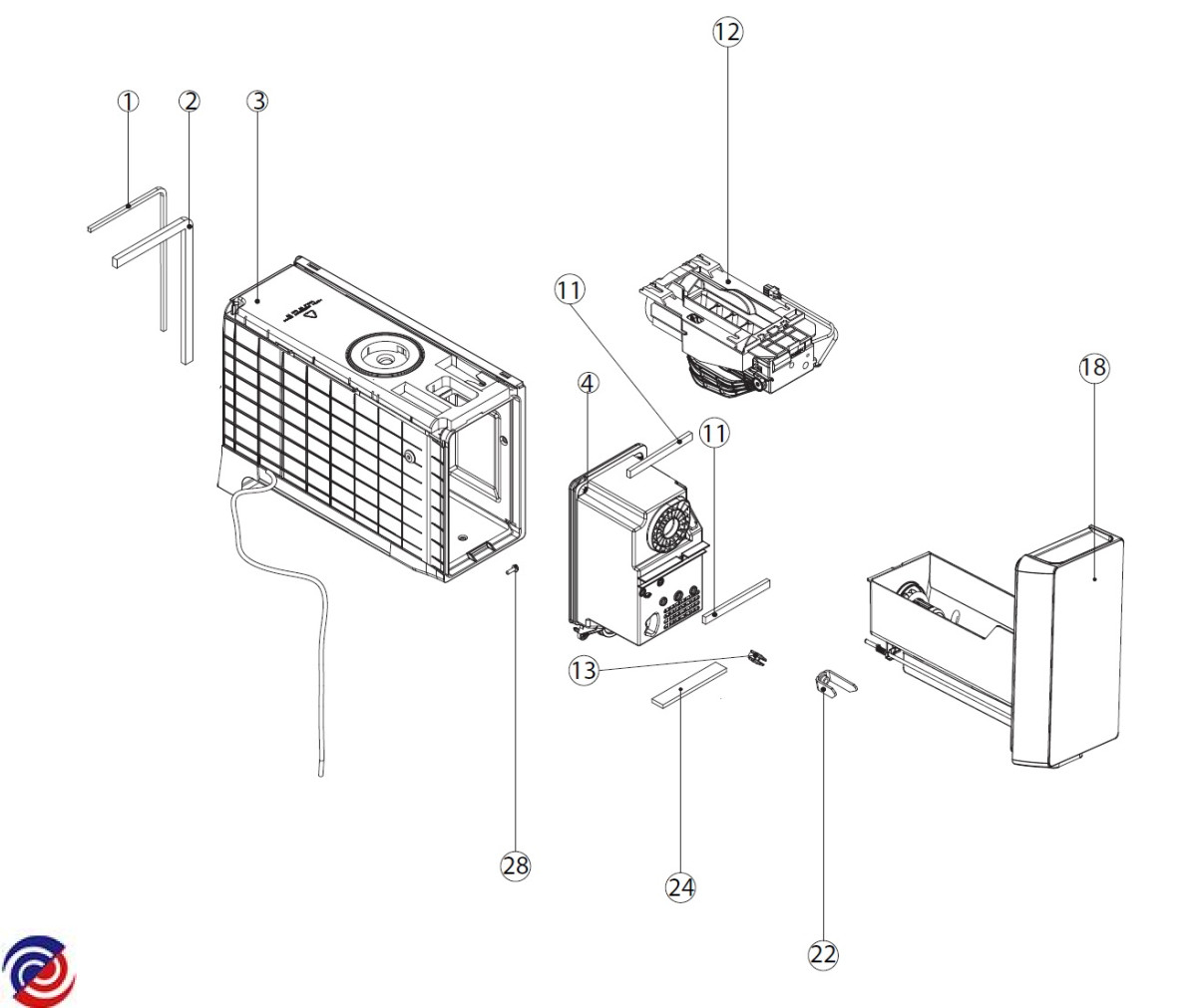

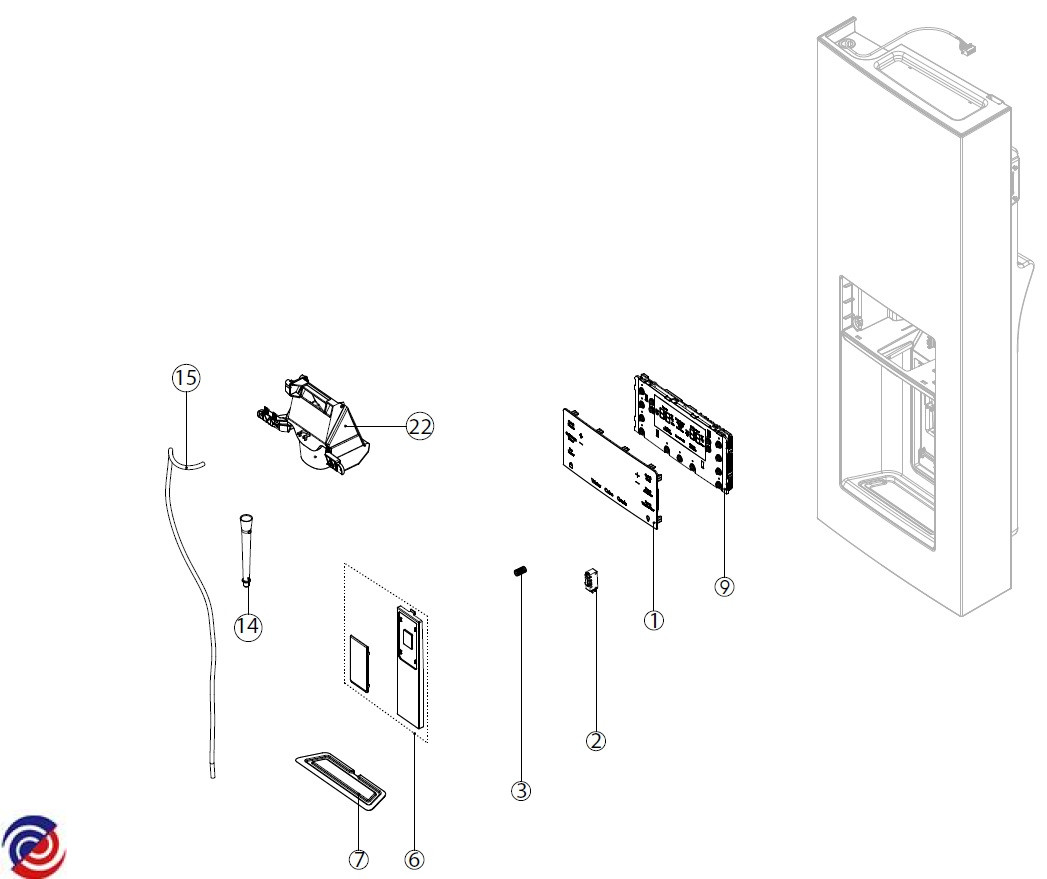

Parts for WQE6870BA
W0027560 GROMMET COMPRESSOR
$11.50
W0027562 CLAMP NTC EVAPORATOR
W0027610 CLAMP COMPRESSOR
$4.50
W0029938 SENSOR MAGNET REED SW
$35.75
W0282091 BAR DRIVE BM FFIM
W0283308 HEATER DEFROST 230V MD36
$91.30
W0284124 FILTER AIR MDR4
W0284260 BIN DOOR FLEX DAIRY ASY WHMD36
$37.30
W0284367 VALVE DOUBLE WATER 220V
W0294374 BOX FFIM HOUSING ASSY
W0294831 PINANTI TWIST BUCKET
W0379861 UNILUX REPLACEABLE FILTER
$69.00
W0020668 TUBE 90 DEGREE ELBOW
$5.55
W0020671 SWITCH DOOR REED
W0029635 SPRING FLIP MULLION MD
W0029638 HINGE FLIP MULLION MD
W0029690 COVER MAGNET ENDCAP MD80 GR
$4.50
W0275612 CLAMP COMPRESSOR SINGLE
$4.50
W0282132 COVER COMP BASE ASSEMBLY MD36
$21.80
W0283028 CLAMP CABLE 5/16
$4.50
W0283326 TUBE DRAIN CORRUGATED MDR4
$4.50
W0283354 CONDENSER DYNAMIC MD36 45DG
$82.65
W0283373 COVER CRISPER ASSY WH MD36
$106.55
W0283377 RAIL SIDE CRISPER ASSY RH MD36
$18.35
W0283378 RAIL SIDE CRISPER ASSY LH MD36
$18.35
W0283386 BRACKET CANTI SHELF RH
$12.60
W0283387 BRACKET CANTI SHELF CENTRE
$12.60
W0283388 BRACKET CANTI SHELF LH
$12.60
W0283391 GUIDE MANIFOLD WATER FILTER
$4.50
W0283396 TUBE VALVE DOUBLE TO HINGE
$6.20
W0283397 TUBE VALVE DOUBLE TO GEN
$4.50
W0283398 SUPPORT WATER VALVE DOUBLE
$10.65
W0283399 DISPENSER ICE & WATER MD36
W0283444 SUPPORT DIVIDER CRISPER ASSY
$41.10
W0283458 COVER INLET HOSE MD36
$4.50
W0283461 COVER WINDOW FF MDRA
$4.50
W0283465 SPRING DISP BUTTON BL3IW
$4.50
W0283466 BIN DOOR FIX CHUTE IW WH HOTF
$46.60
W0283591 TANK WATER DISPENSER RESERVOIR
W0283600 NAMEPLATE WHITE WEST
W0283601 GUIDE WATER DISPENSER TUBE
$4.50
W0283644 COVER ASSY PCB BOX MD36
$17.65
W0283657 HOLDER WATER FILTER MDR4
$4.50
W0284072 ROLLER CABINET MDR4
$4.50
W0284080 COVER DEODORIZER WH MDR4
$5.30
W0284090 COVER THERMISTOR
$4.95
W0284103 SHAFT ROLLER
$7.50
W0284132 TRAY EGG MD36
$13.60
W0284165 COVER RH MULLION STORAGE MD36
$14.70
W0284166 COVER LH MULLION STORAGE MD36
$14.70
W0284172 COVER WINDOW VCZ MDR4
$14.95
W0284208 TRAY EVAP DRAIN FF MD36
$20.00
W0284211 SWITCH FFIM DOOR SAFE
W0284242 PAN DRAIN MD36
$32.15
W0284243 COVER FASCIA FILTER AEG MD36
W0284250 BIN DOOR FLEX 1/3 WH MD36 HOTF
$37.30
W0284261 COVER WATER TANK MF MDR4
$34.95
W0284271 BIN DOOR FLEX 2/3 WH MD36 HOTF
$37.30
W0284288 HINGE TOP RH MD 36
W0284295 BIN DOOR FIX IW WH MD36 HOTF
$46.60
W0284296 KIT I&W INSTALL MDR4 AU
W0284323 BIN DOOR FLEX SLID ASY WH MD36
W0284337 PCB AC LINE FILTER EMC
W0284356 BIN DOOR BOTTLE WH MD36 HOTF
$59.65
W0284452 VALVE (220, PLASTIC FITTING)
W0284646 PCBA DRIVE EMBRACO VESD11C
$338.60
W0284668 COMPRESSOR EMB VESD11C
W0296282 HOSE WATER, PEX
$17.15
W0296518 SENSOR FZR TEMP
W0359231 BUCKET 3.5 SLIM ASSY AVENIR
W0363472 ICE MAKER MDR4 BC
$124.65
W0363835 SWITCH IW DISPENSER PADDLE
W0363836 INSULATION FOAM AIR HANDLER
W0363858 COVER SCREW
W0363861 RAIL DOOR SUPPORT R MD36
W0364467 HINGE FLIP MULLION MD36
W0364468 FLIP MULLION ASSEMBLY GR NA MD
$89.55
W0364469 CLOSURE DOOR LH
W0364470 FOOT ASSEMBLY LH BC
W0364471 FOOT ASSEMBLY RH BC
$22.20
W0364472 HINGE CENTRE LH BC
$49.85
W0364473 HINGE CENTRE RH BC
W0364475 HINGE TOP LH MD 36
$35.50
W0364480 COVER EVAP ASSY FF MD36S HF BC
W0364481 TUBE SUCTION MD36 VESA7H
W0364485 HEATER FLIP MULLION NA 10W
W0364486 SHELF FOLDABLE ASSY MD36
$125.00
W0364487 SHELF FLIP UP ASSY WH MD36
$42.20
W0364491 FASCIA UI FC WH BC
W0364492 STEP VALVE RAPTOR ASSEMBLY
W0364494 DISPLAY ASSY UI I&W EXT WH BC
W0364495 FASCIA UI I&W EXT WH BSS BC
W0364497 INSULATION EPS WATER DISP H
W0364499 TRAY WATER DRIP BSS BC
$15.95
W0364500 PCB POWER SUPPLY 45W
$154.60
W0364501 FAN UNIT DYCO MDR4
$85.05
W0364502 SHROUD DYCO MDR4
W0364506 DOOR SPARE FF AR L BSS BC WH
W0364507 DOOR SPARE FF AR RH BSS BC WH
$545.50
W0364516 COVER EYEBROW GR MDR4
W0364517 FRAME ICE CHUTE FINISHING
$4.50
W0364518 COVER, SCREW
W0364519 SHELF RH WH ASSY MD36
$51.10
W0364521 SHELF LH WH ASSY MD36 DINGO
$45.75
W0364523 SPRING TUBE PROTECTION
W0364524 WIRING EYEBROW MDR4 W/O WIFI
W0364525 SHIELD EYEBROW MD36
W0364529 GASKET SLIM 3.5 HOUSING T6
W0364530 SEAL SLIM T10 HOUSING WHE6874
$5.55
W0364531 CORD POWER AU MDR4 90DG
W0364532 FOAM DYCO TUBE MDR4
W0364534 EVAPORATOR MD36 FF
$75.45
W0364535 EPS WINDOW BASE FF MDR4 H
W0364536 S/A-AIR HAN LCFFIM 220V50HZ BC
W0364537 CLIP TUBE MD36
W0364538 STOP DOOR RH ASSY MD36
W0364539 STOP DOOR LH ASSY MD36
W0364542 PCB ERF2600_PROG_COB WH BC
W0364549 DAMPER ASSEMBLY HEATED BC
$56.10
W0364561 DISPLAY ASSY UI VCZ RAPTOR
W0364565 GASKET DOOR FRZ LH BC
$24.40
W0364566 GASKET DOOR FRZ RH BC
$25.05
W0364573 MOTOR FAN UNIT NMB 125MM RADIA
W0364578 LENS LED POLARIS 1 GR/F ASSY
$36.05
W0364579 LENS LED POLARIS 2 GR/F ASSY
$66.00
W0364580 LENS LED POLARIS 2WID GR/F ASY
$81.15
W0364581 HOUSING TWO CONNECTORS MD36
W0364593 BASE FLIP MULLION GUIDE ASY HF
$4.60
W0364597 TRAY EVAP DRAIN BC
W0364607 FOOT BASE LH BC
W0364608 RAIL ASSY SIDE FRZ TOP LH BC
W0364609 RAIL ASSY SIDE FRZ TOP RH BC
W0364610 RAIL ASSY SIDE FRZ BOT LH BC
W0364611 RAIL ASSY SIDE FRZ BOT RH BC
W0364612 BEARING AUTO CLOSER RH BC
$4.50
W0364613 BEARING AUTO CLOSER LH BC
$4.50
W0364614 RACK ASSEMBLY WIRE BOTTLE BC
$290.10
W0364615 EVAPORATOR FRZ BC
$86.15
W0364616 HEATER DEFROST FRZ 230V BC
$64.70
W0364617 COVER VCZ MF ASSY 230V BC
$154.10
W0364618 COVER FOOT RH GR BC
W0364619 DRAWER ASSY TOP LH BC
$88.60
W0364620 DRAWER ASSY TOP RH BC
$107.45
W0364621 DRAWER ASSY BOT LH BC
$65.10
W0364622 HEATER VCZ 220V BC
W0364623 PCB LITEON 6500K 3030
$9.45
W0364624 BIN DOOR FIXED ASSY FZR LH BC
$27.00
W0364625 BIN DOOR FIXED ASSY FZR RH BC
$27.00
W0364648 SUPPORT EPS SIDE EVAP LH BC
W0364655 LENS ENDCAP RH POL BC
W0364672 GASKET DOOR FF L MD36
W0364673 GASKET DOOR FF R MD36
W0364682 RACK MAT WINE BC
$24.05
W0364698 DOOR SPARE FRZ AR LHBSS WH
W0364699 DOOR SPARE FRZ AR RH BSS WH
W0365747 FOOT BASE RH BC
W0366128 WATER DISP PADDLE BC BSS ASSY
W0366338 DRAWER ASSY BOT RH BC
$85.00
