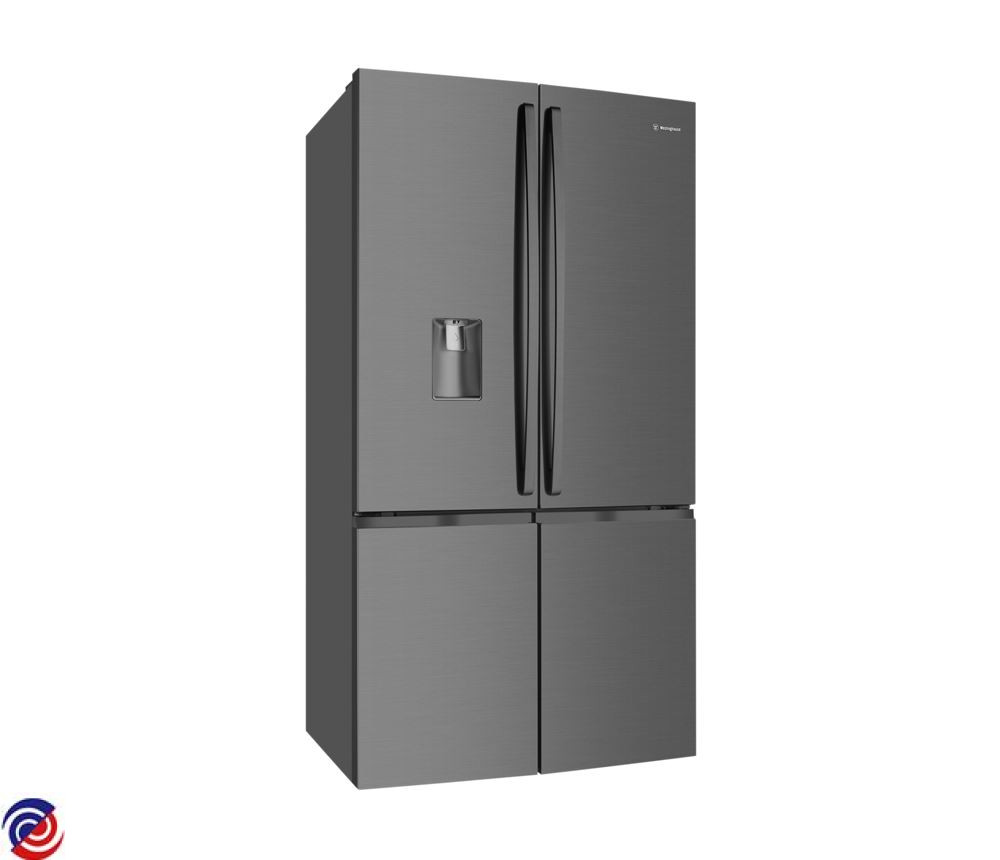

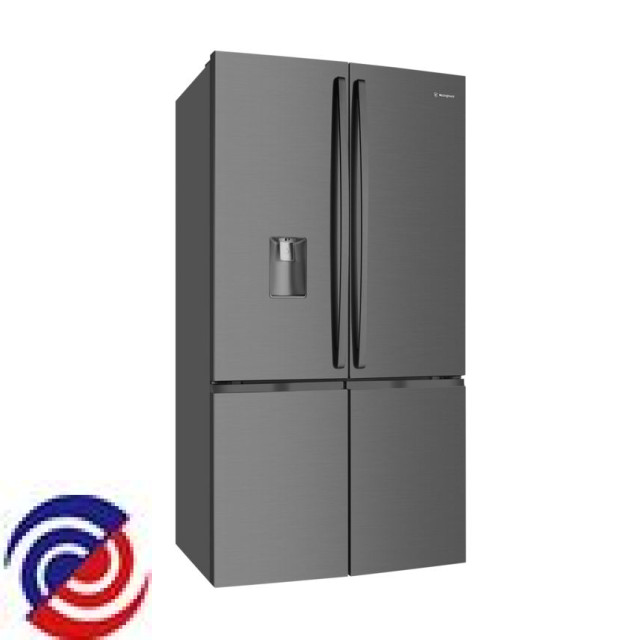

WQE6060BB — 925060884 00
WESTINGHOUSE — Fridge
Parts for WQE6060BB
.JPG)
W0018582 BADGE NAMEPLATE
W0020667 PCBA 3 LEDS CLUSTER GALAGA
W0027096 BOARD G SSLB WBE4500SA
$179.85
W0027140 FILTER WATER (PINOT)
W0027373 MOTOR FAN DC 3W
W0027439 SCREW TRILOB M5X16
$4.50
W0027550 SHROUD FAN ASSY BF DC 50HZ
W0027560 GROMMET COMPRESSOR
$11.50
W0027562 CLAMP NTC EVAPORATOR
W0027610 CLAMP COMPRESSOR
$4.50
W0027907 ICE MAKER ASSEMBLY
$249.00
W0029435 TRAY EGG 80W
W0029587 HARNESS-ASSY SENSOR DEFROST
W0029622 ASSEMBLY FLIP MULLION MD
W0029639 HEATER FLIP MULLION MD
W0029694 SHAFT ROLLER FRONT WTB4600
$7.60
W0029699 FOOT BASE THREAD
$8.75
W0029701 FOOT LEVER
W0029880 ELECTROLUX WESTINGHOUSE FRIDGE WATER VALVE INLET 2-WAY
W0029938 SENSOR MAGNET REED SW
$35.75
W0159670 DRIER 12GM(XH9)DBLE/SGLE TAIL
W0275558 HINGE BASE ASSY LEFT WITH ADJ
$43.65
W0018166 GROMMET FAN MOTOR
$16.45
W0020671 SWITCH DOOR REED
W0027119 SCREW TRILOB M6X18
$4.50
W0027138 CONNECTOR FILTER MANIFOLD
$98.65
W0027223 TUBE PROCESS 100MM
$4.50
W0027228 SCREW PF AB 3.5X1.27X19 PFZ PF
$4.50
W0027382 SENSOR + COVER HUMIDITY MD
W0027401 BAFFLE MOTOR FBZA-1750-3D
W0027411 BLADE FAN,NAT
$32.25
W0027441 SCREW TRUSS 4.2X13
W0027547 SHROUD FAN BF
W0027553 VALVE DRAIN ASSY BF
$184.20
W0029309 HINGE TOP RIGHT
$8.65
W0029310 HINGE TOP LEFT
$6.40
W0029407 BIN DOOR FLEX 80 1-HOTFOIL
W0029427 BIN DOOR DAIRY BODY TF80 EL
$20.00
W0029428 BIN DOOR DAIRY LID 80 EL-ART
$49.25
W0029476 COVER GRID AIR RETURN BF
$4.50
W0029480 COVER SCREW MULTIFLOW LH
$4.50
W0029481 COVER SCREW MULTIFLOW RH
$4.50
W0029492 DISPLAY UI PINOT WEST I&W INTL
W0029536 BEARING AUTO CLOSER R TF SL
W0029538 BEARING AUTO CLOSER L TF SL
W0029567 BEARING HINGE FZR TOP CLOSED
$8.15
W0029603 REAR HOUSING PCB COVER
$164.80
W0029635 SPRING FLIP MULLION MD
W0029638 HINGE FLIP MULLION MD
W0029674 HINGE CENTRE BASE ASSY
$37.75
W0029675 HINGE CENTRE PIN SWING DOOR
$8.15
W0029690 COVER MAGNET ENDCAP MD80 GR
$4.50
W0029732 SCREW TRILOBULAR M4X12
$4.50
W0029761 BRACKET ICE MAKER
$14.50
W0029763 ICE MAKER COVER WH ARTWORK
W0029799 GROMMET FAN PANA DC FAN
$16.05
W0029820 EPS FZ AIR STOPPER
$5.00
W0029825 PCBA_UI ASSY I&W WH INL
W0029844 TUBE CORRUGATE SD
$4.50
W0029909 VALVE INLET 1 WAY
W0029911 COVER SCREW SNAPED
$4.50
W0030008 COVER LID SINGLE VALVE
$115.05
W0030040 I&W INSTALLATION KIT BF MD RF
W0030100 POWERCORD INVERTER REF AU/NZ
$25.00
W0030113 SPACER 3 TURN HEATER
$4.50
W0087409 SCREW EVAP COVER 8 X 1/2
$4.00
W0087750 WASHER SLINGER NYLON
W0087794 SCOOP ICE
W0088556 SWITCH PUSH I&W LEVER
W0147542 BASE COMPRESSOR 60W
$43.55
W0147553 SHAFT ROLLER
W0273847 HINGE BASE ASSY RIGHT WITH ADJ
W0274129 GASKET FC MD90
W0274142 ROLLER FIXED FOOT ASSY
$10.60
W0275431 SCREW 6X20 SELF TAPPING
$4.50
W0275432 LEVER DISPENSER WH
W0275438 WESTINGHOUSE FRIDGE INVERTER PCB 808364715
W0275531 MULTIFLOW ASSY MD90 WH
W0275532 DRAWER FRONT MD90 WH ASSY
W0275538 BIN ICE AIM BF ELUX
W0275546 HEATER RAD DEF R600 240V MD90W
W0275548 LENS COVER BLUE ASSY
$15.40
W0275556 COMPRESSOR JAIX VNX1113Y
W0275557 ROLLER FOOT
$5.50
W0275560 TANK & WATERLINE ASSY WHE5260
$140.00
W0275575 TUBE COIL WATER TRAY PRI MD90
$24.80
W0275599 PAN DRAIN MD & HEATER TUBE ASY
$24.70
W0275605 EVAPORATOR FF MD90
$89.05
W0275612 CLAMP COMPRESSOR SINGLE
$4.50
W0275626 SHELF FC MD90W
$88.55
W0275635 BIN DOOR FC SHAL MD90 HOTFO PE
W0275643 TRAY EVAP DRAIN MD90W
$14.95
W0275644 EPS EVAPORATOR INSERT MD 90
W0275654 DRAWER CRISPER BODY MD90
$91.35
W0275657 COVER CRISPER ASSY MD90 WH
W0275664 COVER EVAPORATOR ASSY MD90
W0275674 BOTTLE RACK 90
$88.55
W0275675 COVER WATER TANK MD90 ASSY
$64.40
W0283247 BASE COMPRESSOR (INC ROLLERS)
$43.55
W0283263 GASKET FZR RH/LH MDQ90
W0283306 BIN DOOR FINGER MD80 WH
$12.90
W0283311 COVER TOP HINGE IW RH DG
W0283316 COVER TOP HINGE IW LH DG
$7.75
W0283341 DRAIN PAN MD & HEATER TUBE ASY
$46.00
W0283345 DRAIN PAN & HEATER TUBE ASY L
W0283362 SEAL FOAM EPDM MD 90
W0283477 LENS 3 LEDS CLUSTER GALAGA
$19.75
W0283480 HEATER TUBE DRAIN PAN SD LOK
$32.85
W0283602 SEAL CONDIUT DIVIDER FRONT
$4.00
W0283603 RUBBER SEAL CONDIUT DIVIDER RE
W0283604 EPS FREEZER DIVIDER
$7.10
W0283605 FREEZER DIVIDER LH
$68.00
W0283606 FREEZER DIVIDER RH
$57.40
W0283607 FREEZER DIVIDER ASSY
$208.85
W0283611 PLATE FRONT DIVIDER MDQ90 ASSY
W0284262 HARNESS-ASSY M/FLOW BF WEST
W0284341 DRAWER FZR SMALL MD90Q ART
$22.75
W0284396 DRAWER FZR LOWER MDQ90 ASY
W0284397 DRAWER FZR MID MDQ90 ASSY
W0295673 PCBA PROG ERF2003 WQE6060SA
W0296485 HANDLE KIT MD90 BLK WQE6060BB
$476.50
W0296632 DOOR SPARE FZR L+R WQE6060BA
$769.80
W0296633 DOOR SPARE FC L+R WQE6060BA
$876.45
