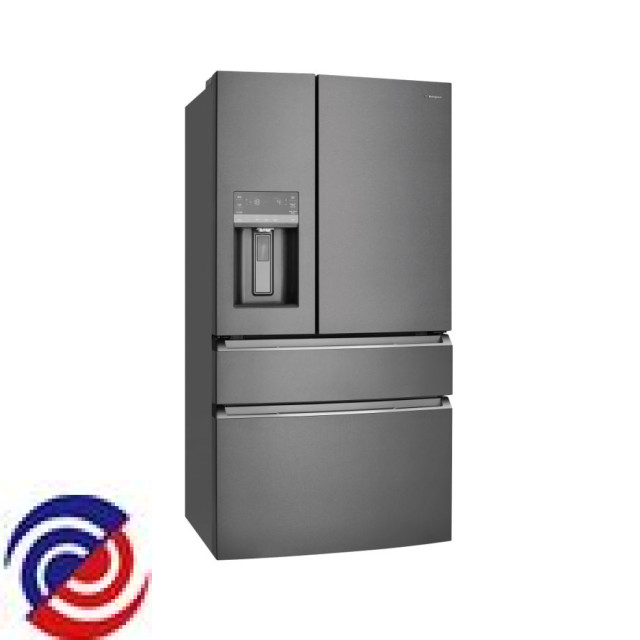

WHE6170BB — 925060900 00
WESTINGHOUSE — Fridge
Parts for WHE6170BB
W0365575 COLUMN,FRIDGE DOOR,ASSEMBLY,82
$103.00
W0365593 DRAWER CRISPER ASSY RH WH 36
$95.00
W0365907 BAR DRIVE BM FFIM
$19.00
W0366020 GASKET DOOR FF RH MD36
$27.00
W0366024 MAGNETIC SEAL,FRIDGE DOOR,LEFT
$29.00
W0366188 BIN,SMALL,TRANSPARENT,SP8008,
$50.00
W0366397 DRAWER,COMPLETE,FREEZER,7820,
$116.00
W0366424 SHELF FOLDABLE ASSY MD36
$126.00
W0366446 DISPLAY ASSY UI VCZ WH AP MD36
$142.00
W0366447 DRAWER,COMPLETE,7820, 744X128.
$143.00
W0366749 ASSEMBLY STEP VALVE
$221.00
W0368023 CLAMP NTC EVAPORATOR
$4.50
W0365578 HINGE,LOWER,RIGHT
$52.00
W0365597 SENSOR,WIRING,710MM
$37.00
W0365599 VALVE (220, PLASTIC FITTING)
W0365617 BUCKET 3.5 SLIM ASSY AVENIR
$300.00
W0365649 GUIDANCE RAIL,DRAWER,LEFT,FZ
$221.00
W0365650 GUIDANCE RAIL,DRAWER,RIGHT,FZ
$221.00
W0365652 DRAWER,COMPLETE,FREEZER,296, 7
$144.00
W0365667 HINGE,COLUMN,LOWER
$3.50
W0365672 MAGNETIC SEAL,DRAWER,FREEZER,S
$63.00
W0365674 COVER MULTIFLOW MD36S LH
W0365675 I&W INSTALLATION KITS MDR4 AU
$88.00
W0365691 HINGE,UPPER,RIGHT
$63.70
W0365692 DOOR SPARE FF AR R BS WH LYNX
$499.00
W0365693 BADGE 16X75.5 MM WESTINGHO
$12.00
W0365723 DRAWER CRISPER ASSY LH WH 36
W0365795 GEAR
$12.00
W0365798 MAINFOLD WATER FILTER
$117.00
W0365812 DAMPER, COMPRESSOR, 28.6MMX17MM
$14.00
W0365836 EGGS CONTAINER,WHITE,198.1X155
$14.00
W0365867 GROMMET,FAN,FREEZER,D27MM
$14.60
W0365877 GUIDANCE RAIL,VEGETABLE BOX,RI
$14.65
W0365878 GUIDANCE RAIL,VEGETABLE BOX,LE
$14.65
W0365888 DUCT EVAPORATOR FF MD36S
W0365906 GLASS COVER,COMPARTMENT,RIGHT,419.7X185M
$18.00
W0365908 COVER LH MULLION STORAGE MD36
$19.00
W0365909 COVER,HEATER,PLASTIC,7820, 70.
$17.85
W0365913 COVER EVAPORATOR FF MD36
$19.00
W0365921 WIRING,TRIMMING,UPPER,850MM
$20.00
W0365923 BRACKET,GLASS SHELF,RIGHT,235M
$20.00
W0365924 BRACKET,GLASS SHELF,MIDDLE,223
$20.00
W0365925 BRACKET,GLASS SHELF,LEFT,158.7
$21.00
W0365928 MEMBRANE,HUMIDITY CONTROL,250.
$23.00
W0365931 HINGE,LOWER,LEFT
$18.95
W0365938 FILTER AIR MDR4
W0365942 GROMMET FAN MOTOR
W0365945 SWITCH, DISPENSER, PADDLE
$21.00
W0365954 TRAY,EVAPORATOR,FRIDGE,728X131
$20.65
W0365957 COVER,PCB,ASSEMBLY,242.9X290.1
$20.70
W0366003 COVER,TRIMMING,UPPER,912X217.6
$27.50
W0366009 SAFETY SWITCH,DOOR
$26.00
W0366018 COVER,DIVIDER,TOP,41.9X35MM
$24.40
W0366021 MAGNETIC SEAL,DRAWER,MIDDLE,S2
$29.00
W0366033 GLASS SHELF,BACK,NEUTRAL,438.8
$25.10
W0366037 COVER COMP BASE ASSEMBLY MD36
$34.00
W0366077 REINFORCING BRACKET,DOOR,705,8
$33.00
W0366078 DRAIN,TRAY,323X216MM
$33.00
W0366090 CORD POWER AU MDR4 90DG
$34.00
W0366091 HEATER FLIP MULLION NA 10W
$34.00
W0366097 SPRING,HINGE,COLUMN
$11.00
W0366121 BLADE FAN,NAT
W0366161 SHELF FLIP UP ASSY WH MD36
$47.00
W0366165 LENS,LED PCB,SIDE,173.1 MM * 57.4 MM
$44.00
W0366169 SENSOR,MAGNET,DOOR,15.7X12.7MM
$47.00
W0366187 BUTTER SHELF,COMPLETE,TRANSPAR
$50.00
W0366189 BIN,MEDIUM,TRANSPARENT,SP8008,
$54.00
W0366241 SHELF LH WH ASSY MD36
$56.00
W0366248 BIN,RAMP,TRANSPARENT,SP8008,24
$58.00
W0366249 BIN DOOR FIX IW WH MD36 HOTF
$61.00
W0366263 BIN,ASSEMBLY,SLIDING TYPE,SP80
$61.00
W0366271 HINGE,UPPER,LEFT
W0366272 SHELF RH WH ASSY MD36
$90.00
W0366288 PCB AC LINE FILTER EMC
$71.00
W0366301 CLOSURE DOOR LH
$69.05
W0366305 BOTTLE SHELF,COMPLETE,TRANSPAR
$79.00
W0366316 LENS,LED PCB,SIDE,116.02X50.5M
$21.00
W0366339 FAN UNIT DYCO MDR4
$90.00
W0366344 HEATER,20W, 230V
$93.00
W0366379 FASCIA UI I&W EXT WH BSS BC
$117.00
W0366392 HEATER,EVAPORATOR,REFRIGERATOR
$128.00
W0366404 FAN MOTOR, FREEZER, 2.7W, 2700RPM
$116.00
W0366421 EVAPORATOR,ASSEMBLY,ICE-MAKER
$137.00
W0366429 GLASS SHELF,COMPLETE,VENTILATI
$132.00
W0366452 ICE-MAKER, COMPLETE
$166.00
W0366454 CONDENSER DYNAMIC MD36 45DG
$141.25
W0366481 PCB POWER SUPPLY 45W
$194.00
W0366535 FAN UNIT VCZ 60MM AXIAL
$137.00
W0366549 DOOR SPARE FZR AR BS WH LYNX
$343.00
W0366553 FREEZER DOOR,DRAWER,STAINLESS,BLACK,WH L
$352.00
W0366573 DOOR SPARE FF AR L BS WH LYNX
$541.00
W0366581 PCBA DRIVE EMBRACO VESD11C
$420.00
W0366602 COMPRESSOR EMB VESD11C
$536.00
W0366705 HINGE,COLUMN,UPPER
$3.50
W0366706 CLOSURE,FRIDGE DOOR,RIGHT
$83.00
W0366707 SHAFT,TELESCOPIC RUNNER,720MM
$24.00
W0366708 SUPPORT,GUIDANCE,LEFT,477MM
$37.00
W0366709 SUPPORT,GUIDANCE,RIGHT,477MM
$38.00
W0366710 SUPPORT,GUIDANCE,LEFT,443.5MM
$21.00
W0366711 SUPPORT,GUIDANCE,RIGHT,443.5MM
$21.00
W0366714 TRAY,FOR,EVAPORATOR,738.8X168.
$31.15
W0366715 COVER VCZ ASSY MD36 230V
$105.00
W0366716 TAPE,COOLING,MODULE,446.3X447.
$7.00
W0366717 SUCTION PIPE,COMPRESSOR,VESA7H,D6.35MM
$8.40
W0366739 COVER CRISPER DIVIDER WH MD36
$26.35
W0366740 SHELF FOLDABLE FRONT WH MD36
$28.45
W0366741 AIR CHANNEL,EPS, 447.5X454.2MM
$17.00
W0366747 ROLLER,SUPPORT,DRAWER
$4.00
W0366748 COVER WATER TANK LYNX
$17.90
W0366750 GUIDANCE RAIL,DRAWER,LEFT,VCZ
$205.00
W0366751 GUIDANCE RAIL,DRAWER,RIGHT,VCZ
$231.00
W0366752 COVER FASCIA FILTER AEG MD36
$21.55
W0366754 DISPLAY ASSY UI I&W EXT WH BSS
$342.00
W0366755 TUBE,VALVE,DOUBLE,GEN
$12.00
W0366756 TUBE VALVE DOUBLE TO HINGE GR
$26.00
W0366757 DISPENSER ICE & WATER LYNX
$263.00
W0366758 LENS,LED PCB,UPPER,267X70.1MM
$8.00
W0366760 FOOT,BASE,RIGHT,133.1X114MM
$16.95
W0366761 FOOT,BASE,LEFT,133.1114MM
$16.95
W0366762 FOOT SUPPORT,BLACK,D44.4X15.35
$5.00
W0366763 SHROUD DYCO MDR4
$5.20
W0366770 COVER,EVAPORATOR,FAN
$184.00
W0366783 COVER,SCREW,GLASS SHELF,7820,
$3.50
W0366784 SPRING,TUBE,PROTECTION,55.5MM
$3.50
W0366789 SHIELD,TRIMMING,UPPER,62.8X80
$3.50
W0366797 SEAL,ICE-MAKER,HOUSING,6X15MM
$4.00
W0366800 HOUSING,ICE-MAKER,ASSEMBLY
$132.00
W0366804 EVAPORATOR, END PIECE
$102.50
W0366805 BASE,WINDOW,EPS, 155.1X72.1MM
$3.50
W0366806 VENTILATION ASS,ICE MAKER 220V
$276.80
W0366810 CLIP,TUBE,61X23.4MM
$3.50
W0366813 NOT CONFIGURED ELEC,POWER BOARD,ERF2600
$197.00
W0366828 ASSY WATER DIS PDLE WO ICON BS
$41.00
W0366867 TANK COLD WATER STORAGE
$93.00
W0366884 HOUSING,CONNECTOR,61X44.2MM
$3.50
W0366896 COVER,HARNESS,MIDDLE SECTION,6
$3.50
W0366899 VALVE DOUBLE LYNX 220V
$117.00
W0366936 ASSEMBLY FAN FF 125MM
$132.00
W0366953 LENS,LED PCB,FRIDGE DOOR,RIGHT,30.0X256.
$3.50
W0367101 SUPPORT WATER VALVE DOUBLE
$6.90
W0367406 SWITCH DOOR REED
W0367795 COVER SCREW
$4.00
W0367813 CONFIG ELE,MAIN ELE BOARD, ERF2600_FCT
$305.00
W0367944 DRAIN HOSE,201.8MM
$3.50
W0367946 WASHER 1.0mm ICEMAKER MOUNT
W0367947 COVER,SWITCH,REED,37.7X34.1MM
$3.50
W0367948 CLIP,RETAINER
$3.50
W0367952 FIXING BRACKET,COMPRESSOR,42X2
$3.50
W0367953 COVER INLET HOSE COVER MD36
$3.50
W0367955 SEAL, FOAM, 133.35MM*12.7MM
W0367964 SPRING,DISPENSER,BUTTON,17.6MM
$3.50
W0367974 TRAY,ICE,CHANNEL,115.4X75.2MM
$3.50
W0367980 SEAL,FOAM,80MM*22.9MM*6.3MM
$3.50
W0367981 WATER FILTER,HOLDER,PLASTIC
$3.50
W0367991 LENS ENDCAP FF MD36
$4.00
W0367999 GUIDE MANIFOLD WATER FILTER
$3.50
W0368000 COVER,WINDOW,168X80.2MM
$3.50
W0368002 BASE,COLUMN,DOOR,100.9X45.9MM
$3.50
W0368003 SCREW,M4X12 PH
$3.50
W0368006 BOLT, FOOT, M5X16 PH
$3.50
W0368009 CLAMP COMPRESSOR
$4.50
W0368019 GUIDE WATER DISPENSER TUBE
$3.50
W0368021 SCREW TRUSS 4.2X13
$5.50
W0368039 DOOR STOPPER,RIGHT
$4.00
W0368040 DOOR STOPPER,LEFT
$4.00
W0368045 ROLLER CABINET MDR4
$5.50
W0368048 SUPPORT MAGNET SWITCH
$5.50
W0368051 ROLLER,RAIL,STEEL,24.8MM
$4.00
W0368053 SEAL,ICE-MAKER,HOUSING,407MM*6
$5.00
W0368054 HOUSING,MEMBRANE,HUMIDITY CONT
$5.00
W0368074 COVER,THERMISTOR,PLASTIC,94.1X
$6.00
W0368108 COVER DEODORIZER WH MDR4
$7.00
W0368109 TUBE 90 DEGREE ELBOW
$8.00
W0368131 DOOR GASKET,BOTTOM,754MM
$6.75
W0368138 BEARING,GUIDANCE RAIL,24MM
$9.00
W0368168 SHAFT ROLLER
$10.00
W0368190 TUBE, WATER DISTRIBUTOR
$10.00
W0368213 LED,LIGHT,6500K
$12.00
W0368221 CASING,FAN
$10.80
