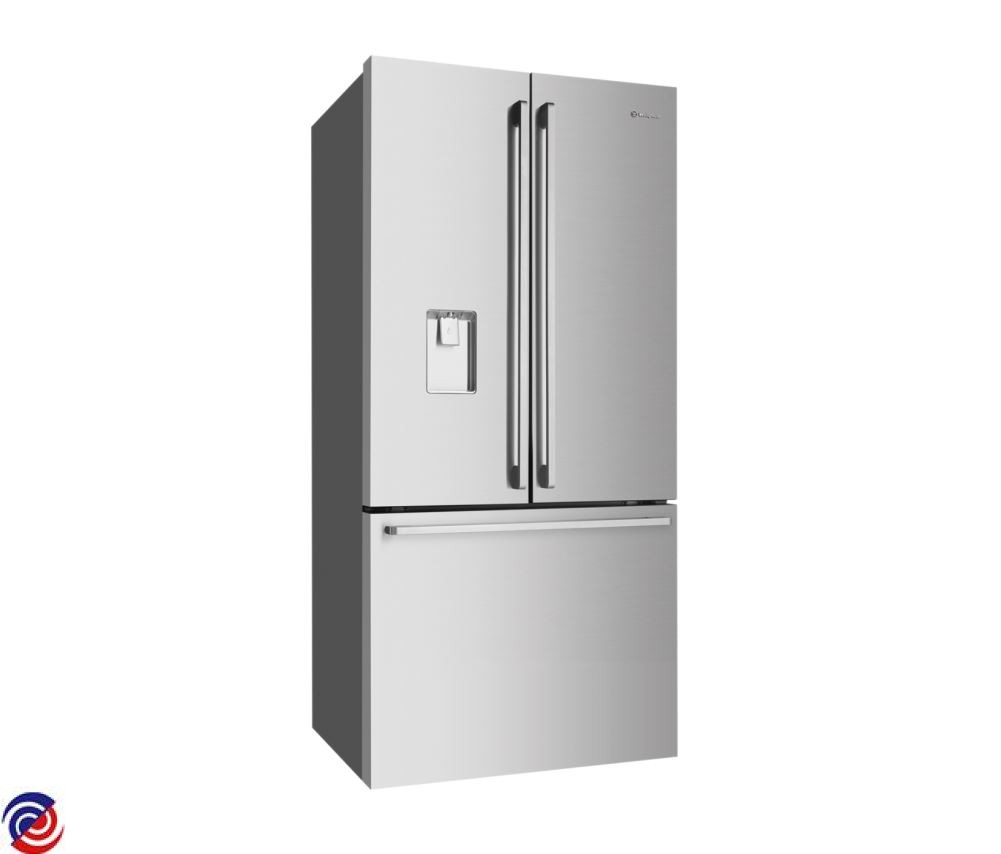

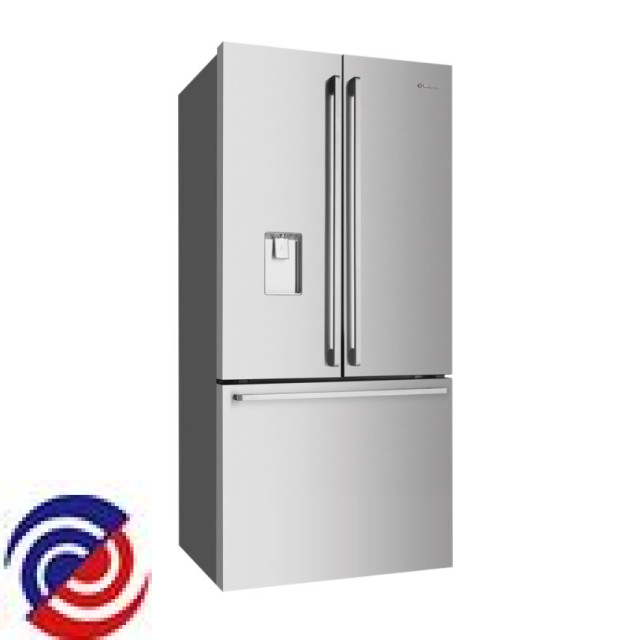

WHE5264SC — 925060869 00
WESTINGHOUSE — Fridge
Parts for WHE5264SC
.JPG)
W0018582 BADGE NAMEPLATE
W0027096 BOARD G SSLB WBE4500SA
$179.85
W0027140 FILTER WATER (PINOT)
W0027560 GROMMET COMPRESSOR
$11.50
W0027562 CLAMP NTC EVAPORATOR
W0027610 CLAMP COMPRESSOR
$4.50
W0029359 MULTIFLOW ASSY BF WH AU
W0029520 PCB MAIN ERF2003 15W _I&W
$199.00
W0029558 HEATER RAD DEF R600 240V BF80W
W0029622 ASSEMBLY FLIP MULLION MD
W0029694 SHAFT ROLLER FRONT WTB4600
$7.60
W0029699 FOOT BASE THREAD
$8.75
W0029700 ROLLER FOOT
$17.10
W0029701 FOOT LEVER
W0029880 ELECTROLUX WESTINGHOUSE FRIDGE WATER VALVE INLET 2-WAY
W0029938 SENSOR MAGNET REED SW
$35.75
W0159670 DRIER 12GM(XH9)DBLE/SGLE TAIL
W0275768 SCOOP ICE
$6.00
W0294684 SHROUD FAN ASSY BF DC 50HZ
W0295505 MOTOR FAN DC 3W
W0018166 GROMMET FAN MOTOR
$16.45
W0018631 LEVER DISPENS I & W -
W0020669 LENS 3 LEDS CLUSTER GALAGA
$26.80
W0020671 SWITCH DOOR REED
W0027119 SCREW TRILOB M6X18
$4.50
W0027138 CONNECTOR FILTER MANIFOLD
$98.65
W0027223 TUBE PROCESS 100MM
$4.50
W0027228 SCREW PF AB 3.5X1.27X19 PFZ PF
$4.50
W0027382 SENSOR + COVER HUMIDITY MD
W0027401 BAFFLE MOTOR FBZA-1750-3D
W0027411 BLADE FAN,NAT
$32.25
W0027413 SEAL FOAM BOTTOM MF PINOT BF-N
$12.65
W0027441 SCREW TRUSS 4.2X13
W0027547 SHROUD FAN BF
W0027553 VALVE DRAIN ASSY BF
$184.20
W0027596 GASKET FC MD80
$135.20
W0027602 GASKET FRZ BF80
$110.10
W0029308 DRAWER MIDDLE BODY BF80
$45.45
W0029309 HINGE TOP RIGHT
$8.65
W0029310 HINGE TOP LEFT
$6.40
W0029355 BIN DOOR BOTTLE MD80 WH
W0029375 SEALING MFLOW BACK BF 1725
$12.15
W0029377 DRAWER BODY BF80
$92.50
W0029395 BIN DOOR LOCKABLE TF70 SEA ASY
$22.20
W0029416 BIN DOOR FC SHAL MD80 1-HOTFO
$55.45
W0029434 TRAY EGG 70W
W0029446 SHELF FC TF80W
$79.80
W0029476 COVER GRID AIR RETURN BF
$4.50
W0029479 EPS EVAPORATOR BF 80
$149.15
W0029480 COVER SCREW MULTIFLOW LH
$4.50
W0029481 COVER SCREW MULTIFLOW RH
$4.50
W0029492 DISPLAY UI PINOT WEST I&W INTL
W0029536 BEARING AUTO CLOSER R TF SL
W0029538 BEARING AUTO CLOSER L TF SL
W0029550 DRAWER FZR FR UPR ASY 80 WH
$63.65
W0029566 BEARING HINGE FZR TOP OPEN
$6.30
W0029573 TRAY EVAP DRAIN BM/SD 80W
$38.45
W0029576 BRACKET ADJUSTMENT BF IDP RH
$29.05
W0029577 BRACKET ADJUSTMENT BF IDP LH
$29.05
W0029596 DRAIN PAN SD
W0029597 PAN DRAIN DYN CON
W0029603 REAR HOUSING PCB COVER
$164.80
W0029635 SPRING FLIP MULLION MD
W0029640 EXTENSION SLIDE INSERT FZR LH
$9.40
W0029641 EXTENSION SLIDE INSERT FZR RH
W0029674 HINGE CENTRE BASE ASSY
$37.75
W0029676 CENTRE HINGE PIN DRAWER DOOR
$4.50
W0029690 COVER MAGNET ENDCAP MD80 GR
$4.50
W0029697 COVER FOOT LEFT HINGE GREY
$12.95
W0029698 COVER FOOT RIGHT HINGE GREY
$4.50
W0029708 FOOT LEFT ASSY
$20.10
W0029709 FOOT RIGHT ASSY
$20.10
W0029746 CRISPER SUPPORT LH
$17.75
W0029747 CRISPER SUPPORT RH
$17.75
W0029750 CRISPER COVER ASSY BF80 WH
$72.70
W0029761 BRACKET ICE MAKER
$14.50
W0029763 ICE MAKER COVER WH ARTWORK
W0029764 SUPPORT PASTRY SLIDE LH
$18.35
W0029787 SLIDER TELESCOPIC RAIL LH ASY
W0029788 SLIDER TELESCOPIC RAIL RH ASY
W0029791 DRAWER TELESCOPIC RAIL WH80
$56.80
W0029792 SHAFT TELESCOPIC RAIL WH80
W0029814 SUPPORT PASTRY SLIDE RH
$14.00
W0029817 RETAINER CLIP
$4.50
W0029818 BEARING PAD
$19.85
W0029820 EPS FZ AIR STOPPER
$5.00
W0029823 PCBA_UI ASSY I&W ELUX INL
$355.00
W0029844 TUBE CORRUGATE SD
$4.50
W0029903 GEAR
W0029909 VALVE INLET 1 WAY
W0029926 CRISPER GASKET 80
$22.00
W0029990 TUBE COIL ADD WATER TRAY ABOVE
$25.20
W0030008 COVER LID SINGLE VALVE
$115.05
W0030040 I&W INSTALLATION KIT BF MD RF
W0030100 POWERCORD INVERTER REF AU/NZ
$25.00
W0030113 SPACER 3 TURN HEATER
$4.50
W0030288 EVAPORATOR FF BF80
$144.45
W0030356 SEAL FOAM EPDM BF 80
$8.75
W0030585 CONNECTOR QUICK5/16 PPM220808
W0030627 CONNECTORCHECK VAL 5/16'- 1/4
W0030629 COVER WATER TANK BF/MD ASSY
W0087406 SCREW-HINGE/CAM-BTM ETM3600WB
$4.50
W0088556 SWITCH PUSH I&W LEVER
W0096155 ICE MAKER ASSY (FLEX ARM)
W0154011 BIN DOOR FLEX 70 1-HOTFOIL
$63.80
W0274142 ROLLER FIXED FOOT ASSY
$10.60
W0274872 PCBA # LED CLUSTEER GALGA
$23.20
W0275431 SCREW 6X20 SELF TAPPING
$4.50
W0275538 BIN ICE AIM BF ELUX
W0275544 EXTENSION SLIDE ASSY LH 300MM
W0275545 EXTENSION SLIDE ASSY RH 300MM
W0275548 LENS COVER BLUE ASSY
$15.40
W0275599 PAN DRAIN MD & HEATER TUBE ASY
$24.70
W0275612 CLAMP COMPRESSOR SINGLE
$4.50
W0283306 BIN DOOR FINGER MD80 WH
$12.90
W0283311 COVER TOP HINGE IW RH DG
W0283316 COVER TOP HINGE IW LH DG
$7.75
W0283480 HEATER TUBE DRAIN PAN SD LOK
$32.85
W0283843 DOOR SPARE FC L+R WHE5264SB-D
$899.10
W0283844 DOOR SPARE FZR WHE5264SB-D
$444.70
W0284057 SCREW MOUNTING HANDLE MD36
W0284262 HARNESS-ASSY M/FLOW BF WEST
W0296484 PCBA DRIVE EMBRACO FMXA9C
$223.35
W0296488 CRISPER BODY ASSY BF80 FLAT WH
$89.00
W0296571 HANDLE ASSY MD WH SS
$374.60
W0296590 COMPRESSOR EMBRACO FMXA9C
$248.60
W0358932 DRAWER PASTRY BODY BF 80 FLAT
$40.90
W0361765 COVER DEODORIZER
W0361779 COVER EVAPORATOR BF80 ASY 2-Z
$98.40
W0361782 DRAWER FZR FR MID ASY 80 WH FT
$68.00
W0361785 DRAWER FZR MID ASY 80 WH FLAT
$89.75
W0361786 DRAWER FZR UPPER ASY 80 WH FT
$68.30
W0361808 DISPLAY UI IW WH INTL FLT ASY
W0361814 TUBE JUMPER H/X 80W FMXY
$12.40
W0361912 SENSOR HARNESS-ASSY FZR DEFROS
W0361970 GROMMET FAN PANA DC FAN
