WHE5204SC — 925060868 01

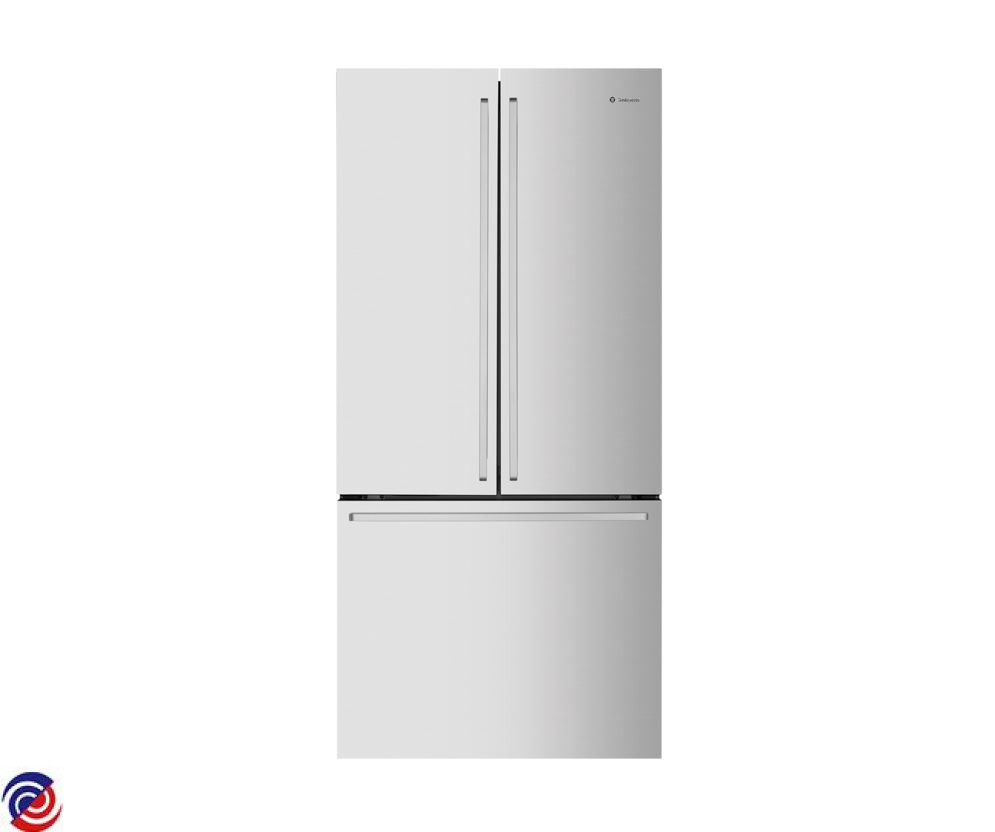

WESTINGHOUSE — Fridge
Parts for WHE5204SC
W0368023 CLAMP NTC EVAPORATOR
$4.50
W0368405 T&S ASSY WHITE
$53.00
W0368416 FAN, ASSEMBLY, FREEZER, 2.7W,2700RPM
$139.00
W0368451 EXTENSION,SLIDE,LEFT
$57.00
W0368452 SLIDE EXTENSION ASSEMBLY RIGHT HAND 300MM
$57.80
W0368463 SENSOR,HARNESS,DEFROST
$28.00
W0368523 BIN ICE PACIFIC CLEAR
$39.00
W0368660 HEATER RAD DEF R600 240V BF80W
$88.00
W0368856 ELECTROLUX WESTINGHOUSE FRIDGE FAN MOTOR DC 3W
$77.00
W0368864 SCREW MOUTING HANDLE MD36
$3.50
W0371546 BADGE NAMEPLATE
.jpg)
W0371547 DAMPER, WITH, MOTOR
$99.00
W0374188 BLADE FAN,NAT
W0365812 DAMPER, COMPRESSOR, 28.6MMX17MM
$14.00
W0365942 GROMMET FAN MOTOR
W0366097 SPRING,HINGE,COLUMN
$11.00
W0366169 SENSOR,MAGNET,DOOR,15.7X12.7MM
$47.00
W0366316 LENS,LED PCB,SIDE,116.02X50.5M
$21.00
W0367406 SWITCH DOOR REED
W0367948 CLIP,RETAINER
$3.50
W0367952 FIXING BRACKET,COMPRESSOR,42X2
$3.50
W0368021 SCREW TRUSS 4.2X13
$5.50
W0368332 COLUMN,FRIDGE DOOR,ASSEMBLY,91
$125.00
W0368335 DRAIN PAN SD
$33.00
W0368379 BEARING AUTO CLOSER L TF DG
$11.00
W0368381 GUIDANCE RAIL,DRAWER,LEFT
$227.00
W0368382 GUIDANCE RAIL,DRAWER,RIGHT
$265.00
W0368404 SHROUD FAN BF
$90.00
W0368443 EGG HOLDER,WHITE,254.8X116.8MM
$19.00
W0368469 LEVER,FOOT
$10.00
W0368701 GASKET FRZ BF80
$122.00
W0368768 SHAFT TELESCOPIC RAIL WH80
$52.00
W0368818 PANEL UI PINOT WEST 2Z INTL
$46.00
W0368866 DRIER 12GM(XH9)DBLE/SGLE TAIL
$30.00
W0368891 PCBA DRIVE EMBRACO FMXA9C
$237.00
W0368898 DRAIN,TRAY,276.5X205.3MM
$26.00
W0368928 PCB MAIN ERF2003 15W (PROGRAMM
$284.00
W0369890 COMPRESSOR PLATE, ASSEMBLY, 17
$71.70
W0370027 SUPPORT,DRAWER,LEFT
$21.00
W0370038 SUPPORT, DRAWER, RIGHT
W0370333 WASHER, FAN, SLINGER NYLON
$3.50
W0371354 HARNESS-ASSY M/FLOW BF WEST
$42.00
W0371446 COVER,FOOT,LEFT
$14.00
W0371448 BASE,FOOT
$10.00
W0371464 COVER GRID AIR RETURN BF
$4.00
W0371482 ADJUSTABLE FOOT,ASSEMBLY
$12.00
W0371545 INSERT,SLIDE,RIGHT
$11.00
W0371568 TUBE,DRAIN,14.6MM,L=218MM
$18.00
W0372322 CAP,SCREW COVER,RIGHT,20.8MM
$3.50
W0372335 COVER,MAGNET,END CAP
$3.50
W0372362 COVER FOOT RIGHT HINGE DG
$3.50
W0372363 TUBE PROCESS 100MM
$4.50
W0372369 SCREW 6X20 SELF TAPPING
$4.00
W0372378 CENTRE HINGE PIN DRAWER DOOR
$3.50
W0372381 CLAMP COMPRESSOR
$3.50
W0372387 SCREW-HINGE/CAM-BTM ETM3600WB
$4.50
W0372389 CAP,SCREW COVER,LEFT,20.8MM
$3.50
W0372393 SCREW,PF AB 3.5X1.27X19
$3.50
W0372405 SPACER,DAMPER,3-WAYS
$3.50
W0372453 LOCK,BUTTER SHELF
$4.65
W0372467 SUPPORT EVAPORATOR BF
$4.95
W0372513 BEARING HINGE FZR
$7.00
W0372551 HINGE,TOP,LEFT
$8.00
W0372563 COVER TOP HINGE IW LH DG
$9.00
W0372577 SHAFT,ROLLER
$9.00
W0372590 HINGE,TOP,RIGHT
$10.00
W0372618 EXTENSION SLIDE INSERT FZR LH
$10.00
W0372686 TUBE JUMPER H/X 80W FMXY
$12.40
W0372687 SEALING MFLOW BACK BF 1725
$13.00
W0372697 SEAL, FOAM, AIR CHANNEL, 139X60X9
$14.00
W0372733 BIN DOOR DAIRY KNOB TF
$14.50
W0372735 BRACKET,ICE-MAKER
$16.00
W0372740 BIN, LID
$13.85
W0372762 BUSHING,FAN,D30MM
$17.00
W0372768 COVER,LENS,ASSEMBLY,385.4X90.4
$16.60
W0372799 ROLLER
$19.00
W0372813 CRISPER SUPPORT LH
$17.70
W0372826 BEARING,PAD,TELESCOPIC RUNNER
$21.00
W0372830 FOOT,LEFT
$22.00
W0372831 FOOT,RIGHT
$22.00
W0372852 CRISPER GASKET 80
$24.00
W0372876 BUTTER SHELF,LOCK,SP8008,265MM
$24.00
W0372912 POWERCORD INVERTER REF AU/NZ
$27.00
W0372953 TRAY EVAP DRAIN BM/SD 80W
$30.00
W0372992 BRACKET ADJUSTMENT BF IDP RH
$30.50
W0373000 BRACKET ADJUSTMENT BF IDP LH
$31.00
W0373017 HEATER TUBE DRAIN PAN SD LOK
$32.85
W0373069 BIN DOOR FINGER MD ASSY EL
$38.00
W0373078 HINGE,MIDDLE
$40.00
W0373150 DRAWER PASTRY BODY BF 80 FLAT
$44.00
W0373169 DRAWER MIDDLE BODY BF80
$47.05
W0373226 BIN DOOR FC SHAL MD80 1-HOTFO
$58.00
W0373253 DRAWER TELESCOPIC RAIL WH80
$64.00
W0373263 BIN DOOR BOTTLE MD80 WH
$61.00
W0373276 DRAWER FRONT BF80 FLAT WH ASSY
$72.00
W0373278 DRAWER FZR FR UPR ASY 80
$68.00
W0373279 DRAWER FZR FR MID ASY 80
$68.00
W0373294 BIN,SLIDING TYPE,DOOR,SP8008,2
$72.00
W0373314 DRAWER, FZR UPPER ASSY 80 WH
$72.00
W0373336 COVER CRISPER ASSY BF80 WH
$77.00
W0373398 SHELF FC TF80W HLZT
$91.00
W0373400 PCB, DISPLAY BOARD
$86.50
W0373436 DRAWER, FZR MID ASY 80 WH FL
$91.15
W0373467 COVER EVAPORATOR ASY BF80 2Z
$104.00
W0373484 GASKET FC MD80
$112.00
W0373487 CRISPER BODY ASSY BF80 FLAT WH
$98.00
W0373615 MULTIFLOW ASSY BF FLAT PINOT
$157.00
W0373618 FOAM,EVAPORATOR
$158.00
W0373628 EVAPORATOR,FREEZER
$163.00
W0373647 REAR HOUSING PCB COVER
$173.00
W0373676 PCBA G_SSLB
$189.00
W0373684 VALVE DRAIN ASSY BF
$195.00
W0373694 DISPLAY,INTERFACE,WH 2 ZONE FD
$205.00
W0373842 HANDLE ASSY MD WH SS
$394.00
W0373876 DOOR SPARE FZR WHE5204SB-D
$472.00
W0373896 DOOR SPARE FZR WHE5204BB-D
$510.00
W0373944 DOOR SPARE FC L+R WHE5204SB-D
$730.00
