WBM4300PB — 925042211 00

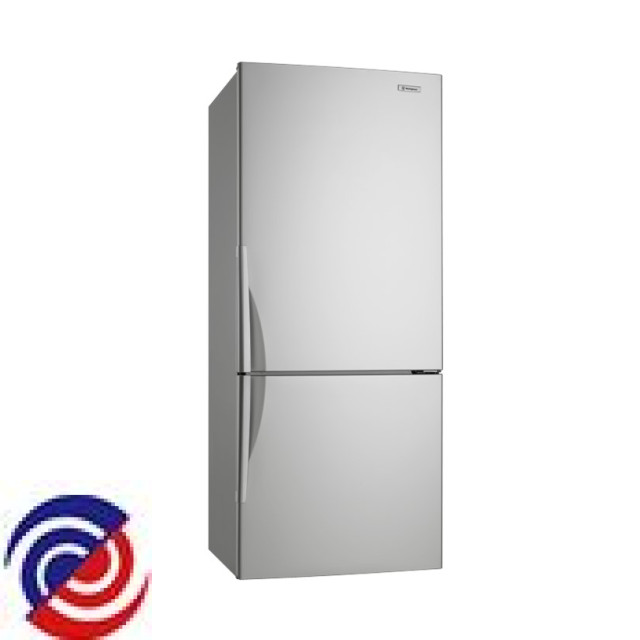

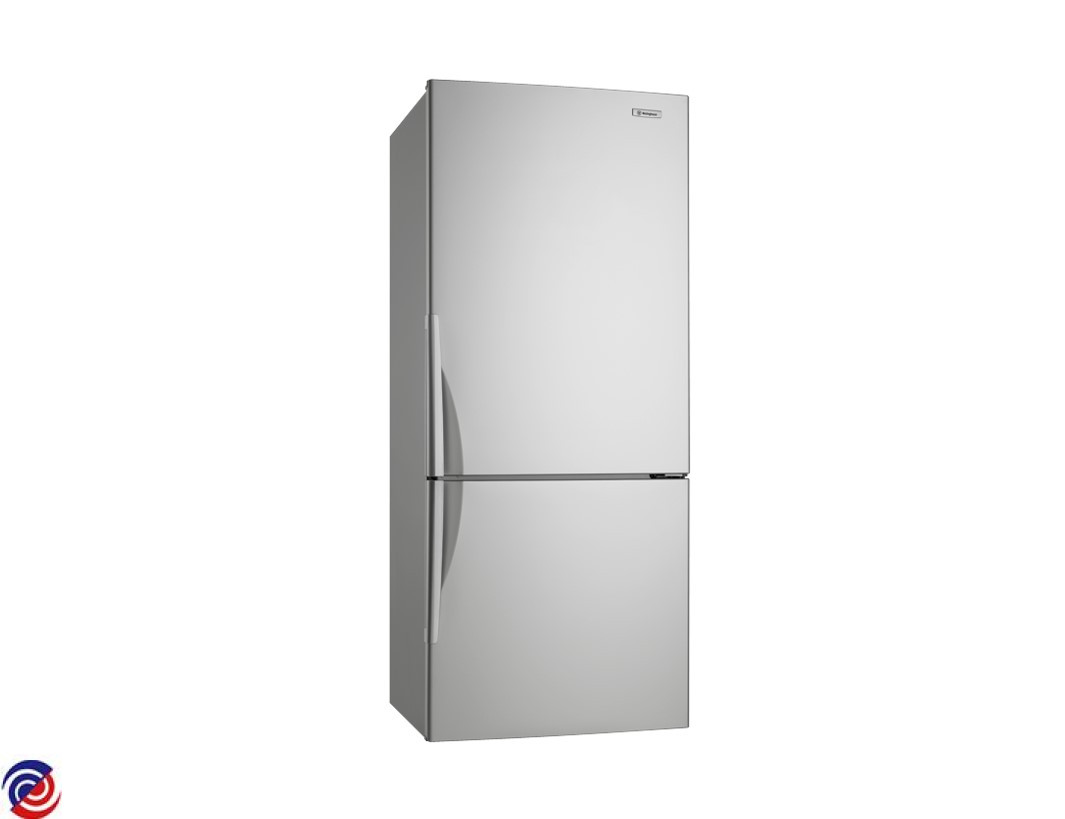

WESTINGHOUSE — Fridge

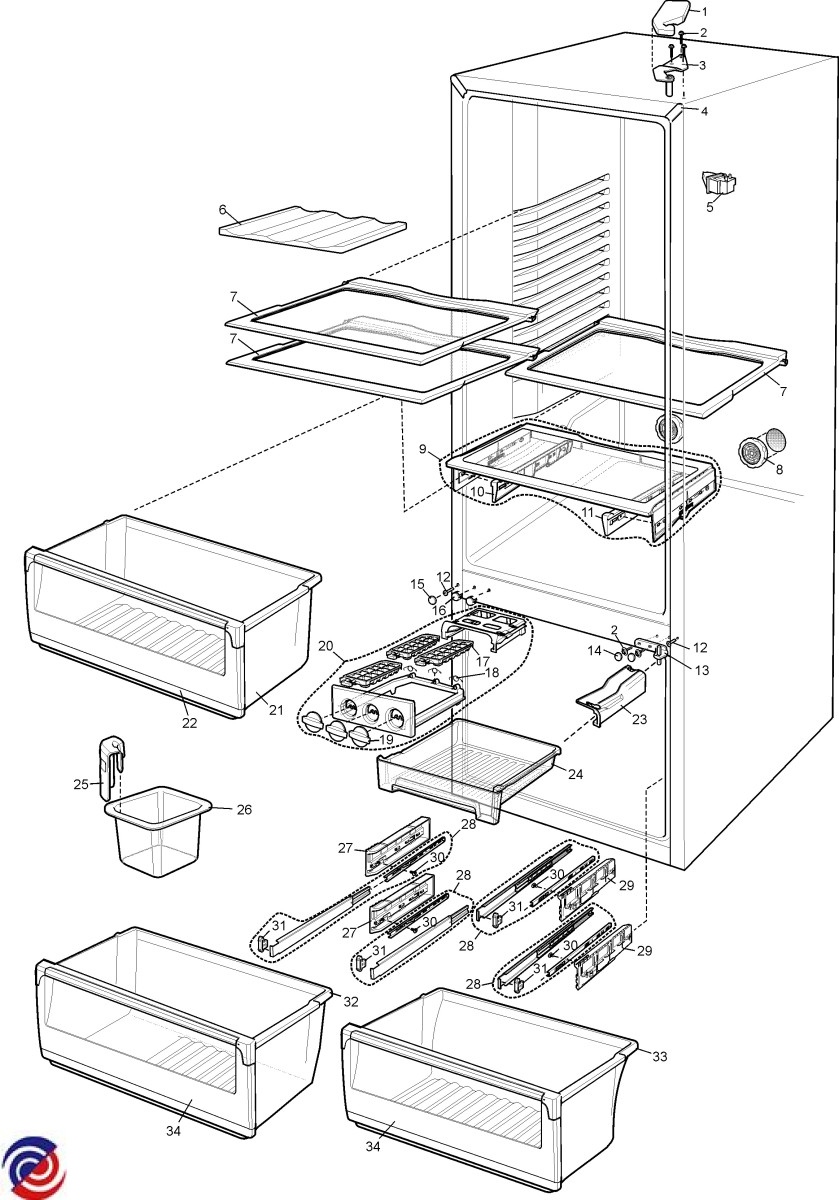

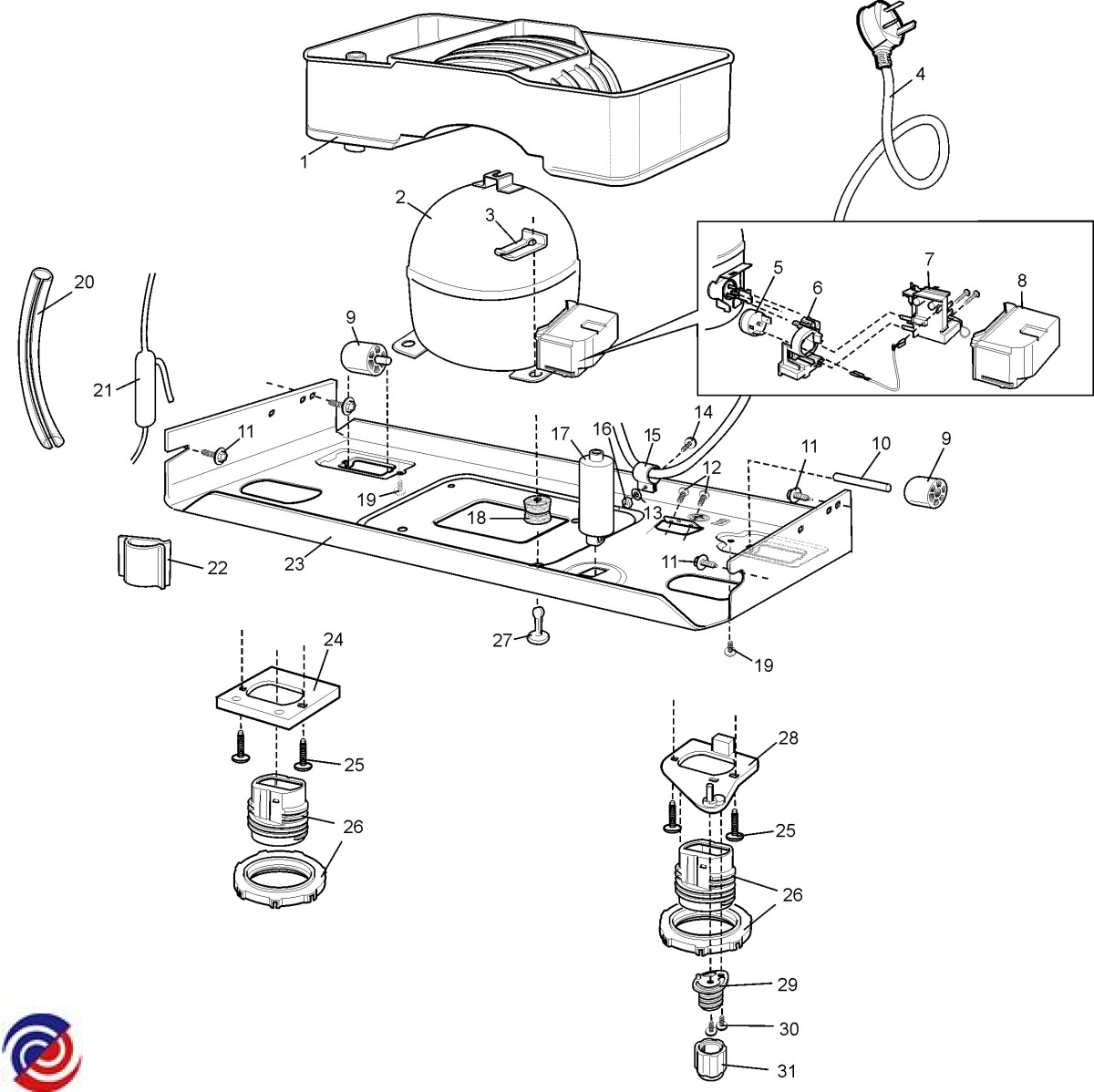

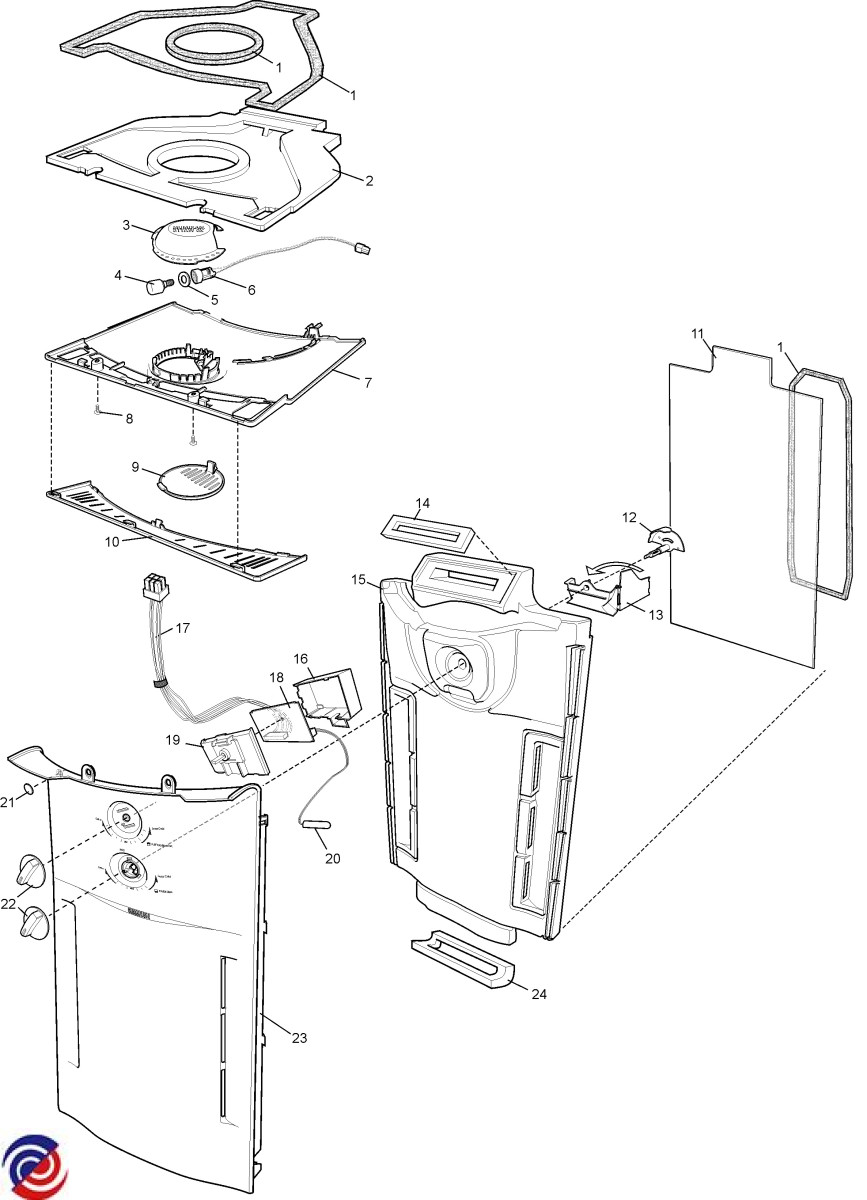

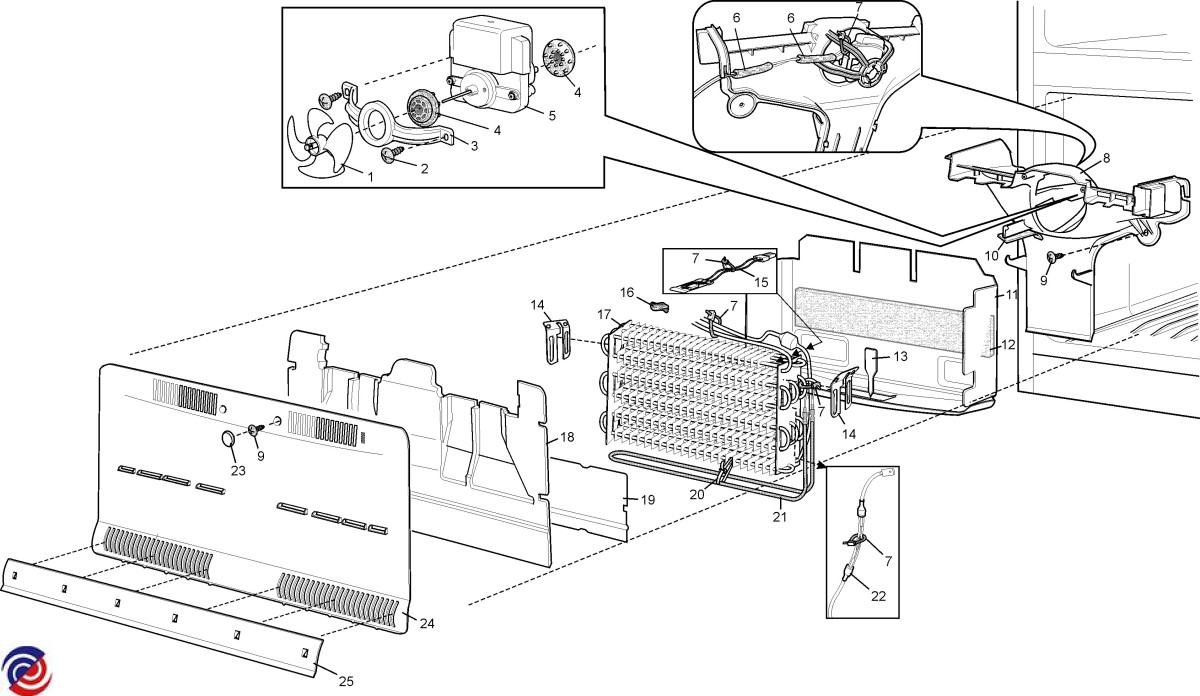

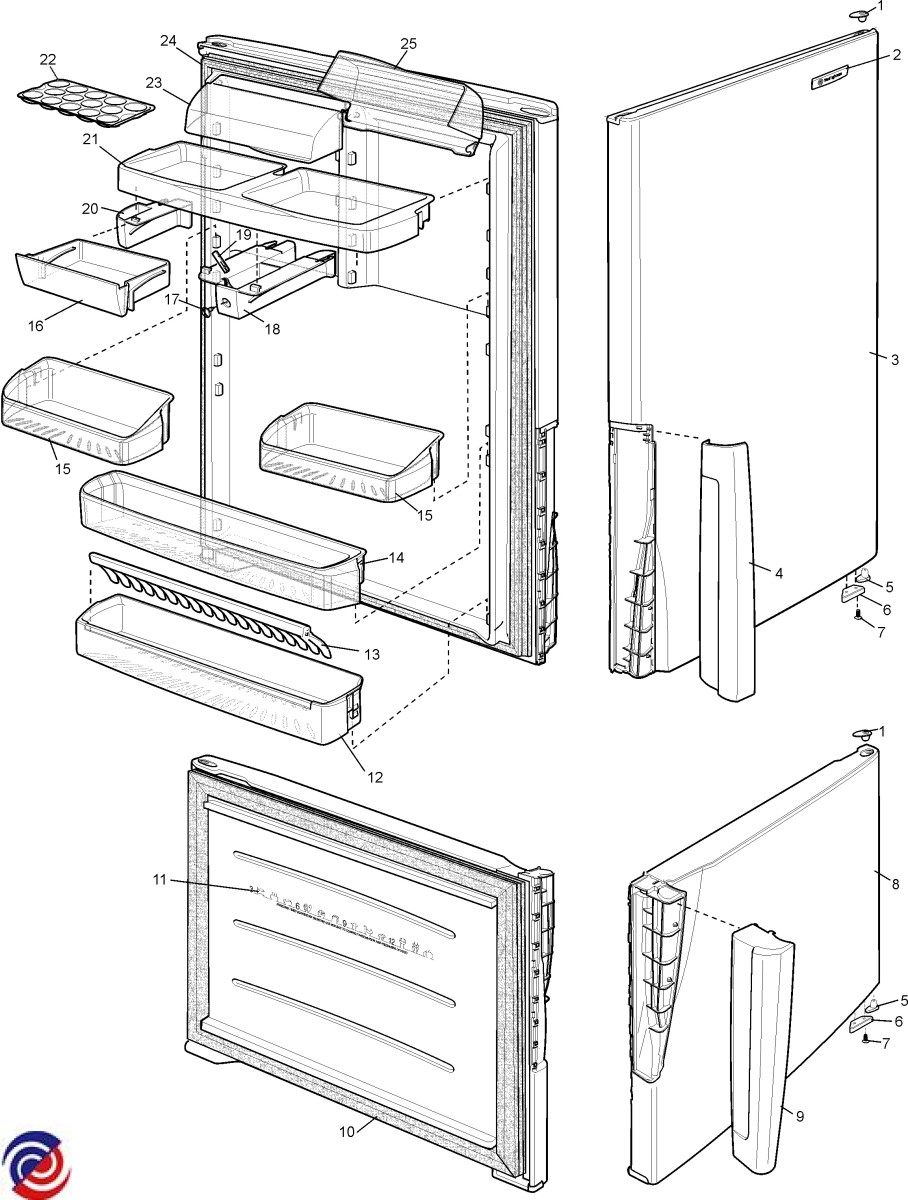

Parts for WBM4300PB
W0018091 BIN FULL WIDTH
.JPG)
W0018097 BIN HALF WIDTH
W0018285 FACIA ASSY CRISPER
.JPG)
W0018288 BIN CRISPER REAR
W0018296 BIN ICE
$26.95
W0018332 FACIA ASSY BIN FZR
W0018395 COVER HANDLE RH TOP LH BOT
$30.00
W0018396 COVER HANDLE RH BOT LH TOP
$45.85
W0018417 HEATER DEF & DTT R600A 690W
.JPG)
W0018582 BADGE NAMEPLATE
W0019131 SCREW COUNTER SUNK THIMBLE
$4.50
W0020709 HOLDER BOTTLE WHT
$10.00
W0034671 TRAY ICE CUBE
.JPG)
W0083263 STOP DOOR
.JPG)
W0085600 CAP LEG
$12.90
W0085609 LEG STABILISING
W0086637 HOSE DRAIN (SLIT 130MM)
$11.90
.JPG)
W0086638 BLADE FAN
.JPG)
W0086775 SWITCH LAMP
W0086834 HINGE PLATE BOT LH BLACK ASSY
W0087161 TRAY EGG
W0087214 HINGE TOP LH
W0087464 ROLLER REAR GREY
W0087741 LAMP 25W SES BLUE 240V E14
.JPG)
W0088096 MOTOR FAN EVAP
W0159670 DRIER 12GM(XH9)DBLE/SGLE TAIL
W0018042 BRACKET FAN MOTOR
$7.00
W0018049 CLIP SELF ADHESIVE
$9.00
W0018081 SHROUD FAN MOULDED RJ393V
W0018126 RUNNER LH
W0018166 GROMMET FAN MOTOR
$16.45
W0018170 GROMMET COMPRESSOR
W0018233 COVER HINGE LH
$12.65
W0018254 CAP CORNER GREY SYD1212A
$23.80
W0018279 RUNNER TRAY FZR
$12.20
W0018293 RAIL BIN RH FZR
$14.00
W0018294 RAIL BIN LH FZR
$14.05
W0018302 BAFFLE AIR RETURN
$15.40
W0018377 SCREW #8 X 7.5 EBM4307SC
$4.50
W0018383 GASKET LAMP SEALING
$7.70
W0018624 PAN DRAIN WANBAO ETZ110
$21.10
W0018633 COM KITEZT110 R600A
W0081199 TIE CABLE 140MM LONG
W0081263 PIN COMPRESSOR MTG RS652M*6
W0082523 RIVET
W0082722 FOAM TAPE RJ393V
W0083235 CLIP-HEATER-ALUMINIUM BJ414Q
W0083869 PLUG DRAIN WHT
W0084342 TAPE (9MM 3M TAPE)
W0084491 SEAL BYPASS PLASTIC N410F
W0084558 DAMPER NOISE
W0084749 CLAMP-CORD BJ385T
W0085461 KNOB LOCK
W0085462 LOCK LATCH
W0085497 SHELF FC 599.97MM X 386.90MM
W0085536 DOOR DAIRY RH RJ393V
W0085538 DOOR DAIRY LH RJ393V
W0085599 SPACER ROLLER STRIKESIDE RJ393
W0085702 ROLLER ADJUSTABLE RJ393V
W0085947 PLUG SCREW
$3.90
W0086011 BIN BOTTLE RJ393V
W0086014 FINGERS BOTTLE
W0086053 THIMBLE FILLER ASSY CLOSED
W0086056 THIMBLE CAM ASSY CLOSED RJ393V
W0086339 SCREW M4 X 8 MUSH RJ393V
W0086350 GRILLE AIR
W0086447 CAP
$12.90
W0086558 RUNNER CENTRE
W0086579 TAPE FOAM SEALING SBM3800MA
W0086654 VENT AIR CURTAIN
$46.20
W0086700 STRAINER DRAIN TUBE NB380J
W0086763 GASKET CONTROL REAR LOWER
W0087030 BIN UTILITY LH 690
W0087325 CAPAC 4*0UF 400V WIRED CLIP
W0087402 SCREW 8/32 X 3/8 ETM3600WB
W0087403 CLIP MOUNTING COMPRESSOR
W0087405 SCREW 12/14 16MM ETM3600WB
W0087406 SCREW-HINGE/CAM-BTM ETM3600WB
$4.50
W0087407 SCREW 8/32 X 1/2THREAD FORMING
W0087409 SCREW EVAP COVER 8 X 1/2
$4.00
W0087411 SCREW HINGE CENTRE
$4.50
W0087412 SCREW ETM3600WB
W0087416 SCREW 8 X 1/2 T/F ETM3600WB
W0087417 NUT ETM3600WB
W0087422 LOCK WASHER ESE6108WA
W0087462 M/F SEALING WBM3700WA
W0087496 HINGE DOOR CENTRE GREY
W0087497 CAP SCREW GREY
W0087504 CAP SNAP ETE3900SA
W0087587 GASKET CONTROL REAR LOWER
W0087593 BASE PLATE COMP ASSY STM4200W
W0087648 GASKET DOOR FZR
W0087650 GASKET DOOR FC
W0087721 COVER EVAP WTM4200PA
W0087731 HEAT SHIELD EVAP COVER
W0087739 TROUGH DRAIN ASSY BJ383V *10
W0087773 BIN FREEZER REAR TOP WBE4300SB
W0087776 BIN FREEZER BOT WBE4300SB
W0087779 RAIL EXTENSION SLIDE ASSY FZR
W0087780 LID CRISPER ASSY WITH RAILS
W0087788 TWIST & SERVE CARRIAGE ASSY
W0087792 BIN ICE
W0087794 SCOOP ICE
W0087822 SHAFT ROLLER
$7.00
W0087834 DOOR ASSY FIP FC LH PS WBM4300
W0087835 DOOR ASSY FIP FZR LH WBM4300PB
W0088018 SENSOR ASSY ETM4200SC
W0088025 ELECTRONIC CONFIGURED REAR
W0088055 BIN DAIRY
$54.95
W0088084 RUBBER BUMPER UNION FC
W0088155 INSULATION COVER EVAP ASSY
W0088157 COVER EVAP ASSY WBE4300SB
W0088182 CORD SERVICE INSULATED R600A
W0088403 LENS LIGHT WBE5100SC
W0088751 EVAPORATOR ASSY ETM 690W R600A
$145.00
W0088782 COVER COMPRESSOR
$14.90
W0134832 TAPE-FOAM SEAL18X4 14M/RLL.
W0163904 KNOB ICE B6565WTB2800WA-XAU
W0166429 SPRING ICE CUBE TRAY
