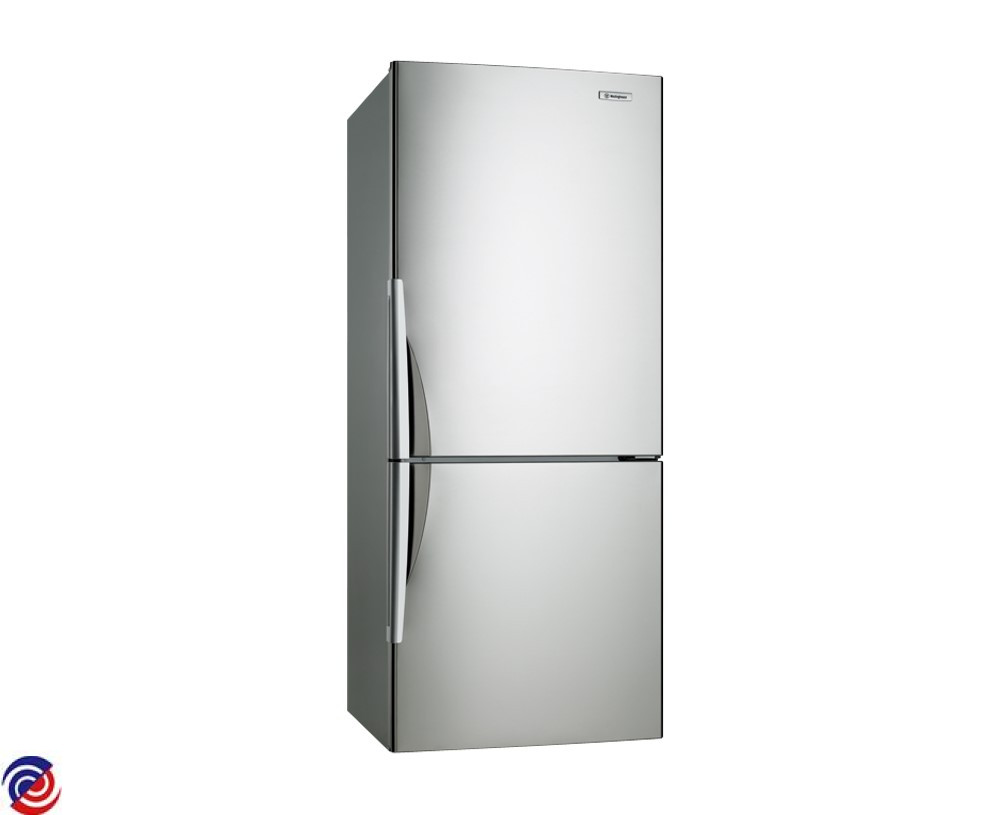

WBM3700SB — 925042236 00
WESTINGHOUSE — Fridge
Parts for WBM3700SB
.JPG)
W0018097 BIN HALF WIDTH
W0018098 BIN HALF WIDTH
W0018176 BIN BOTTLE
W0018395 COVER HANDLE RH TOP LH BOT
$30.00
W0018396 COVER HANDLE RH BOT LH TOP
$45.85
.JPG)
W0018582 BADGE NAMEPLATE
W0019131 SCREW COUNTER SUNK THIMBLE
$4.50
W0020709 HOLDER BOTTLE WHT
$10.00
.JPG)
W0083263 STOP DOOR
.JPG)
W0085600 CAP LEG
$12.90
W0085609 LEG STABILISING
W0086637 HOSE DRAIN (SLIT 130MM)
$11.90
.JPG)
W0086638 BLADE FAN
.JPG)
W0086775 SWITCH LAMP
W0086833 WESTINGHOUSE FRIDGE DOOR BOTTOM HINGE PLATE R/H
W0087161 TRAY EGG
W0087213 HINGE TOP RH
W0087464 ROLLER REAR GREY
W0087662 GASKET DOOR FC
W0087741 LAMP 25W SES BLUE 240V E14
W0088200 HEATER DEF & DTT R600A 595W
$80.90
W0159670 DRIER 12GM(XH9)DBLE/SGLE TAIL
W0018042 BRACKET FAN MOTOR
$7.00
W0018049 CLIP SELF ADHESIVE
$9.00
W0018126 RUNNER LH
W0018166 GROMMET FAN MOTOR
$16.45
W0018170 GROMMET COMPRESSOR
W0018232 COVER HINGE RH ETE3900SA
$4.00
W0018254 CAP CORNER GREY SYD1212A
$23.80
W0018270 TROUGH DRAIN ASSY WBM3700PB
$22.00
W0018283 FACIA ASSY CRISPER
$41.00
W0018287 BIN CRISPER REAR
$58.80
W0018290 LID CRISPER ASSY WITH RAILS
$54.90
W0018293 RAIL BIN RH FZR
$14.00
W0018294 RAIL BIN LH FZR
$14.05
W0018330 FACIA ASSY BIN FZR
$42.30
W0018355 TRIM SHELF WBM3700PB
$28.00
W0018377 SCREW #8 X 7.5 EBM4307SC
$4.50
W0018383 GASKET LAMP SEALING
$7.70
W0018624 PAN DRAIN WANBAO ETZ110
$21.10
W0018633 COM KITEZT110 R600A
W0081199 TIE CABLE 140MM LONG
W0081263 PIN COMPRESSOR MTG RS652M*6
W0082523 RIVET
W0082722 FOAM TAPE RJ393V
W0083235 CLIP-HEATER-ALUMINIUM BJ414Q
W0083869 PLUG DRAIN WHT
W0084342 TAPE (9MM 3M TAPE)
W0084491 SEAL BYPASS PLASTIC N410F
W0084558 DAMPER NOISE
W0084749 CLAMP-CORD BJ385T
W0085286 INSULATION EVAP COVER N280J
W0085293 EVAPORATOR COVER RJ282V
W0085458 DOOR DAIRY RH RJ282V
W0085461 KNOB LOCK
W0085462 LOCK LATCH
W0085502 BAFFLE CASING
$4.80
W0085599 SPACER ROLLER STRIKESIDE RJ393
W0085702 ROLLER ADJUSTABLE RJ393V
W0085947 PLUG SCREW
$3.90
W0086015 BOTTLE FINGER RJ282V
W0086053 THIMBLE FILLER ASSY CLOSED
W0086056 THIMBLE CAM ASSY CLOSED RJ393V
W0086339 SCREW M4 X 8 MUSH RJ393V
W0086350 GRILLE AIR
W0086395 KNOB CONTROL
$16.00
W0086447 CAP
$12.90
W0086558 RUNNER CENTRE
W0086579 TAPE FOAM SEALING SBM3800MA
W0086587 TRAY ICE CUBE ASSY
W0086608 CORD SERVICE INSULATED
W0086654 VENT AIR CURTAIN
$46.20
W0086700 STRAINER DRAIN TUBE NB380J
W0086742 SHELF ASSY GLASS
W0086744 SHELF FREEZER TOP WBM3700WA
W0086751 DOOR DAIRY LH
W0086753 BIN DAIRY
W0086755 SHROUD FAN MOULDED WBM3700WA
W0086756 BASE PLATE COMPRESSOR WBM3700W
W0086763 GASKET CONTROL REAR LOWER
W0086872 HEAT SHIELD EVAP COVER
W0087030 BIN UTILITY LH 690
W0087263 COVER EVAPORATOR ASSY
W0087325 CAPAC 4*0UF 400V WIRED CLIP
W0087399 MOTOR FAN EVAP 5W ROHS ETM4407
W0087402 SCREW 8/32 X 3/8 ETM3600WB
W0087403 CLIP MOUNTING COMPRESSOR
W0087405 SCREW 12/14 16MM ETM3600WB
W0087406 SCREW-HINGE/CAM-BTM ETM3600WB
$4.50
W0087407 SCREW 8/32 X 1/2THREAD FORMING
W0087409 SCREW EVAP COVER 8 X 1/2
$4.00
W0087411 SCREW HINGE CENTRE
$4.50
W0087412 SCREW ETM3600WB
W0087416 SCREW 8 X 1/2 T/F ETM3600WB
W0087417 NUT ETM3600WB
W0087422 LOCK WASHER ESE6108WA
W0087461 EPS HOUSING CONTROL REAR
W0087462 M/F SEALING WBM3700WA
W0087496 HINGE DOOR CENTRE GREY
W0087497 CAP SCREW GREY
W0087504 CAP SNAP ETE3900SA
W0087587 GASKET CONTROL REAR LOWER
W0087660 GASKET FZR DOLPHIN GRY
W0087772 BIN FZR UPPER
W0087775 BIN FZR LOWER
W0087779 RAIL EXTENSION SLIDE ASSY FZR
W0087789 BAFFLE AIR RETURN
W0087822 SHAFT ROLLER
$7.00
W0087868 DOOR ASSY FIP FC RH SS WBM3700
W0087869 DOOR ASSY FIP FZR RH SS WBM370
W0088018 SENSOR ASSY ETM4200SC
W0088025 ELECTRONIC CONFIGURED REAR
W0088047 BAFFLE MF WBM4000SB
W0088084 RUBBER BUMPER UNION FC
W0088403 LENS LIGHT WBE5100SC
W0088750 EVAPORATOR ASSY 595W R600A
W0088782 COVER COMPRESSOR
$14.90
W0134832 TAPE-FOAM SEAL18X4 14M/RLL.
