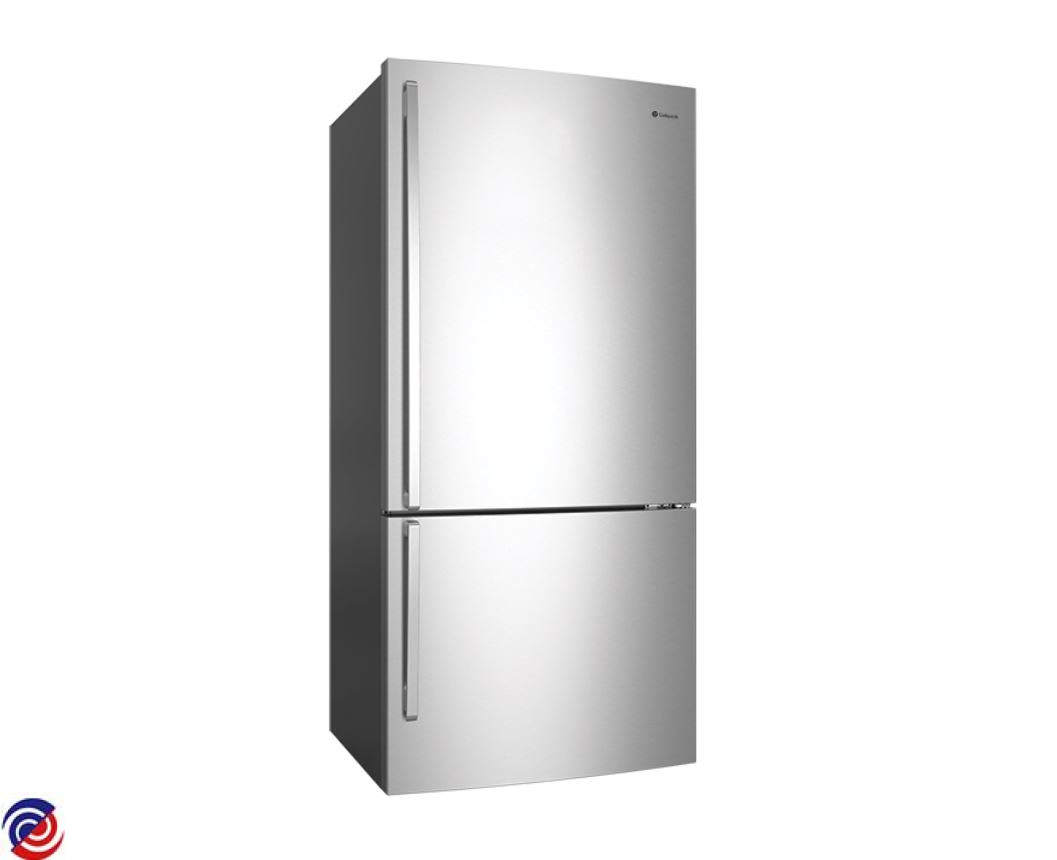

WBE5314SA-L — 925060216 00
WESTINGHOUSE — Fridge
Parts for WBE5314SA-L
.JPG)
W0018582 BADGE NAMEPLATE
W0020667 PCBA 3 LEDS CLUSTER GALAGA
W0027081 SCREW TRILOB M3X6
$4.50
W0027096 BOARD G SSLB WBE4500SA
$179.85
W0027222 TUBE PROCESS
$19.15
W0027373 MOTOR FAN DC 3W
W0027433 CAPACITOR 4UF
$14.90
W0027439 SCREW TRILOB M5X16
$4.50
W0027522 COVER SCREW
$4.50
W0027550 SHROUD FAN ASSY BF DC 50HZ
W0027560 GROMMET COMPRESSOR
$11.50
W0027562 CLAMP NTC EVAPORATOR
W0027610 CLAMP COMPRESSOR
$4.50
W0029359 MULTIFLOW ASSY BF WH AU
W0029435 TRAY EGG 80W
W0029558 HEATER RAD DEF R600 240V BF80W
W0029692 RACK BOTTLE TO SUIT 70CM WIDE
$49.50
W0029693 RACK BOTTLE TO SUIT 80CM WIDE
$56.90
W0029699 FOOT BASE THREAD
$8.75
W0029700 ROLLER FOOT
$17.10
W0029701 FOOT LEVER
W0029836 HANDLE ASSY (FC AND FZR) BF LH
W0030292 DISPLAY UI WH 2ZONE BF INT ASY
W0030315 WESTINGHOUSE FRIDGE STARTING DEVICE QPA-20A
$27.50
W0087752 BLADE FAN
W0147530 TRAY TWIST AND SERVE ASSY ICE
W0154021 PCB MAIN ERF2003 INTER DISPLAY
W0159670 DRIER 12GM(XH9)DBLE/SGLE TAIL
W0018166 GROMMET FAN MOTOR
$16.45
W0020669 LENS 3 LEDS CLUSTER GALAGA
$26.80
W0027119 SCREW TRILOB M6X18
$4.50
W0027401 BAFFLE MOTOR FBZA-1750-3D
W0027441 SCREW TRUSS 4.2X13
W0027547 SHROUD FAN BF
W0027553 VALVE DRAIN ASSY BF
$184.20
W0027580 RAIL DOOR SUPPORT 80W WHT
$23.60
W0027602 GASKET FRZ BF80
$110.10
W0027604 GASKET FC BF80
$159.55
W0029308 DRAWER MIDDLE BODY BF80
$45.45
W0029310 HINGE TOP LEFT
$6.40
W0029373 SUPPORT EVAPORATOR LEFT TF
$6.20
W0029377 DRAWER BODY BF80
$92.50
W0029380 DRAWER FRONT BF80 WH ASSY
W0029388 CRISPER DIVIDER BF WH-ART
$11.90
W0029398 DOOR BIN LOCKABLE TF80 WH ASSY
W0029406 DOOR BIN FLEX 80 WH-HOTFOIL
W0029412 DOOR BIN FC SHALL 80 WH-HOTFOI
W0029431 DOOR BIN FC BOTTLE TF80 WH
W0029433 DOOR BIN FINGER TF80 WH
$9.00
W0029446 SHELF FC TF80W
W0029467 COVER TOP HINGE LEFT GR
$4.50
W0029473 DRAWER PASTRY BODY BF 80
$40.90
W0029476 COVER GRID AIR RETURN BF
$4.50
W0029479 EPS EVAPORATOR BF 80
$149.15
W0029480 COVER SCREW MULTIFLOW LH
$4.50
W0029481 COVER SCREW MULTIFLOW RH
$4.50
W0029483 EVAPORATOR COVER BF80 ASY 2-Z
$79.25
W0029538 BEARING AUTO CLOSER L TF SL
W0029540 DRAWER LOWER BODY BF80
$48.00
W0029548 DRAWER FZR FR LWR ASY 80 WH
$64.00
W0029549 DRAWER FZR FR MID ASY 80 WH
$63.65
W0029550 DRAWER FZR FR UPR ASY 80 WH
$63.65
W0029554 EXTENSION SLIDE ASSY LH 300MM
W0029555 EXTENSION SLIDE ASSY RH 300MM
W0029563 BEARING HINGE FC TOP TF SL L
$13.85
W0029566 BEARING HINGE FZR TOP OPEN
$6.30
W0029573 TRAY EVAP DRAIN BM/SD 80W
$38.45
W0029597 PAN DRAIN DYN CON
W0029603 REAR HOUSING PCB COVER
$164.80
W0029604 REAR HOUSING PCB ADAPTER
W0029640 EXTENSION SLIDE INSERT FZR LH
$9.40
W0029641 EXTENSION SLIDE INSERT FZR RH
W0029674 HINGE CENTRE BASE ASSY
$37.75
W0029675 HINGE CENTRE PIN SWING DOOR
$8.15
W0029697 COVER FOOT LEFT HINGE GREY
$12.95
W0029703 HINGE BASE LEFT ASSY
$29.00
W0029746 CRISPER SUPPORT LH
W0029747 CRISPER SUPPORT RH
$17.75
W0029750 CRISPER COVER ASSY BF80 WH
$72.70
W0029761 BRACKET ICE MAKER
$14.50
W0029764 SUPPORT PASTRY SLIDE LH
$18.35
W0029814 SUPPORT PASTRY SLIDE RH
$14.00
W0029817 RETAINER CLIP
$4.50
W0029820 EPS FZ AIR STOPPER
$5.00
W0029830 SUPPORT EVAPORATOR RIGHT TF
$6.20
W0029843 TUBE CORRUGATE PF
W0029926 CRISPER GASKET 80
$22.00
W0030064 COMPRESSOR EMB66CLC
W0030111 HEATER TUBE DRAIN PAN (TYPE M)
$106.75
W0030113 SPACER 3 TURN HEATER
$4.50
W0030232 DOOR PACKED FZR+FC WBE5314SA-L
$635.20
W0030288 EVAPORATOR FF BF80
$144.45
W0030312 TERMINAL BLOCK EMBRACO
$19.10
W0030313 TERMINAL COVER EMBRACO
$25.00
W0030314 OVERLOAD PROTECTOR EMBRACO
$30.50
W0086608 CORD SERVICE INSULATED
W0147520 SWITCH DOOR
$26.50
W0147553 SHAFT ROLLER
W0154026 LENS COVER BLUE ASSY
$27.50
W0154029 HARNESS-ASSY SENSOR FZRDEFROST
