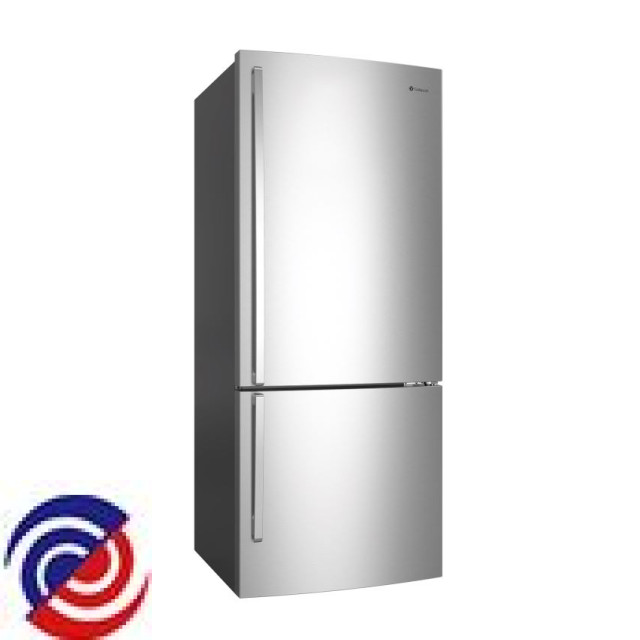

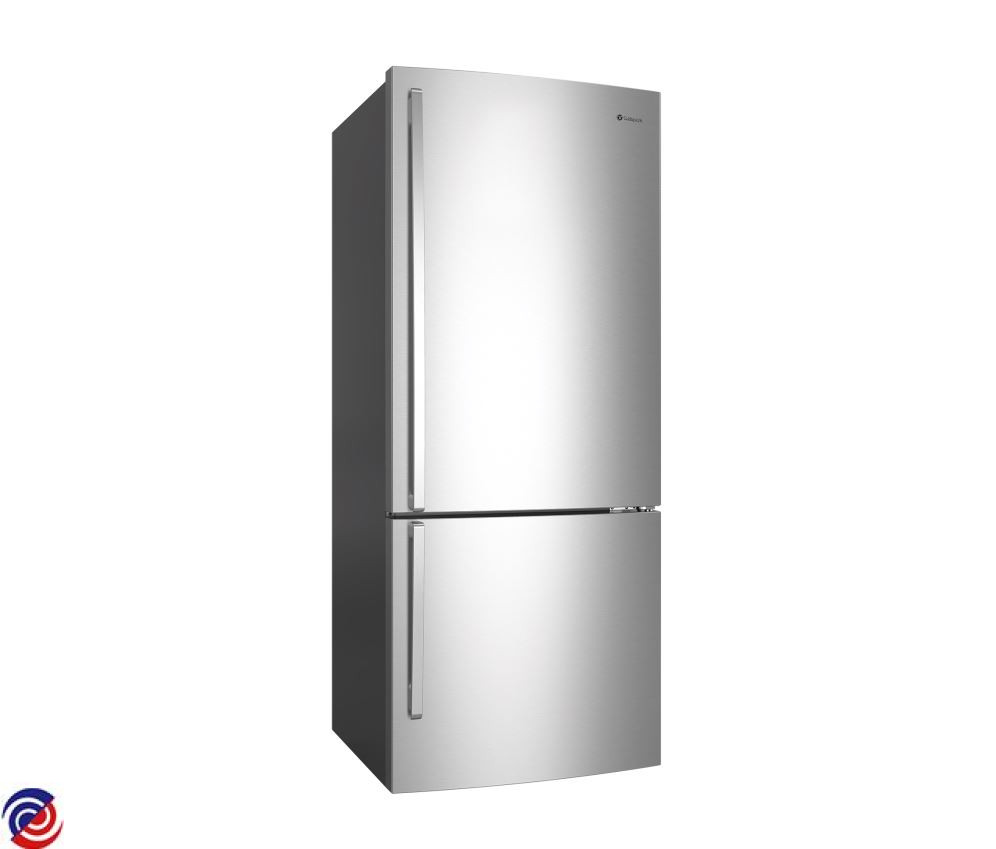

WBE4514SA-L — 925060214 00
WESTINGHOUSE — Fridge
Parts for WBE4514SA-L
.JPG)
W0018582 BADGE NAMEPLATE
W0020667 PCBA 3 LEDS CLUSTER GALAGA
W0027081 SCREW TRILOB M3X6
$4.50
W0027096 BOARD G SSLB WBE4500SA
$179.85
W0027222 TUBE PROCESS
$19.15
W0027373 MOTOR FAN DC 3W
W0027433 CAPACITOR 4UF
$14.90
W0027439 SCREW TRILOB M5X16
$4.50
W0027522 COVER SCREW
$4.50
W0027550 SHROUD FAN ASSY BF DC 50HZ
W0027560 GROMMET COMPRESSOR
$11.50
W0027562 CLAMP NTC EVAPORATOR
W0027610 CLAMP COMPRESSOR
$4.50
W0029307 DRAWER MIDDLE BODY BF70
W0029359 MULTIFLOW ASSY BF WH AU
W0029559 HEATER RAD DEF R600 240V BF70W
W0029692 RACK BOTTLE TO SUIT 70CM WIDE
$49.50
W0029699 FOOT BASE THREAD
$8.75
W0029700 ROLLER FOOT
$17.10
W0029701 FOOT LEVER
W0029836 HANDLE ASSY (FC AND FZR) BF LH
W0030292 DISPLAY UI WH 2ZONE BF INT ASY
W0030315 WESTINGHOUSE FRIDGE STARTING DEVICE QPA-20A
$27.50
W0087752 BLADE FAN
W0147530 TRAY TWIST AND SERVE ASSY ICE
W0154021 PCB MAIN ERF2003 INTER DISPLAY
W0159670 DRIER 12GM(XH9)DBLE/SGLE TAIL
W0018166 GROMMET FAN MOTOR
$16.45
W0020669 LENS 3 LEDS CLUSTER GALAGA
$26.80
W0027119 SCREW TRILOB M6X18
$4.50
W0027401 BAFFLE MOTOR FBZA-1750-3D
W0027441 SCREW TRUSS 4.2X13
W0027547 SHROUD FAN BF
W0027553 VALVE DRAIN ASSY BF
$184.20
W0027579 RAIL DOOR SUPPORT 70W WHT
$8.10
W0027601 GASKET FRZ BF70
$101.55
W0027603 GASKET FC BF70
$116.05
W0029310 HINGE TOP LEFT
$6.40
W0029373 SUPPORT EVAPORATOR LEFT TF
$6.20
W0029376 DRAWER BODY BF70
$34.10
W0029379 DRAWER FRONT BF70 WH ASSY
$64.00
W0029388 CRISPER DIVIDER BF WH-ART
$11.90
W0029396 DOOR BIN LOCKABLE TF70 WH ASY
W0029410 DOOR BIN FC SHALL 70 WH-HOTFOI
W0029421 DOOR BIN FC BOTTLE TF70W
W0029434 TRAY EGG 70W
W0029445 SHELF FC TF70W
W0029467 COVER TOP HINGE LEFT GR
$4.50
W0029472 DRAWER PASTRY BODY BF 70
$41.00
W0029476 COVER GRID AIR RETURN BF
$4.50
W0029480 COVER SCREW MULTIFLOW LH
$4.50
W0029481 COVER SCREW MULTIFLOW RH
$4.50
W0029482 EVAPORATOR COVER BF70 ASY 2-Z
$65.00
W0029538 BEARING AUTO CLOSER L TF SL
W0029539 DRAWER LOWER BODY BF70
$84.10
W0029545 DRAWER FZR FR LWR ASY 70 WH
$63.65
W0029546 DRAWER FZR FR MID ASY 70 WH
$64.00
W0029547 DRAWER FZR FR UPR ASY 70 WH
$63.65
W0029554 EXTENSION SLIDE ASSY LH 300MM
W0029555 EXTENSION SLIDE ASSY RH 300MM
W0029563 BEARING HINGE FC TOP TF SL L
$13.85
W0029566 BEARING HINGE FZR TOP OPEN
$6.30
W0029572 TRAY EVAP DRAIN BM/SD 70W
$16.50
W0029597 PAN DRAIN DYN CON
W0029603 REAR HOUSING PCB COVER
$164.80
W0029604 REAR HOUSING PCB ADAPTER
W0029640 EXTENSION SLIDE INSERT FZR LH
$9.40
W0029674 HINGE CENTRE BASE ASSY
$37.75
W0029675 HINGE CENTRE PIN SWING DOOR
$8.15
W0029697 COVER FOOT LEFT HINGE GREY
$12.95
W0029703 HINGE BASE LEFT ASSY
$29.00
W0029746 CRISPER SUPPORT LH
$17.75
W0029747 CRISPER SUPPORT RH
$17.75
W0029749 CRISPER COVER ASSY BF70 WH
W0029761 BRACKET ICE MAKER
$14.50
W0029764 SUPPORT PASTRY SLIDE LH
$18.35
W0029796 FOOT BASE BF
$7.55
W0029814 SUPPORT PASTRY SLIDE RH
$14.00
W0029817 RETAINER CLIP
$4.50
W0029820 EPS FZ AIR STOPPER
$5.00
W0029830 SUPPORT EVAPORATOR RIGHT TF
$6.20
W0029843 TUBE CORRUGATE PF
W0029925 CRISPER GASKET 70
$11.40
W0030064 COMPRESSOR EMB66CLC
W0030111 HEATER TUBE DRAIN PAN (TYPE M)
$106.75
W0030113 SPACER 3 TURN HEATER
$4.50
W0030230 DOOR PACKED FZR+FC WBE4514SA-L
$635.00
W0030287 EVAPORATOR FF BF70
$95.75
W0030312 TERMINAL BLOCK EMBRACO
$19.10
W0030313 TERMINAL COVER EMBRACO
$25.00
W0030314 OVERLOAD PROTECTOR EMBRACO
$30.50
W0086608 CORD SERVICE INSULATED
W0147520 SWITCH DOOR
$26.50
W0147553 SHAFT ROLLER
W0154010 DOOR BIN FLEX 70 WH-HOTFOIL
W0154012 DOOR BIN FINGER TF70W WH
W0154026 LENS COVER BLUE ASSY
$27.50
W0154029 HARNESS-ASSY SENSOR FZRDEFROST
W0361777 EPS EVAPORATOR BF 70
$7.45
