WDF902WA — 911916384 00
WESTINGHOUSE — Dishwasher

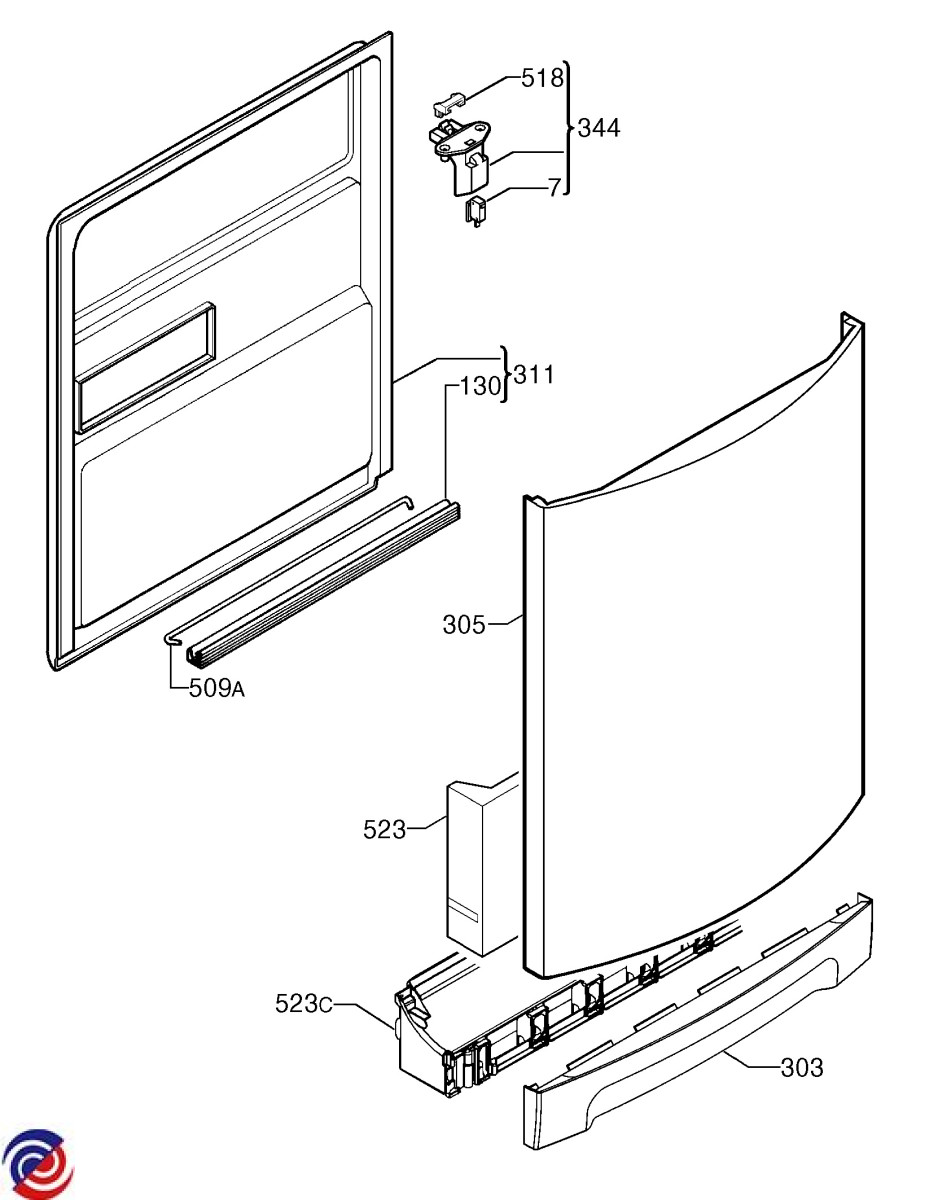

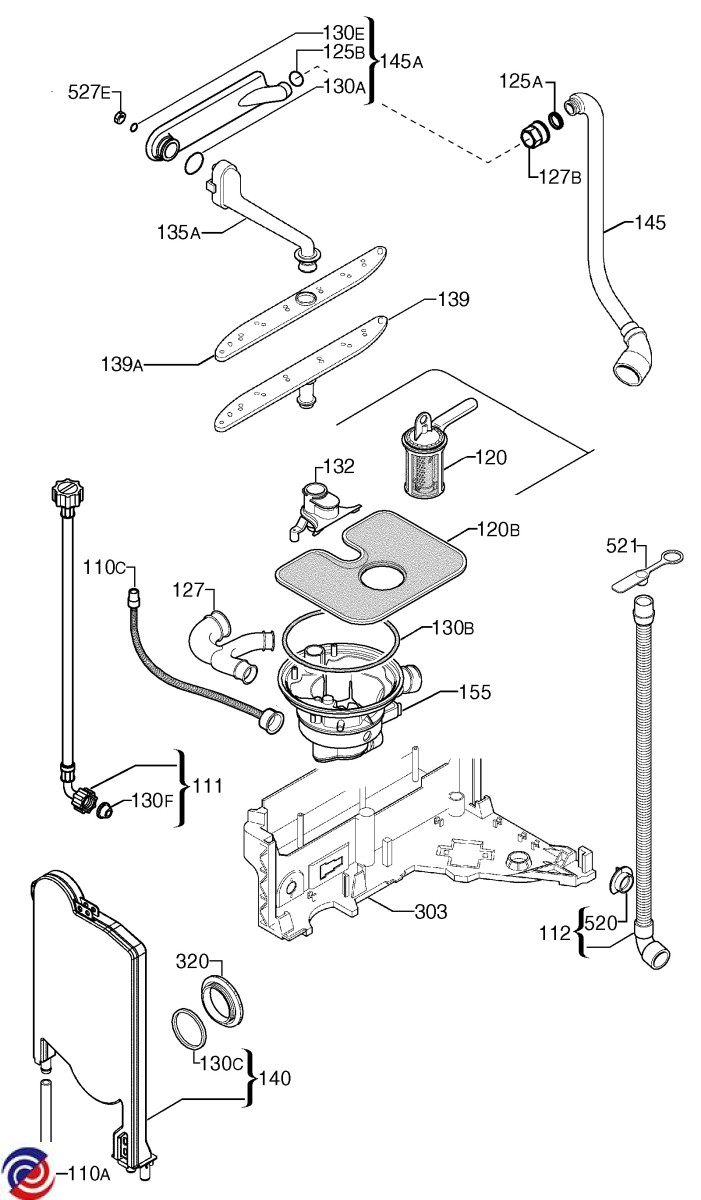

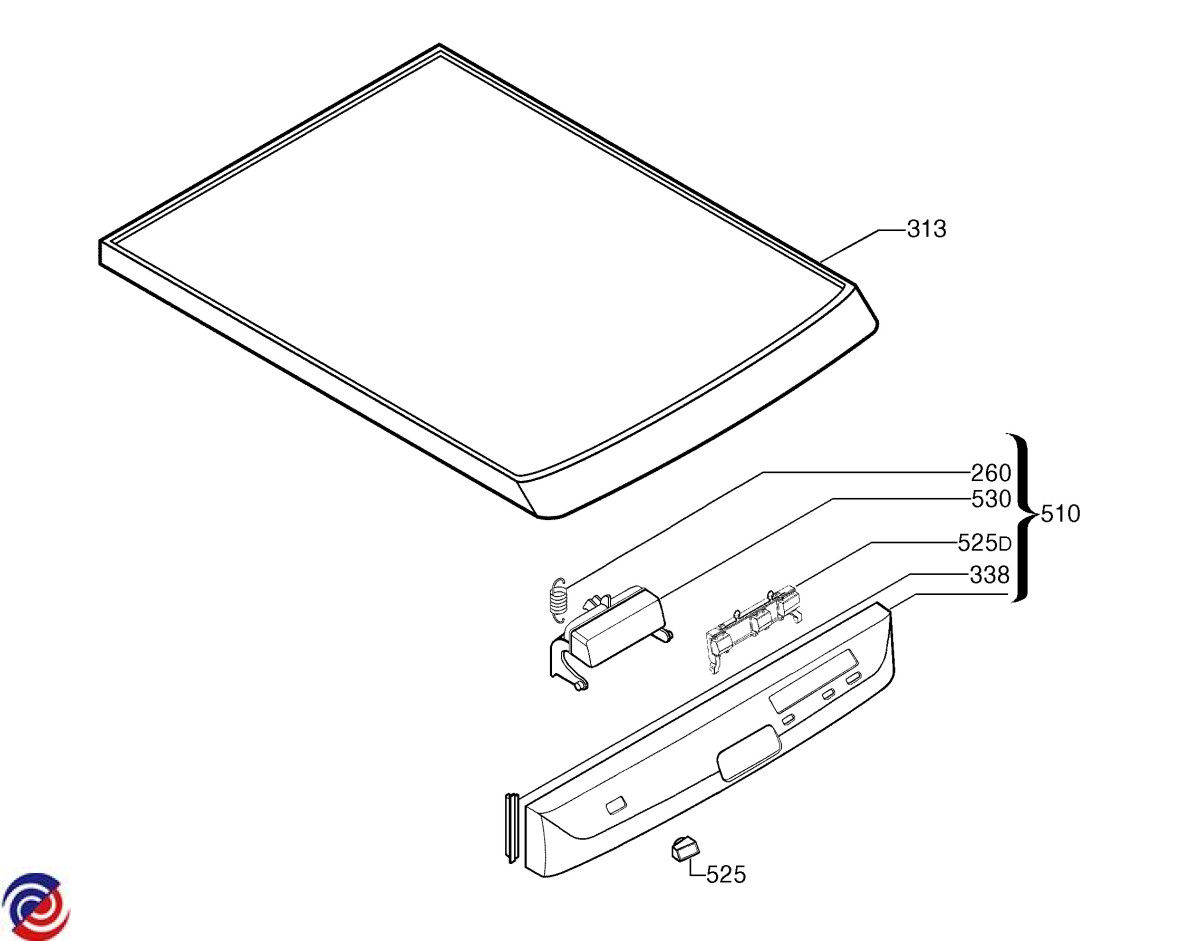

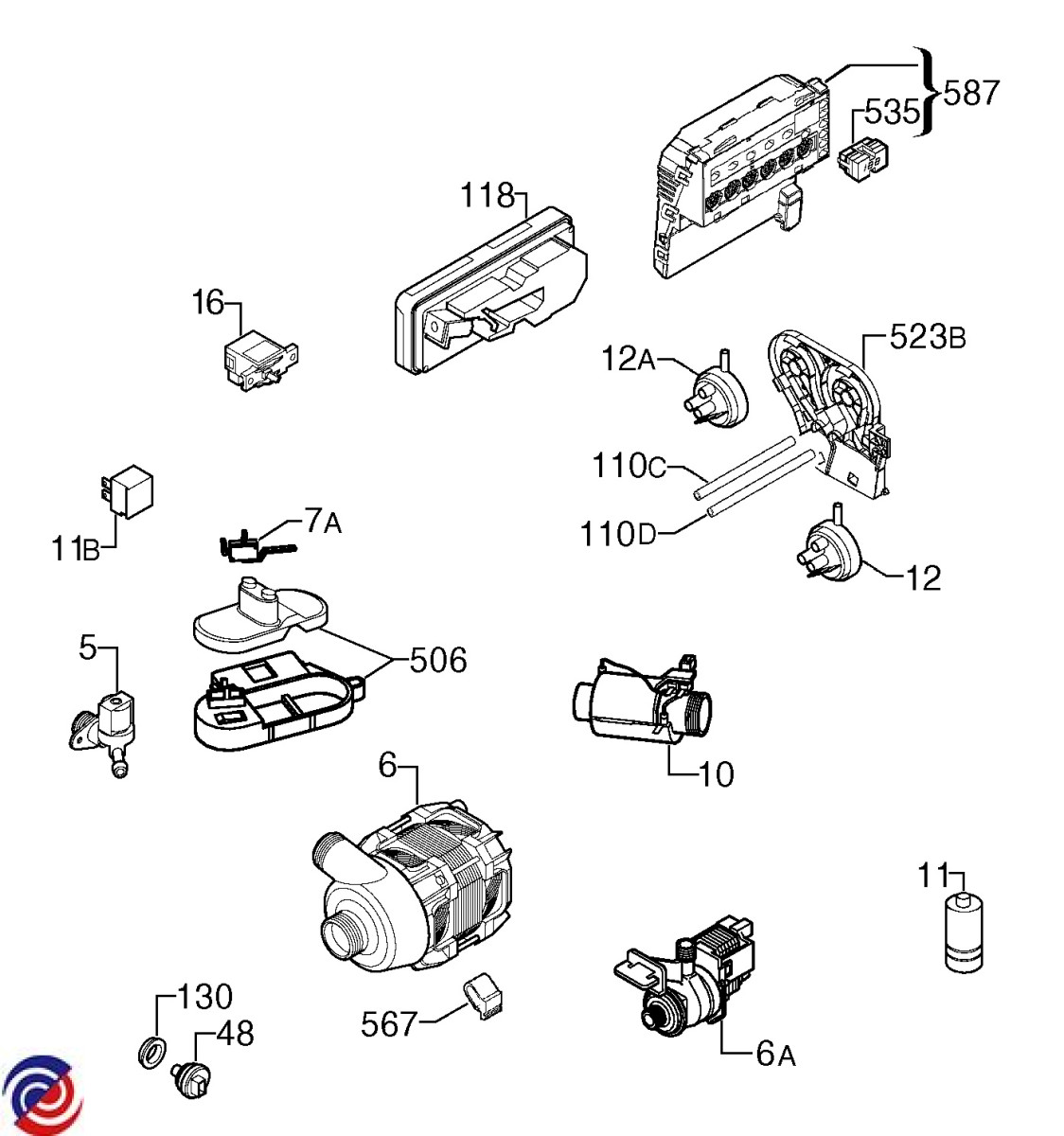

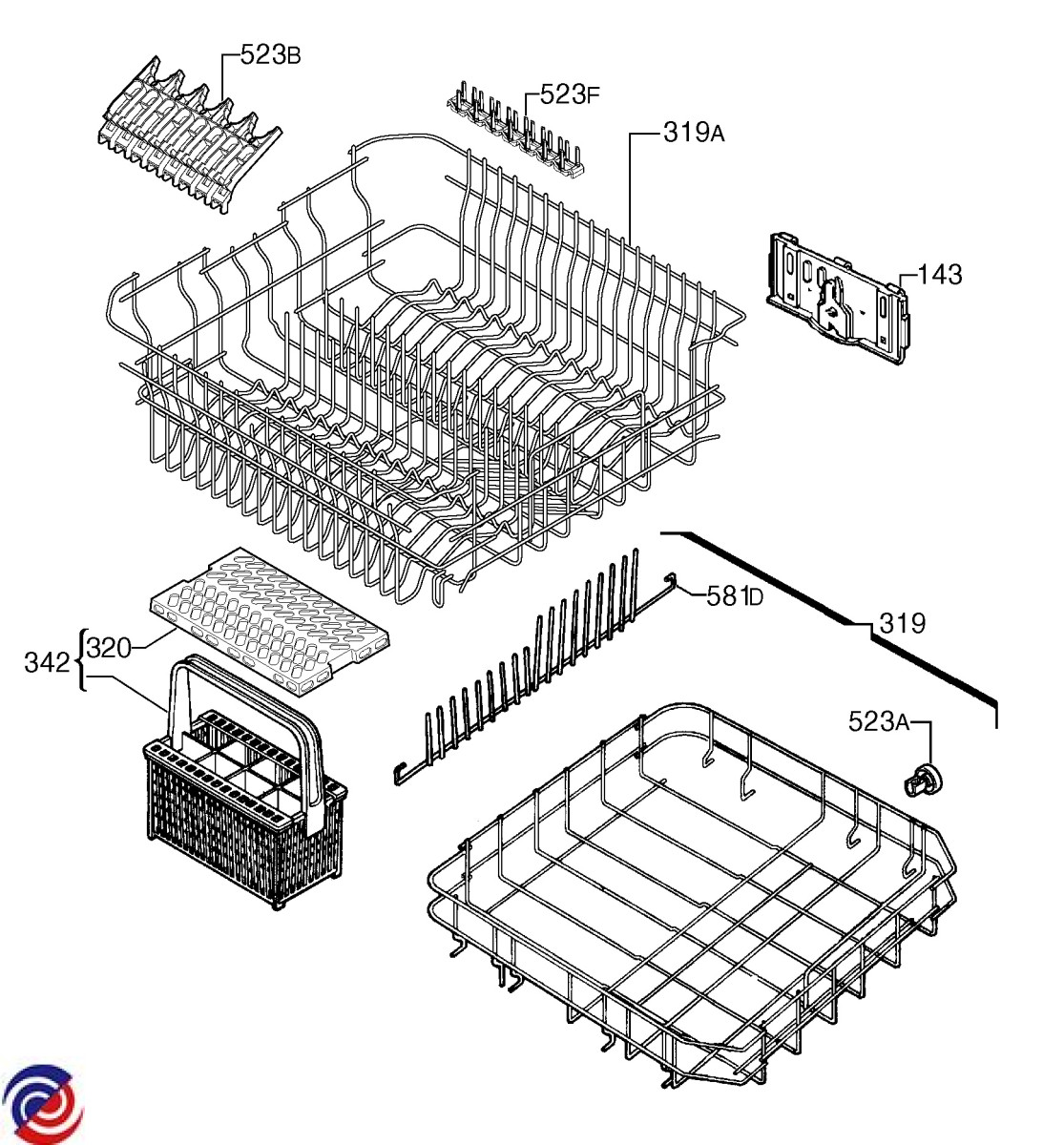

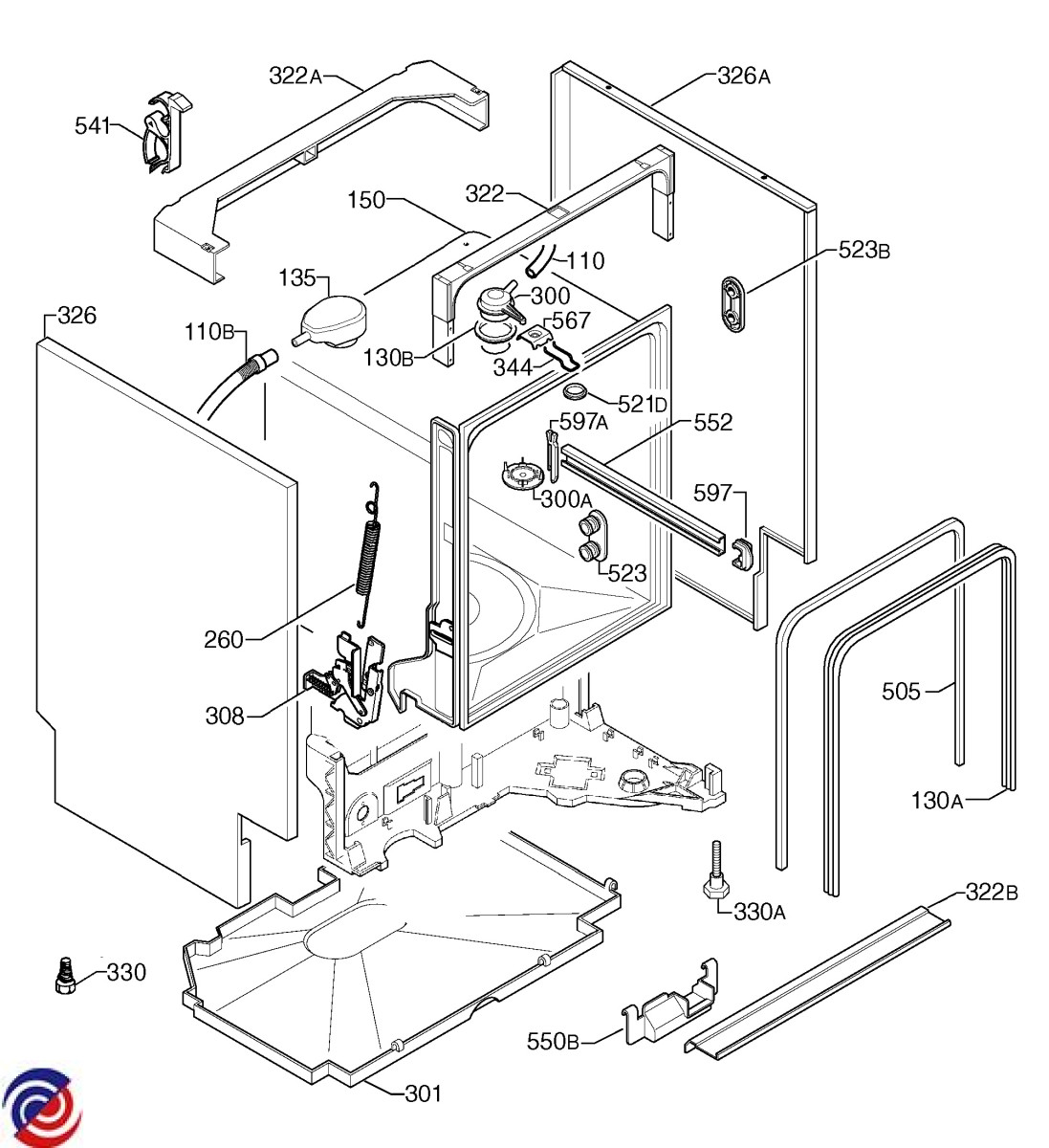

Parts for WDF902WA

W0015721 MOUNT PRESSURE SWITCH
$50.00
W0015729 TUBE PRESURE SWICH LEVEL 525MM
$21.00
W0015793 MANIFOLD HORIZONTAL DK GREY
W0019036 SPRAY ARM UPPER SILVER
W0019083 MANIFOLD OUTER
W0025858 ROLLER KIT LOWER PKT 8
W0028910 BOARD CONFIGURED EDW1500
$216.00
W0071627 WASHING MOTOR TACHOMETRIC
W0071719 SENSOR TEMPERATURE
$50.00
W0090295 CLIP BASKET STOP FRONT
$11.15
W0090412 COUPLING MANIFOLD LIGHT GREY
W0090546 BASKET CUTLERY
W0090747 GASKET DOOR LOWER BLK L=550
W0090786 SUMP
$121.00
W0090799 SWITCH PRESSURE LEVEL 65/45
W0090800 SWITCH PRESSURE SAFETY 123/98
W0128335 ELEMENT INLINE 230V/2000W 32MM
W0128336 FILTER DRAIN
W0149901 NOZZLE SPRAYER LOWER
$34.95
W0149911 STOP BASKET REAR DK GREY
No image available
W0015143 SWITCH MAIN ON/OFF
$45.70
No image available
W0015341 PIPE UNION HEATING ELEMENT
$18.90
No image available
W0015733 TANK WATER SHORT ELECTRONIC
$50.00
No image available
W0015742 RAIL BASKET UPPER
No image available
W0015751 CORD POWER AUST/NZ 10A
$40.00
No image available
W0015758 BUTTON SET PROGRAM SILVER
$14.00
No image available
W0018981 FOOT ADJUSTABLE
$18.90
No image available
W0018988 LATCH DOOR LOCK
No image available
W0019009 CROSSBAR FRONT UPPER
$27.50
No image available
W0019019 TUBE AIR CHAMBER
No image available
W0019021 SUPPRESSOR INTERFERENCE
$28.00
No image available
W0019023 VENT VAPOUR OUTLET
$14.90
No image available
W0019065 ROLLER BASKET ADJUSTMENT
$16.00
No image available
W0019080 LEG ADJUSTABLE FRONT 30MM.
$6.60
No image available
W0025794 O RING
No image available
W0025927 SWITCH MICRO DOOR
$35.00
No image available
W0028144 NOZZLE SPRAYER UPPER
$17.15
No image available
W0050178 SEAL SUMP
No image available
W0071815 HOLDER COLUMN LOWER SPRAY ARM
No image available
W0071820 SEAL TEMPERATURE SENSOR
No image available
W0071828 DIFFUSER DISPLAY 16.2MM
No image available
W0072620 DOOR WHT ARCHED
$120.00
No image available
W0072639 BRACE REAR UPPER
No image available
W0072674 SIDE PANEL LEFT WHITE
No image available
W0072676 SIDE PANEL RIGHT WHITE
No image available
W0072686 TUBE PRESSURE SWITCH SAFETY
No image available
W0072710 BASKET UPPER
$154.90
No image available
W0072723 BASKET LOWER INCLUDES ROLLERS
No image available
W0072725 SPONGE DRAIN PUMP 'L
$4.50
No image available
W0072751 HARNESS
No image available
W0072772 PANEL CONTROL
No image available
W0072775 HANDLE COMPLETE ASSY
No image available
W0072802 BUTTON ON/OFF
$10.00
No image available
W0072806 VALVE FILL 4.5L/MIN
No image available
W0072818 HOLDER PLINTH
No image available
W0072820 MAT SUPPORT PLINTH
No image available
W0072842 SEALING OUTER X 1730 LONG
No image available
W0072850 AIR GUIDE - ACTIVE DRY
No image available
W0072894 SUPPORT BRACKET MOTOR RUBBER
No image available
W0072930 WORKTOP WHT
$150.00
No image available
W0074296 SEAL
No image available
W0090280 TIE HINGE
No image available
W0090332 BRACKET ROLLER REAR SIFFENING
$10.00
No image available
W0090380 COVER WIRING
No image available
W0090402 SEALING STRIP
No image available
W0090413 SEAL CHANNEL DRAINAGE
No image available
W0090423 NUT SPEED CLIP
No image available
W0090465 FILTER. INOX ESL9163
No image available
W0090544 PLATE SIDE - WHITE
No image available
W0090547 BASKET ASSY CUTLERY GREY
No image available
W0090551 SPRING, HANDLE, LATCH
$16.00
No image available
W0090563 BASEPLATE BASEMENT
No image available
W0090569 PANEL BASE
No image available
W0090597 LATCH BRIDGING PLUG COMP
No image available
W0090611 PLUG BRIDGING
$4.50
No image available
W0090612 CLAMP HOSE
No image available
W0090622 GASKET ANTI OVERFLOW
No image available
W0090635 LOWER SPRAYARM. SILVER
No image available
W0090636 COVER LATCH HOLE
No image available
W0090647 SPRING. HINGE
No image available
W0090649 CHANNEL DRAINAGE COMPLETE
No image available
W0090683 TUBE AIR CHAMBER
No image available
W0090697 ADAPTOR FLANGE DISCHARGE PIPE
$12.00
No image available
W0090711 RACK REAR BASKET LOWER DISH
$30.00
No image available
W0090712 RACK DISH
No image available
W0090726 CROSSBAR FRONT BOTTOM
No image available
W0090745 ROLLER BASKET ADJUSTMENT
$16.00
No image available
W0090746 PLUG DRAIN HOSE
No image available
W0090752 MICROSWITCH. ANTIOVERFLOW
No image available
W0090761 SUPPORT CUP SILVER
No image available
W0090775 HOSE AIR DRYING L=680
No image available
W0090807 PUMP DRAIN
No image available
W0090815 TUBE SPRAYER BLACK L=1100
No image available
W0090817 SUPPORT CUP
$6.60
No image available
W0090858 PLINTH WHITE - ARCHED
No image available
W0090864 STIFFENING DOOR 60 - ARCHED
No image available
W0090939 HOSE DRAIN X 2230MM
No image available
W0127221 O RING MANIFOLD INNER
No image available
W0127959 HOSE INLET X 1500 LONG
No image available
W0128097 CLIP FIXING STUD (PKT 4)
$4.50
No image available
W0128149 KIT. DISPENSER. DETERGENT
No image available
W0128153 NUT WATER DISTRIBUTOR
No image available
W0128168 HINGE KIT DOOR RIGHT-LEFT
No image available
W0128208 CAPAC 3UF 450V 2PIN SPIGOT
$20.30
No image available
W0128257 INNER DOOR COMPLETE
$232.00
No image available
W0128334 KIT SUPPORT FLOAT
$17.80
No image available
W0128356 SUPPORT ROLLER KIT PKT 4
$58.00
No image available
W0129222 SEAL AIR CHAMBER
No image available
W0149904 GASKET, SPRAYER DX303
