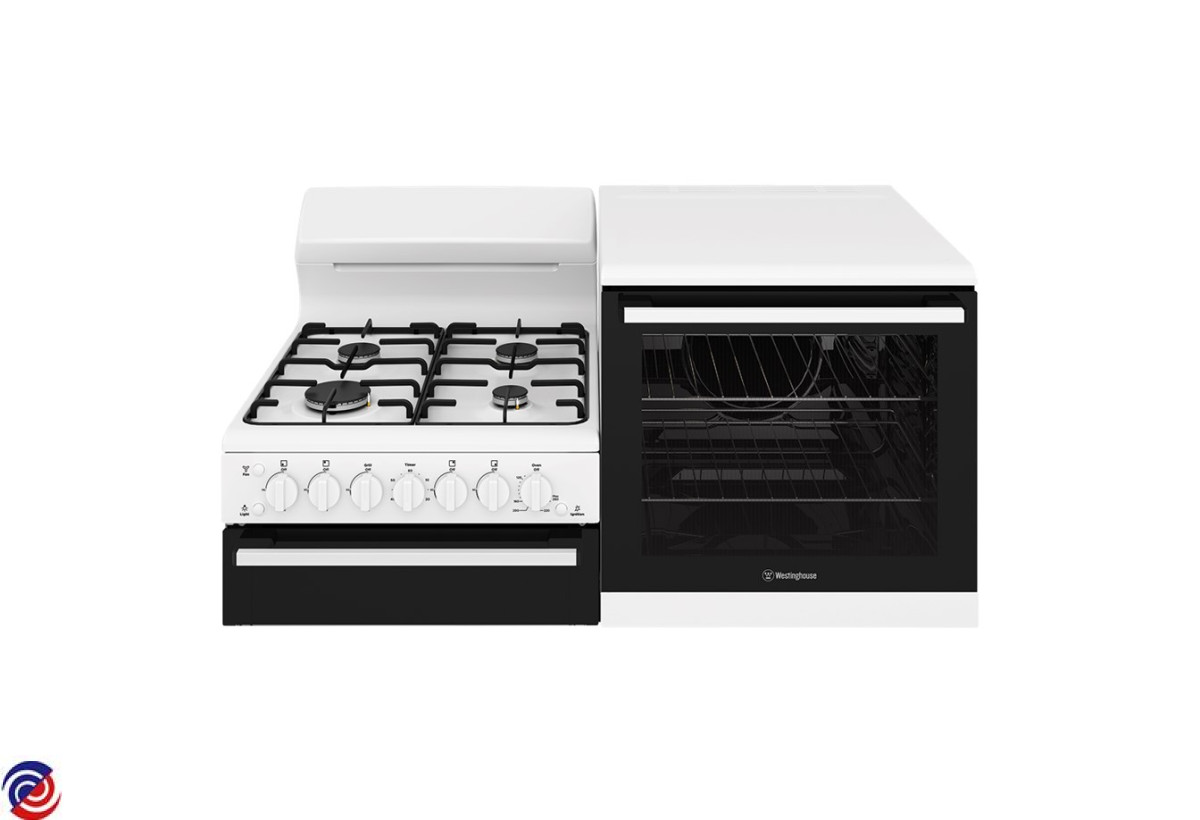

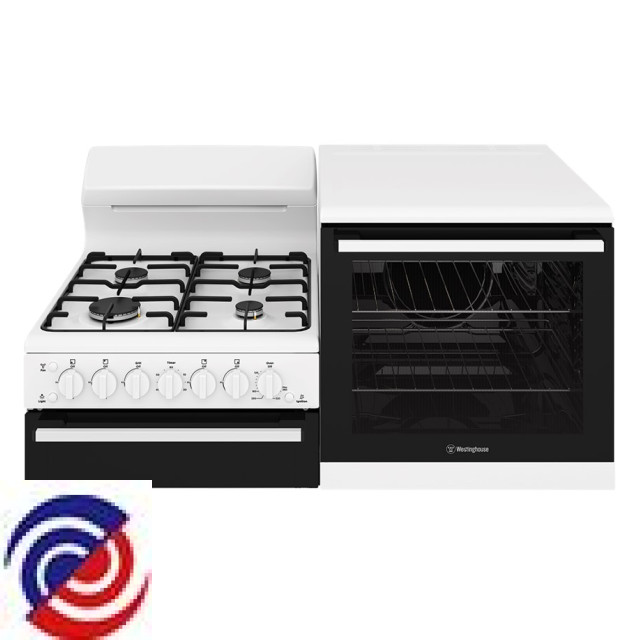

WDG110WCNG-R — 940598532 00
WESTINGHOUSE — Cooker Gas
Parts for WDG110WCNG-R
W0365487 CHEF ELECTROLUX WESTINGHOUSE OVEN DOOR SEAL GASKET
W0365529 CLIP MOUNTING ELEMENT
$8.75
W0365567 SHELF OVEN
$74.00
W0365624 CHEF ELECTROLUX WESTINGHOUSE BURNER OVEN FREESTANDING
$109.50
W0366269 THERMOCOUPLE TO SUIT ELECTROLUX AND WESTINGHOUSE GAS BURNERS
$59.00
W0365466 DISH GRILL ENAM SEP GRILL.
$105.00
W0365467 RACK GRILL INSERT
$69.05
W0365490 HINGE DOOR OVEN
$76.00
W0365519 DOOR OVEN INNER GLASS
$110.00
W0365676 THERMOCOUPLE OVEN BURNER
$59.05
W0365725 CHEF WESTINGHOUSE COOKTOP GAS PIEZO IGNITOR WHITE
$31.00
W0365728 BURNER CAP ENAM RAPID CYLINDER
$38.05
W0365755 SPARK PLUG GRILL DERLITE
$21.30
W0365758 BURNER GRILL
$130.00
W0365842 GRILL INJECT BLOCK FF FRESCO
$13.20
W0365868 WIRE IGNITION GRILL 300MM
$14.60
W0365880 HINGE GR DOOR 540 FRESCO PH2
$5.90
W0365893 WIRE IGNITION H/S PIEZO 1500MM
$16.45
W0365922 BRACKET ANTI TILT ELEVATED
$4.00
W0365927 BRKT IGNITION GRILL H/T 540
$4.00
W0365962 DOOR HANDLE ASPIRE
$21.00
W0365977 PANEL BACK WIRING GRILL ELEV F
$22.00
W0365993 BURNER CAP ENAM SEMI-R CYLIND
$26.05
W0365997 ENDCAP CNTRL PANEL FRESCO PAIR
$22.35
W0366022 BURNER CAP ENAM AUX CYLINDER
$28.55
W0366038 VALVE COPRECCI FSG GRILL
$46.50
W0366059 BRACE OVEN REAR 540 BIOS
$29.05
W0366062 VALVE COPRECCI FSG AUX
$46.50
W0366063 VALVE COPRECCI FSG SEMIRAPID
$46.50
W0366064 VALVE COPRECCI FSG RAPID
$46.50
W0366095 PANEL BACK WIRING OVEN ELEV
$32.55
W0366110 SHIELD WIRING HOB RC GAS FRES
$34.25
W0366127 BURNER BODY ASSY RAPID NG
$36.40
W0366145 BURNER BODY ASSY AUX NG
$38.55
W0366146 BURNER BODY ASSY SEMI RAP NG
$38.55
W0366151 TRIVET ENAMEL STANDARD
$43.00
W0366174 INSULATION OVEN GAS 540 BIOS
$43.00
W0366184 BURNER CROWN AUX CYLINDER NAT
$44.00
W0366207 THERMOCOUPLE GRILL BURNER 400
$49.50
W0366217 BURNER CROWN RAPID CYLIND NAT
$54.00
W0366218 BURNER CROWN SEMI-RAP CYL NAT
$53.00
W0366221 SEAL HOB SIDE 855MM ELEV
$51.00
W0366236 PNL SIDE GRILL OUT R/H ELV FRE
$52.80
W0366259 RACK SIDE GRILL LH/RH
$58.05
W0366265 T'COUPLE TT ELUX BURNER 275
$58.05
W0366284 HOSE FLEX 1.7M GHW W/SWIVEL
$79.05
W0366287 HINGE GR DOOR 540 FREE FRESCO
$63.00
W0366343 COVER OVEN BURNER
$88.00
W0366358 CONTROL PANEL,REAR,NO LOGO
$94.00
W0366372 PNL SIDE OVEN OUT R/H ELEV FRE
$99.10
W0366387 DOOR PANEL OVEN DOOR OUTER
$105.00
W0366491 PANEL CROWN ELEV ENAM FRESCO
$190.05
W0366498 THERMOSTAT COPRECI 1800MM COAX
$210.05
W0366523 HOB 540R ENAM GAS STD FF
$269.30
W0366675 FRONT FRAME,GRILL,PAINT
$24.75
W0366676 FRONT FRAME,OVEN,PAINT
$38.80
W0366677 PNL SIDE GRILL IN R/H ELEV FRE
W0366679 PNL SIDE OVEN INN R/H ELEV FRE
W0366680 BASE PANEL,COOKER
$77.00
W0366681 SUPPORT HINGE LH OVEN ELEV FRS
$5.05
W0366682 SUPPORT HINGE RH OVEN ELEV FRS
$4.00
W0366690 STIFFENER,ANGLE BRACKET,OUTER,
$6.45
W0366691 BRACKET HOB SUPPORT 540 BENCHL
$11.00
W0366694 TUBE OVEN ELEVATED FRESCO
$9.30
W0366695 TUBE OVEN RH ELEVATED SHORT FR
W0366700 PANEL HEAT SHIELD END CAP RH
W0366701 PANEL HEAT SHIELD END CAP LH
W0366771 PIPE MANIFOLD ELEVATED FF
W0366849 TUBE BURNER GRILL FF
W0366854 TUBE BURNER 600 R/L FRESCO FF
W0366855 TUBE BURNER 540 R/F F
$7.00
W0367011 PANEL,OUTER,GRILL,ASSEMBLY 540
$33.50
W0367061 CONTROL,SCREEN,WDG110WC
$79.05
W0367630 SHIELD GRLL GAS BURNR FRSCO LH
W0367631 SHIELD GRLL GAS BURNR FRSCO RH
W0367633 NIPPLE,INJECTOR,NG,1.50, H/P
W0367928 NUT HEX M6
$4.00
W0367935 SCREW #8 X 5/16 CSK #2PH AB BK
$4.00
W0367961 SCREW M4 X 4 PAN #1PH SMALL HD
$4.00
W0367983 SCREW PF K40X 20 T20 ROUND
$4.00
W0367997 SPACER,HANDLE,BLACK,ASPIRE
$4.00
W0368025 SCREW M4 X 16MM HEX ZC
$4.00
W0368028 SCREW #8 X 8MM HEX/MULTI
$4.00
W0368029 SCREW #8 X 1/2 MUSH #2PH AB BK
$4.00
W0368064 BRACKET MOUNTING GRILL
$4.40
W0368075 KNOB,WHITE,FREE-STANDING,COOKE
$5.35
W0368084 ENDCAP HANDLE EXTRUDED ASPIRE
$5.50
W0368094 BUMPER STOP GREY
$5.80
W0368095 TUBE BURNER 540 L/F FF
$5.90
W0368103 SHUTTER AERATION GRILL NG BIOS
$6.25
W0368150 TUBE BURNER 540 R/R
$7.75
W0368194 IGNITOR OVEN BURNER
$9.90
W0368199 CLIP BULB THERMOSTAT GAS (4MM)
$10.00
W0368212 HOLDER INJECTOR OVEN
$10.40
W0368215 BRACKET F/FAIL GAS RAIL FF
$10.60
