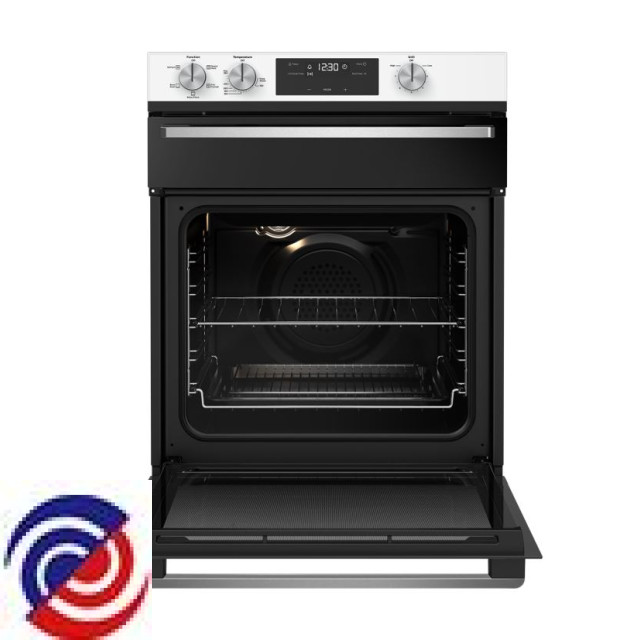

WVE655WC — 944031829 00
WESTINGHOUSE — Cooker Electric

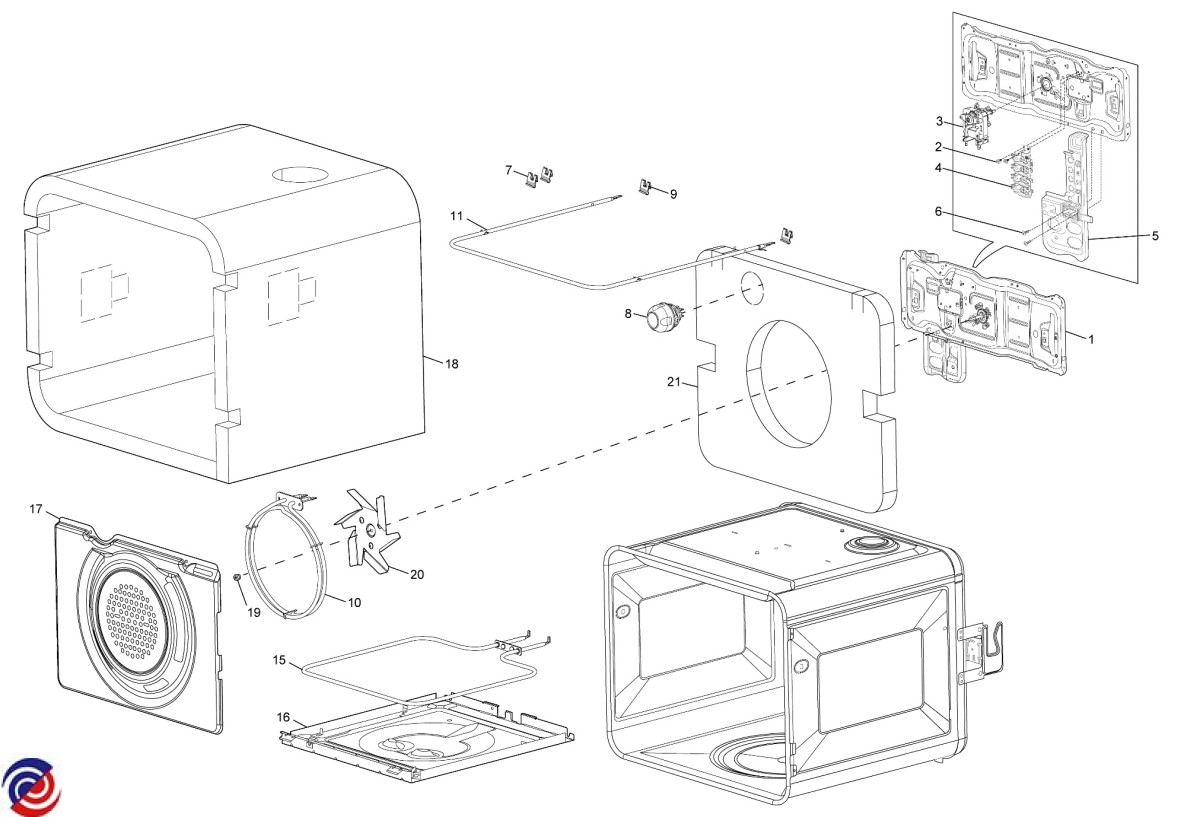

Parts for WVE655WC
W0011319 COVER GRILL DISH
W0011406 TRAY BAKING SCONE - 468MM X 360MM
W0011995 NUT M6 LH FAN MOTOR
$4.50
W0012254 ELEMENT C/HEAT 1800W SS321
W0012258 ELEMENT BOOST ASSY 800W - BIOS
W0012262 ELEMENT FAN RING 2200W
.JPG)
W0012326 CLIP MOUNTING ELEMENT
W0012886 GLASS OV DR IN WEST FORTE
W0013566 SWITCH MULTI 5
.JPG)
W0013590 SWITCH THERMAL CUT OUT 145 DEG
.JPG)
W0013596 SWITCH THERMAL CUT OUT 190 DEG
.JPG)
W0022966 HINGE DOOR
W0029488 GRILL GRABBER FORTE
$4.50
W0029743 SLIDER GRILL DBLE ACTION PAIR
$119.05
.JPG)
W0030130 TRIM DOOR TOP CAP NGD
W0030434 SEAL OVEN MODULAR PROFILE
W0032275 LAMP 25W 240V G9 PYRO HALOPIN
_1.JPG)
W0050403 MOTOR FAN OVEN
.JPG)
W0057771 THERMOSTAT OVEN
W0271174 IMPELLER OVEN FAN 160 MM
W0274109 SWITCH INF/HEAT EGO SINGLE
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011201 SUPPORT ELEMENT GRILL VULCAN
$25.20
W0011264 PLATE CVR TERM ELEC BIOS
$13.85
W0011321 COVER BASE PANEL SHIELD BIOS
$29.70
W0011390 SLIDE BKT SGUB GRILL FORTE
$37.75
W0011666 COVER FAN & ELEMENT
$95.75
W0011845 HINGE GR DOOR 540 FRESCO PH2
$7.70
W0011846 HINGE GR DOOR 540 FREE FRESCO
$53.85
W0011879 CHANNEL FRONT SGUB RH FORTE
$14.30
W0011880 CHANNEL FRONT SGUB LH FORTE
$14.30
W0012068 F/FRONT PAINT ELE SGUB FORTE
$72.55
W0012562 MOUNT CAP F/FRAME R/H NGD
$5.80
W0012563 MOUNT CAP F/FRAME L/H NGD
$7.55
W0013260 SHIELD WIRING
$11.95
W0013328 INSULATION OVEN BACK - KNAUF
$20.30
W0013333 INSULATION GRILL SGUB NGD
$14.30
W0013461 BRACE OVEN REAR B/I BIOS
$24.85
W0013730 BUMPER STOP BLK
$6.55
W0013733 STOP RUNNER
$8.15
W0013967 CLOCK 3 BTN TOUCH 'BF11' WHT
W0014018 SCREW #6 X 9.5MM PAN PHIL ZC
$4.50
W0014019 SCREW #6X3.5X28 HILO PAN PH
$4.50
W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0014034 SCREW #8 X 1/2 MUSH #2PH AB BK
$4.50
W0014081 BUSH MOUNT F/FRAME V2 NGD
$5.05
W0022643 SCREW M4 X 4
W0030004 SUPPORT ELEMENT GRILL BIOS
W0030490 PANEL TOP
$44.90
W0030494 PANEL BASE BIOS 0.5MM
$38.35
W0039212 DISH GRILL ENAM BIOS
$81.60
W0039640 PANEL UPPER
W0044829 FLUE DUCT OVEN SGUB BIOS
W0052586 CANOPY FAN ASSY SGUB NGD
W0054672 INSULATION OVEN WRAP - KNAUF
$63.85
W0057758 THERMAL CUTOUT 100 DEG N.O.
$13.45
W0059839 DUCT OVEN SGUB ASSY BIOS-ELECT
W0283213 SCREW M4 X 44 PAN T20
W0283384 SCREW #8 4.2 X 28 HILO PAN PH
$4.50
W0283441 COVER CLEAN HEAT
$9.65
W0283454 THERMAL CUTOUT 145 DEG N.C.
W0283463 BAG CONTAINING SCREWS BUILTINS
$4.50
W0283485 RACK SIDE OVEN EASY RH E100
W0283486 RACK SIDE OVEN EASY LH E100
W0284441 ELEMENT BASE 1000W E100
W0361835 LENS SQUARE BLACK TRANSPARENT
$4.50
W0361860 LAMP OVEN ROUND DIA 48
W0361981 PLATE MTG SWTCH CLOCK ASPIRE
$5.95
W0361992 KNOB ASSY CHROME ASPIRE
W0361997 SPACER HANDLE ASPIRE
$7.35
W0362001 HANDLE DR ANODISED ASPIRE
$53.75
W0362015 TRIM SURROUND C/PANEL ASPIRE
$32.45
W0362053 PANEL DOOR OUTER SGUB ASPIRE
$55.90
W0362084 PNL OV DR OUT ASS WHT ASPIRE
W0362099 GLASS & CLIPS WVE655WC
$80.80
W0362115 RACK SHELF OVEN W/HOUSE
W0362116 RACK SHELF STEP DOWN W/HOUSE
W0362184 RACK PACK WH UB EXCL ASPIRE
$63.25
W0362237 MI SIGNAL LAMP 200/600MM SPARE
$17.20
