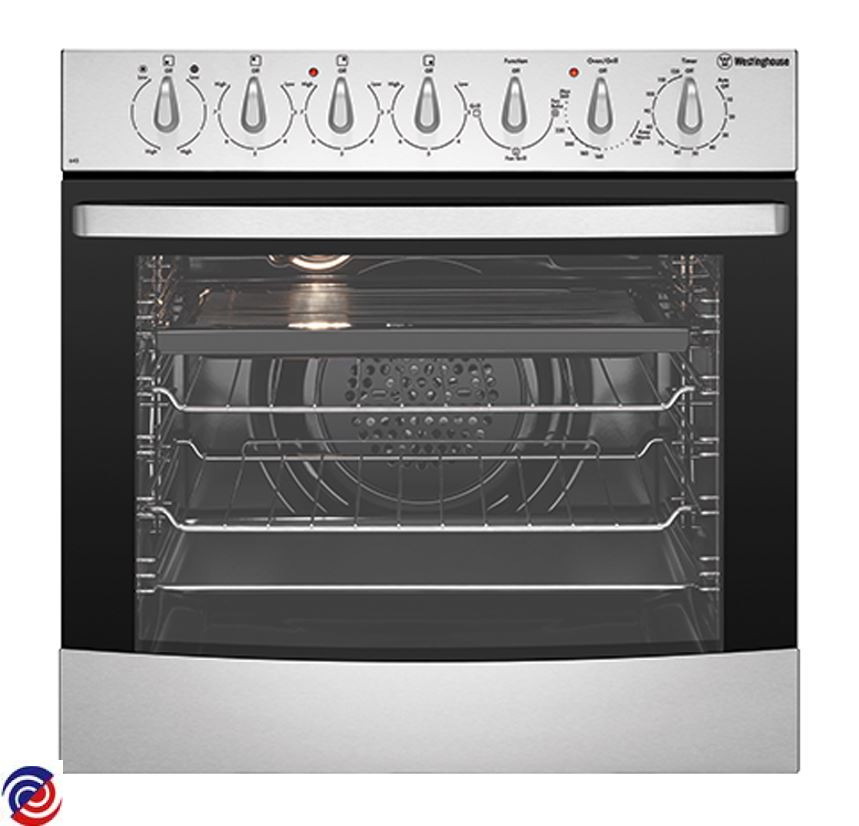

WVE645S — 944031694 19
WESTINGHOUSE — Cooker Electric

W0011237 KNOB ASSY WH BLDE SILVER FORTE

W0011297 BLADE FAN

W0011319 COVER GRILL DISH

W0011401 DISH GRILL ENAM F/WIDTH BIOS

W0011406 TRAY BAKING SCONE - 468MM X 360MM

W0011932 HANDLE DR NP WEST ANOD FORTE

W0011995 NUT M6 LH FAN MOTOR

W0012255 ELEMENT GRILL 2200W SS321

W0012262 ELEMENT FAN RING 2200W

W0012326 CLIP MOUNTING ELEMENT

W0012886 GLASS OV DR IN WEST FORTE

W0013562 SWITCH MULTI 4 EL BIOS

$41.20

W0013596 SWITCH THERMAL CUT OUT 190 DEG

W0014025 SCREW #8-10X35 PAN PH2 P/B BK

$4.50

W0014032 SCREW #8 X 45 PAN QUADREX

W0022966 HINGE DOOR

W0023201 HOLDER LAMP REAR HALOGEN BIOS

W0027377 LIGHT IND AMB 200MM

$17.60

W0032275 LAMP 25W 240V G9 PYRO HALOPIN

W0050403 MOTOR FAN OVEN

W0052585 CANOPY FAN ASSY U/B NGD

W0053530 SHELF OVEN

W0057166 CHEF SIMPSON WESTINGHOUSE COOKTOP CONTROL SWITCH MP101

W0057168 SWITCH INF HEAT ISOLATED PILOT

$68.05

W0057771 THERMOSTAT OVEN

W0058493 TRIM DOOR UPPER VENTED

W0060747 TIMER 2 HR CUTOFF PEAPSA

W0112556 ELEMENT D145/1200W/230V

W0112562 ELEMENT D180/1800W/230V

W0112572 ELEMENT HEATING

W0147339 SEAL OVEN MODULAR PROFILE

W0011114 TERMINAL BLOCK W/EARTH BIOS

W0011260 PLATE MOUNTING SWITCH

$14.95

W0011264 PLATE CVR TERM ELEC BIOS

$13.85

W0011480 PANEL TOP COMBO NGP

W0011484 PANEL SIDE RH

$28.00

W0011485 PANEL SIDE LH

$27.50

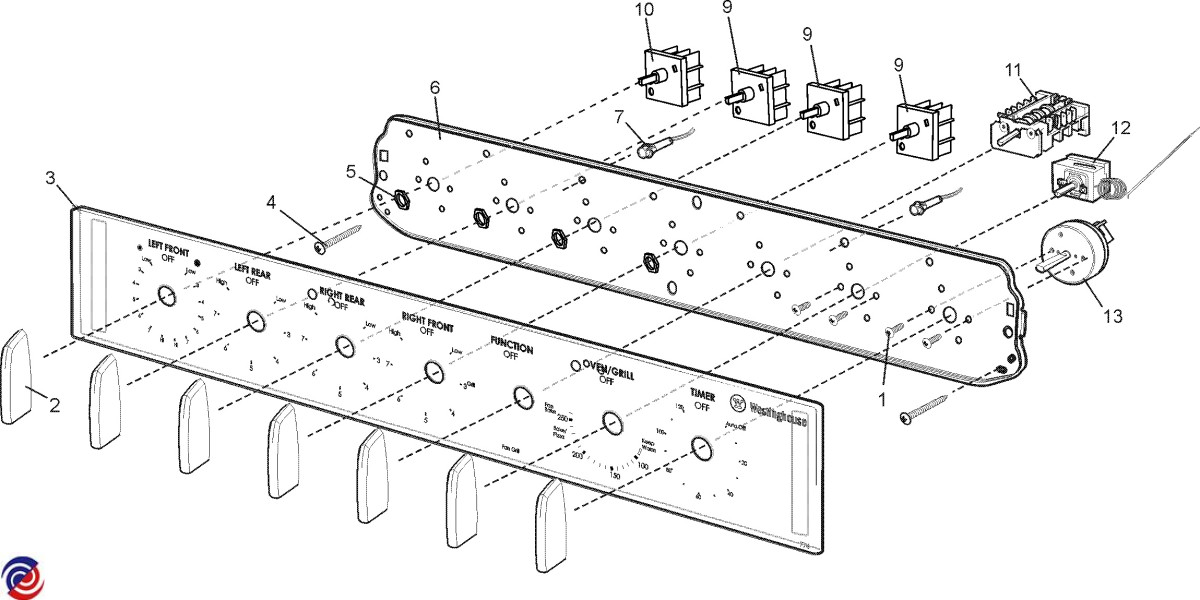

W0011640 PNL CNT & CLIPS WVE645S

$121.00

W0011666 COVER FAN & ELEMENT

$95.75

W0011993 NUT METRIC M10 X 0.75MM

$4.50

W0012315 CLIP THERMOSTAT BIOS

$9.00

W0012519 SCREW M4X5 HEX1/4' PH2 BLK ZP

$4.50

W0012562 MOUNT CAP F/FRAME R/H NGD

$5.80

W0012563 MOUNT CAP F/FRAME L/H NGD

$7.55

W0012578 STAND-OFF NON-PYRO WEST FORTE

W0013260 SHIELD WIRING

$11.95

W0013328 INSULATION OVEN BACK - KNAUF

$20.30

W0013625 FRAME CONTROL PANEL

W0013730 BUMPER STOP BLK

$6.55

W0014019 SCREW #6X3.5X28 HILO PAN PH

$4.50

W0014023 SCREW #8 X 5/8 CSK #2PH AB BK

$4.50

W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK

W0014030 SCREW #8 X 8MM HEX/MULTI

$4.50

W0014079 BUSH MOUNT F/FRAME NGD

$7.25

W0021483 WIRING LOOM 564 (SW ASSY)

$113.55

W0023044 LAMP RESIDUAL HEAT

$16.70

W0023045 SPRING BASE

$11.95

W0023101 PROTECTION BOX COMBO

W0027190 FRAME FRONT PAINTED ELE UB NGP

$62.95

W0027370 SCREW M4 X 25 PAN MTS PHIL BLK

$1.70

W0027384 FLUE DUCT OVEN U/B ELEC NGD

$8.70

W0029328 HOUSING LENS IND BIOS AMBER

$20.90

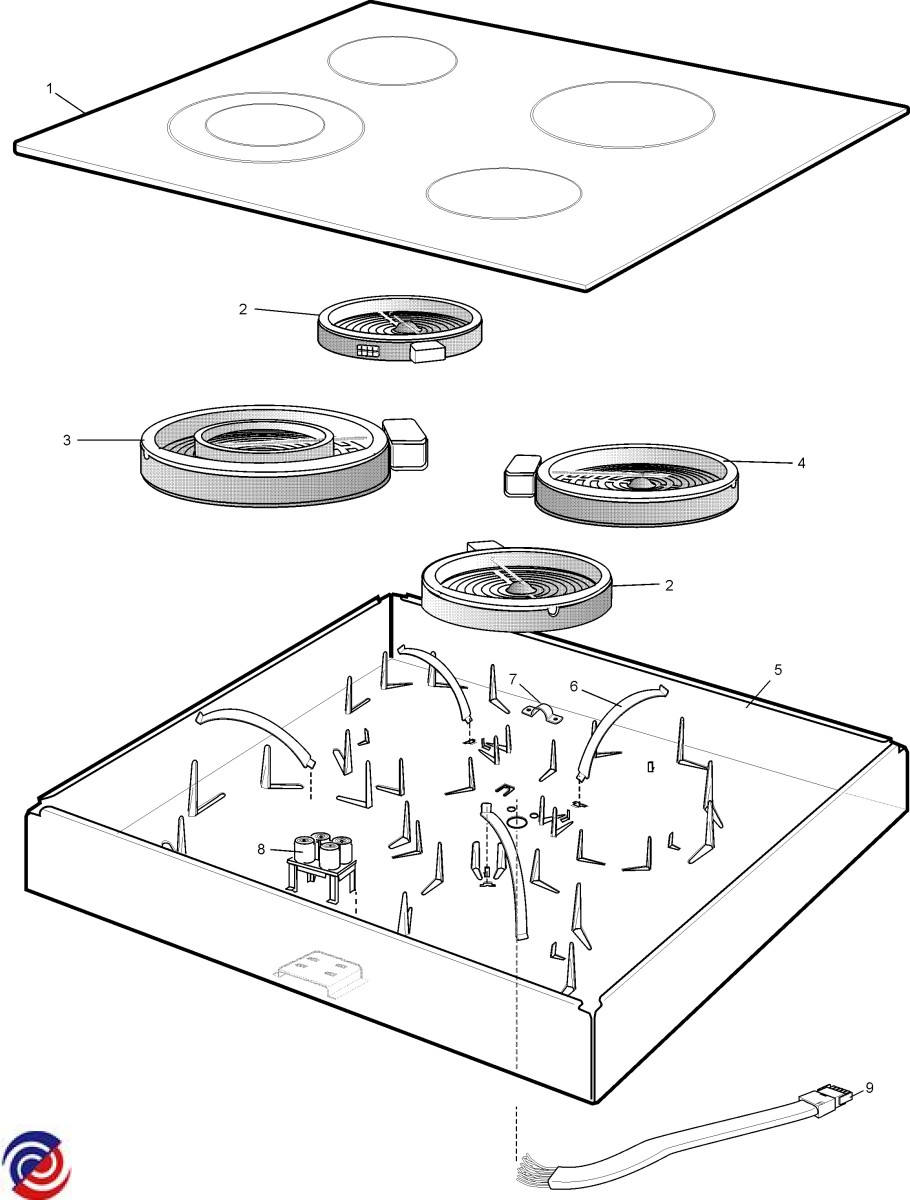

W0029387 HOB GLASS FRAME ASSY WVE645S

W0036213 SUPPORT ELEMENT GRILL

W0038817 BRACKET TOP PANEL

W0039639 BASEPLATE

W0039640 PANEL UPPER

W0042653 CHANNEL FRONT NGP UB LH

W0042654 CHANNEL FRONT NGP UB RH

W0047469 SCREW M4 X 5 PAN #2 PH SML HD

$4.50

W0052948 SPACER CONTROL PANEL BIOS

$6.00

W0053529 RACK SIDE SUPPORT OVEN EVOLVE

W0054672 INSULATION OVEN WRAP - KNAUF

$63.85

W0056272 BRACE OVEN REAR BI BIOS

W0057755 SWITCH THERMAL CUT OUT 120 DEG

W0063342 LINER OVEN PAIR NO LIGHT

$99.90

W0154118 PNL OV DR OUT ASS S/S FORTE

W0156785 HARNESS EXTENSION LOOM 15 PIN
