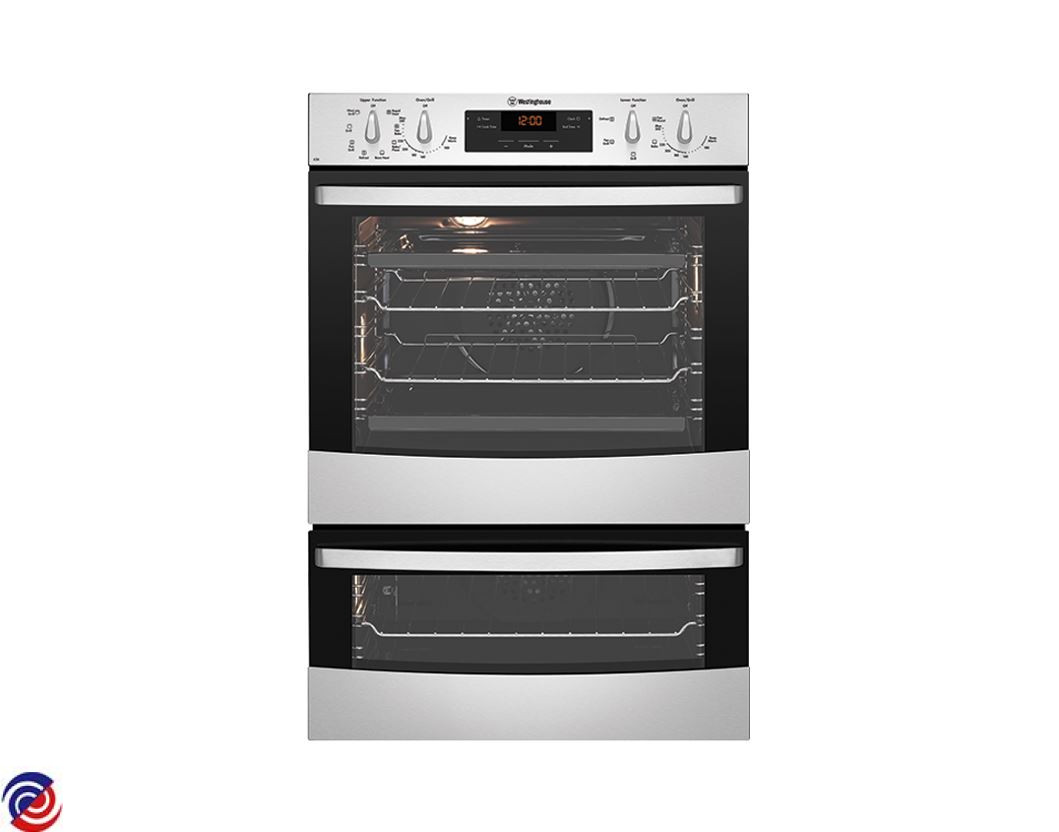

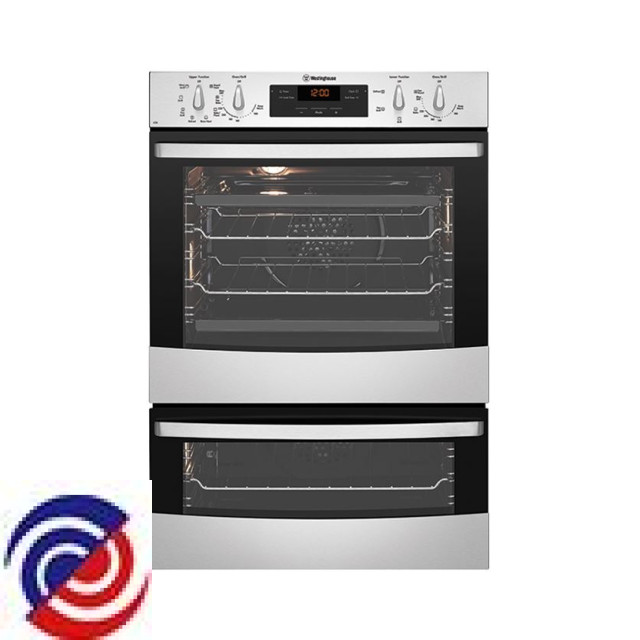

WVE626S — 944031700 30
WESTINGHOUSE — Cooker Electric
Parts for WVE626S
W0011237 KNOB ASSY WH BLDE SILVER FORTE
.JPG)
W0011297 BLADE FAN
W0011319 COVER GRILL DISH
W0011401 DISH GRILL ENAM F/WIDTH BIOS
W0011932 HANDLE DR NP WEST ANOD FORTE
W0011995 NUT M6 LH FAN MOTOR
.JPG)
W0012256 ELEMENT GRILL/BOOST 3000W
W0012262 ELEMENT FAN RING 2200W
W0012263 ELEMENT C/HEAT 1800W NO EARTH
$95.00
.JPG)
W0012326 CLIP MOUNTING ELEMENT
W0012728 SEAL DUO OVEN BIOS
W0012886 GLASS OV DR IN WEST FORTE
W0013564 SWITCH MULTI 5
W0013565 SWITCH MULTI 8
.JPG)
W0013590 SWITCH THERMAL CUT OUT 145 DEG
.JPG)
W0013596 SWITCH THERMAL CUT OUT 190 DEG
.JPG)
W0013597 THERMAL CUTOUT 120 DEG N/C 16A
W0013619 TRIM DOOR LOWER
.JPG)
W0013966 WESTINGHOUSE OVEN CLOCK PCB 3 BUTTON TOUCH BF11
$126.00
W0014025 SCREW #8-10X35 PAN PH2 P/B BK
$4.50
W0014040 SCREW 3/16X28 PAN PH TRILOB ZY
.JPG)
W0022966 HINGE DOOR
.JPG)
W0022968 HINGE DOOR
W0023085 HINGE DOOR GRILL
$64.25
W0023201 HOLDER LAMP REAR HALOGEN BIOS
W0030434 SEAL OVEN MODULAR PROFILE
W0032275 LAMP 25W 240V G9 PYRO HALOPIN
_1.JPG)
W0050403 MOTOR FAN OVEN
.JPG)
W0053530 SHELF OVEN
.JPG)
W0057771 THERMOSTAT OVEN
W0058493 TRIM DOOR UPPER VENTED
.JPG)
W0065076 CLIP BULB THERMOSTAT ELEC
$6.70
W0147339 SEAL OVEN MODULAR PROFILE
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011264 PLATE CVR TERM ELEC BIOS
$13.85
W0011667 PANEL FAN COVER CAT BIOS
W0011856 SUPPORT ELEMENT
W0011883 CHANNEL FRONT DUO RH
W0012315 CLIP THERMOSTAT BIOS
$9.00
W0012519 SCREW M4X5 HEX1/4' PH2 BLK ZP
$4.50
W0012578 STAND-OFF NON-PYRO WEST FORTE
W0012838 DOOR OVEN INNER GLASS
$121.85
W0012849 DOOR OVEN INNER GLASS MIDDLE
W0013260 SHIELD WIRING
$11.95
W0013328 INSULATION OVEN BACK - KNAUF
$20.30
W0013337 INSULATION OVEN WRAP DUO BIOS
$40.00
W0013341 INSUL OVEN BACK DUO 13MM THICK
$11.00
W0013461 BRACE OVEN REAR B/I BIOS
$24.85
W0013464 OVEN BRACE BI ASSY
W0013595 THERMAL CUT OUT 90 DEG N.O.
W0013662 DUCT GRILL DUO ASSY NGD
$7.70
W0013730 BUMPER STOP BLK
$6.55
W0013934 LINER GRILL LCD KIT OF 2
$76.00
W0014018 SCREW #6 X 9.5MM PAN PHIL ZC
$4.50
W0014019 SCREW #6X3.5X28 HILO PAN PH
$4.50
W0014023 SCREW #8 X 5/8 CSK #2PH AB BK
$4.50
W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0014041 SCREW #8 x1/2 PH2 MUSH WASHER
$4.50
W0014079 BUSH MOUNT F/FRAME NGD
$7.25
W0022643 SCREW M4 X 4
W0027201 FRAME FRONT ENAM DUO NGP
$79.20
W0027370 SCREW M4 X 25 PAN MTS PHIL BLK
$1.70
W0030193 PLATE MTG SW CLOCK CHEF SELECT
$72.55
W0030352 FAN COOLING ASSY RADIAL 11W
W0030601 PNL ASSY DUO DR OUT S/S WEST
W0036213 SUPPORT ELEMENT GRILL
W0038118 COVER RETAINING LATCH
$10.95
W0038121 COVER CLEAN HEAT FULL GALV BIO
W0038807 BRACKET CLEANHEAT MNT DUO BIOS
W0039242 TRAY BAKING PREMIUM ENAM BIOS
W0039639 BASEPLATE
W0039686 PANEL CHASSIS TOP
$27.50
W0041122 PANEL FAN COVER DUO CAT BIOS
$45.05
W0042655 CHANNEL FRONT NGP DUO LH
W0046264 ELEMENT 1000W CLEAN HEAT
W0052282 GLASS DUO DR IN WEST FORTE
W0053529 RACK SIDE SUPPORT OVEN EVOLVE
W0053531 RACK SIDE SUPPORT GRILL W/O
W0054672 INSULATION OVEN WRAP - KNAUF
$63.85
W0059831 DUCT GRILL W/O BIOS
W0063343 LINER OVEN PR INC LIGHT C/OUT
W0147404 LIGHT INDICATOR AMBER LENS
W0154077 ENDCAP CONTROL PANEL CHEF LHS
W0154078 ENDCAP CONTROL PANEL CHEF RHS
W0154118 PNL OV DR OUT ASS S/S FORTE
W0275723 PNL CNT & CLIPS WVE626S SELECT
$280.05
W0282068 HOLDER LAMP SIDE ASSY G9
$20.55
