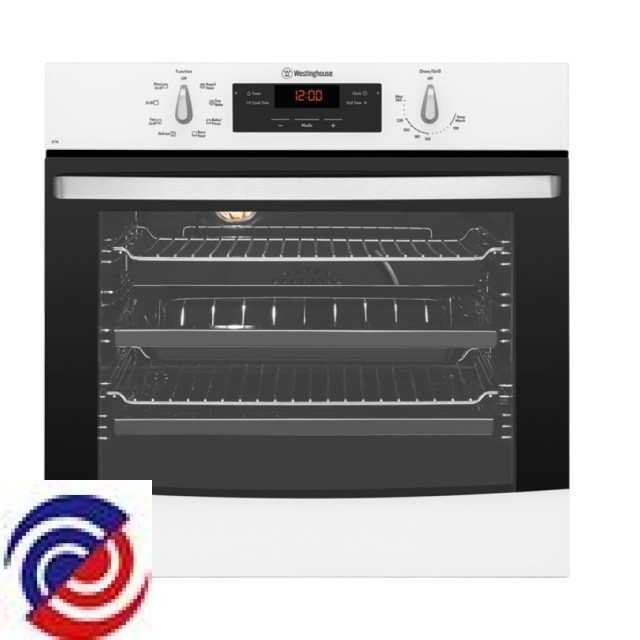

WVE616W — 944031687 19
WESTINGHOUSE — Cooker Electric
Parts for WVE616W
W0011237 KNOB ASSY WH BLDE SILVER FORTE
$23.75
.JPG)
W0011297 BLADE FAN
W0011319 COVER GRILL DISH
W0011401 DISH GRILL ENAM F/WIDTH BIOS
W0011932 HANDLE DR NP WEST ANOD FORTE
$53.00
W0011995 NUT M6 LH FAN MOTOR
$4.50
.JPG)
W0012256 ELEMENT GRILL/BOOST 3000W
W0012262 ELEMENT FAN RING 2200W
W0012263 ELEMENT C/HEAT 1800W NO EARTH
$90.05
.JPG)
W0012326 CLIP MOUNTING ELEMENT
W0012886 GLASS OV DR IN WEST FORTE
W0013565 SWITCH MULTI 8
.JPG)
W0013966 WESTINGHOUSE OVEN CLOCK PCB 3 BUTTON TOUCH BF11
$120.00
W0014025 SCREW #8-10X35 PAN PH2 P/B BK
$4.50
W0014032 SCREW #8 X 45 PAN QUADREX
$4.00
W0014040 SCREW 3/16X28 PAN PH TRILOB ZY
.JPG)
W0022966 HINGE DOOR
.JPG)
W0022968 HINGE DOOR
W0023201 HOLDER LAMP REAR HALOGEN BIOS
$48.40
W0032275 LAMP 25W 240V G9 PYRO HALOPIN
.JPG)
W0046406 CLIP MOUNTING ELEMENT
_1.JPG)
W0050403 MOTOR FAN OVEN
.JPG)
W0052585 CANOPY FAN ASSY U/B NGD
W0053514 SHELF OVEN
$64.00
.JPG)
W0057771 THERMOSTAT OVEN
W0058493 TRIM DOOR UPPER VENTED
W0147339 SEAL OVEN MODULAR PROFILE
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011262 PLATE MOUNTING SWITCH
$14.90
W0011264 PLATE CVR TERM ELEC BIOS
$13.85
W0011293 SLIDE OVEN HETTICH LHS
$61.00
W0011294 SLIDE OVEN HETTICH RHS
$61.00
W0011321 COVER BASE PANEL SHIELD BIOS
$29.70
W0011479 PANEL TOP PYRO NGP
$43.20
W0011484 PANEL SIDE RH
$28.00
W0011485 PANEL SIDE LH
$27.50
W0011515 PANEL COVER WIRE UB 40MM
$24.20
W0011667 PANEL FAN COVER CAT BIOS
$200.05
W0011856 SUPPORT ELEMENT
W0012315 CLIP THERMOSTAT BIOS
$9.00
W0012519 SCREW M4X5 HEX1/4' PH2 BLK ZP
$4.50
W0012562 MOUNT CAP F/FRAME R/H NGD
$5.80
W0012563 MOUNT CAP F/FRAME L/H NGD
$7.55
W0012578 STAND-OFF NON-PYRO WEST FORTE
$22.00
W0012849 DOOR OVEN INNER GLASS MIDDLE
W0012887 GLASS & CLIPS WVE616W
$49.50
W0013260 SHIELD WIRING
$11.95
W0013328 INSULATION OVEN BACK - KNAUF
$20.30
W0013461 BRACE OVEN REAR B/I BIOS
$24.85
W0013625 FRAME CONTROL PANEL
$115.05
W0013730 BUMPER STOP BLK
$6.55
W0014018 SCREW #6 X 9.5MM PAN PHIL ZC
$4.50
W0014019 SCREW #6X3.5X28 HILO PAN PH
$4.50
W0014023 SCREW #8 X 5/8 CSK #2PH AB BK
$4.50
W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0014081 BUSH MOUNT F/FRAME V2 NGD
$5.05
W0027190 FRAME FRONT PAINTED ELE UB NGP
$62.95
W0027384 FLUE DUCT OVEN U/B ELEC NGD
$8.70
W0038118 COVER RETAINING LATCH
$10.95
W0038121 COVER CLEAN HEAT FULL GALV BIO
W0039242 TRAY BAKING PREMIUM ENAM BIOS
W0039639 BASEPLATE
W0039640 PANEL UPPER
W0042653 CHANNEL FRONT NGP UB LH
W0042654 CHANNEL FRONT NGP UB RH
W0042768 PLUG DOME MDP16
W0047469 SCREW M4 X 5 PAN #2 PH SML HD
$4.50
W0053515 SIDE OVEN SLIDE ELUX LHS
W0053516 SIDE OVEN SLIDE ELUX RHS
W0053533 RACK INSERT ROASTING WIRE
W0054672 INSULATION OVEN WRAP - KNAUF
$63.85
W0057755 SWITCH THERMAL CUT OUT 120 DEG
W0063342 LINER OVEN PAIR NO LIGHT
$99.90
W0147404 LIGHT INDICATOR AMBER LENS
$5.60
W0154119 PNL OV DR OUT ASS WHITE FORTE
