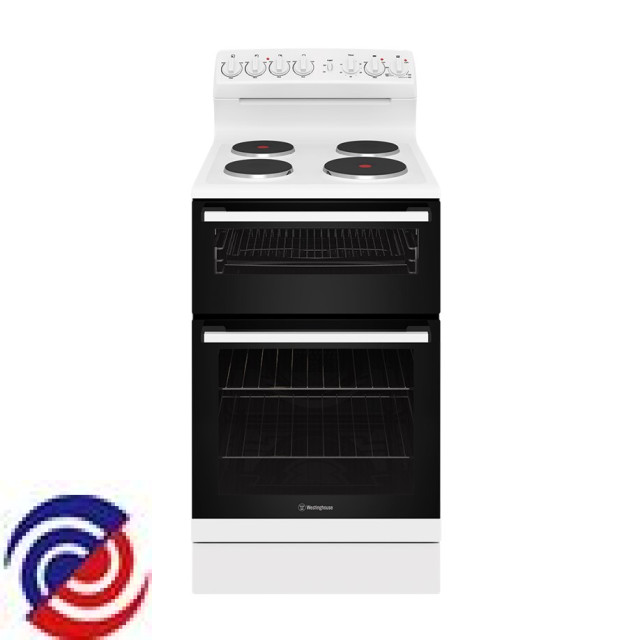

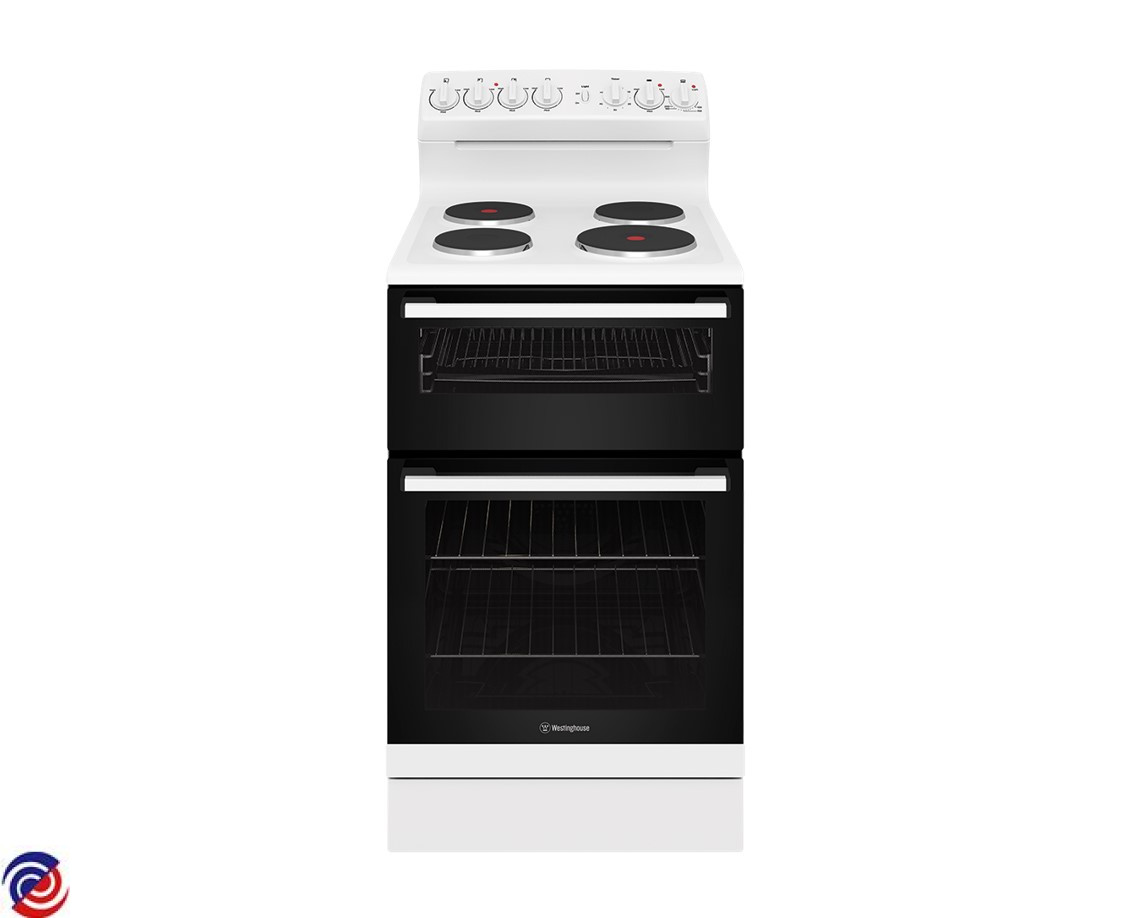

WLE530WCA — 940598499 37
WESTINGHOUSE — Cooker Electric
Parts for WLE530WCA
W0147344 LAMP HALOGEN BULB 25W G9 230V
W0365466 DISH GRILL ENAMEL
$105.00
W0365467 RACK GRILL INSERT
$69.05
W0365487 CHEF ELECTROLUX WESTINGHOUSE OVEN DOOR SEAL GASKET
$51.90
W0365493 COOKTOP SOLID ELEMENT-LARGE 180mmD 2000W
$94.50
W0365529 CLIP MOUNTING ELEMENT
$10.00
W0365544 CHEF ELECTROLUX WESTINGHOUSE SOLID HOTPLATE COOKTOP 145MM 6" 1500W
$79.95
W0365567 SHELF OVEN
$78.00
W0365642 CHEF SIMPSON WESTINGHOUSE OVEN ELEMENT1800W
$79.00
_1.JPG)
W0365756 CHEF ELECTROLUX WESTINGHOUSE OVEN THERMOSTAT 50-320C
$59.00
W0366030 LAMP OVEN HALOGEN 25W 35.5MM
$28.00
W0368470 CAP TOP PAIR DOOR JONAH
$37.00
W0274426 ENERGY REGULATOR,SINGLE,230V
$68.00
W0365521 TERMINAL BLOCK W/EARTH BIOS
$44.70
W0365524 ELEMENT BASE 1000W E100
$116.00
W0365584 OVEN DOOR INNER GLASS
$126.00
W0365594 PANEL REFLECTOR GRILL TOP
$20.00
W0365709 ELEMENT EGO 1000W 145DIA (HI)
$110.00
W0365729 SWITCH ROCKER
$5.25
W0365730 TRIM SWITCH BEZEL NZ
$5.50
W0365828 540 LOWER REAR BRACE
$14.00
W0365840 SUPPORT ELEMENT BOOST
$14.00
W0365880 HINGE GR DOOR 540 FRESCO PH2
$7.00
W0365917 ANTI TILT PLATE
$20.00
W0365934 FOOT LEVELING
$20.00
W0365962 DOOR HANDLE ASPIRE
$23.00
W0366059 BRACE OVEN REAR 540 BIOS
$29.05
W0366061 PANEL KICK 540 SML WHT PREPAIN
$31.00
W0366131 SHIELD WIRING HOB INTERIM FRES
$41.55
W0366201 RACK,PACK
$48.05
W0366228 PANEL COVER WIRE ELEC 540 BIOS
$55.00
W0366233 ELEMENT BOOST ASSY 800W - BIOS
$93.00
W0366258 DOOR PANEL,GRILL,OUTER,WEST 54
$65.00
W0366259 RACK SIDE GRILL LH/RH
$58.05
W0366381 PANEL SIDE WHITE FRESCO
$111.00
W0366473 HOB S/BACK ENAM SOLID FRESCO
$200.00
W0366692 SPACER TUBE,ALUMINIUM,18MM
$4.00
W0366996 KNOB,WHITE,ASPIRE
$5.50
W0367047 CONTROL PANEL,SCREEN,WLE530WC
$97.65
W0367604 INSULATION OVEN WRAP - KNAUF
$54.00
W0367610 COVER CLEAN HEAT DUO
$13.00
W0367625 BRACKET ANTIROTATE SOLID FRSCO
$4.00
W0367928 NUT HEX M6
$4.00
W0367930 NUT HEX 3/16 BSW
$4.00
W0367931 SCREW M4 X 5 PAN #2 PH SML HD
$4.00
W0367941 SCREW #8 4.2 X 28 HILO PAN PH
$4.00
W0367961 SCREW M4 X 4 PAN #1PH SMALL HD
$4.00
W0367983 SCREW PF K40X 20 T20 ROUND
$5.50
W0367997 SPACER,HANDLE,BLACK,ASPIRE
$5.50
W0368022 CLIP THERMOSTAT BIOS
$5.50
W0368026 WASHER 3/16 INT S/P ZC
$4.00
W0368028 SCREW #8 X 8MM HEX/MULTI
$5.50
W0368029 SCREW #8 X 1/2 MUSH #2PH AB BK
$5.50
W0368084 ENDCAP HANDLE EXTRUDED ASPIRE
$6.00
W0368094 BUMPER STOP GREY
$5.80
W0368122 PLATE FOOT MOUNTING
$6.60
W0369315 PANEL TOP REAR
$15.40
W0370502 HINGE OVEN DOOR 5.2-5.8KG
$41.00
W0370511 HINGE SUPPORT, 540/600 FS
$6.00
W0370603 F/FRONT 540FS GL HINGE
$5.25
W0370775 DOOR PANEL, OUTER, ASSEMBLY
$69.00
W0372377 SCREW 3/16 X 1 PAN PHIL NI
$4.00
W0372720 SHIELD WIRING
$15.00
W0372835 ENDCAP REAR C/PANEL 540 PAIR
$22.00
