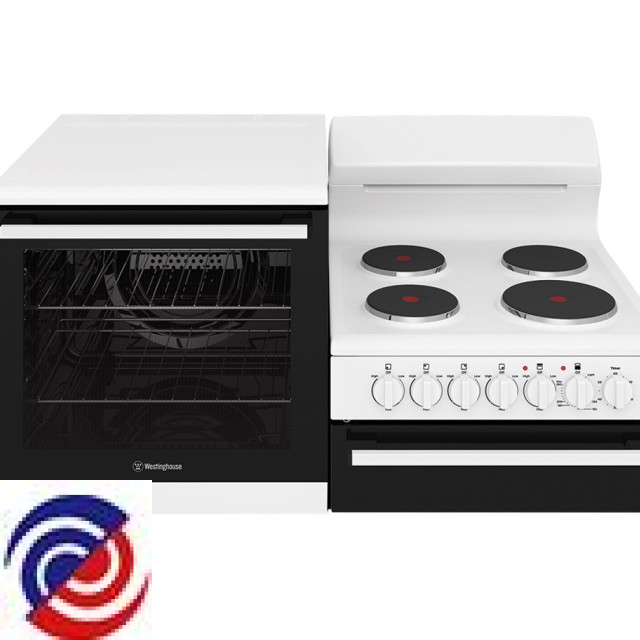

WDE132WC-L — 940598527 00
WESTINGHOUSE — Cooker Electric
Parts for WDE132WC-L
W0365421 ELEMENT FAN RING 2200W
W0365427 SWITCH AUXILIARY T/STAT
$24.60
W0365477 IMPELLER OVEN FAN 160 MM
$30.55
W0365487 CHEF ELECTROLUX WESTINGHOUSE OVEN DOOR SEAL GASKET
W0365493 COOKTOP SOLID ELEMENT-LARGE 180mmD 2000W
$105.00

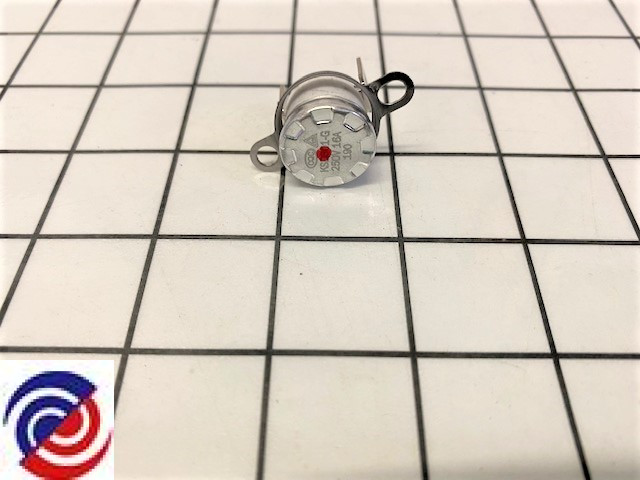

W0365525 SWITCH THERMAL CUT OUT 190 DEG
W0365529 CLIP MOUNTING ELEMENT
$8.75
W0365544 ELEMENT EGO 1500W 145DIA (HI)
$69.00
W0365567 SHELF OVEN
$74.00
W0365642 CHEF SIMPSON WESTINGHOUSE OVEN ELEMENT1800W
$90.05
_1.JPG)
W0365756 THERMOSTAT OVEN
$98.00
W0365466 DISH GRILL ENAM SEP GRILL.
$105.00
W0365467 RACK GRILL INSERT
$69.05
W0365490 HINGE DOOR OVEN
$76.00

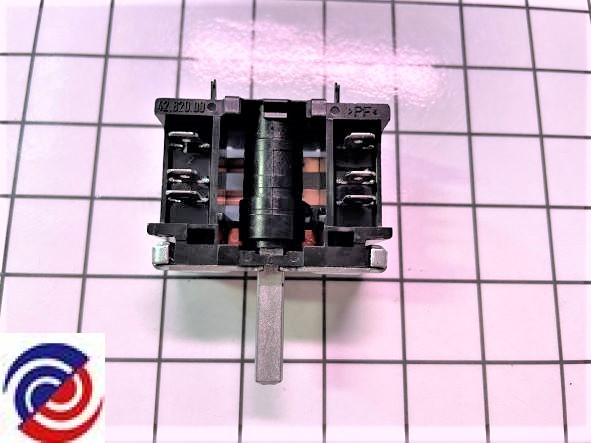

W0365491 SWITCH INF HEAT MP 101 EA
$65.00
W0365521 TERMINAL BLOCK W/EARTH BIOS
W0365584 GLASS OV DR IN REFL FRESCO
$120.00
W0365709 ELEMENT EGO 1000W 145DIA (HI)
$110.00
W0365808 LENS INDICATOR LIGHT
$11.20
W0365829 BRACKET ASSY ELEMENT 145MM
$12.60
W0365859 PLT MTG SWTCH MULTI 7 SGO FRES
$14.30
W0365866 INSULATION GRILL BACK ELEVATED
$14.50
W0365880 HINGE GR DOOR 540 FRESCO PH2
$5.90
W0365912 BRACKET ASSY ELEMENT 180MM
$18.00
W0365922 BRACKET ANTI TILT ELEVATED
$4.00
W0365941 TRAY SCONE
$19.20
W0365962 DOOR HANDLE ASPIRE
$21.00
W0365977 PANEL BACK WIRING GRILL ELEV F
$22.00
W0366030 LAMP OVEN HALOGEN 25W 35.5MM
$26.05
W0366059 BRACE OVEN REAR 540 BIOS
$29.05
W0366095 PANEL BACK WIRING OVEN ELEV
$32.55
W0366110 SHIELD WIRING HOB RC GAS FRES
$34.25
W0366221 SEAL HOB SIDE 855MM ELEV
$51.00
W0366287 HINGE GR DOOR 540 FREE FRESCO
$63.00
W0366290 PNL SIDE GRILL OUT L/H ELV FRE
$64.10
W0366307 COVER,CONVECTION FAN
$72.00
W0366387 DOOR PANEL OVEN DOOR OUTER
$105.00
W0366464 PNL SIDE OVEN OUT L/H ELEV FRE
$155.95
W0366491 PANEL CROWN ELEV ENAM FRESCO
$190.05
W0366569 HOB ASS SOL SG ELEV FRESCO
$373.55
W0366675 FRONT FRAME,GRILL,PAINT
$24.75
W0366676 FRONT FRAME,OVEN,PAINT
$38.80
W0366678 PNL SIDE OVEN INN L/H ELEV FRE
W0366680 BASE PANEL,COOKER
$77.00
W0366681 SUPPORT HINGE LH OVEN ELEV FRS
$5.05
W0366682 SUPPORT HINGE RH OVEN ELEV FRS
$4.00
W0366690 STIFFENER,ANGLE BRACKET,OUTER,
$6.45
W0366691 BRACKET HOB SUPPORT 540 BENCHL
$11.00
W0366700 PANEL HEAT SHIELD END CAP RH
W0366701 PANEL HEAT SHIELD END CAP LH
W0367011 PANEL,OUTER,GRILL,ASSEMBLY 540
$33.50
W0367063 CONTROL PANEL,SCREEN,WDE132WC
$97.00
W0367604 INSULATION OVEN WRAP - KNAUF
$51.00
W0367624 WASHER SPRING ZP 6X2.5X1.6MM
W0367625 BRACKET ANTIROTATE SOLID FRSCO
$4.00
W0367652 BRACKET SUPPORT TERMINAL BLOCK
W0367928 NUT HEX M6
$4.00
W0367930 NUT HEX 3/16 BSW
$4.00
W0367931 SCREW M4 X 5 PAN #2 PH SML HD
$4.00
W0367935 SCREW #8 X 5/16 CSK #2PH AB BK
$4.00
W0367962 NUT METRIC M10 X 0.75MM
$4.00
W0367983 SCREW PF K40X 20 T20 ROUND
$4.00
W0367997 SPACER,HANDLE,BLACK,ASPIRE
$4.00
W0368022 CLIP THERMOSTAT BIOS
$4.00
W0368028 SCREW #8 X 8MM HEX/MULTI
$4.00
W0368029 SCREW #8 X 1/2 MUSH #2PH AB BK
$4.00
W0368030 NUT M6 LH FAN MOTOR
$4.50
W0368058 KNOB,WHITE,ASPIRE
$5.60
W0368084 ENDCAP HANDLE EXTRUDED ASPIRE
$5.50
W0368094 BUMPER STOP GREY
$5.80
W0368203 DUCT OVEN ASSY ELEV ELEC FRESC
$10.00
W0369315 PANEL TOP REAR
$15.40
