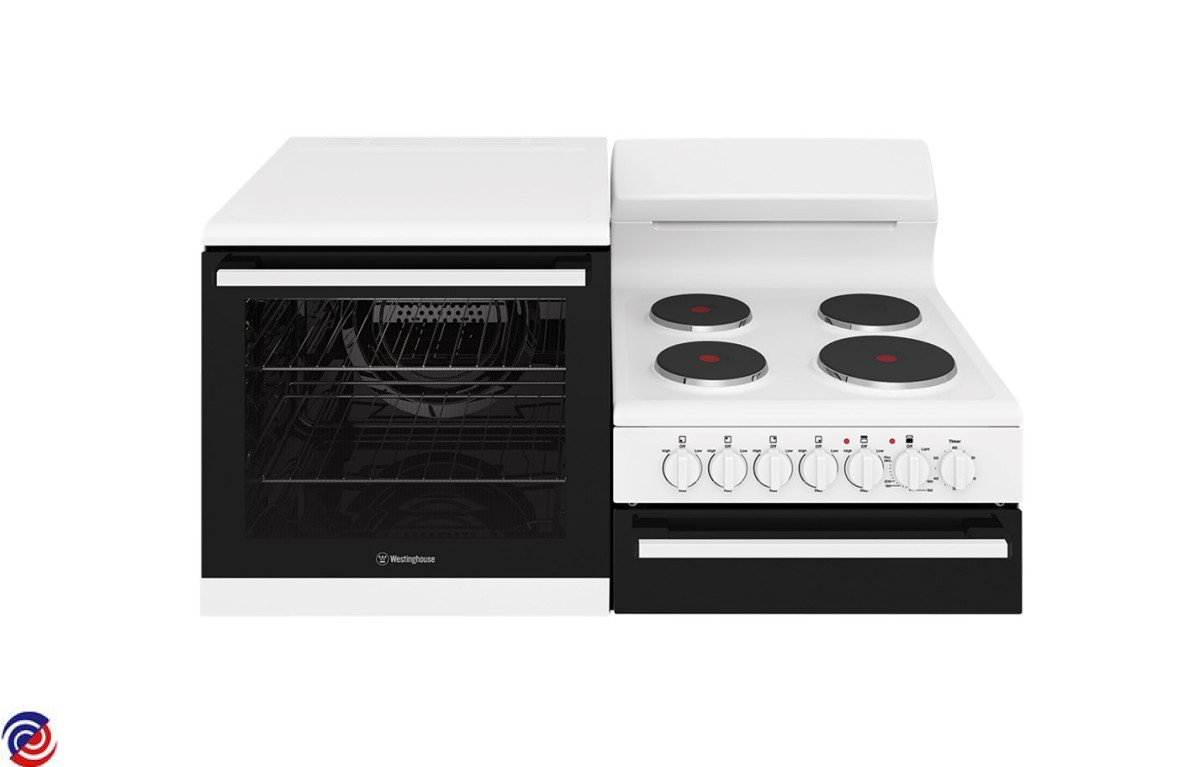

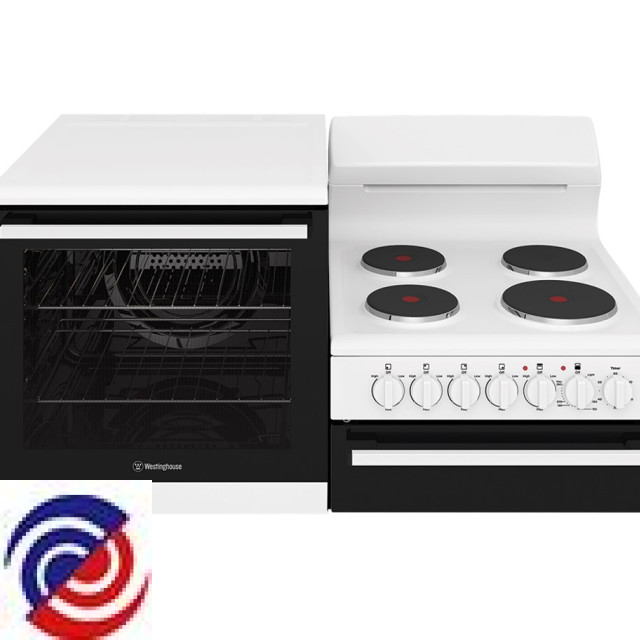

WDE132WC-L — 922001197 37
WESTINGHOUSE — Cooker Electric
Parts for WDE132WC-L
W0365427 SWITCH AUXILIARY T/STAT
$24.60
W0365466 DISH GRILL ENAMEL
$105.00
W0365467 RACK GRILL INSERT
$69.05
W0365477 IMPELLER OVEN FAN 160 MM
$29.95
W0365480 ELECTROLUX WESTINGHOUSE OVEN HALOGEN GLOBE 25W G9
$27.00
W0365487 CHEF ELECTROLUX WESTINGHOUSE OVEN DOOR SEAL GASKET
$51.90
W0365491 SWITCH INF HEAT MP 101 EA
$39.00
W0365493 COOKTOP SOLID ELEMENT-LARGE 180mmD 2000W
$94.50
W0365525 SWITCH THERMAL CUT OUT 190 DEG
W0365529 CLIP MOUNTING ELEMENT
$10.00
W0365544 CHEF ELECTROLUX WESTINGHOUSE SOLID HOTPLATE COOKTOP 145MM 6" 1500W
$79.95
W0365567 SHELF OVEN
$78.00
W0365642 CHEF SIMPSON WESTINGHOUSE OVEN ELEMENT1800W
$79.00
_1.JPG)
W0365756 CHEF ELECTROLUX WESTINGHOUSE OVEN THERMOSTAT 50-320C
$59.00
W0366030 LAMP OVEN HALOGEN 25W 35.5MM
$28.00
W0368341 ELEMENT FAN RING 2200W
$54.00
W0368470 CAP TOP PAIR DOOR JONAH
$37.00
W0365521 TERMINAL BLOCK W/EARTH BIOS
$44.70
W0365584 OVEN DOOR INNER GLASS
$126.00
W0365709 ELEMENT EGO 1000W 145DIA (HI)
$110.00
W0365829 BRACKET ASSY ELEMENT 145MM
$12.60
W0365859 PLT MTG SWTCH MULTI 7 SGO FRES
$14.30
W0365866 INSULATION GRILL BACK ELEVATED
$16.00
W0365880 HINGE GR DOOR 540 FRESCO PH2
$7.00
W0365912 BRACKET ASSY ELEMENT 180MM
$18.00
W0365922 BRACKET ANTI TILT ELEVATED
$5.50
W0365941 TRAY SCONE
$19.20
W0365962 DOOR HANDLE ASPIRE
$23.00
W0365977 PANEL BACK WIRING GRILL ELEV F
$24.00
W0365997 ENDCAP CNTRL PANEL FRESCO PAIR
$24.00
W0366059 BRACE OVEN REAR 540 BIOS
$29.05
W0366095 PANEL BACK WIRING OVEN ELEV
$32.55
W0366110 SHIELD WIRING HOB RC GAS FRES
$36.00
W0366221 SEAL HOB SIDE 855MM ELEV
$51.00
W0366236 PNL SIDE GRILL OUT R/H ELV FRE
$52.80
W0366287 HINGE GR DOOR 540 FREE FRESCO
$67.00
W0366307 COVER,CONVECTION FAN
$76.00
W0366464 PNL SIDE OVEN OUT L/H ELEV FRE
$155.95
W0366491 PANEL CROWN ELEV ENAM FRESCO
$200.00
W0366569 HOB ASS SOL SG ELEV FRESCO
$373.55
W0366675 FRONT FRAME,GRILL,PAINT
$24.75
W0366679 PNL SIDE OVEN INN R/H ELEV FRE
W0366680 BASE PANEL,COOKER
$77.00
W0366690 STIFFENER,ANGLE BRACKET,OUTER,
$6.45
W0366691 BRACKET HOB SUPPORT 540 BENCHL
$11.00
W0366700 PANEL HEAT SHIELD END CAP RH
W0366701 PANEL HEAT SHIELD END CAP LH
W0367011 PANEL,OUTER,GRILL,ASSEMBLY 540
$33.50
W0367063 CONTROL PANEL,SCREEN,WDE132WC
$97.00
W0367604 INSULATION OVEN WRAP - KNAUF
$54.00
W0367624 WASHER SPRING ZP 6X2.5X1.6MM
W0367625 BRACKET ANTIROTATE SOLID FRSCO
$4.00
W0367652 BRACKET SUPPORT TERMINAL BLOCK
W0367928 NUT HEX M6
$4.00
W0367931 SCREW M4 X 5 PAN #2 PH SML HD
$4.00
W0367962 NUT METRIC M10 X 0.75MM
$4.00
W0367983 SCREW PF K40X 20 T20 ROUND
$5.50
W0367997 SPACER,HANDLE,BLACK,ASPIRE
$5.50
W0368022 CLIP THERMOSTAT BIOS
$5.50
W0368028 SCREW #8 X 8MM HEX/MULTI
$5.50
W0368029 SCREW #8 X 1/2 MUSH #2PH AB BK
$5.50
W0368058 KNOB,WHITE,ASPIRE
$6.00
W0368084 ENDCAP HANDLE EXTRUDED ASPIRE
$6.00
W0368094 BUMPER STOP GREY
$5.80
W0368203 DUCT OVEN ASSY ELEV ELEC FRESC
$10.00
W0369315 PANEL TOP REAR
$15.40
W0370502 HINGE OVEN DOOR 5.2-5.8KG
$41.00
W0370510 HINGE RECEIVER 540/600 FS
$5.50
W0370605 FF ELEV PP GLOBAL HINGE
$5.50
W0370775 DOOR PANEL, OUTER, ASSEMBLY
$69.00
W0370901 SCREW, M4 X 8.5 T20 ZINC
$5.50
W0372404 NUT M6 LH FAN MOTOR
$5.50
W0372660 LENS INDICATOR LIGHT
$12.00
W0372667 LIGHT IND RED 240V 200 KIT
W0372739 BRACKET SUPP HOB 600RC LHS/RHS
$16.00
W0372835 ENDCAP REAR C/PANEL 540 PAIR
$22.00
W0373202 RACK PACK CFG517 JONAH
$56.00
