WFE912SA — 943000896 02

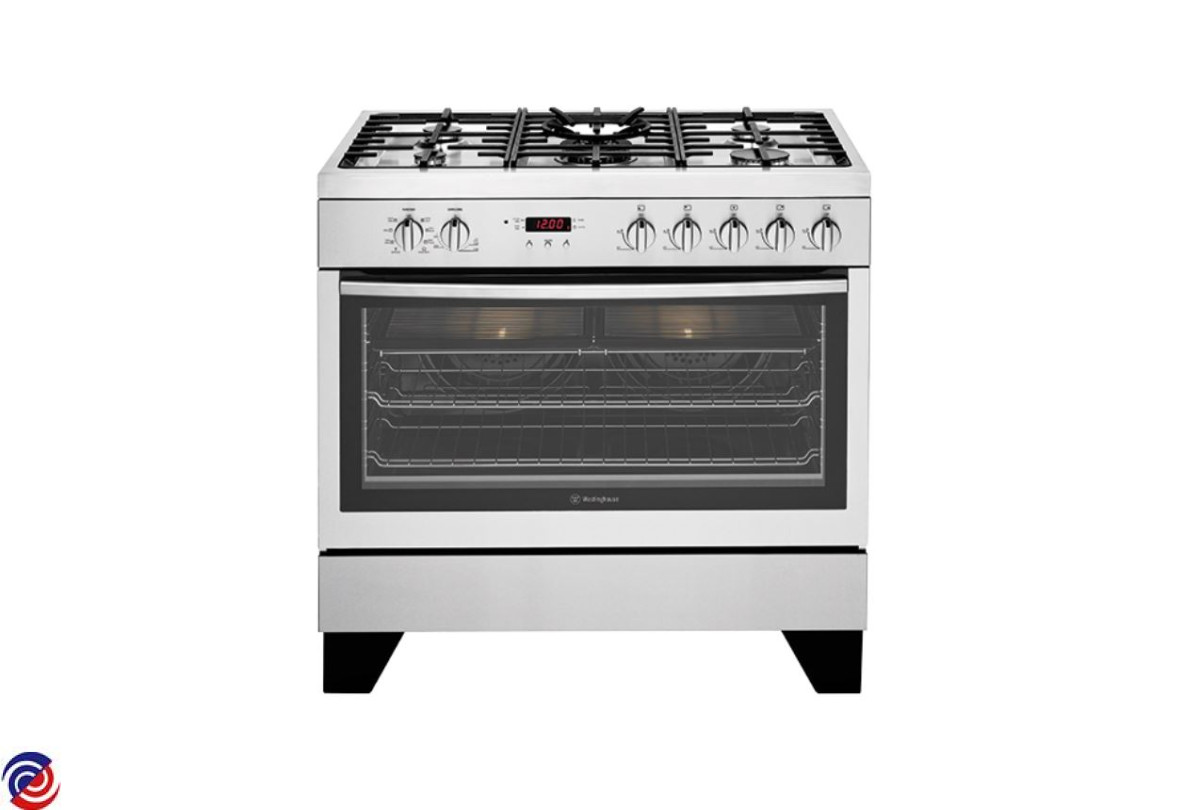

WESTINGHOUSE — Cooker Dual Fuel
Parts for WFE912SA
.JPG)
W0011297 BLADE FAN
W0011844 HINGE OV DOOR 3-L VULCAN
W0011995 NUT M6 LH FAN MOTOR
W0012266 ELEMENT FAN RING 1200W VULCAN
W0012730 GASKET CAVITY OVEN
W0012755 MOTOR FAN OVEN
W0013565 SWITCH MULTI 8
.JPG)
W0013596 SWITCH THERMAL CUT OUT 190 DEG
W0014025 SCREW #8-10X35 PAN PH2 P/B BK
$4.50
W0014040 SCREW 3/16X28 PAN PH TRILOB ZY
W0022617 BURNER CROWN RAPID CYLINDER
W0022619 BURNER SEMI-RAPID CYLIND
$40.00
W0022624 BURNER CROWN AUX CYLINDER
W0022741 SPARK PLUG IGNITOR 400 MM
W0022742 SPARK PLUG IGNITOR 600 MM
W0022997 SET TIMER ASSY COMPUTIME (RED)
W0032275 LAMP 25W 240V G9 PYRO HALOPIN
.JPG)
W0046406 CLIP MOUNTING ELEMENT
_1.JPG)
W0050403 MOTOR FAN OVEN
.JPG)
W0057771 THERMOSTAT OVEN
W0062420 LIGHT INDICATOR INC LENS
W0063845 BOX IGNITION 6P 240V HMJD BLUE
W0102392 SPARK PLUG WOK 500MM
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011126 BASE BURNER AUX IGN NG
$29.05
W0011201 SUPPORT ELEMENT GRILL VULCAN
$25.20
W0011228 KNOB CONTROL ASSY
$18.35
W0011229 KNOB CONTROL ASSY
W0011264 PLATE CVR TERM ELEC BIOS
$13.85
W0011279 PLATE MOUNTING SWITCH
$15.40
W0011283 PLATE ANTI-TILT RH ASS VULCAN
W0011284 PLATE ANTI-TILT LH ASS VULCAN
W0011298 BLADE FAN
$34.35
W0011329 COVER CLEAN HEAT VULCAN
W0011345 BRACKET KRONOS PROBE MOUNT BIO
$12.60
W0011403 DISH GRILL ENAMELLED VULCAN
$75.70
W0011499 PANEL RH SIDE F/STAND VULCAN
W0011500 PANEL LH SIDE F/STAND VULCAN
W0011504 PANEL REAR CHASSIS
$49.50
W0011505 PANEL FRONT STORAGE VULCAN
$68.40
W0011506 PANEL ELECTRICAL SHIELD VULCAN
W0011592 PANEL CONTROL & CLIPS
$153.90
W0011659 PANEL CONTROL WFE912SA
$157.10
W0011694 PANEL LOWER BRACE F/STAND VULC
$49.50
W0011695 PANEL FAN COVER
$112.55
W0011697 SPLASHBACK WHOUSE VULCAN 900
$129.15
W0011864 SPACER VENT
W0011925 HANDLE DOOR
W0011996 NUT M6 R/H FAN MOTOR
$5.30
W0012046 FRAME FRONT PAINT VULCAN FSTAN
$132.00
W0012264 ELEMENT 2500W VULCAN
W0012315 CLIP THERMOSTAT BIOS
$9.00
W0012319 RETAINER PYRO CATALYSER
$7.70
W0012324 CLIP MOUNT PANEL FRONT VULCAN
$10.20
W0012363 TRIVET CAST IRON WOK
$42.00
W0012392 INJECTOR H/P 0.55MM
W0012393 INJECTOR H/P 0.70MM
W0012395 NIPPLE INJ 0.90
$8.80
W0012403 INJECTOR 1.75 ELUX WOK NG
$8.80
W0012413 COUNTER SUPPORT LH VULCAN F/S
W0012414 COUNTER SUPPORT RH VULCAN F/S
W0012519 SCREW M4X5 HEX1/4' PH2 BLK ZP
$4.50
W0012572 END CAP HANDLE VULCAN WEST
W0012587 FOOT PLINTH VULCAN PAINTED
$14.30
W0012667 INSTALL ANTI TILT HOOK
$13.90
W0012694 SKIRT KNOB WEST VULCAN
$8.55
W0012732 SEAL CONTROL PANEL
$11.15
W0012806 STOP ANTI TILT
$3.30
W0012854 DOOR OVEN INNER GLASS MIDDLE
W0012855 DOOR OVEN INNER GLASS
W0013025 REGULATOR GAS NG INTEG TEST PT
W0013063 INSTALL ANTI -TILT CHAIN
W0013214 RACK PACK
W0013260 SHIELD WIRING
$11.95
W0013326 INSULATION OVEN BACK VULCAN
$29.70
W0013327 INSULATION OVEN WRAP VULCAN
$84.70
W0013463 BRACE OVEN REAR VULCAN
$27.50
W0013701 BUTTON
W0013730 BUMPER STOP BLK
$6.55
W0014027 SCREW #8 X 16MM CSK #2PH BT BK
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0014034 SCREW #8 X 1/2 MUSH #2PH AB BK
$4.50
W0021316 SCREW M4X16 PAN PHIL ZC HZ
W0021433 FOOT TRIVET
$7.05
W0021560 BRACKET GAS RAIL WHOUSE VULCAN
$23.95
W0021561 MANIFOLD PIPE 5B WHOUSE VULCAN
W0021576 SWITCH HARNESS 5B WH VULCAN
W0021581 HOB WELD ASY 5B WH VULCAN STD
$318.00
W0021622 TUBE BURNER LF 5B WH VUL STD
$24.20
W0021623 TUBE BURNER LR 5B WH VUL STD
$24.20
W0021624 TUBE BURNER MID 5B WH VUL STD
$24.20
W0021625 TUBE BURNER RF WH VUL STD
$24.20
W0021626 TUBE BURNER RR WH VUL STD
$24.20
W0021627 VALVE HOTPLATE M12 - AUX VUL
$45.95
W0021628 VALVE HOTPLATE M12 - S/RAP VUL
$22.00
W0021629 VALVE GAS M12 - RAP VUL
$22.00
W0021630 VALVE HOTPLATE M12 - WOK VUL
$22.00
W0022626 BURNER CAP MATT RAPID CYLINDER
W0022627 BURNER CAP MATTE SEMI-R CYLIND
$22.35
W0022628 BURNER CAP MATTE AUX CYLINDER
$22.35
W0022642 SCREW 2.9 X 13 PAN T10 ZP
$4.50
W0022740 PLUG SPARK 250 MM ENAMELLED
W0022744 SPARK PLUG IGNITOR 900 MM
W0023255 SENSOR OVEN
$44.00
W0035471 BASE BURNER WOK IGN NG
W0039587 DOOR OVEN GLASS OUTER
W0039641 PANEL DECK GLUED ASSY VULCAN
$77.00
W0042560 END CAP UPPER DOOR TRIM RH
W0042561 END CAP UPPER DOOR TRIM LH
W0042562 VENT DOOR TOP CAP ASSY VULCAN
W0046265 ELEMENT G/BOOST 3500W VULCAN
W0046659 TRIVET CAST IRON LH/RH
$120.00
W0046661 TRIVET CAST IRON CENTRE
W0046736 INJECTOR 1.00 H/P
$8.80
W0046737 INJECTOR 1.35 H/P
W0046745 INJECTOR RAPID NG 1.60
$8.80
W0047469 SCREW M4 X 5 PAN #2 PH SML HD
$4.50
W0050408 MOTOR FAN COOLING
W0053310 STICKER GAS TYPE LPG
$4.50
W0053529 RACK SIDE SUPPORT OVEN EVOLVE
W0053535 RACK INSERT GRILL DISH VULCAN
W0053536 RACK SHELF OVEN VULCAN
W0053539 RACK SHELF OVEN VULCAN
$106.00
W0056770 FOOT LEVELLING UPRIGHT
W0063371 CLIP STANDOFF POWERBOARD
W0109033 CLIP SPARK PLUG ELUX 125-8-356
W0110087 BURNER
$29.00
W0110093 BASE BURNER RAPID IGN NG
$13.90
W0110096 BURNER BODY ASSY S/RAP IGN NG
W0110205 CAP BURNER KIT
$37.00
W0114509 BOARD OVC3000
W0114559 LAMP OVEN HALOGEN 25W
