DSL635S

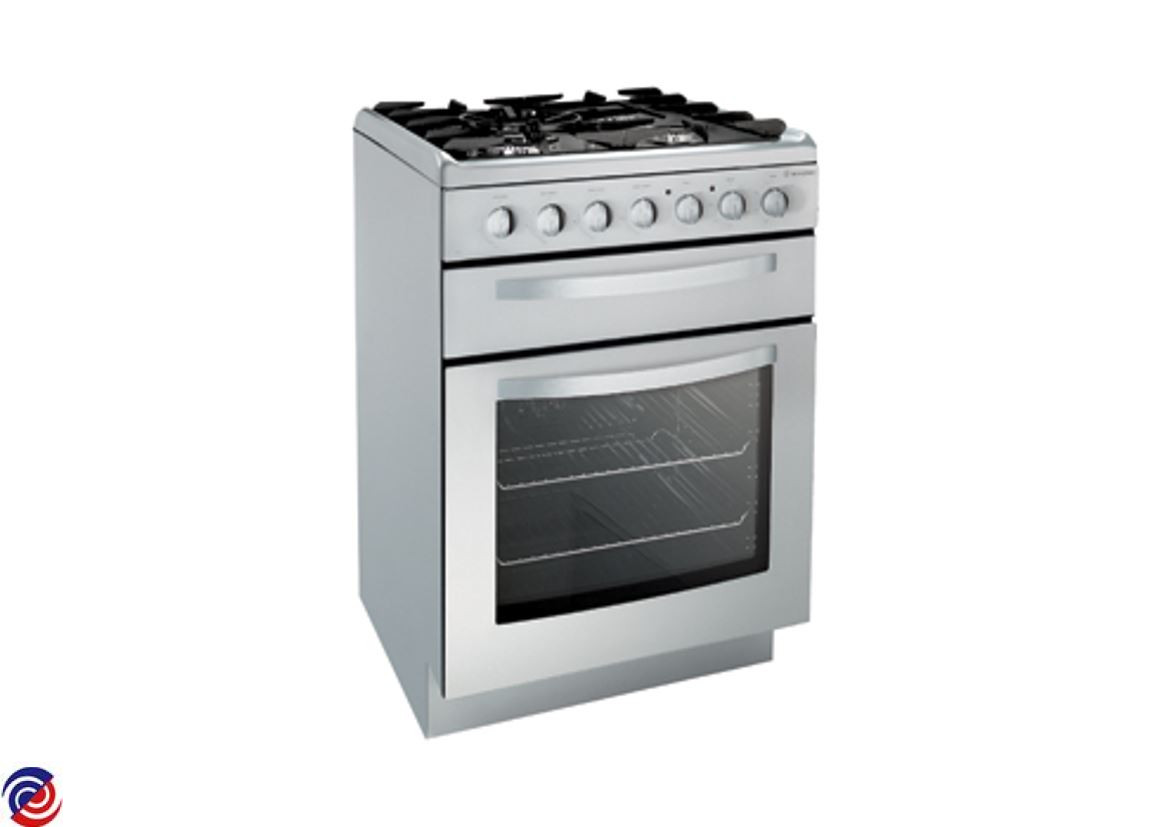

WESTINGHOUSE — Cooker Dual Fuel

W0011121 CAP SML WOK SABAF

W0011404 TRAY SCONE

$19.90

W0012724 SEAL VALVE SOURDILLON

W0012753 MOTOR FAN COOLING

W0035419 CAP BURNER ENAMEL SABAF #1

W0035420 CAP BURNER ENAMEL SABAF #2

W0035421 CAP BURNER ENAMEL SABAF #3

W0039433 DOOR OVEN INNER PANEL & GLASS

W0045365 WASHER SEALING

$4.50

W0046248 ELEMENT GRILL 1800W (EARTHED)

$99.00

W0046249 ELEMENT OVEN FAN 2200W

W0046406 CLIP MOUNTING ELEMENT

W0046869 SUPPORT HINGE DOOR

W0049202 GASKET CAVITY OVEN 1675MM

W0050298 HOLDER LAMP ASSY

W0050517 MOTOR FAN OVEN

W0053453 SHELF OVEN 459 X 360MM

$77.00

W0057198 SWITCH INFINITE MPA 101

$72.00

W0057210 SWITCH AUXILIARY T/STAT

W0062420 LIGHT INDICATOR INC LENS

W0062421 TIMER 2 HR CUTOFF PEAPSA

W0063716 VALVE H/PLATE SOURDILLON

W0065076 CLIP BULB THERMOSTAT ELEC

$6.70

W0100889 CLIP SPRING KNOB

$9.15

W0166032 LAMP 25W SES E14 300C CLEAR

W0365427 SWITCH AUXILIARY T/STAT

$24.60

W0011993 NUT METRIC M10 X 0.75MM

$4.50

W0012971 SPACER HANDLE (SS DOORS)

$6.00

W0013313 INSULATION OVEN WRAP ELEC SGUB

$23.40

W0013730 BUMPER STOP BLK

$6.55

W0013937 MAGNET GRILL DOOR

$8.80

W0013992 IGN BOX 4P 240V PBE

$59.55

W0014018 SCREW #6 X 9.5MM PAN PHIL ZC

$4.50

W0014023 SCREW #8 X 5/8 CSK #2PH AB BK

$4.50

W0014028 SCREW NO 8 X 8MM W/HD PD NI

$4.50

W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK

W0035319 CONNECTOR BAR Q/CONN (2 TERM)

W0035321 BAR WEIGHT 600 SLOT IN

W0035403 BURNER/CAP LGE WOK SABAF

W0035413 BASE SABAF #1

W0035414 BASE SABAF #2

W0035415 BASE SABAF #3

W0035416 BURNER SABAF #1

W0035417 BURNER SABAF #2

W0035418 BURNER

W0035430 BURNER WOK SABAF

W0035431 BURNER/CUP SEALED WOK SABAF

W0035567 CLAMP 884 VALVE SOURDILLON

W0036208 SUPPORT SIDE PANEL 600 U/R

W0036883 KNOB CONTROL SS

$20.00

W0036907 KNOB WESTINGHOUSE 600 S/S

W0037434 PLATE-BACKING-MOTOR-FAN

W0037692 SLIDE GRILL (ASSY) SGUB

W0037749 FAN IMPELLER 152MM

W0038095 RACK GRILL INSERT

$62.75

W0038732 BRACKET SUPP REAR GRILL SGUB

W0038754 BRACKET ANTI TILT 600 U/R

W0038755 BRACKET MOUNT HOB CARCASE

W0038756 BRACKET MOUNT TERM BLOCK BENT

W0039194 DISH GRILL ENAM OVEN

W0039427 PANEL INNER GR/DOOR ENAM BLK

W0039537 PANEL KICK

W0039630 PANEL DECK INTER

W0039636 PANEL COVER INSULATION

W0039768 PANEL SIDE 600 U/R S/S RH

W0039769 PANEL SIDE 600 U/R S/S LH

W0039886 PANEL BACK WIRING 600 U/R

W0040423 PANEL CONTROL DSL635S

W0041039 PANEL BAFFLE FAN (BLK SPEC)

W0041093 PANEL SPLASH 600 U/R S/S

W0041099 PANEL BOTTOM WIRING COVER 600

W0042755 SPARK PLUG IGN H/P 600MM UC20

W0042759 PLUG DOME 600 U/R

W0042760 SPARK PLUG WOK SABAF 750MM

W0042941 HANDLE DOOR OVEN SS

$78.30

W0043527 TUBE BURNER REAR L/H 600 U/R

W0043528 TUBE BURNER REAR R/H 600 U/R

W0043529 TUBE BURNER FRONT L/H 600 U/R

W0043530 TUBE BURNER FRONT R/H 600 U/R

W0044053 NUT M6 LH FAN MOTOR SEL

W0044550 FRAME FRONT ENAMEL BLACK SGUB

W0044823 FLUE BOX OVEN ELEC

W0045141 ANGLE SLIDE LH GRILL SGUB

W0045142 SLIDE GRILL RH

W0045531 BOLT ANCHOR MASONRY

W0045801 SPRING KNOB/SKIRT 600 U/R

W0046408 CLIP SPARK PLUG SABAF

W0046411 CLIP SWITCH IGNITION SOURD

W0046619 TRIVET WOK

W0046656 TRIVET CAST WH 600S/IN & FEET

W0047142 RING O HANDLE

W0047180 SUPPORT GRILL ELEMENT

W0047469 SCREW M4 X 5 PAN #2 PH SML HD

$4.50

W0048232 WIRE INSULATION BACK FORMED

W0049225 SEAL DOOR INNER GLASS

W0049612 SKIRT KNOB CHEF THIN S/S

W0049990 SEAL 'O' RING SPARKPLUG BROMIC

W0049991 SEAL SPARKPLUG HOTPLATE

W0050619 CORD SERVICE 20A 1.4M

$33.00

W0052575 CANOPY FAN

W0052941 SPACER HANDLE SGUB S/S

W0052947 SPACER KNOB 600 U/R

W0053454 RACK SIDE OVEN LH 5 POS

W0053462 RACK SIDE OVEN RH 5 POS

$11.70

W0053712 PIPE MANIFOLD 600 U/R KY

W0053716 PIPE INLET 600 U/R ELEC OVEN

W0054067 SHIELD VENT BAFFLE

W0054615 INSULATION OVEN BACK ELEC

W0054630 INSULATION GRILL TOP SCUB

W0054635 INSULATION GRILL DOOR

W0054636 INSULATION GRILL COMPT BACK

W0054901 OVEN ENAM F/F ELEC SEP

W0055068 TAPE V1510 10 X 3_2 X 594MM

W0055073 TAPE 3M #4008 3.2 X 10 X 80

W0055079 TAPE V1510 10 X 3.2 X 110MM

W0056163 GRILL/BOX ENAMEL BLACK SCUB

W0056269 BRACE LOWER 600 WELDED

W0056271 BRACE LOWER FR ASSY 600

W0056764 FOOT LEVELLING 600 U/R

W0056769 FOOT TRIVET

$4.50

W0057189 SWITCH IGNITION SOURD VALVE

W0057754 SWITCH THERMAL CUT OUT 70 DEG

W0057755 SWITCH THERMAL CUT OUT 120 DEG

W0057770 THERMOSTAT OVEN KEEP WARM EGO

W0059634 GROMMET SERVICE CORD

W0062038 HOB S/S GAS 600 U/R ELUX/CHEF

W0062383 DOOR OVEN GLASS OUTER SS

W0062390 PANEL OUTER GR/DOOR S/S ASSY

W0064367 SCREW 3/16 X 1 PAN PHIL NI

W0064446 SCREW #10 X 3/4' PAN PH ZC AB

W0064477 SCREW CSK PH 6AB X 25MM BLK

$4.50

W0064527 SCREW NO 8 X 12 MM PD

$4.50

W0064532 SCREW #8 X 9/16 B/HD S/PT BKOX

$4.00

W0064533 SCREW #8 X 3/8 MUSH AB

$4.50

W0064563 SCREW ST 8 X 1/2

W0064586 SCREW 3/16X1/4 PAN PH TRILOB

W0064587 SCREW 3/16X12 PAN PH TRILOB

W0064747 NUT HEX 3/16 BSW

$4.50

W0064939 WASHER 3/16 INT S/P ZC

$4.50

W0065207 WASHER CUP TERMINAL 3/16 H198

W0065209 WASHER 7/32 X 3/8 BR HI50W

W0065401 SCREW VALVE CLAMP 25MM

$4.50

W0065416 SCREW M5 X 16 ZINC MUSH NIBS

W0065427 SCREW M5 X 9MM CSK (BLK ZC)

W0065428 SCREW M3 X 6 CSK #2 PHIL ST/ST
