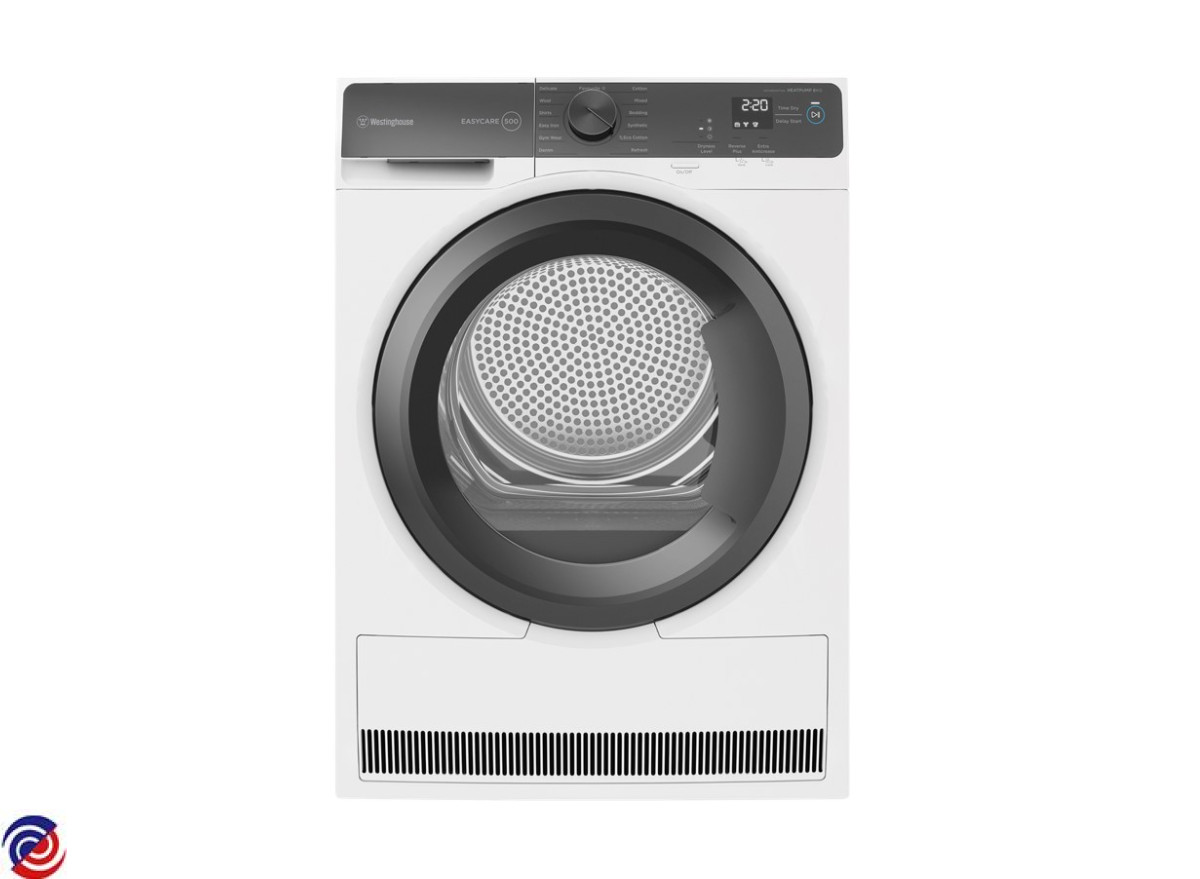

WDH804N7WA — 916099100 00
WESTINGHOUSE — Clothes Dryer

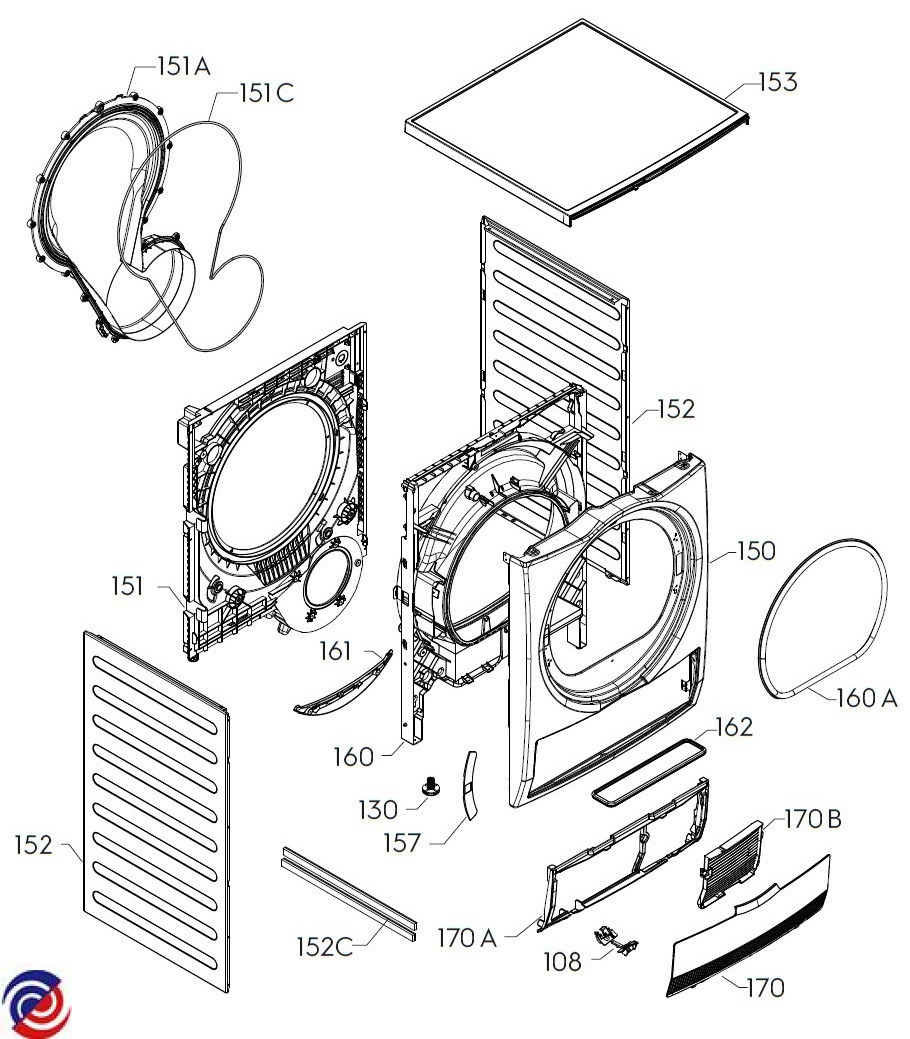

Parts for WDH804N7WA
W0016685 HOSE DRAIN KIT DRYER 2.5M
W0016701 BUSH SUPPORT ROLLER
$8.00
W0017020 PIN DOOR HINGE
$10.00
W0017380 HUMIDITY SENSOR
$37.00
W0017397 HOSE, PUMP,TANK, L=770
$17.45
W0017445 SWITCH MICRO ANTI FLOOD CONTROL
$31.00

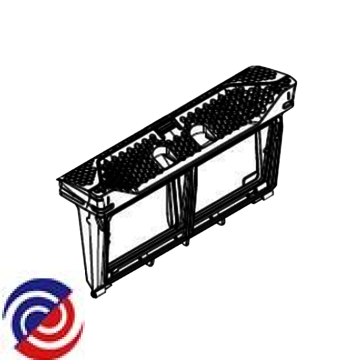

W0027033 FLUFF FILTER
W0074659 ROLLER CLAMPING ASSY
W0076617 DRYER DOOR SWITCH
$37.00
W0273973 AEG ELECTROLUX DRYER DRIVE BELT 1971MM
$33.00
W0296358 AEG ELECTROLUX DRYER DOOR CATCH LATCH
$13.00
W0016644 CAPACITOR, MOTOR 10ÁF
$51.00
W0017370 SUPPORT, TANK
$58.00
W0017389 BRACKET FIXING MOTOR FRONT
$19.00
W0017399 SEALING,BASEMENT,AIR DUCT
$21.00
W0017401 SUPPORT, HUMIDITY SENSOR
$20.00
W0017412 COVER, PLATE, DOOR LOCK
$5.50
W0017497 KNOB LOCK,DOOR,BASEMENT,7801
$24.20
W0017520 TENSION SPRING, MOTOR
$13.00
W0027102 GASKET FILTER
$37.00
W0074344 SCREW. MOTOR
$13.20
W0076604 OVERFLOW HOSE, L=640
$30.00
W0076619 POWER CABLE, AUS, 2600MM
$57.00
W0076655 FIXING BRACKET, MOTOR, REAR
$14.00
W0274376 PANEL FRONT ONE
$132.00
W0274429 GASKET DRUM BACK
$34.00
W0274479 FAN WHEEL D170MM
$55.00
W0274566 HINGE DOOR ONE
$28.00
W0274568 HINGE PLINTH L&R
$13.00
W0274570 SUPPORT PLINTH ONE
$21.00
W0274696 GASKET FRONT, LARGE OPENING
$46.00
W0275421 GASKET DRUM FRONT
$85.00
W0282709 GASKET COVER BACK PANEL
$14.00
W0296326 HARNESS,DOOR SAFETY INTERLOCK
$34.00
W0296368 WINDOW,PLASTIC,OUTER
$40.00
W0296390 TAPPET,DOOR,PLASTIC,ONE
$7.00
W0361144 FELT RECTANGULAR
$4.00
W0361159 DOOR FRAME,BACK,GREY
$70.00
W0361170 TANK, UPPER
$36.50
W0361191 BUTTON,WHITE,RECT,DIAMOND
$4.00
W0361195 COVER,USER INTERFACE BOARD
$19.05
W0361208 DOOR LOCK, 9kg
$16.00
W0361321 WINDOW TRANSPARENT INNER
$68.00
W0364136 PUMP CONDENSATION
W0364144 CABLE DUCT, POWER OPTIFLOW
$4.00
W0364266 DOOR BASEMENT+ GASKET GREY
$14.00
W0366415 SIDE PANEL,INSULATED,RIGHT
$126.00
W0366628 CAPACITOR,20.F
$20.00
W0366629 SEALING STRIP,BACK PANEL
$4.00
W0366654 AIR DUCT,FRONT
$64.00
W0366655 CONNECTOR,TANK
$6.00
W0366658 HARNESS,TEMP.PROBE,TANK,PCB
$50.20
W0366668 DRUM,COMPLETE,434MM,OPTIFLOW
$337.00
W0366670 BACK PANEL,PLASTIC,OPTIFLOW
$48.00
W0366696 GASKET,DOOR,GREY
$5.50
W0366697 HARNESS,MOTOR,DRAIN PUMP,PCB
$36.25
W0366698 HARNESS,FAN,TEMP.PROBE,PCB
$22.20
W0366699 HARNESS,UI,MB,J10
$9.00
W0366732 PLINTH,WHITE,534X174MM,ONE
$40.30
W0366733 COVER,FAN,PLINTH,ONE
$7.55
W0366736 HARNESS,HUMIDITY SENSOR,PCB
$63.85
W0366737 HARNESS,COMPRESSOR,PCB,950MM
$31.95
W0366774 BUSH,TANK,OVAL,56X42MM
$4.00
W0366952 HARNESS,COMPRESSOR,PROPANE
$13.20
W0366971 DIFFUSER,SAFFRON
$16.20
W0366981 DOOR FRAME,FRONT,D/GREY,.490MM
$68.00
W0367033 NOT CONFIG,EDR14,HP,PROPANE,C
$146.70
W0367044 KNOB,PROGRAMME,GREY,WH
$17.00
W0367168 CONTROL PANEL,WHITE,EN
$301.00
W0367562 SCREWS,DOOR,KIT,13+2
$54.15
W0367617 INSULATION,STRIP
$7.85
W0367676 UI,PROGRAMME SELECTOR,TC4,T
$216.00
W0367748 NUT,M6
$4.00
W0367768 MOTOR,240V,50HZ,182W,F,P
$389.00
W0368902 FAN COOLING COMPRESSOR
$69.00
W0369057 SEAL TEMPERATURE SENSOR
$25.00
W0370409 SIDE PANEL,WITH INSULATION LH
$126.00
W0371612 BASEMENT, WITH, COMPRESSOR, OP
W0373490 WORK TOP ASSEMBLY
$109.00
