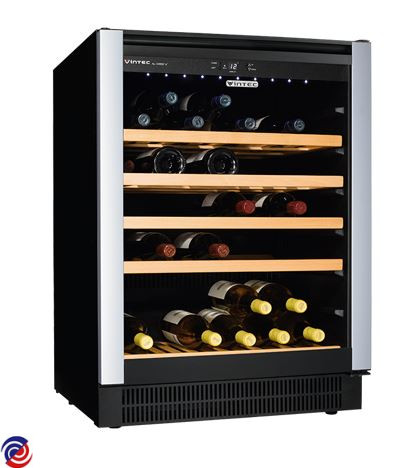

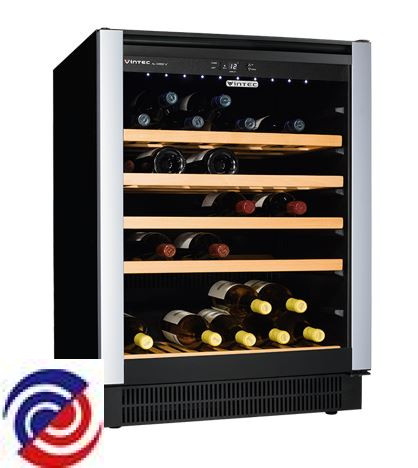

ALV40SGE — 956003497
VINTEC — Fridge

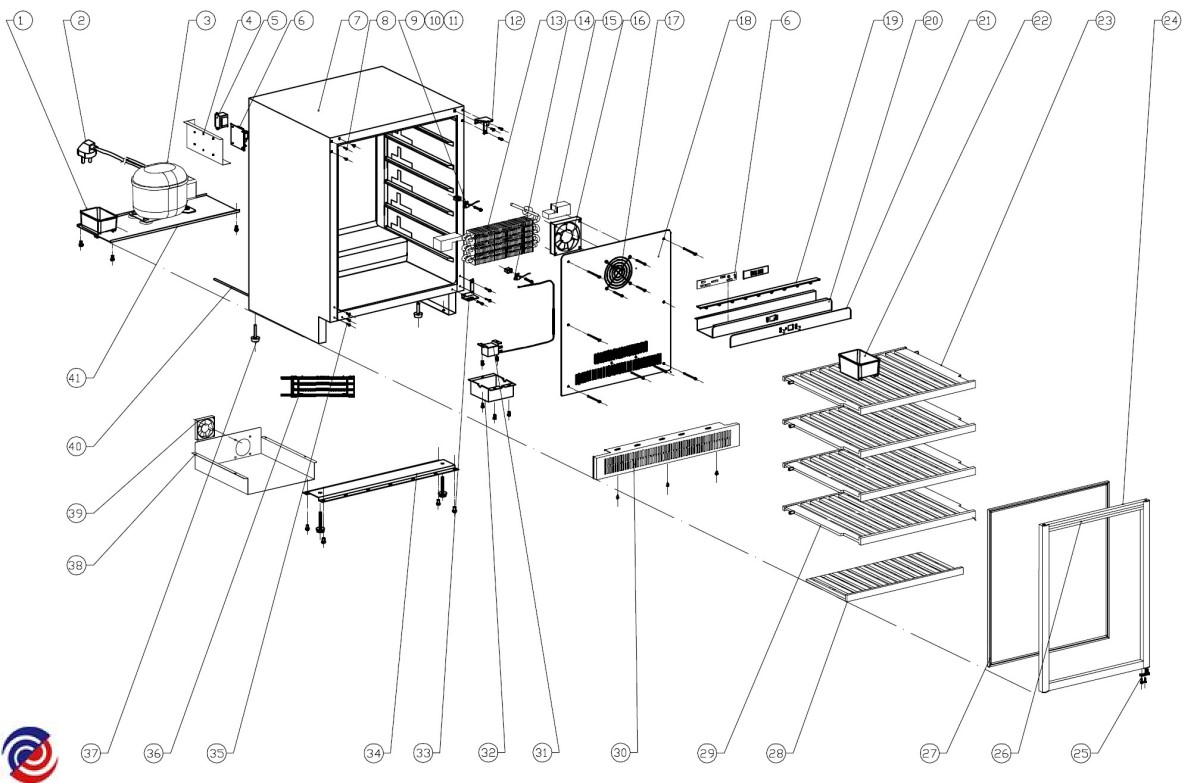

Parts for ALV40SGE
W0031660 HINGE TOP LH ALV40
$16.44
W0031920 FAN 12V NSX
$87.32
W0031931 SENSOR TEMP(WHITE JACK PLUG)
$20.96
W0159670 DRIER 12GM(XH9)DBLE/SGLE TAIL
W0275870 LEG CABINET V40S
$24.12
W0031574 THERMOSTAT ANTI FREEZE NSX
W0031606 EVAPORATOR ASSY W/CAP TUBE
W0031612 WATER TANK
$24.32
W0031616 BOX HUMIDITY EXCEPT V30S
$10.40
W0031625 ELECTRICAL BOX COVER
$13.20
W0031630 DECORATIVE CAP UPPER
$8.60
W0031632 PCB BOARD COVER
$17.60
W0031644 SPACER BACK
W0031652 PLUG, SCREW DECORATIVE
$4.00
W0031654 HINGE PLATE & PIN ALV40
$17.48
W0031661 HINGE TOP RH ALV40
$4.72
W0031677 HINGE BOTTOM LH ALV40
$17.24
W0031678 HINGE BOTTOM RH ALV40
W0031721 SHELF WD HALF V40
W0031722 SHELF WD V40
W0031723 SHELF WD TOP V40
W0031745 COMPRESSOR V26/30/40 R600A
W0031746 COVER FAN
$13.20
W0031747 COVER CONDENSER
$8.00
W0031748 CLIP
$8.80
W0031764 POWER CORD
$23.84
W0031801 FRAME GRILL V40 S3 BK
$30.80
W0031806 DOOR ALV40
W0031861 LED WHITE
$26.40
W0031897 PCB AL-V40SGE
W0031907 TRANSFORMER V40S
W0031930 SENSOR TEMP(RED JACK PLUG)
$20.96
W0033343 GASKET AL-V40
W0275850 PIPE AIR CIRCULATING
$12.00
W0275851 CONDENSER
$68.68
W0275865 DOOR HANDLE
W0275873 SUPPORT, SHELF
W0275920 FOAM BLOCK
$7.20
W0275922 COVER FAN
W0275939 CONTROL PANEL
$8.00
W0275948 COVER AIR DUCT
$12.32
W0275965 SUPPORT BRKT FRONT LEGS
$8.80
W0275966 COMPRESSOR BRACKET
$20.00
W0275972 BOX ELECTRICAL
$12.80
