SWT954 — 913041064 01
SIMPSON — Washing Machine

W0012072 FRAME FILTER NO CUP TALL BOY

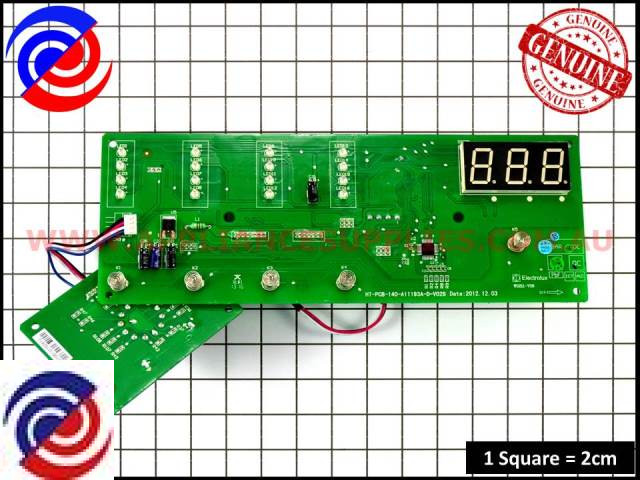

W0012435 SIMPSON TOP LOADER WASHING MACHINE INTERFACE PCB 0133200127

W0012745 GREASE NULON L90 125G TUBE

$79.00

W0012790 AGITATOR INC FILTER FRAME

W0013691 HOSE DRUM TO PUMP TALL BOY

W0016323 SWITCH LID

W0016343 SIMPSON TOP LOAD WASHING MACHINE ROD SUSPENSION KIT OF 4

W0016389 NOZZLE ECO RINSE

W0016405 LOCK LID ASSY 1550MM

W0037509 PLATE SUPPORT DRUM SPIN

W0044076 NUT - BLANK

W0047077 VALVE ASSY INLET 90DEG 10MM ID

W0048964 HOOK OUTLET HOSE

W0048965 HOOK OUTLET HOSE

W0050437 MOTOR CLUTCH ACTUATING

W0051050 AGITATOR INC FILTER FRAME & CU

W0060102 SIMPSON TOP LOADER WASHING MACHINE BAG FILTER ASSY SP095 0564257398

W0060242 TOOL AGITATOR SCREW LONG

$96.75

W0060454 WASHING MACHINE HOSE ASSY INLET COLD BLUE

W0060456 WASHING MACHINE HOSE ASSY INLET HOT RED

W0060469 SIMPSON WESTINGHOUSE TOP LOADER WASHER DRAIN HOSE & HOOK KIT

$39.50

W0073232 SENSOR WATER LEVEL

W0073235 VALVE INLET DOUBLE

W0073237 MOTOR & GEARBOX ASSY + O RING

W0073334 LEVER KNOCK OFF

W0073462 LID ASSY COMPLETE WITH CATCH

W0073476 BOARD ASSY MAIN

W0089169 PUMP DRAIN

W0110605 VALVE ASSY INLET 90DEG 10MM ID

W0110636 CAP ROD SUSPENSION

W0147162 FILTER HOSE INLET RUBBER

$8.45

W0012524 SCREW M6 X 10MM HEX TT W/HD SS

$4.50

W0012786 SCREEN DETERGENT DISPENSER

W0016319 HARNESS WIRING & PLUG ASSY

$66.00

W0016338 SCREW CONTROL PANEL

$4.00

W0016350 PANEL MOUNTING SWITCH LED

$28.00

W0016352 COVER HINGE LH LGE

W0016353 COVER HINGE RH LGE

W0016355 GROMMET PANEL TOP

$19.55

W0016364 COVER DISPENSER LARGE

$13.90

W0016386 HARNESS WIRING

$60.00

W0016390 KNOB CONTROL

W0016400 DRUM SPIN ASSY TALL BOY

W0035584 CLAMP CAPACITOR

W0035585 CLAMP SUPPORT PLATE TUB SPIN

W0035590 CLAMP TUBE AIR

W0035595 CLAMP HOSE

W0038190 COVER PUMP

W0038196 COVER HARNESS

$11.90

W0038882 BRACKET KNOCK OFF SWITCH MTG

$34.85

W0039098 LEG LEVELLING & PAD ASSY

W0041445 PANEL BACK

W0043642 TUBE AIR BOWL TO SENSOR

W0044120 NUT M5 X 0.8

W0044236 SPANNER LEVELLING LEG

W0044783 CUP DISPENSER

W0046425 CLIP SPEED

W0046434 CLIP WIRING

W0046546 SLEEVE HARNESS

W0047516 SCREW 7_19 X 1/2 HI LO FLANGE

$4.00

W0047519 SCREW M6 X 20MM HH SS

$4.50

W0047525 SCREW NO 10 16 X 1/2 PAN HD

W0047526 SCREW ST 10 X 1/2 HEX W/HD

W0047534 SCREW EARTH

W0049253 GASKET DRUM TO PLATE

W0050036 SEAL OUTER DRUM COVER

W0050060 SEAL ADAPTOR

W0050273 GREASE STAMINA RL2 75 ML

W0050278 GREASE 1 LITRE

W0056360 PROTECTOR TUBE AIR

W0061305 PAD LEVELLING LEG

$9.30

W0065423 SCREW M8 X 30 MM SS SKT

W0073231 FILTER EMC

W0073233 SWITCH ON OFF

W0073236 PLUG INLET VALVE

W0073267 SCREW WMCU

$4.00

W0073268 SCREW M6 X 15MM

W0073344 SEAL PANEL TOP LARGE

W0073350 COVER OUTER BOWL- T/BOY BLEA

W0073367 PANEL TOP ASSY

$50.00

W0073389 COVER SWITCH ON OFF

$4.00

W0073424 DRUM OUTER

W0073507 PANEL CONTROL LED PAINTED

W0141419 CLAMP HOSE (22 38 H541)

W0276379 SEAL FOR THE WATER INLET VALVE

W0276380 BALANCE RING ASSEMBLY

$38.95

W0276382 SCREW 7_19 X 1/2 HI LO SS PAN

W0276383 INSTRUCTION UNDERLID SUDSLOCK
