SWT951 — 913041082 00
SIMPSON — Washing Machine
Parts for SWT951
.JPG)
W0012072 FRAME FILTER NO CUP TALL BOY
W0012745 GREASE NULON L90 125G TUBE
$79.00
W0013691 HOSE DRUM TO PUMP TALL BOY
W0016323 SWITCH LID
.JPG)
W0016343 SIMPSON TOP LOAD WASHING MACHINE ROD SUSPENSION KIT OF 4
$119.50
.JPG)
W0016389 NOZZLE ECO RINSE
W0016405 LOCK LID ASSY 1550MM
W0016433 PANEL CONTROL LED PAINTED KIT
$113.70
W0030763 DESCALER SACHET 75GM
$5.50
.JPG)
W0035722 CAP DISPENSER
$28.55
.JPG)
W0037509 PLATE SUPPORT DRUM SPIN
.JPG)
W0044076 NUT - BLANK

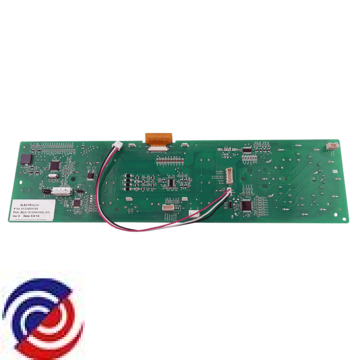

W0046939 BOARD ASSY INTERFACE
$179.00
.JPG)
W0047077 VALVE ASSY INLET 90DEG 10MM ID
W0048964 HOOK OUTLET HOSE
W0048965 HOOK OUTLET HOSE
.JPG)
W0050437 MOTOR CLUTCH ACTUATING
.JPG)
W0051050 AGITATOR INC FILTER FRAME & CU
_1.JPG)
W0060102 SIMPSON TOP LOADER WASHING MACHINE BAG FILTER ASSY SP095 0564257398
W0060242 TOOL AGITATOR SCREW LONG
$96.75
W0060454 WASHING MACHINE HOSE ASSY INLET COLD BLUE
W0060456 WASHING MACHINE HOSE ASSY INLET HOT RED
W0060469 SIMPSON WESTINGHOUSE TOP LOADER WASHER DRAIN HOSE & HOOK KIT
$39.50
.JPG)
W0073232 SENSOR WATER LEVEL
.JPG)
W0073235 VALVE INLET DOUBLE
.JPG)
W0073237 MOTOR & GEARBOX ASSY + O RING
W0073334 LEVER KNOCK OFF
.JPG)
W0073462 LID ASSY COMPLETE WITH CATCH
.JPG)

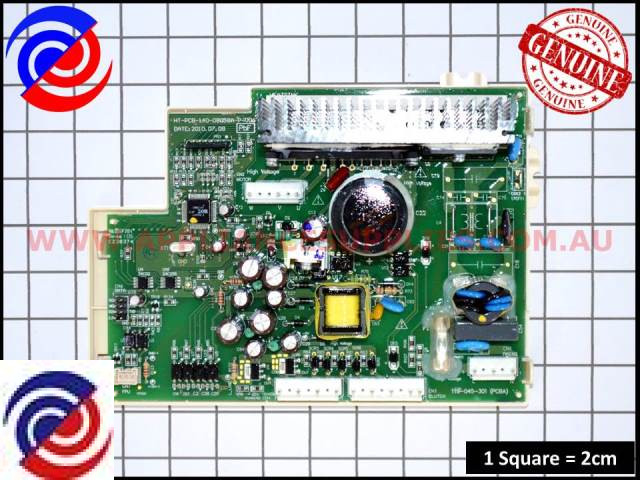

W0073477 SIMPSON TOP LOADER WASHING MACHINE POWER CONTROL PCB 119438310
.JPG)
W0089169 PUMP DRAIN
W0110636 CAP ROD SUSPENSION
W0147162 FILTER HOSE INLET RUBBER
$8.45
W0154351 DESCALER POWDER 350G
$19.00
W0012524 SCREW M6 X 10MM HEX TT W/HD SS
$4.50
W0012786 SCREEN DETERGENT DISPENSER
$8.35
W0016338 SCREW CONTROL PANEL
$4.00
W0016340 BRACKET DAMPER
W0016352 COVER HINGE LH LGE
W0016353 COVER HINGE RH LGE
W0016355 GROMMET PANEL TOP
$19.55
W0016359 SEAL LCD
$18.35
W0016387 HARNESS WIRING
$75.00
W0016400 DRUM SPIN ASSY TALL BOY
W0035584 CLAMP CAPACITOR
W0035585 CLAMP SUPPORT PLATE TUB SPIN
W0035590 CLAMP TUBE AIR
W0035595 CLAMP HOSE
W0038190 COVER PUMP
W0038196 COVER HARNESS
$11.90
W0038215 COVER OUTER BOWL TALL BOY+SEAL
W0038882 BRACKET KNOCK OFF SWITCH MTG
$34.85
W0039098 LEG LEVELLING & PAD ASSY
W0041445 PANEL BACK
W0043642 TUBE AIR BOWL TO SENSOR
W0044120 NUT M5 X 0.8
W0044236 SPANNER LEVELLING LEG
W0046425 CLIP SPEED
W0046434 CLIP WIRING
W0046546 SLEEVE HARNESS
W0047519 SCREW M6 X 20MM HH SS
$4.50
W0047525 SCREW NO 10 16 X 1/2 PAN HD
W0047526 SCREW ST 10 X 1/2 HEX W/HD
W0047534 SCREW EARTH
W0049253 GASKET DRUM TO PLATE
W0050036 SEAL OUTER DRUM COVER
W0050060 SEAL ADAPTOR
W0050273 GREASE STAMINA RL2 75 ML
W0050278 GREASE 1 LITRE
W0056360 PROTECTOR TUBE AIR
W0061305 PAD LEVELLING LEG
$9.30
W0065423 SCREW M8 X 30 MM SS SKT
W0073225 HARNESS WIRING & ADAPTOR ASSY
$65.90
W0073227 HARNESS ADAPTER
$63.75
W0073231 FILTER EMC
W0073233 SWITCH ON OFF
W0073261 RING DAMPER
W0073267 SCREW WMCU
$4.00
W0073268 SCREW M6 X 15MM
W0073323 PANEL MOUNTING SWITCH LCD
W0073326 HOUSING LED
$13.90
W0073343 SEAL PANEL TOP MEDIUM
$20.85
W0073367 PANEL TOP ASSY
$50.00
W0073389 COVER SWITCH ON OFF
$4.00
W0073409 DRAWER DISPENSER-LARGE
W0073424 DRUM OUTER
W0073512 PANEL CONTROL LED PAINTED
W0073515 DAMPER LID - LH
$28.00
W0073516 DAMPER LID - RH
$28.00
W0141419 CLAMP HOSE (22 38 H541)
W0276379 SEAL FOR THE WATER INLET VALVE
W0276380 BALANCE RING ASSEMBLY
$38.95
W0276382 SCREW 7_19 X 1/2 HI LO SS PAN
