SWT9043 — 913041135 00

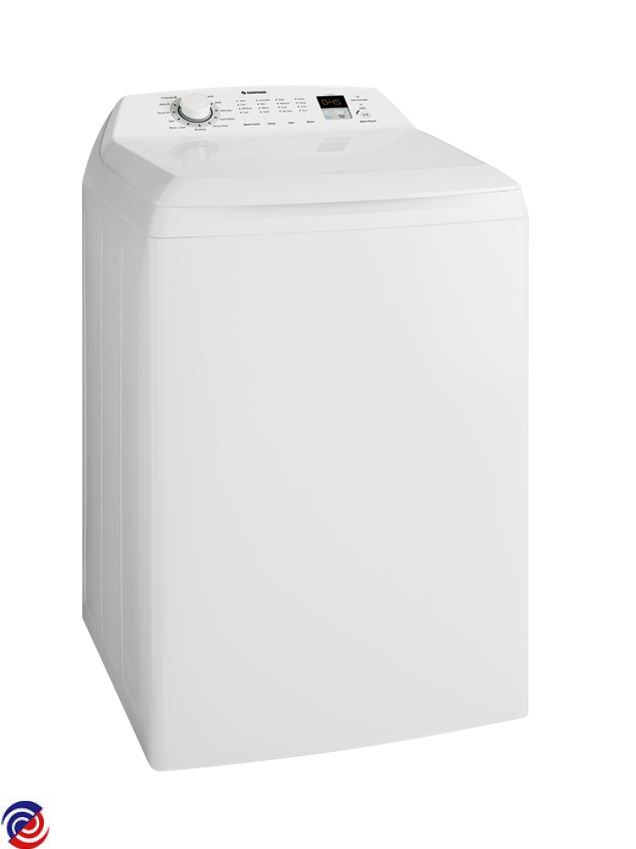

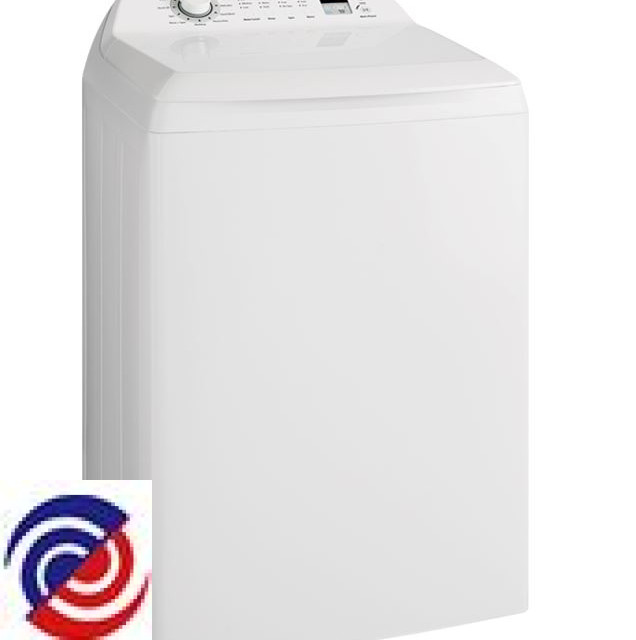

SIMPSON — Washing Machine

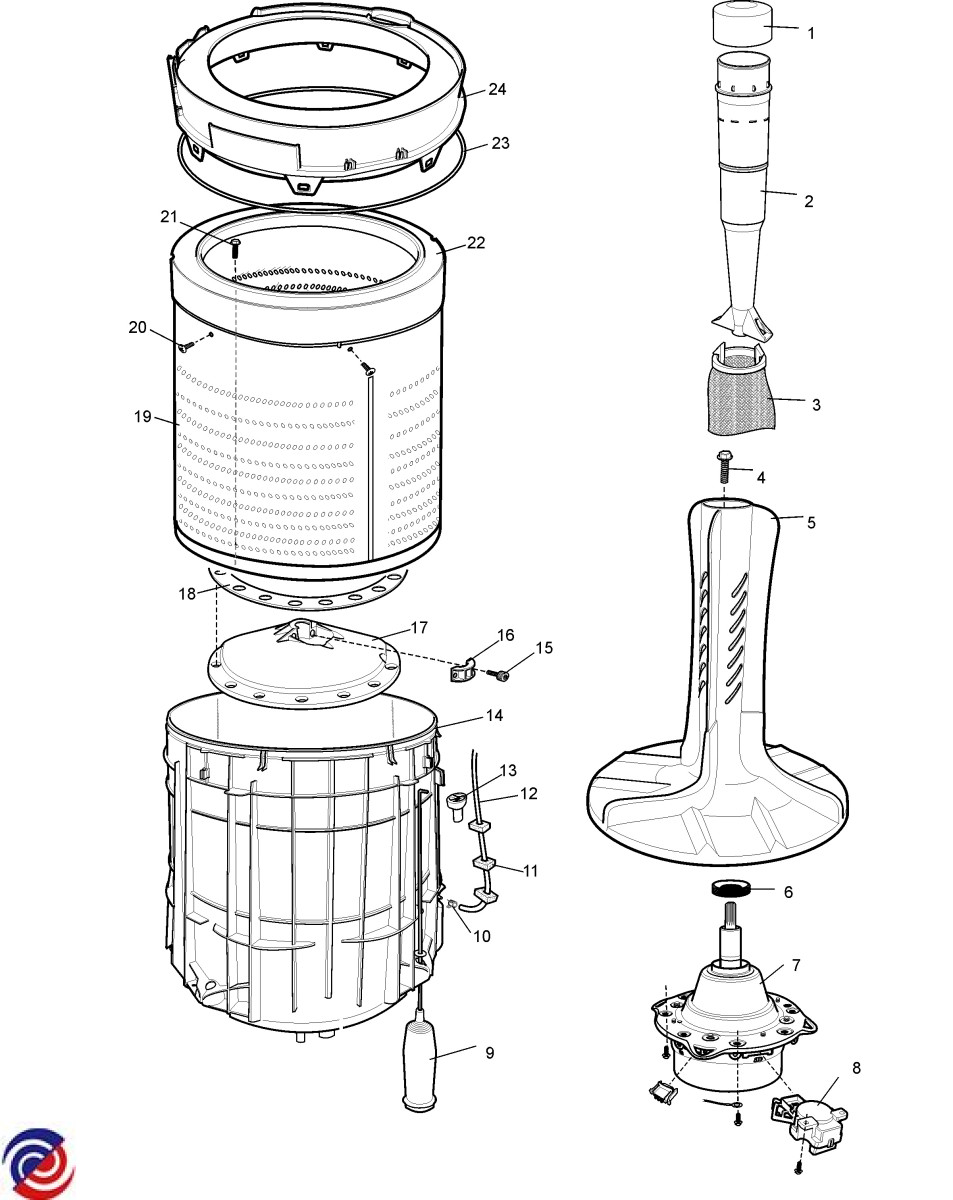

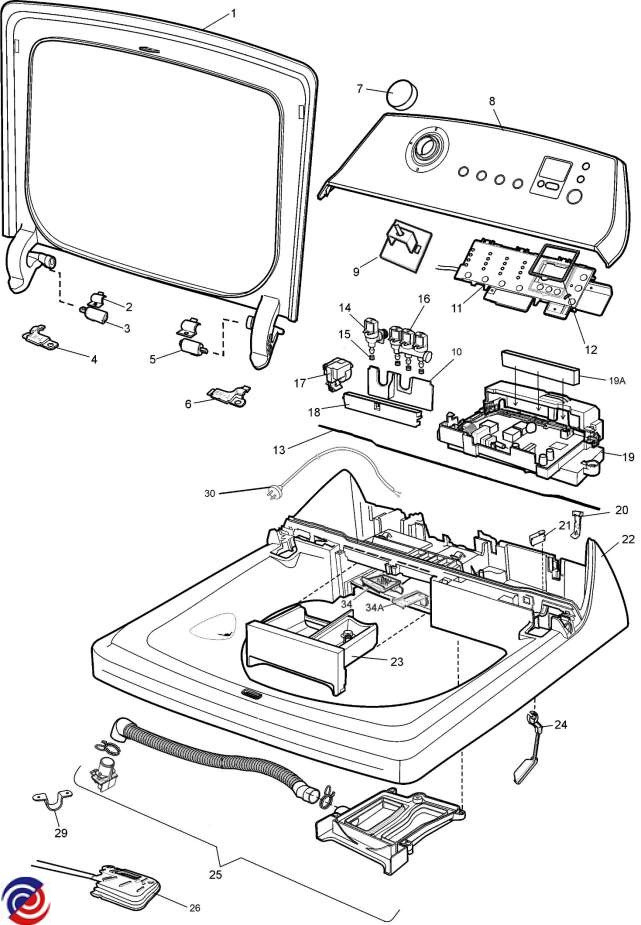

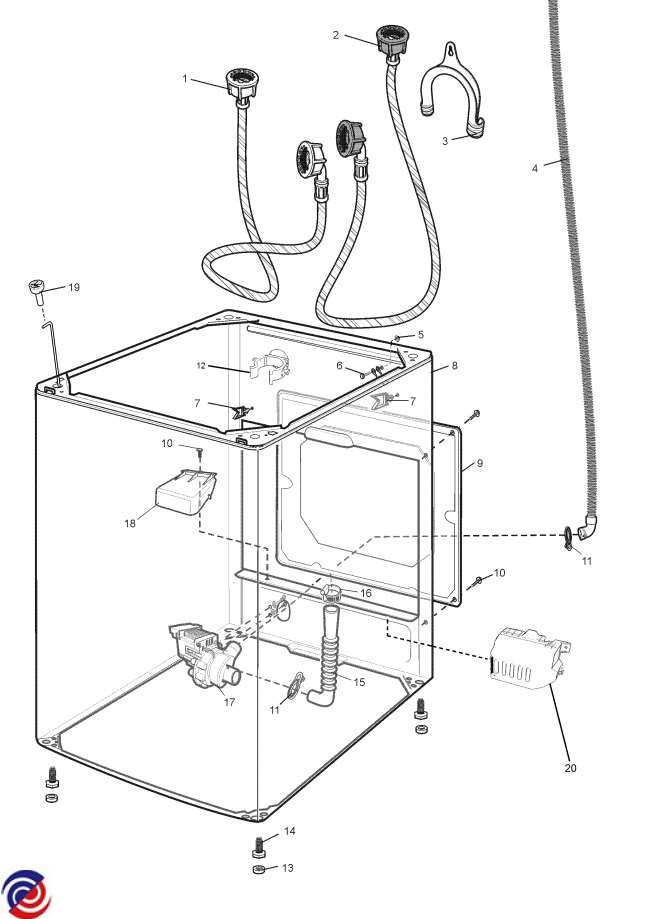

Parts for SWT9043

W0012745 GREASE NULON L90 125G TUBE
$79.00
W0013691 HOSE DRUM TO PUMP TALL BOY
W0016323 SWITCH LID
W0016343 SIMPSON TOP LOAD WASHING MACHINE ROD SUSPENSION KIT OF 4
$119.50
W0016354 HOSE DRAIN
W0016361 AGITATOR
W0016363 CAP AGITATOR
W0016402 VALVE INLET ASSY HOT
W0016405 LOCK LID ASSY 1550MM
W0027032 SIMPSON WASHING MACHINE SELECTOR BOARD
W0029234 VALVE INLET TRIPLE COLD
W0029471 DRAWER DISPENSER-LARGE
W0029489 SENSOR PRESSURE
W0030129 DET HOUSING ASSY COMPLETE
W0030377 PCBA USER INTERFACE DG LOW
W0030415 PCBA MOTOR CONTROL EMC14 ASSY
$279.30
W0030462 DAMPER LID - RH
W0037509 PLATE SUPPORT DRUM SPIN
W0044076 NUT - BLANK
W0050437 MOTOR CLUTCH ACTUATING
W0060102 SIMPSON TOP LOADER WASHING MACHINE BAG FILTER ASSY SP095 0564257398
W0060242 TOOL AGITATOR SCREW LONG
$96.75
W0060454 WASHING MACHINE HOSE ASSY INLET COLD BLUE
W0060456 WASHING MACHINE HOSE ASSY INLET HOT RED
W0073237 MOTOR & GEARBOX ASSY + O RING
W0073334 LEVER KNOCK OFF
W0073439 FRAME FILTER/BAG
W0089169 PUMP DRAIN
W0110636 CAP ROD SUSPENSION
W0114522 SEAL WATER INLET VALVE
$9.90
W0147162 FILTER HOSE INLET RUBBER
$8.45

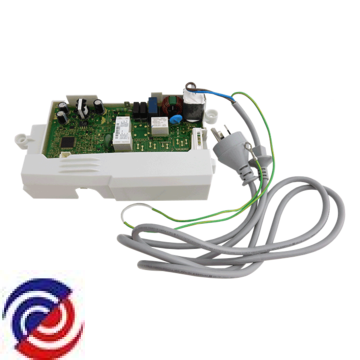

W0273584 PCBA MAIN BOARD 9043
No image available
W0012524 SCREW M6 X 10MM HEX TT W/HD SS
$4.50
No image available
W0012786 SCREEN DETERGENT DISPENSER
$8.35
No image available
W0012787 RING BALANCE ASSY
No image available
W0016340 BRACKET DAMPER
No image available
W0016342 CLAMP SPRING PUMP
$5.50
No image available
W0016394 COVER OUTER BOWL & SEAL
No image available
W0016400 DRUM SPIN ASSY TALL BOY
No image available
W0029233 INSERT VALVE HOT & COLD
$13.55
No image available
W0029390 SCREEN SOFTENER DISPENSER
$14.45
No image available
W0030124 PANEL TOP LARGE DG
No image available
W0030127 LID ASSEMBLY WITH LATCH
$199.70
No image available
W0030138 RETAINER SCREEN DISPENSER
$6.20
No image available
W0030142 PANEL CONTROL ASSEMBLY
No image available
W0030147 KNOB ASSEMBLY WHITE
No image available
W0030157 GASKET USER INTERFACE
$12.75
No image available
W0030461 DAMPER LID - LH
No image available
W0030611 HARNESS WIRING MAIN PCB DG
No image available
W0030623 SEAL CONTROL PANEL
$30.50
No image available
W0030624 CLIP HOLDER PIPE
No image available
W0035585 CLAMP SUPPORT PLATE TUB SPIN
No image available
W0035590 CLAMP TUBE AIR
No image available
W0038190 COVER PUMP
No image available
W0038196 COVER HARNESS
$11.90
No image available
W0039098 LEG LEVELLING & PAD ASSY
No image available
W0043642 TUBE AIR BOWL TO SENSOR
No image available
W0044120 NUT M5 X 0.8
No image available
W0046425 CLIP SPEED
No image available
W0046434 CLIP WIRING
No image available
W0046546 SLEEVE HARNESS
No image available
W0047519 SCREW M6 X 20MM HH SS
$4.50
No image available
W0047525 SCREW NO 10 16 X 1/2 PAN HD
No image available
W0047526 SCREW ST 10 X 1/2 HEX W/HD
No image available
W0047534 SCREW EARTH
No image available
W0049253 GASKET DRUM TO PLATE
No image available
W0050273 GREASE STAMINA RL2 75 ML
No image available
W0056360 PROTECTOR TUBE AIR
No image available
W0061305 PAD LEVELLING LEG
$9.30
No image available
W0065423 SCREW M8 X 30 MM SS SKT
No image available
W0073424 DRUM OUTER
No image available
W0141419 CLAMP HOSE (22 38 H541)
No image available
W0274360 HOOK OUTLET HOSE
No image available
W0275670 HARNESS MOTOR DG
No image available
W0282257 CLAMP HOSE
$4.50
