SWT7542 — 913041121 00

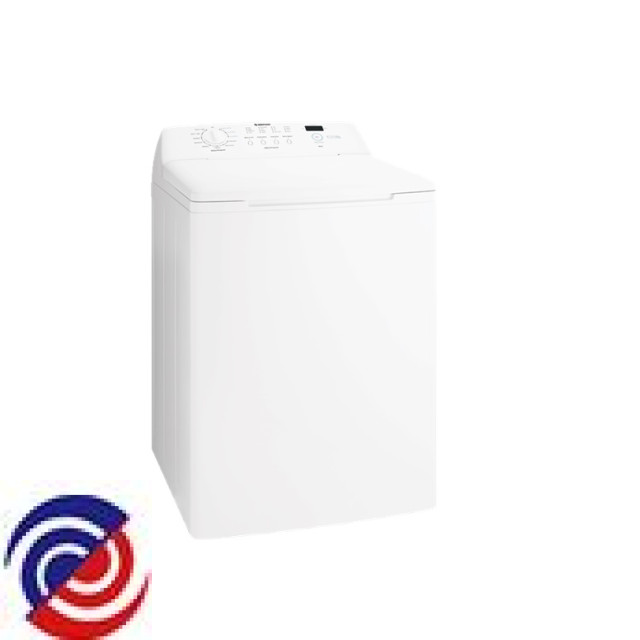

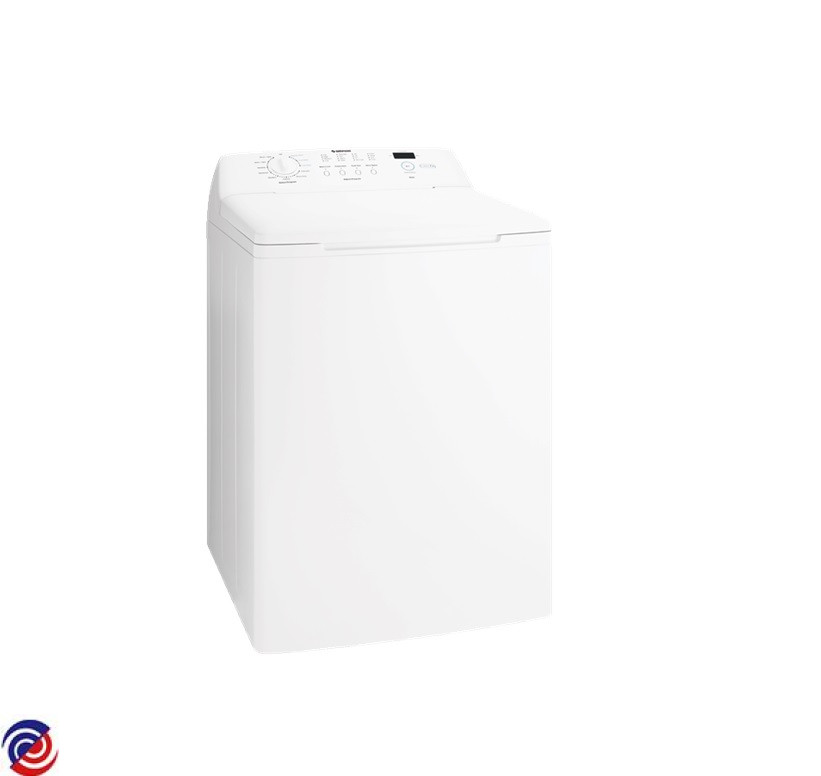

SIMPSON — Washing Machine
Parts for SWT7542
W0011149 CAP CLUTCH RATCHET

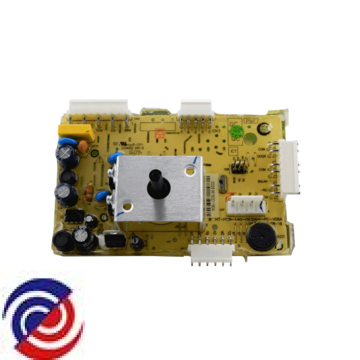

W0012440 SIMPSON TOP LOAD WASHER TIMER CONTROL PCB
W0012475 SIMPSON WESTINGHOUSE TOP LOADER WASHER SUSPENSION ROD KIT (QTY 4)
.JPG)
W0012736 SEAL MAIN (LARGE LIP)
W0012745 GREASE NULON L90 125G TUBE
$79.00
.JPG)
W0012764 MOTOR BRAKE (JST PLUG)
W0012788 SPRING BOSS CLUTCH
.JPG)
W0013605 BEARING LOWER (25MM X 52MM)
.JPG)
W0013690 HOSE TUB TO PUMP
W0016323 SWITCH LID
W0016361 AGITATOR

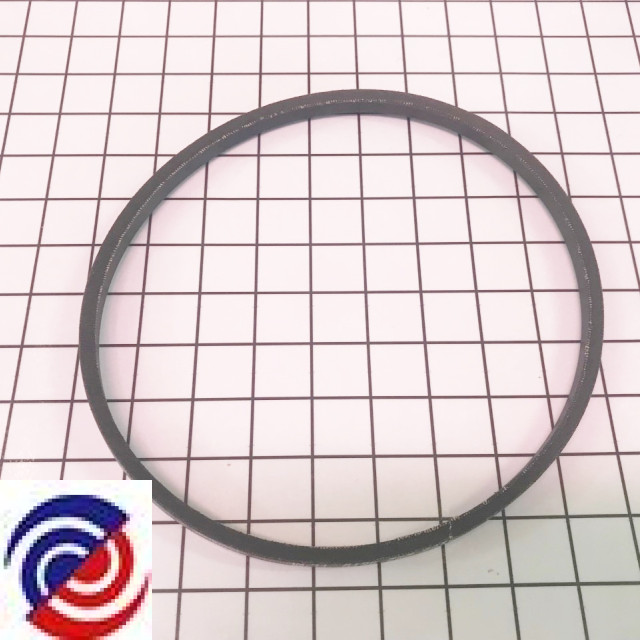

W0016374 BELT M21
.JPG)
W0016389 NOZZLE ECO RINSE

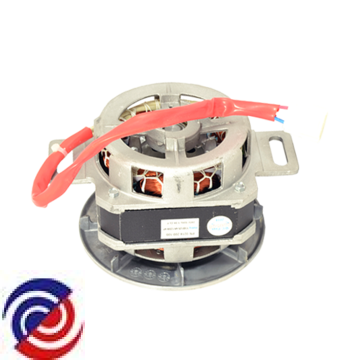

W0016403 MOTOR & PULLEY ASSY
.JPG)

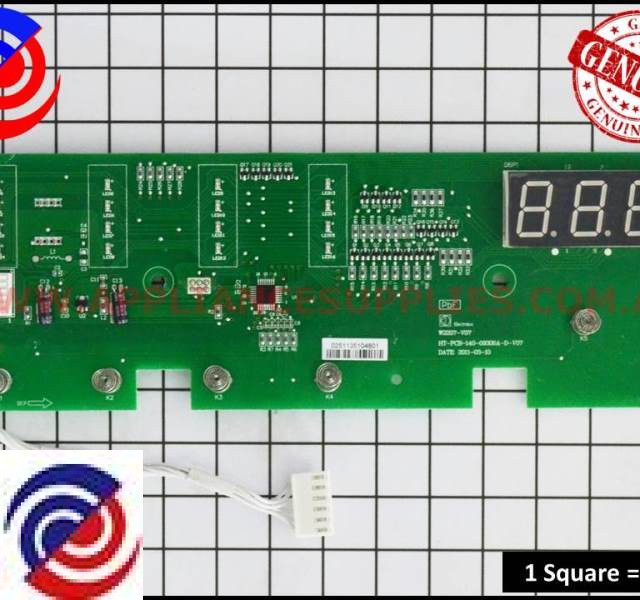

W0016412 BOARD USER INTERFACE ASSY
.JPG)
W0034280 CLUTCH KIT
.JPG)
W0037509 PLATE SUPPORT DRUM SPIN
.JPG)
W0044076 NUT - BLANK
.JPG)
W0044665 FRAME ASSY UPPER

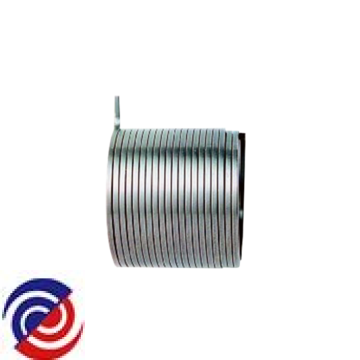

W0045828 SPRING CLUTCH
.JPG)
W0047077 VALVE ASSY INLET 90DEG 10MM ID
W0048964 HOOK OUTLET HOSE
W0048965 HOOK OUTLET HOSE

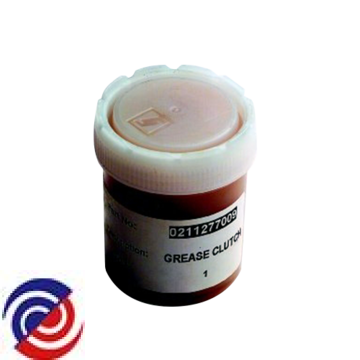

W0050279 GREASE CLUTCH SPRING
_1.JPG)
W0060102 SIMPSON TOP LOADER WASHING MACHINE BAG FILTER ASSY SP095 0564257398
W0060242 TOOL AGITATOR SCREW LONG
$96.75
W0060454 WASHING MACHINE HOSE ASSY INLET COLD BLUE
W0060456 WASHING MACHINE HOSE ASSY INLET HOT RED
W0060469 SIMPSON WESTINGHOUSE TOP LOADER WASHER DRAIN HOSE & HOOK KIT
$39.50
W0063999 PAWL CLUTCH
$15.90
.JPG)
W0073232 SENSOR WATER LEVEL
.JPG)
W0073235 VALVE INLET DOUBLE
W0073334 LEVER KNOCK OFF
.JPG)
W0073437 GEARBOX & BRAKE BAND ASSY
W0073439 FRAME FILTER/BAG
.JPG)
W0089169 PUMP DRAIN
W0110636 CAP ROD SUSPENSION
W0147162 FILTER HOSE INLET RUBBER
$8.45

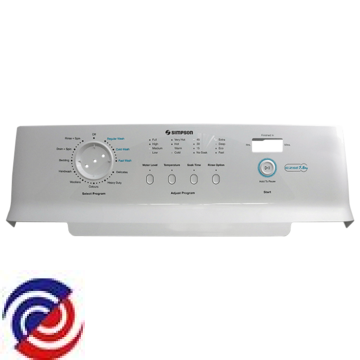

W0147378 PANEL CONTROL LED PAINTED
W0012167 WASHER
W0012226 SPRING BRAKE TRIGGER
$8.00
W0012227 SPRING BRAKE LEVER
$9.75
W0012524 SCREW M6 X 10MM HEX TT W/HD SS
$4.50
W0012685 LINK BRAKE LEVER TO SOLENOID
$4.00
W0012686 PULLEY DRIVE
$10.80
W0016320 HARNESS WIRING
$32.90
W0016338 SCREW CONTROL PANEL
$4.00
W0016352 COVER HINGE LH LGE
W0016353 COVER HINGE RH LGE
W0016355 GROMMET PANEL TOP
$19.55
W0016360 LEVER BRAKE
W0016388 HARNESS WIRING
$63.40
W0016390 KNOB CONTROL
W0016399 DRUM INNER COMPLETE
$174.00
W0027134 HOUSING CONTROL
$33.25
W0033716 TIE WIRING
W0035584 CLAMP CAPACITOR
W0035585 CLAMP SUPPORT PLATE TUB SPIN
W0035590 CLAMP TUBE AIR
W0035595 CLAMP HOSE
W0038190 COVER PUMP
W0038196 COVER HARNESS
$11.90
W0038882 BRACKET KNOCK OFF SWITCH MTG
$34.85
W0038886 BRACKET MOTOR PLUG 3 WAY
W0039098 LEG LEVELLING & PAD ASSY
W0041441 SHIELD BRAKE MOTOR
W0043642 TUBE AIR BOWL TO SENSOR
W0044081 NUT & WASHER ASSY
W0044120 NUT M5 X 0.8
W0044783 CUP DISPENSER
W0045391 WASHER FLAT
W0045397 WASHER PLASTIC BRAKE LEVER
W0046425 CLIP SPEED
W0046434 CLIP WIRING
W0046436 CLIP WIRING
W0046546 SLEEVE HARNESS
W0047495 SCREW TAPTITE G/BOX
W0047504 SCREW M8 DUO TAPTITE X 15MM
W0047516 SCREW 7_19 X 1/2 HI LO FLANGE
$4.00
W0047519 SCREW M6 X 20MM HH SS
$4.50
W0047523 SCREW 1/4 10 PLASTITE X 28MM
$4.00
W0047524 SCREW M5 X 8MM DUO TT
W0047525 SCREW NO 10 16 X 1/2 PAN HD
W0047526 SCREW ST 10 X 1/2 HEX W/HD
W0047529 SCREW M8 X 28MM DUO TT
W0047534 SCREW EARTH
W0048979 TRIGGER BRAKE
W0049253 GASKET DRUM TO PLATE
W0050051 SEAL PANEL CONTROL
W0050060 SEAL ADAPTOR
W0050273 GREASE STAMINA RL2 75 ML
W0052959 SPACER MOTOR
W0056360 PROTECTOR TUBE AIR
W0057949 BEARING UPPER 6006 DU2
W0061305 PAD LEVELLING LEG
$9.30
W0065423 SCREW M8 X 30 MM SS SKT
W0073227 HARNESS ADAPTER
$63.75
W0073230 CAPAC 14UF 450V 2 PIN RUN.
$13.85
W0073239 CORD SERVICE
W0073267 SCREW WMCU
$4.00
W0073268 SCREW M6 X 15MM
W0073320 RETAINER SCREEN DISPENSER
$7.70
W0073335 LIGHT INDICATOR
$33.05
W0073336 LENS PROGRESS INDICATOR
$4.50
W0073344 SEAL PANEL TOP LARGE
W0073345 SEAL MICRO SWITCH
W0073349 BRACKET MICRO SWITCH
$30.15
W0073357 COVER OUTER BOWL LARGE IND DR
W0073366 PANEL TOP ASSY
$79.90
W0073410 DRAWER DISPENSER-LARGE
$55.25
W0073455 DRUM OUTER
$120.15
W0073479 FRAME & BEARING ASSY LOWER
W0141419 CLAMP HOSE (22 38 H541)
W0147289 LID ASSY COMPLETE
W0276379 SEAL FOR THE WATER INLET VALVE
W0276380 BALANCE RING ASSEMBLY
$38.95
W0276387 SCREEN DETERGENT DISPENSER
$7.95
