SWT6042 — 913041120 00

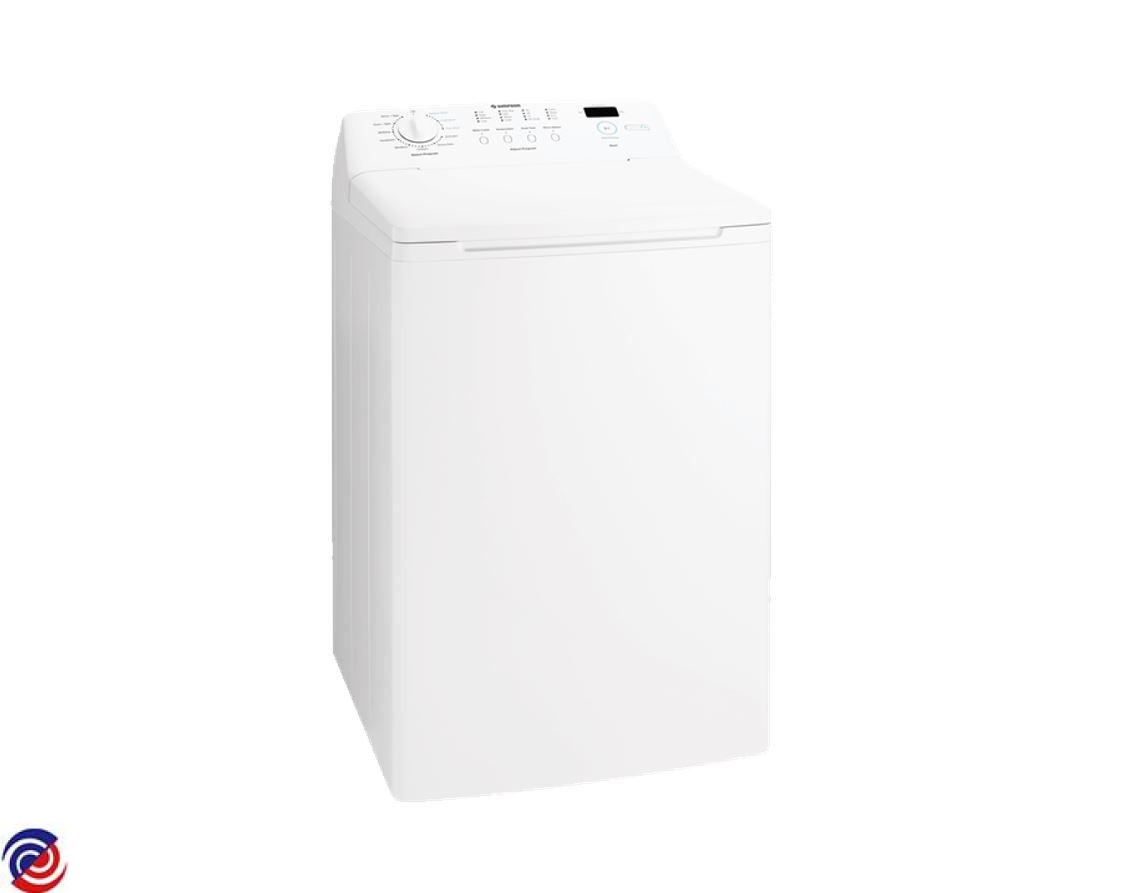

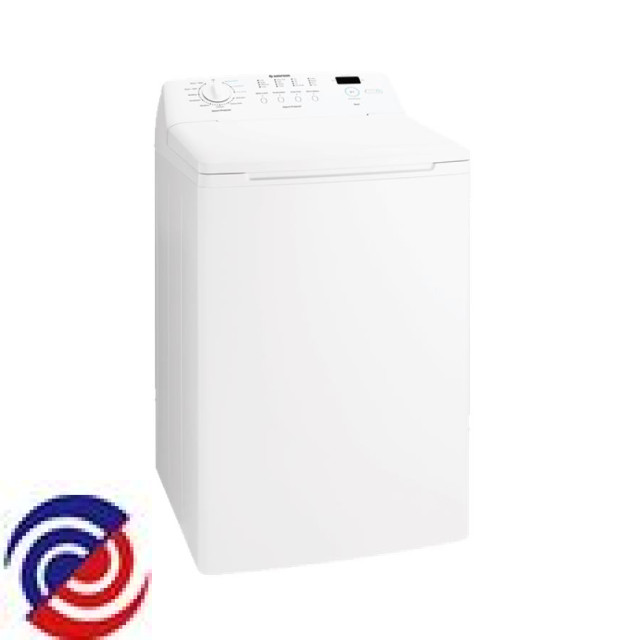

SIMPSON — Washing Machine

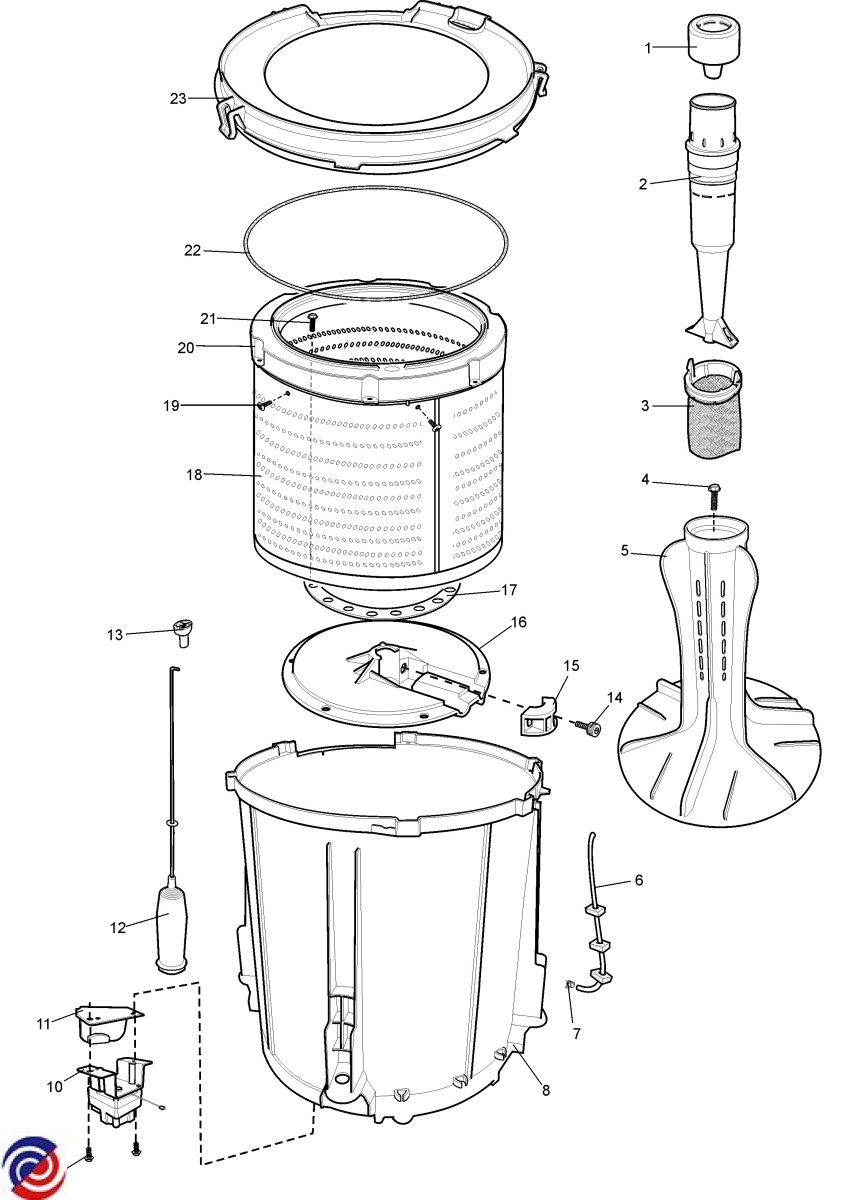

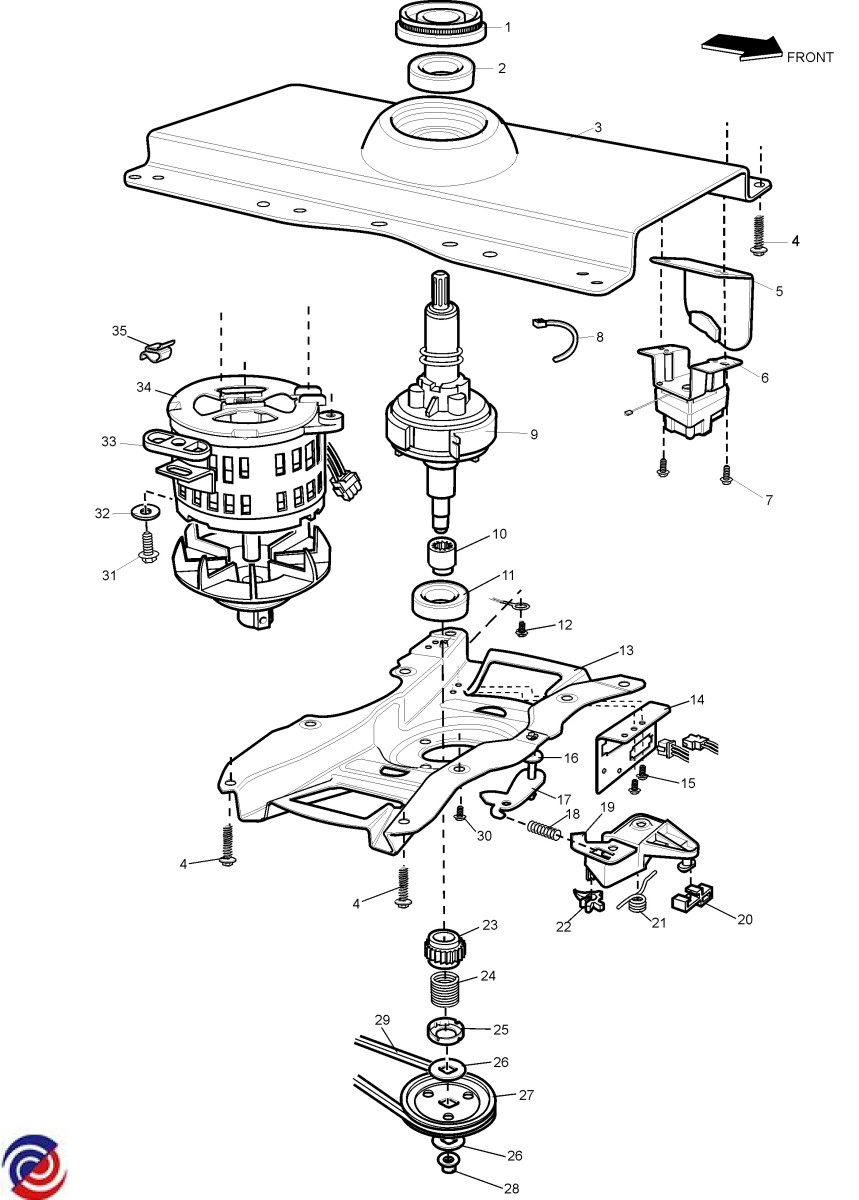

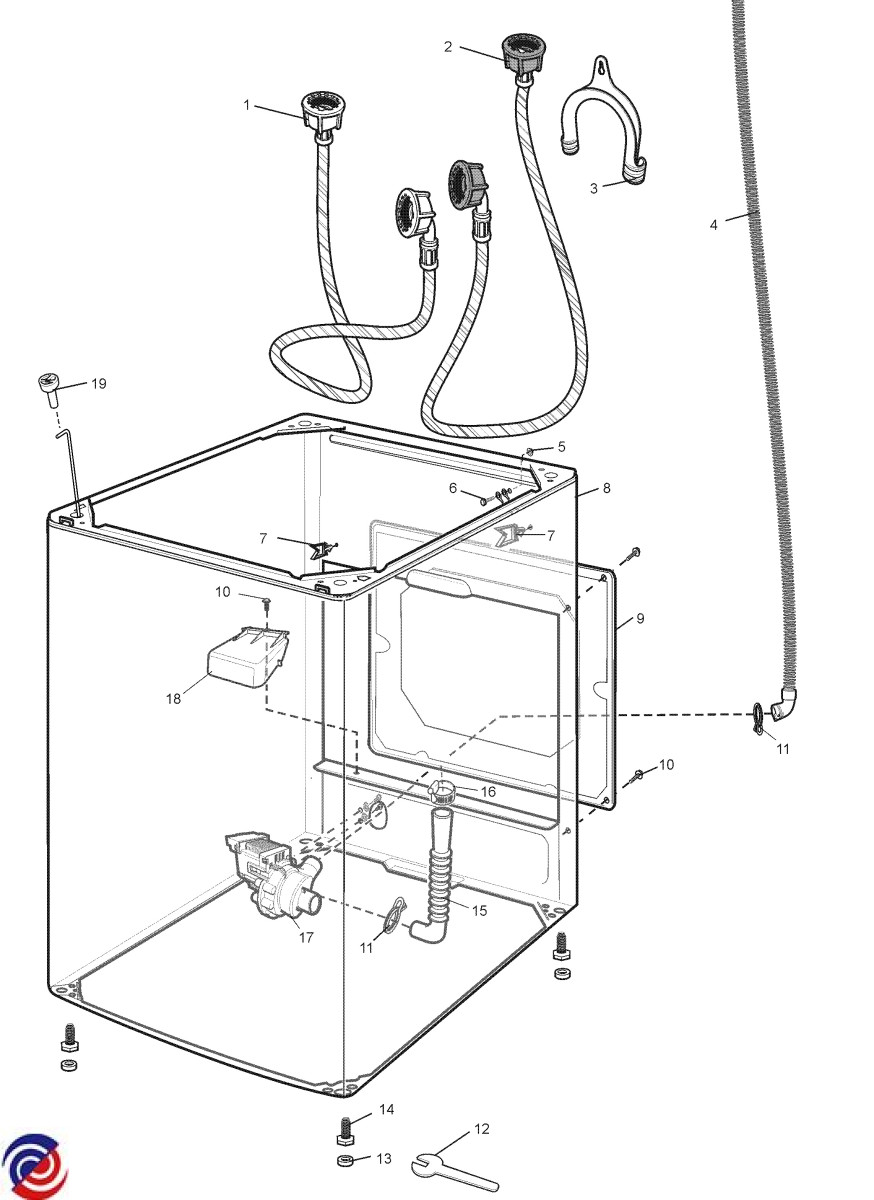

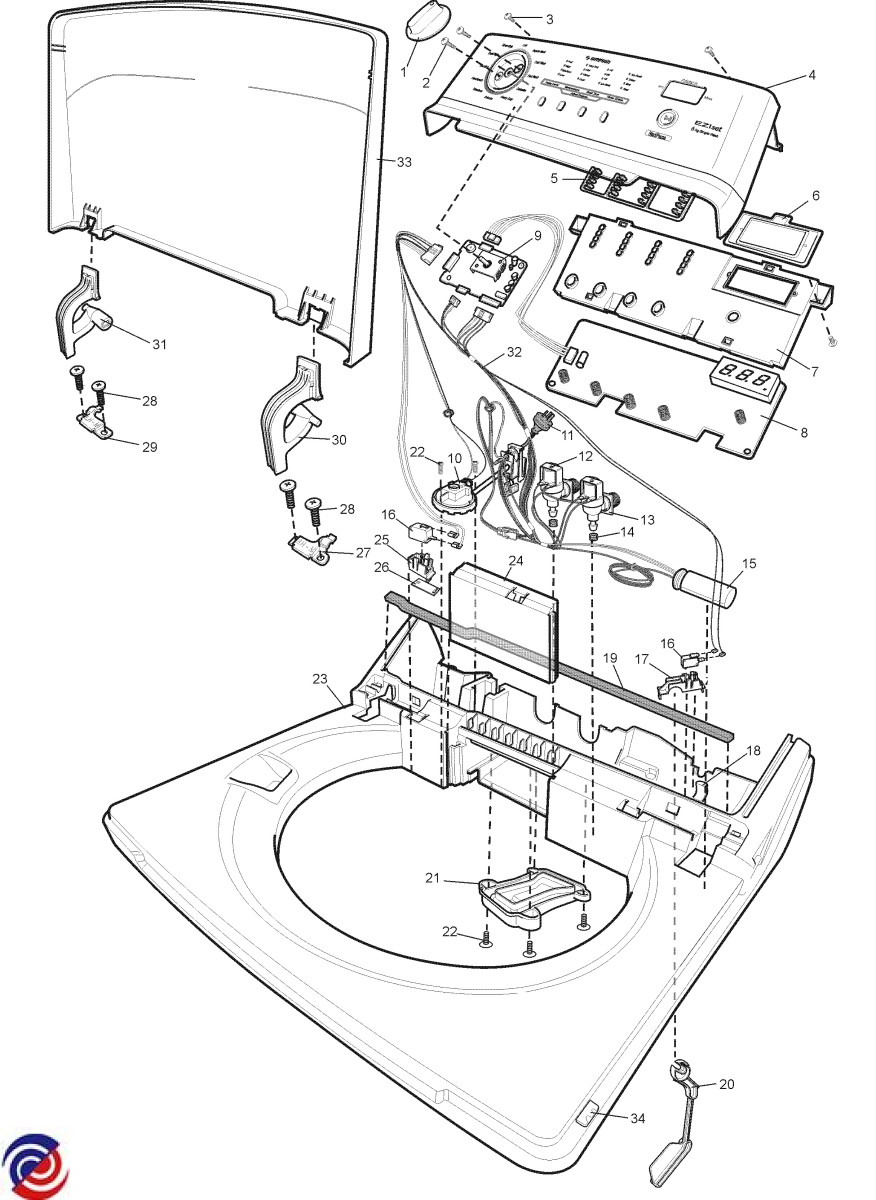

Parts for SWT6042
W0011149 CAP CLUTCH RATCHET
.JPG)
W0012470 ROD SUSPENSION KIT OF 4
.JPG)
W0012736 SEAL MAIN (LARGE LIP)
W0012745 GREASE NULON L90 125G TUBE
$79.00
.JPG)
W0012764 MOTOR BRAKE (JST PLUG)
W0012788 SPRING BOSS CLUTCH
.JPG)
W0012789 AGITATOR+ FILTER FRAME+CAP
.JPG)
W0013605 BEARING LOWER (25MM X 52MM)
W0016323 SWITCH LID
W0016374 BELT M21
.JPG)
W0016376 HOSE DRUM TO PUMP
.JPG)
W0016389 NOZZLE ECO RINSE
W0016403 MOTOR & PULLEY ASSY
.JPG)
W0016412 BOARD USER INTERFACE ASSY

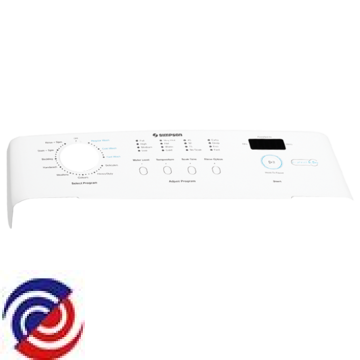

W0016430 PANEL CONTROL LED PAINTED
$50.60
.JPG)
W0034280 CLUTCH KIT
.JPG)
W0044076 NUT - BLANK
.JPG)
W0044665 FRAME ASSY UPPER
W0045828 SPRING CLUTCH
.JPG)
W0047077 VALVE ASSY INLET 90DEG 10MM ID
W0048964 HOOK OUTLET HOSE
W0048965 HOOK OUTLET HOSE
W0050279 GREASE CLUTCH SPRING
_1.JPG)
W0060102 SIMPSON TOP LOADER WASHING MACHINE BAG FILTER ASSY SP095 0564257398
W0060242 TOOL AGITATOR SCREW LONG
$96.75
W0060454 WASHING MACHINE HOSE ASSY INLET COLD BLUE
W0060456 WASHING MACHINE HOSE ASSY INLET HOT RED
W0060469 SIMPSON WESTINGHOUSE TOP LOADER WASHER DRAIN HOSE & HOOK KIT
$39.50
W0063999 PAWL CLUTCH
$15.90
.JPG)
W0073232 SENSOR WATER LEVEL
W0073334 LEVER KNOCK OFF
W0073434 GEARBOX & BRAKE BAND ASSY
.JPG)
W0089169 PUMP DRAIN
W0110636 CAP ROD SUSPENSION
W0147162 FILTER HOSE INLET RUBBER
$8.45
W0012167 WASHER
W0012226 SPRING BRAKE TRIGGER
$8.00
W0012227 SPRING BRAKE LEVER
$9.75
W0012524 SCREW M6 X 10MM HEX TT W/HD SS
$4.50
W0012685 LINK BRAKE LEVER TO SOLENOID
$4.00
W0012686 PULLEY DRIVE
$10.80
W0016328 BEARING UPPER
W0016338 SCREW CONTROL PANEL
$4.00
W0016351 HOUSING CONTROL BOARD
$28.00
W0016355 GROMMET PANEL TOP
$19.55
W0016356 HINGE LID RH
W0016357 HINGE LID LH
W0016365 COVER DISPENSER MEDIUM
$12.00
W0016390 KNOB CONTROL
W0016396 COVER OUTER BOWL MEDIUM
$26.50
W0016404 RING BALANCE ASSY
$48.25
W0033716 TIE WIRING
W0035584 CLAMP CAPACITOR
W0035585 CLAMP SUPPORT PLATE TUB SPIN
W0035590 CLAMP TUBE AIR
W0035595 CLAMP HOSE
W0037519 PLATE SUPPORT DRUM SPIN
W0038186 COVER PUMP MEDIUM
$7.20
W0038882 BRACKET KNOCK OFF SWITCH MTG
$34.85
W0038886 BRACKET MOTOR PLUG 3 WAY
W0039098 LEG LEVELLING & PAD ASSY
W0041441 SHIELD BRAKE MOTOR
W0043642 TUBE AIR BOWL TO SENSOR
W0044081 NUT & WASHER ASSY
W0044120 NUT M5 X 0.8
W0044783 CUP DISPENSER
W0045391 WASHER FLAT
W0045397 WASHER PLASTIC BRAKE LEVER
W0046425 CLIP SPEED
W0046434 CLIP WIRING
W0046436 CLIP WIRING
W0046546 SLEEVE HARNESS
W0046935 WMCU BOARD SWT604 10L VALVE
W0047495 SCREW TAPTITE G/BOX
W0047498 SCREW NO 6 X 1/2 W/HD
W0047504 SCREW M8 DUO TAPTITE X 15MM
W0047519 SCREW M6 X 20MM HH SS
$4.50
W0047523 SCREW 1/4 10 PLASTITE X 28MM
$4.00
W0047524 SCREW M5 X 8MM DUO TT
W0047526 SCREW ST 10 X 1/2 HEX W/HD
W0047529 SCREW M8 X 28MM DUO TT
W0047534 SCREW EARTH
W0047809 ADAPTOR CORD HARNESS TUBE
W0048979 TRIGGER BRAKE
W0049029 LEVER ASSY BRAKE BLACK
W0049253 GASKET DRUM TO PLATE
W0050051 SEAL PANEL CONTROL
W0050060 SEAL ADAPTOR
W0050273 GREASE STAMINA RL2 75 ML
W0052959 SPACER MOTOR
W0056360 PROTECTOR TUBE AIR
W0061305 PAD LEVELLING LEG
$9.30
W0065423 SCREW M8 X 30 MM SS SKT
W0073229 CAPAC 12UF 450V 2 PIN
$34.90
W0073239 CORD SERVICE
W0073267 SCREW WMCU
$4.00
W0073268 SCREW M6 X 15MM
W0073330 COVER HINGE LH MED
W0073331 COVER HINGE RH MED
W0073335 LIGHT INDICATOR
$33.05
W0073336 LENS PROGRESS INDICATOR
$4.50
W0073343 SEAL PANEL TOP MEDIUM
$20.85
W0073345 SEAL MICRO SWITCH
W0073349 BRACKET MICRO SWITCH
$30.15
W0073364 PANEL TOP ASSY
W0073405 WIRING HARNESS EMC (MED IND)
W0073429 OUTER BOWL & COVER MEDIUM
$151.35
W0073438 FRAME FILTER ASSEMBLY
W0073458 DRUM SPIN MED IND
$75.00
W0073461 LID SOLID ASSY-MEDIUM
W0073479 FRAME & BEARING ASSY LOWER
W0141419 CLAMP HOSE (22 38 H541)
W0276379 SEAL FOR THE WATER INLET VALVE
