SWF85561 — 914900289 00

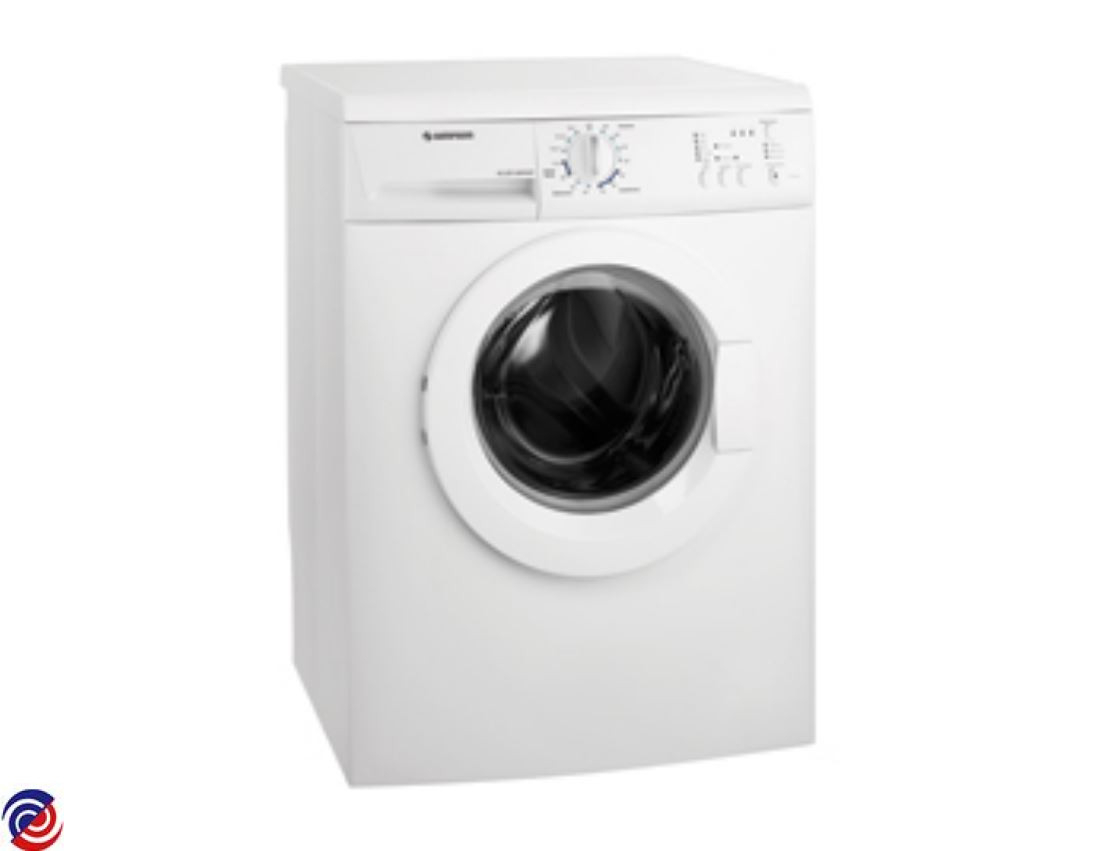

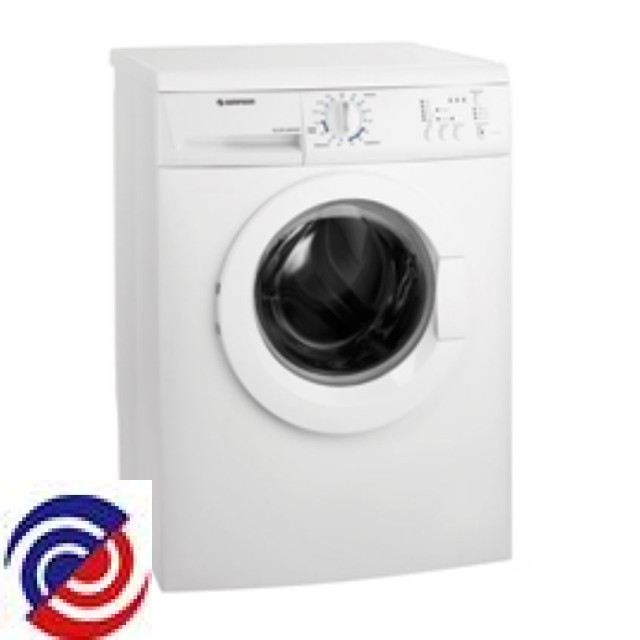

SIMPSON — Washing Machine
Parts for SWF85561
W0016550 SPRING CATCH
W0016866 PROTECTION DOOR INTERLOCK
.JPG)
W0016870 ELECTROLUX SIMPSON FRONT LOAD WASHER DOOR CATCH
W0016935 HINGE DOOR
$14.25
.JPG)
W0017012 HANDLE DOOR
.JPG)
W0017096 ELECTROLUX WASHING MACHINE BOARD USER INTERFACE 132731731
W0017224 LOW FREQENCY ANALOG PRESSUR
W0032876 BEARING (20 X 47 X14)
.JPG)
W0046934 SIMPSON FRONT LOADER WASHING MACHINE MAIN PCB 0133200116
W0074278 ELECTROLUX SIMPSON FRONT LOADER WASHER DOOR LEVER LOCK
.JPG)
W0074360 LOCK DOOR INTERLOCK
W0074384 ELECTROLUX WASHING MACHINE DRAIN HOSE 2370mm LONG
W0075907 SHOCK ABSORBER 60N
$30.00
W0075933 MOTOR UNIVERSAL
$250.00
.JPG)
W0076168 BELT 6/850R
.JPG)
W0089169 PUMP DRAIN
W0016545 BOLT SHOCK ABSORBER
W0016549 PIN CATCHER
W0016593 CLAMP
$4.50
W0016600 COVER SYPHON ADDITIVES
$18.30
W0016604 HOSE INLET DETERGENT
W0016630 COUPLING 2 WAY 3 SCOMP
$4.50
W0016639 PULLEY
$27.50
W0016881 SCREW SHELL TUB 6 5X50
$4.50
W0017003 DIFFUSER. LUMINOUS DIODE
$9.90
W0017011 FRAME DOOR OUTER
W0017082 TOP COUNTER WEIGHT SCREW
$10.20
W0017100 DRUM LIFTER
$6.60
W0017102 COVER LIFTER
$11.00
W0017103 LIFTER SPRING
$6.60
W0017106 CHAMBER AIR COVER
$11.00
W0017109 HEATING ELEMENT SUPPORT SPRING
$4.50
W0017110 ELEMENT HEATING
$75.00
W0017111 HOOK SPRING LIFTER
$4.00
W0018720 SEAL DRUM OUTER REAR
W0018725 SUPPORT HARNESS
$14.30
W0018726 HOLDER POWER CORD LH
$6.60
W0018727 HOLDER POWER CORD RH
$6.60
W0018730 SUPPORT TOP CROSSBAR BRACE
$14.90
W0018736 HOSE & CLAMP ASSY FOR SOLENOID
$16.50
W0018740 HOSE & CLAMP ASSY FOR SOLENOID
W0018767 SUPPORT PUSH BUTTON
$6.60
W0018774 KNOB CONTROL PROGRAM SELECTOR
$24.20
W0018788 COUNTERWEIGHT FRONT
$44.00
W0018789 TUBE ASSY
$11.00
W0026166 SCREW 3 5X19 TC/RD C15
W0026220 CLAMP HOSE
$4.50
W0071337 PIN DOOR HINGE
$6.00
W0071352 RING CONNECTION BELLOW TO DRUM
$12.60
W0074261 CLAMP HOSE
$4.50
W0074296 SEAL
W0074338 SCREW FOR PULLEY M8x24x1.25
$4.50
W0074343 SCREW MOTOR 5.5 X 38 EWF1092
W0074370 SPRING SAFETY DOOR
W0074472 INLET PIPE ASSY EWF1495
W0074481 LEG ASSY 30MM
W0074489 SCREW COUNTERWEIGHT
W0074529 HOUSING DETERGENT DISPENSER
$42.00
W0075542 BUSH HINGE
W0075613 PUSH BUTTON. SAFETY. PORTHOLE
W0075636 CLIP BELLOWS GASKET CIRCLIP
$4.50
W0075676 SUPPORT HOSES REAR PANEL
W0075777 LEG ASSY
W0075899 SPRING SUSPENSION DRUM
W0075982 VALVE SOLENOID 2-WAY
W0075986 BUTTON PUSH START
W0075987 BUTTON PUSH FUNCTION
W0075988 DELAY PUSH BUTTON
W0076003 PLATE HINGE
$9.00
W0076064 FRAME DOOR INNER
W0076098 CONTROL PANEL SUPPORT
W0076141 SEAL SPIDER
W0076163 DOOR GLASS
$110.00
W0076184 FILTER DISCHARGE
W0076185 FILTER FLANGE
W0076191 DRUM CROSS SPIDER
W0076193 LIFTER BODY
W0076194 SCREW LIFTER
$4.00
W0076195 DRUM FRONT OUTER
$79.20
W0076199 REAR TUB SHELL INC HUB & PIN
W0089160 DOOR GASKET TUB
W0089168 PROTECTION CONNECTOR
W0089170 WORKTOP
$80.00
W0089206 POWER CORD WITH PLUG
W0089245 DRAWER DETERGENT
W0089280 HANDLE PRINTED
W0089288 COUNTERWEIGHT TOP
W0089289 CABINET FRONT
W0089290 CABINET REAR
W0089291 DISPENSER ASSY
W0089293 HARNESS WIRING
$17.60
W0089297 PANEL CONTROL ASSY
W0089299 HARNESS WIRING
$93.00
W0089301 DRUM INNER INC SUPPORT SPIDER
$172.00
W0126357 BEARING 45S557E
W0130186 SCREW 5*16 TE/SP
