DW906
OMEGA — Dishwasher
Parts for DW906

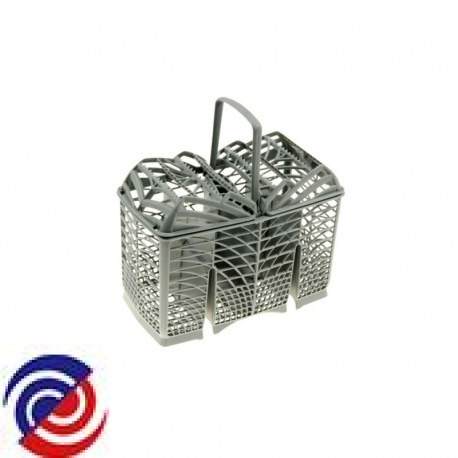

W0358951 CUTLERY BASKET
$70.20
W0251257 SWITCH WD1052SWITCH SHORT SHAFT SIX PIN 522004602 PUSHBUTTON PAN
$27.10
W0253604 CONTROL PANEL
$83.20
W0255860 UPPER REVOLVING WHEEL JET
$27.50
W0255861 DRUM GUIDE WHEELS SUPPORT
$70.40
W0255868 LID DW906 721017900
$248.60
W0255892 SLIDE SET DOOR-BLOCK
$8.40
W0255894 NO-REVERSE VALVE
$16.70
W0256018 UPPER DRUM UNIT
$215.00
W0259723 OMEGA DISHWASHER DETERGENT DISPENSER
W0259726 INLET TERMINAL BOARD
$17.80
W0259751 PILOT LAMP
$9.30
W0259810 ELECTROVALVE
$49.10
W0259824 CONDENSER
$68.60
W0259945 TUB THERMOSTAT
W0259948 THERMOSTAT
$22.50
W0259979 HEATING ELEMENT
W0260009 ON OFF SWITCH DW908 OMEGA
$14.30
W0260012 PUSHBUTTON PANEL
$34.30
W0260013 PUSHBUTTON PANEL
$34.30
W0260014 SWITCH SHORT SHAFT SIX PIN
$19.60
W0260015 6 PIN SWITCH SHORT SHAFT
$34.70
W0260019 SWITCH 2 PIN(SHORT)
$29.40
W0260020 PUSHBUTTON PANEL
$34.30
W0260021 PUSHBUTTON PANEL
W0260022 SWITCH SINGLE BANK (SHORT)
$47.20
W0260067 PRESSURE SWITCH
$57.60
W0260104 ELECTRIC PUMP
W0260150 TIMER
W0260256 MOTOR
W0260266 WASH MTR DW906&8
$630.00
W0260321 POWER CORD
$29.90
W0260323 POWER CORD
W0260474 UPPER DRUM WHEEL
$4.50
W0260475 LOWER BASKET WHEEL
$14.30
W0260476 LOWER REVOLVING WHEEL
$72.50
W0260477 PART NUMBER IS NO LONGER AVAILABLE & CANNOT BE ORDERED.
UPPER REVOLVING SPRAY ARM
$27.50
W0260488 LOWER REVOLVING WHEEL
$40.30
W0260489 UPPER DRUM WHEEL
$4.50
W0260490 LOWER DRUM WHEEL
W0260749 CONTROL PANEL FASCIA
$127.40
W0260773 RESIN CONTROL VALVE
$19.70
W0260813 LEVELLING FOOT
$18.30
W0260834 RM RETURN SPRING
$9.00
W0260835 LM RETURN SPRING
$9.00
W0260843 TIMER KNOB SPRING
$7.90
W0260857 GUIDE STOP PIN
W0260911 NO-REVERSE VALVE RING
$4.50
W0260959 PRESSURE SWITCH CLAMP
$4.90
W0260986 PRESSURE REDUCER
$4.50
W0260997 NUT- M5 (DOOR CATCH)
$4.50
W0261000 FOOT ADJUSTMENT NUT
W0261018 PRESSURE REGUTATOR
$4.50
W0261024 REFER TO C340 A-B DW906
$4.50
W0261025 FIXING-SCREW FOR FIXED GRID
$4.50
W0261027 SCREW
$4.50
W0261037 PRESSURE CUT-OFF SWITCH SCREW
$4.50
W0261064 FIXING SCREW FOR REVERSE DOOR HINGE
W0261068 TIMER FIXING SCREW
$4.50
W0261069 LOCK RING SCREW
$4.50
W0261329 HOSE AIRBRAKE TO ELECTROVALVE
$8.80
W0261337 PRESSURE SWITCH PIPE
$4.50
W0261417 WATER SUPPLY HOSE + AQUA
W0261422 GASKET - DOOR
W0261423 DOOR GASKET
W0261522 SML GASKET FOR TUB THERMOSTAT
$11.00
W0261525 FOAM RUBBER DOOR GASKET
$29.40
W0261526 AIR-BREAK SUPPORT RING
$8.80
W0261530 UPPER REVOLVING WHEEL CONVEYER
$4.60
W0261532 CONDITIONER GASKET
$7.90
W0261535 CONDITIONER COUPLING
$6.00
W0261537 INLET HOSE GASKET
$7.90
W0261538 GASKET FOR TUB THERMOSTAT
$11.00
W0261542 GASKET - WATER DELIVERY JET
$7.60
W0261546 INLET HOSE FILTER
$4.50
W0261550 UPPER REVOLVING WHEEL CONVEYER
$16.20
W0261667 FIXED GRID CAP
$7.90
W0261671 CABINET FILTER GRID (METAL)
$117.60
W0261678 AIR-BREAK LOCKING RING
$13.90
W0261683 SLIDE CLOSURE
$7.90
W0261684 DOOR CLOSING CATCH
$8.80
W0261692 REINFORCEMENT FOR LOWER PART OF DOOR
$16.70
W0261693 INTERNAL FITERING CUP
$4.60
W0261694 SALT DOSING DEVICE FUNNEL
$8.80
W0261695 UPPER REVOLVING WHEEL LOCKING RING
$14.80
W0261696 CONDITIONER
$39.20
W0261697 FILTERING CUP
$26.60
W0261698 AIR-BREAK 398047600
$41.40
W0261705 UPPER REVOLVING WHEEL LOCKING RING
W0261712 SLIDE CLOSURE
$9.90
W0261713 DRAIN HOSE SUPPORT
$4.60
W0261726 Y-CONNECTION PIECE
$4.90
W0262487 UPPER SPRAYER HOSE
$32.40
W0262539 SUPPORT FOR LOWER REVOLVING WHEEL
$8.80
W0262541 UPPER DRUM SUPPLEMENT
$31.30
W0262542 LOWER DRUM SOPPLEMENT
$58.80
W0263029 KNOB INDEX
$4.50
W0263054 PUSH BUTTON
$4.50
W0263097 KNOB COVER
$4.50
W0263167 FILTER HANDLE
$7.90
W0264287 BASEBOARD
$30.40
W0264350 PANEL LEFT SIDE
$38.40
W0264354 PANEL - LEFT SIDE
W0264355 PANEL - RIGHT SIDE
$44.20
W0264441 UPPER BASKET LEFT-RIGHT RUNNER
$23.60
W0264444 INNER DOOR
$214.40
W0264445 WATER COLLECTION TRAY
$44.20
W0264446 UPPER DRUM SUPPLEMENTRY SUPPORT
$7.90
W0264464 LOWER UPPER REVOLVING WHEEL LOCKING NUT
$9.00
W0264470 HEATING ELEMENT JUMPER
$4.50
W0264502 SIDE CONNECTOR
$13.20
W0264503 SIDE-CONNECTOR FRONT CROSSPIECE
$14.80
W0264508 PRESSURE SWITCH ROD SUPPORT
$4.90
W0264538 FIXED FILTER GRID (METAL)
$49.10
W0264539 LOWER BASKET DW906
$123.60
W0264540 UPPER BASKET DW906
$223.10
W0264548 HINGE - LEFT
$41.90
W0264549 HINGE - RIGHT
$41.90
W0265144 TUB LOWER SOUNDPROOFING
$20.60
