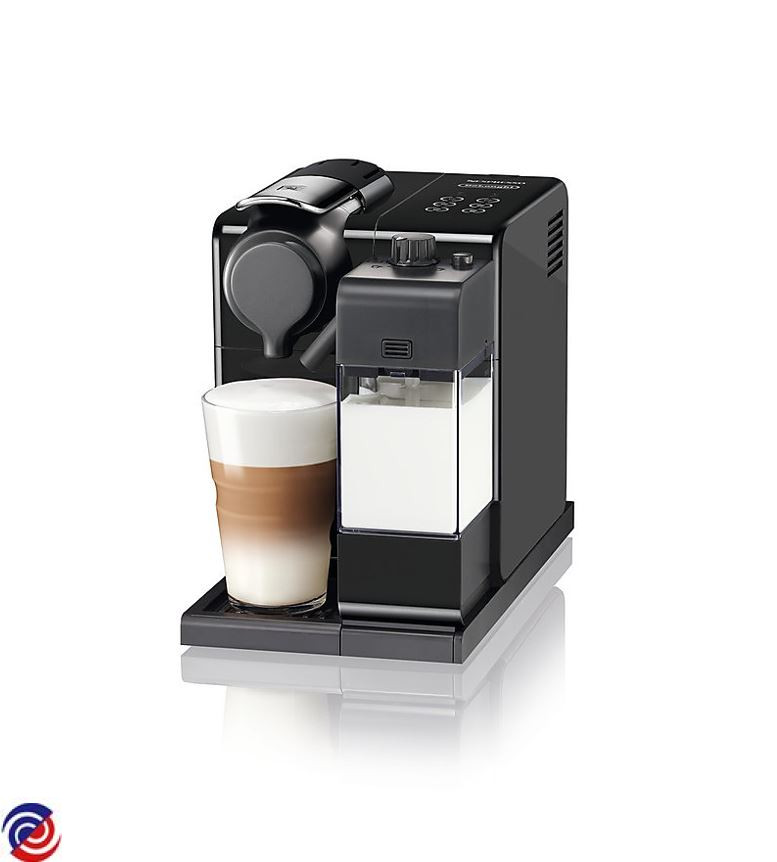

EN560.B — 5513280351
NESPRESSO — Coffee Machine
Parts for EN560.B
W0276995 O-RING (D=3.85 T=2)
$12.00
W0276996 SPRING
$12.00
W0277012 CONNECTOR
$12.58
W0277113 TUBE WITH 2 BUSHES (L120)
$11.90
W0277116 TUBE WITH 2 BUSHES (L205)
$12.30
W0277124 FIXING BRACKET (NTC)
$11.70
W0277125 STEAM CONNECTION
$12.00
W0277228 GENERATOR (5X05 230V1300W PLAS.CONNEC.)
W0277230 FIXING BRACKET (NTC)
W0277233 FIXING BRACKET (TCO)
W0277240 PORTABLE DIGITAL THERMOMETER, -50 +150°C
$88.90
W0277744 SILICONE O-RING (5.94X3.53)
$11.90
W0278213 BELLOW BOTTLE (702 CPL)
$52.00
W0295478 MILK INTAKE TUBE
$27.00
W0312188 WIRED MICROSWITCH
$14.10
W0313050 TCO (15A 318°)
$16.00
W0313141 DELONGHI SOLENOID VALVE (3VA 230V)
$30.50
.jpg)
W0325585 DELONGHI NESPRESSO DESCALING SPOUT
$20.00
.jpg)
W0325879 DELONGHI INFUSOR PISTON
$56.00
.jpg)

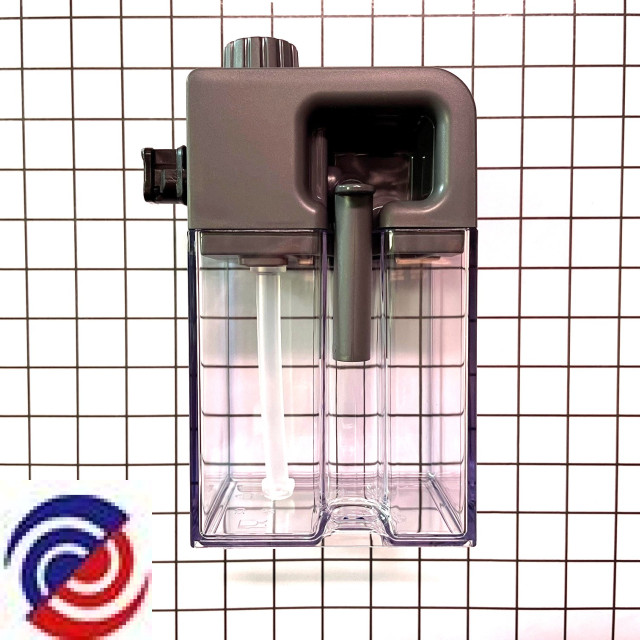

W0325974 DELONGHI NEPRESSO MILK FROTH JUG
$40.00
W0325981 COVER ASSEMBLY
$30.47
W0345214 PUMP
$39.95
W0307726 TUBE (L80)
$11.90
W0311494 POWER SUPPLY CORD WITH PLUG (AU)
$18.10
W0311593 WIRING WITH (THS) AND 4-WAY CONNECTOR
$15.80
W0311595 TCO WITH WIRING
$14.60
W0311619 WIRING FOR FLOWMETER (L190)
$13.30
W0311629 TCO WITH WIRING
$15.00
W0313027 HALL SENSOR
$17.80
W0313128 TRIPLE NTC PROBE
$24.80
W0313132 SOLENOID VALVE (3VB 230V)
$26.70
W0313260 POWER BOARD (SW2.0 230V)
W0313303 FLOWMETER
$17.00
W0314918 RIGHT ANGLE CONNECTOR
$11.80
W0315065 SHAPE FOR TUBE
W0315206 TUBE
$12.40
W0315222 BOTTOM PANEL COVER
$12.10
W0315228 TMBU OUTLET
$11.90
W0315229 DOOR PIN (IFD)
$11.70
W0315230 PIN SUPPORT (IFD)
$11.90
W0315234 GENERATOR REAR CASING
$14.10
W0315236 SOLENOID VALVE SUPPORT
$13.20
W0315237 PUMP SUPPORT
$14.30
W0315238 DOUBLE TUBE SHAPE
$11.70
W0315239 WATER TANK CONNECTOR
$13.20
W0315299 VAPORIZER CONNECTOR CLIP
$12.90
W0315322 RUBBER FOOT PAD
$11.70
W0315395 WATER TANK FILTER
$11.70
W0315416 MACHINE CONNECTOR
$11.90
W0315454 VALVE
W0315508 REAR FRAME
$15.30
W0315512 PUSH BUTTON
$12.80
W0315513 SUPPORT
$12.80
W0315625 RING
$12.90
W0315630 GENERATOR FRONT CASING
$14.00
W0315783 CUP HOLDER FRONT PIECE
$14.10
W0315785 CAPSULE CONTAINER COVER
$13.90
W0315787 FRONT RIGHT PANEL
$13.80
W0315790 TMBU REAR COVER
$15.00
W0315792 ON/OFF KEY
$12.90
W0315794 SLIDING DOOR (IFD)
$12.90
W0315796 CUP HOLDER TRAY
$15.00
W0315799 CAPSULE CONTAINER
$15.00
W0315802 HANDLE RUBBER PAD
$12.90
W0317805 O-RING (D=6)
$12.00
W0317829 SILICONE HOSE (DI=7 L=70)
$11.70
W0317945 O-RING
$12.10
W0319631 TUBE WITH 2 BUSHES (L180)
$12.20
W0319668 TUBE WITH 2 BUSHES (L85)
$12.10
W0319669 TUBE WITH 2 BUSHES (L230)
$12.70
W0319691 TUBE WITH 2 BUSHES (L95)
$12.20
W0319989 LEFT PANEL
$18.20
W0319990 RIGHT PANEL
$16.70
W0319991 REAR PANEL
$17.30
W0319992 COFFEE DISPENSER WITH RUBBER PAD
$14.80
W0319995 DISPENSER DOOR
$14.80
W0323086 CUP HOLDER
$13.60
W0323087 CUP HOLDER
$13.60
W0323284 SPRING
$11.70
W0323285 SPRING
$11.70
W0323286 SPRING
$11.70
W0323290 SPRING
$13.00
W0325454 EXPANSION CHAMBER
$13.30
W0325479 SAFETY VALVE
$14.30
W0325666 CARAFE COUPLING
$15.20
W0325763 WATER TANK
$21.50
W0325892 VAPORIZER (1070W 230V)
W0326003 BOTTOM
$33.70
W0326006 CONTROL PANEL ASSEMBLY WITH PCB
$49.60
