EN500.B — 5513282531

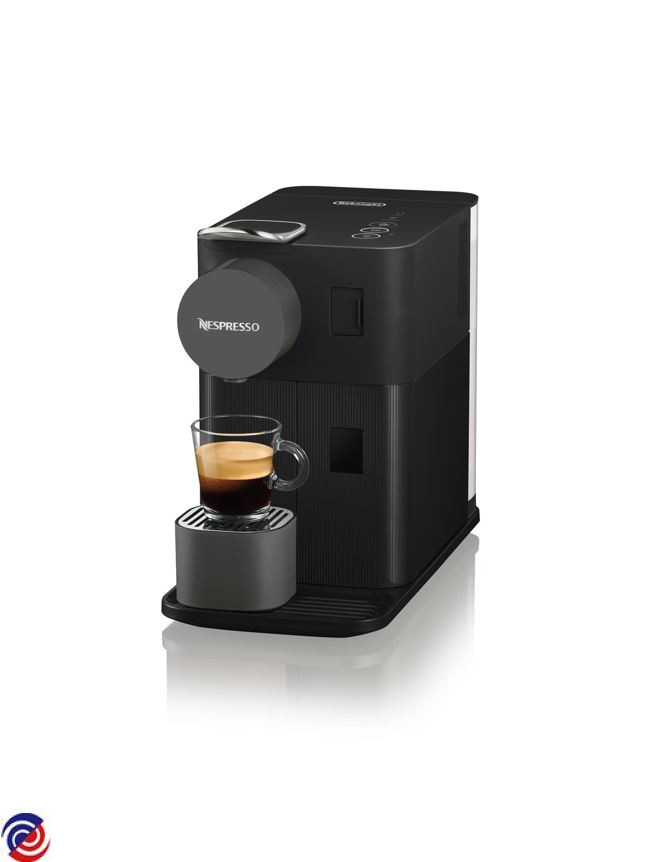

NESPRESSO — Coffee Machine
Parts for EN500.B
W0276995 O-RING (D=3.85 T=2)
$12.00
W0276996 SPRING
$12.00
W0277008 SPACER
$12.20
W0277010 CLIP (WIRE 1,2 AISI302)
W0277012 CONNECTOR
$12.60
W0277109 TUBE WITH 2 BUSHES (L200)
$13.70
W0277111 FLOWMETER
W0277124 FIXING BRACKET (NTC)
$11.70
W0277125 STEAM CONNECTION
$12.00
W0277132 GENERATOR GASKET
$11.70
W0277228 GENERATOR (5X05 230V1300W PLAS.CONNEC.)
W0277230 FIXING BRACKET (NTC)
W0277233 FIXING BRACKET (TCO)
W0277744 SILICONE O-RING (5.94X3.53)
$11.90
W0278213 BELLOW BOTTLE (702 CPL)
$52.00
W0313050 TCO (15A 318°)
$16.00
W0313141 DELONGHI SOLENOID VALVE (3VA 230V)
$30.50
W0315416 MACHINE CONNECTOR
$24.90
.jpg)
W0315667 DELONGHI NESPRESSO MILK INTAKE TUBE
$16.00
W0320016 CUP HOLDER
$17.80
W0325909 TMBU ASSEMBLY
$50.00

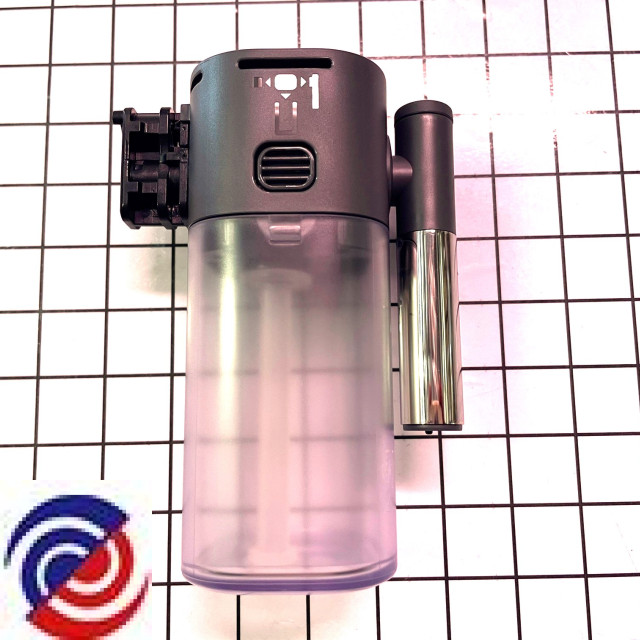

W0325993 DLS CARAFE ASSEMBLY
$35.00
W0345214 PUMP
$39.95
W0311556 POWER SUPPLY CORD WITH PLUG (AU)
$20.20
W0311593 WIRING WITH (THS) AND 4-WAY CONNECTOR
$15.80
W0311595 TCO WITH WIRING
$14.60
W0311619 WIRING FOR FLOWMETER (L190)
$13.30
W0311629 TCO WITH WIRING
$15.00
W0313132 SOLENOID VALVE (3VB 230V)
$26.70
W0313201 DOUBLE NTC PROBE
$20.30
W0313258 POWER BOARD (SW1.2 230V)
$39.10
W0315065 SHAPE FOR TUBE
W0315206 TUBE
$12.40
W0315295 SHEATH (L150)
$12.90
W0315299 VAPORIZER CONNECTOR CLIP
$12.90
W0315322 RUBBER FOOT PAD
$11.70
W0315395 WATER TANK FILTER
$11.70
W0315454 VALVE
W0315455 WATER TANK CONNECTOR
$13.80
W0315625 RING
$12.90
W0315648 SHEATH
$12.90
W0315662 CAPSULE CONTAINER
$14.00
W0315663 DRIP TRAY
$13.80
W0315664 FRAME COVER
$15.70
W0315665 RIGHT ANGLE PUMP CONNECTION
$12.90
W0315666 BOILER OUTLET CONNECTION
$12.90
W0315668 GENERATOR FRONT CASING
$14.20
W0315669 GENERATOR REAR CASING
$14.80
W0315673 STEAM DISCHARGE HOSE
$13.40
W0315675 SOLENOID VALVE SUPPORT
$12.90
W0315676 SENSOR LENS
$12.90
W0315685 PUMP SUPPORT
$15.20
W0315772 TMBU OUTLET
$13.00
W0315837 TANK COVER
$13.30
W0315838 INSERT
$12.90
W0315846 FRONT PIECE
$13.80
W0315939 COVER
$12.80
W0317945 O-RING
$12.10
W0319285 DOUBLE-SIDED TAPE (12X30 MM)
W0319691 TUBE WITH 2 BUSHES (L95)
$12.20
W0319861 TUBE WITH 2 BUSHES (L100)
$13.10
W0319931 VAPORIZER (R1070W 230V)
$61.60
W0319941 TUBE FEP DI2.5-DE4 L=185 2BUSH
$13.80
W0319954 LED BOARD
$17.70
W0319971 MILK CARAFE
$15.60
W0320014 PANEL
$15.90
W0320015 BOTTOM
$16.00
W0320020 SPOUT
$14.30
W0320024 PANEL
$14.60
W0320077 PANEL
$16.40
W0321563 COVER
$15.20
W0321565 FUNNEL
$14.70
W0323285 SPRING
$11.70
W0323286 SPRING
$11.70
W0323290 SPRING
$13.00
W0325908 WATER TANK
$17.30
W0325910 STEAM COUPLING
W0325911 SAFETY VALVE
$15.90
W0325998 CONTROL PANEL ASSEMBLY WITH PCB
$42.10
W0326000 BOTTOM
$26.50
