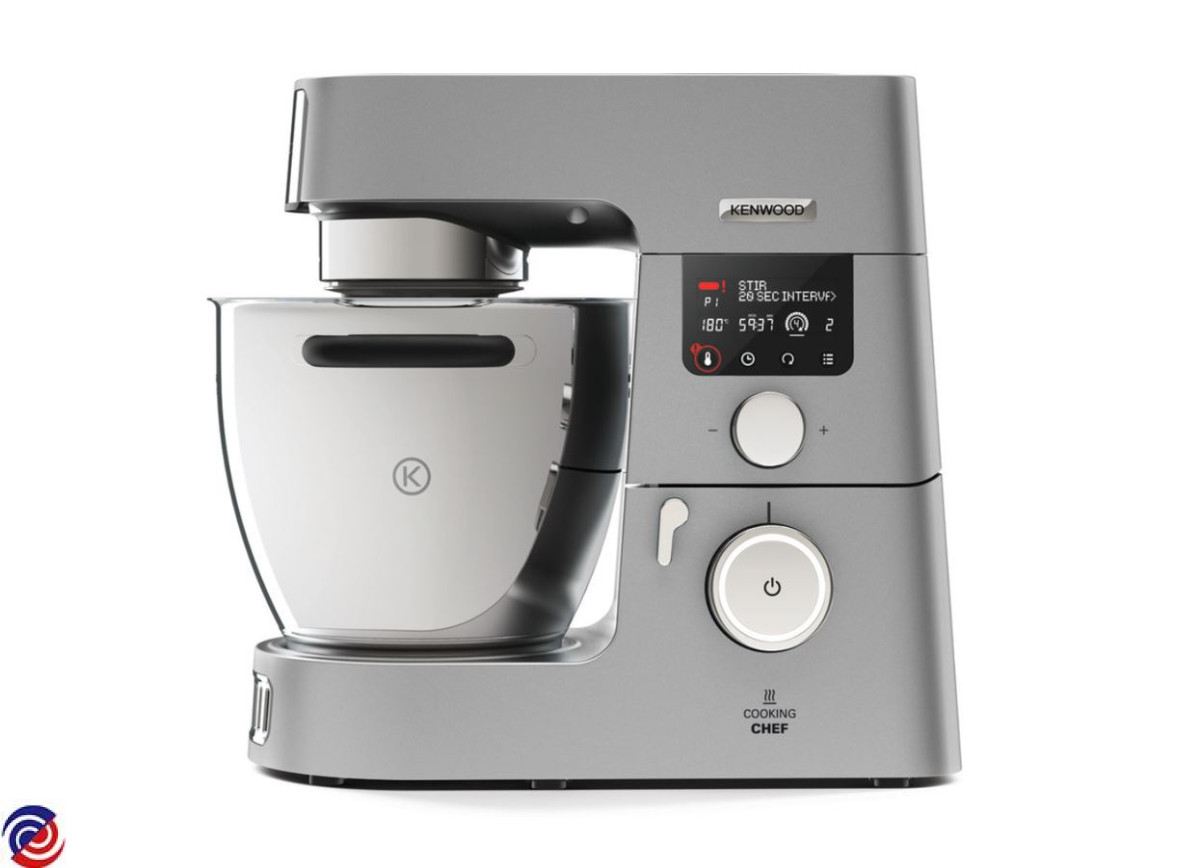

KCC9040S — 0W20011215
KENWOOD — Small Appliance

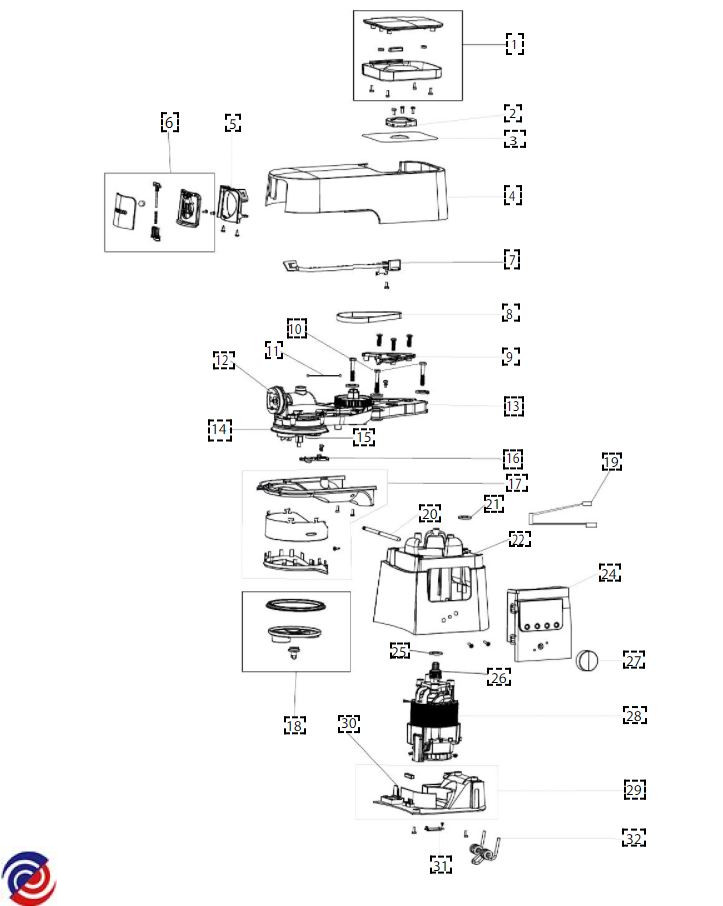

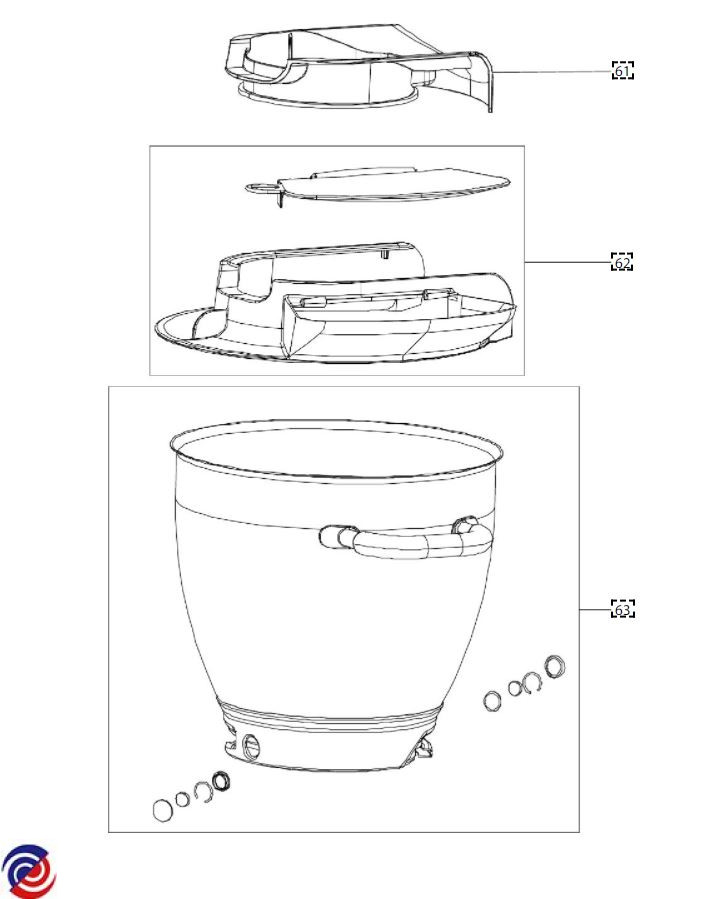

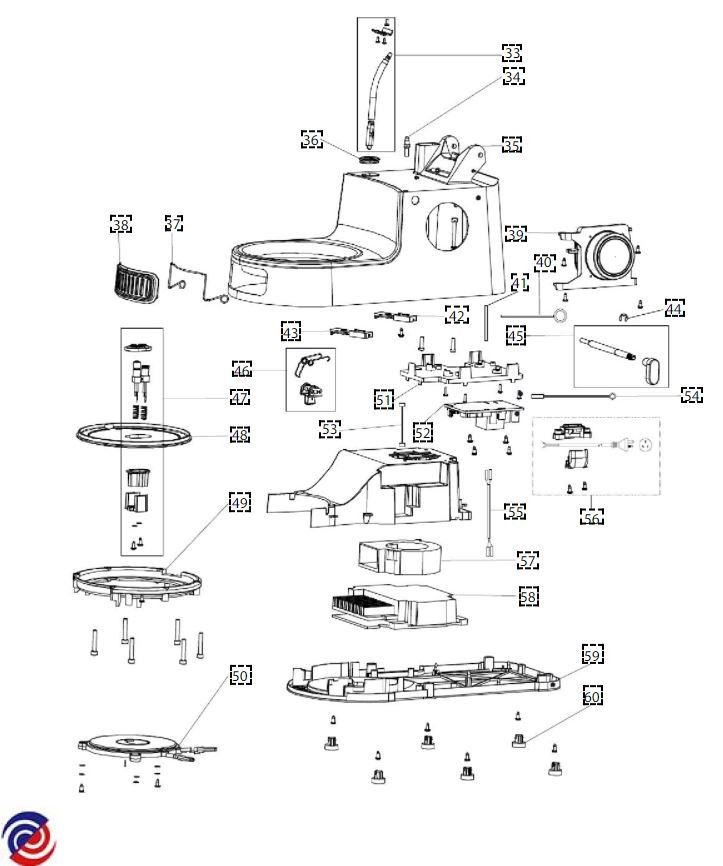

Parts for KCC9040S
W0358206 KENWOOD SPIRAL DOUGH HOOK
W0365392 KENWOOD MIXER KVL400W, KMX93/95/97/98 KAT002ME BAR ADAPTOR
$34.60
W0365396 KENWOOD KAX941PL MIXER GRAIN MILL CHEF / KMIX ATTACHMENT
W0354667 BOWL MAJOR
W0354746 CIRCLIP
W0354899 EARTH LEAD ASSY
W0354900 EARTH LEAD ASSY
W0355146 LEAD ASSY INDUCTION PCB/POWER PCB
W0355420 POWER SUPPLY CORD PLUG (AU/NZ)
W0356408 MAGNET
W0357017 BODY COVER INSERT
$12.20
W0357026 HINGE PIN
$12.30
W0357042 REAR SPACER
$12.80
W0357066 SCRAPER
$12.90
W0357078 EARTH LEAD ASSEMBLY
$13.00
W0357079 EARTH PIN
$13.00
W0357081 PCB COVER
$13.00
W0357112 WASHER PLASTIC 3PC
$13.20
W0357117 FOOT 6PC
$13.20
W0357140 GROMMET SET (3X)
$13.40
W0357141 MOTOR MOUNT MOULDING
$13.40
W0357146 HSO SPIGOT HSO GY34
$13.40
W0357175 MOUNT PCB
$13.70
W0357180 GRILL SPRING
$13.80
W0357192 SSO ASSY O RING & SCREW
$13.80
W0357205 WIRING FROM INDUCTION PCB TO MAIN PCB
$13.90
W0357230 MOTOR PULLEY AND TENSION PIN
$14.00
W0357232 SLOW SPEED OUTLET COVER INSERT
$14.00
W0357244 SPIGOT PLATE
$14.10
W0357282 BODY COVER
$14.40
W0357316 GEARBOX PULLEY & M8 NUT 2PC
$14.80
W0357383 BELT 3M-312 9.5
$15.50
W0357405 HEADLIFT SPRING
$15.60
W0357481 HEADLIFT LEVER ASSEMBLY
$16.80
W0357497 WIRING HEAT GUARD AND INTERLOCKS TO MAIN PCB
$17.20
W0357534 HEADLIFT REED SWITCH ASSY
$17.80
W0357553 HEAT GUARD REED SWITCH ASSEMBLY
$18.20
W0357559 WORKSURFACE PROTECTION MAT
$18.30
W0357577 BOWL REED SWITCH ASSEMBLY
$18.60
W0357596 SLOW SPEED OUTLET COVER ASSEMBLY
$18.90
W0357623 BASE MOULDING
$19.50
W0357652 STIR TOOL DRIVE (PLANET HUB)
$20.00
W0357669 LCD CONTROL KNOB
$20.30
W0357740 REED SWITCH TOP COVER
$22.20
W0357806 BOLT & WASHER KIT
$24.00
W0357897 HIGH SPEED OUTLET COVER ASSEMBLY
$26.40
W0357925 PLANET HUB ASSEMBLY
$27.10
W0357928 EXHAUST GRILLE
$27.10
W0357958 SUPPORT CASTING
$27.70
W0357992 PIN
$28.60
W0358053 HIGH TEMPERATURE SEAT PAD
$30.60
W0358073 SPLASHGUARD ASSEMBLY
$31.40
W0358080 QUADRANT & BRACKET
$31.70
W0358108 HEADLIFT ASSY SPRING & LATCH PLATE
$32.90
W0358125 INDUCTION FAN ASSEMBLY
$33.80
W0358154 STALL PLUG
$35.30
W0358181 NTC ASSEMBLY
$36.30
W0358217 HEAT SHIELD ASSEMBLY
$37.60
W0358292 PLANET HUB ASSEMBLY
$41.50
W0358325 HEAD UNDERSIDE
$43.60
W0358397 INDUCTION COIL ASSEMBLY
$51.20
W0358416 TOP COVER & KENWOOD BADGE ASSEMBBLY
$53.70
W0358449 BODY - PRINTED - WITH EARTH HOLE
$58.50
W0358502 ASSIEME DI CONTROLLO DELLA VELOCITÀ
$66.60
W0358538 INDUCTION PCB
$74.40
W0358547 MOTOR AINTREE 230V
$76.90
W0358552 PEDESTAL - PRINTED
$78.80
W0358572 MOTOR ASSEMBLY-230V
$83.60
W0358607 MAIN PCB ASSEMBLY
$125.20
W0358612 DISPLAY PCB ASSEMBLY
$129.70
W0358615 GEARBOX ASSEMBLY
$135.20
W0358620 DISPLAY PCB ASSEMBLY (OLD VERSION)
$145.60
