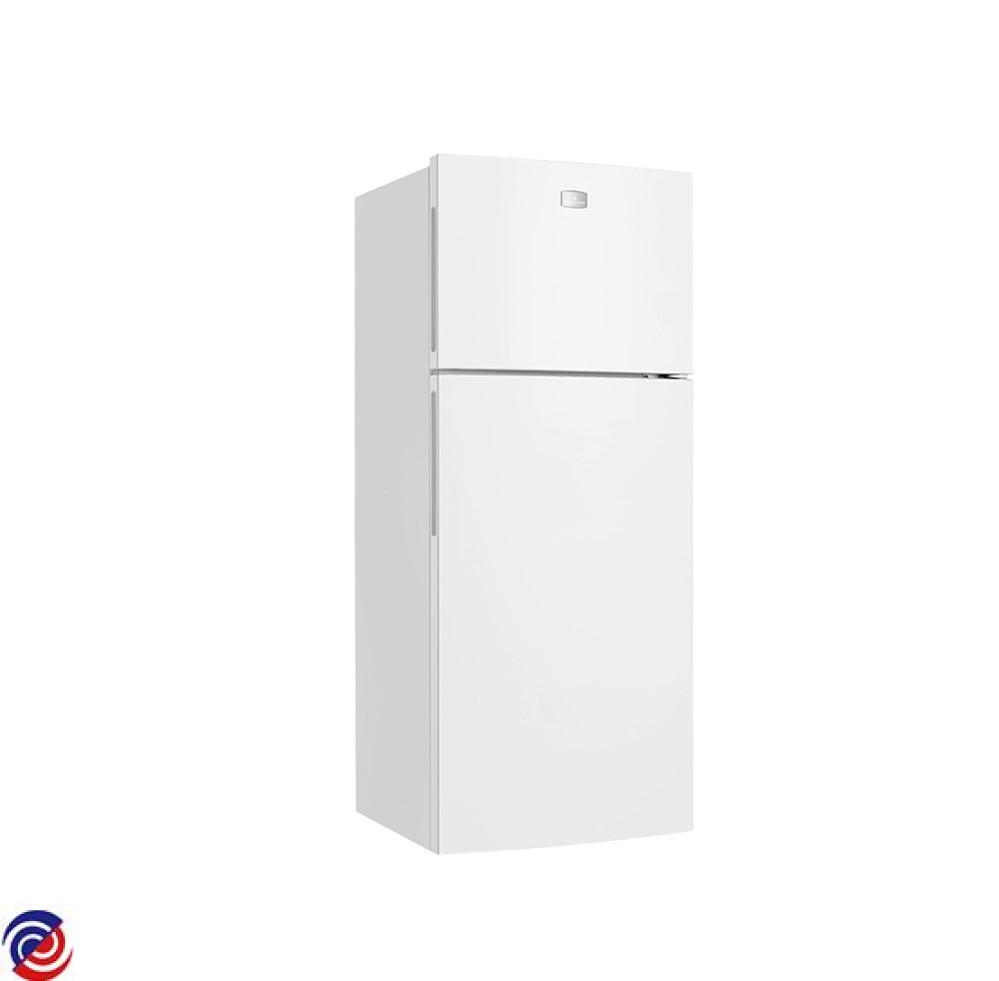

KTM5402WC — 925060807 00
KELVINATOR — Fridge
Parts for KTM5402WC
W0020667 PCBA 3 LEDS CLUSTER GALAGA
W0020674 TERMINAL BLOCK TH1116Y
W0027439 SCREW TRILOB M5X16
$3.38
W0027522 COVER SCREW
$3.38
W0027529 GROMMET FAN SIDE
$6.56
W0027532 MOTOR FAN L 240V/50HZ 350MM TY
W0027540 SHROUD FAN
$41.25
W0027560 GROMMET COMPRESSOR
$8.63
W0027562 CLAMP NTC EVAPORATOR
W0027610 CLAMP COMPRESSOR
$3.38
W0029335 COVER EVAP ASSY TF80 WH/KL
$25.61
W0029435 TRAY EGG 80W
W0029461 DRAWER CRISPER BODY TF80
W0029462 DRAWER CRISPER FRONT ONLY TF80 WH ASY
W0029517 PCB PROGRAAMED KTM4602
.jpg)
W0029560 HEATER RAD DEF R600 240V TF80W
W0029587 HARNESS-ASSY SENSOR DEFROST
W0029667 DOOR BIN FC BOTTLE TF80 EL
W0029699 FOOT BASE THREAD
$6.56
W0030069 TRAY ICE CUBE PINOT
$31.16
W0087752 BLADE FAN
W0159670 DRIER 12GM(XH9)DBLE/SGLE TAIL
W0018166 GROMMET FAN MOTOR
$12.34
W0020669 LENS 3 LEDS CLUSTER GALAGA
$20.10
W0020681 CLAMP CABLE JIAX-C
$3.38
W0020682 TERMINAL COVER JIAX-C
$6.75
W0027119 SCREW TRILOB M6X18
$3.38
W0027539 BRACKET MOUNT FAN SURROUND
$10.88
W0027598 GASKET FZR TF80
$80.06
W0027600 GASKET FC TF80
$90.00
W0029309 HINGE TOP RIGHT
$6.49
W0029333 DUCT EVAPORATOR
$72.00
W0029373 SUPPORT EVAPORATOR LEFT TF
$4.65
W0029429 DOOR BIN FLEX 1/2 TF80W EL
$63.68
W0029430 DOOR BIN FC SHALLOW 80 EL
$47.85
W0029437 SHELF FZR TF80W
W0029446 SHELF FC TF80W
W0029466 COVER TOP HINGE RIGHT WHT
$3.38
W0029487 MULTIFLOW ASSY KTM
$46.99
W0029535 BEARING AUTO CLOSER R TF WHT
$6.60
W0029597 PAN DRAIN DYN CON
W0029603 REAR HOUSING PCB COVER
$123.60
W0029604 REAR HOUSING PCB ADAPTER
W0029612 DRAWER C/COVER TF80 K ASSY
W0029668 TRAY EVAP DRAIN TF80W
$13.50
W0029674 HINGE CENTRE BASE ASSY
$28.31
W0029675 HINGE CENTRE PIN SWING DOOR
W0029695 COVER FOOT LEFT HINGE WHITE
$3.38
W0029702 HINGE BASE RIGHT ASSY
W0029703 HINGE BASE LEFT ASSY
$21.75
W0029830 SUPPORT EVAPORATOR RIGHT TF
$4.65
W0029842 TUBE CORRUGATE TF
$12.71
W0029906 EVAPORATOR FF TF80 N
$71.81
W0030237 DOOR PACKED FZR KTM5402WA-R
$233.44
W0030238 DOOR PACKED FC KTM5402WA-R
W0030345 DOOR BIN FZR TF80 WH-HOTF-ART
W0086608 CORD SERVICE INSULATED
W0088702 BADGE NAMEPLATE
$6.53
W0147391 COMPRESSOR JIAX TH1116Y
W0147520 SWITCH DOOR
$19.88
W0147552 ROLLER REAR WTB4600WA RAYONG
$5.40
W0147553 SHAFT ROLLER
W0154023 HARNESS-ASSY SENSOR KTM5402
W0284102 SEAL FOAM
$6.53
W0364603 CAPACITOR RF 4UF-6.3MM
$16.80
