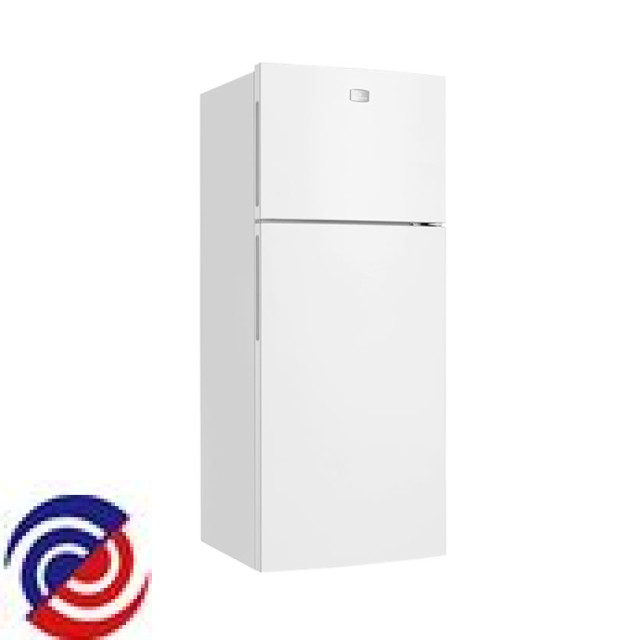

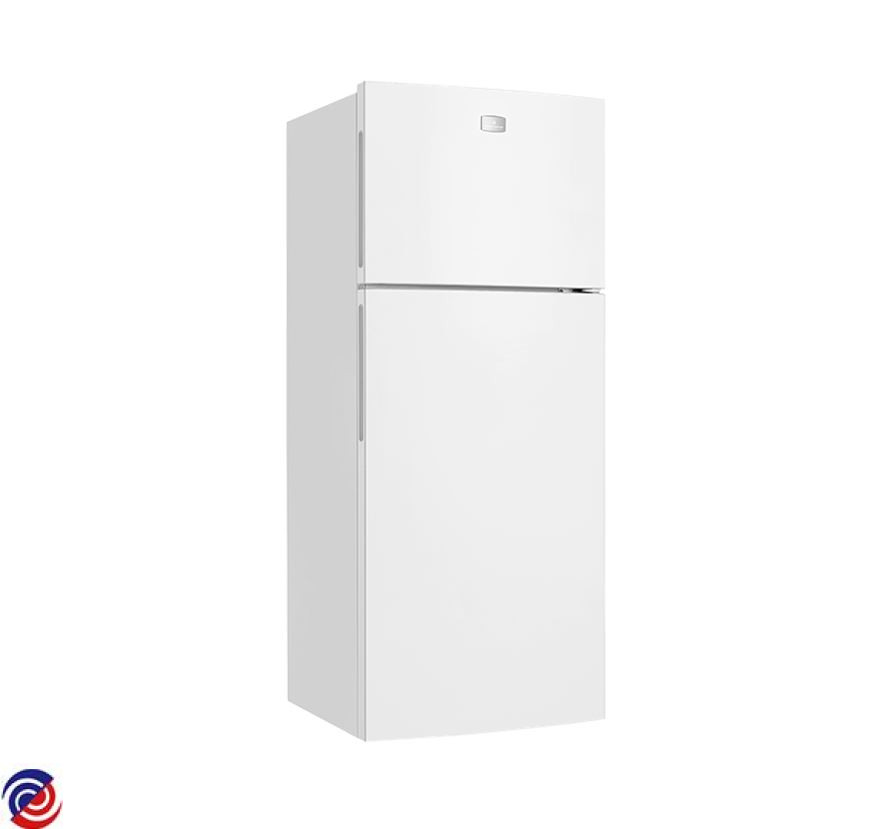

KTM4602WC — 925060805 02
KELVINATOR — Fridge
Parts for KTM4602WC
W0368871 DRAWER CRISPER BODY TF70
$82.00
W0365812 GROMMET COMPRESSOR
$14.00
W0365942 GROMMET FAN MOTOR
W0368006 SCREW TRILOB M5X16
$5.50
W0368023 CLAMP NTC EVAPORATOR
$4.50
W0368443 TRAY EGG 70W
$18.00
W0368866 DRIER 12GM(XH9)DBLE/SGLE TAIL
$30.00
W0368898 PAN DRAIN DYN CON
$26.00
W0370077 ICE TRAY
$27.50
W0371448 FOOT BASE THREAD
$10.00
W0371514 DUCT EVAPORATOR
$33.00
W0372381 CLAMP COMPRESSOR
$4.00
W0372540 ROLLER REAR WTB4600WA RAYONG
$8.00
W0372590 HINGE TOP RIGHT
$10.00
W0372593 GROMMET FAN SIDE
$8.75
W0372597 BEARING AUTO CLOSER R TF WHT
$10.00
W0372604 HINGE CENTRE PIN SWING DOOR
$10.00
W0372773 TUBE CORRUGATE TF
$18.00
W0372929 TERMINAL BLOCK TH1116Y
$28.00
W0372933 LENS 3 LEDS CLUSTER GALAGA
$26.80
W0373078 HINGE CENTRE BASE ASSY
$40.00
W0373157 COVER EVAP ASSY TF70 WH/KL
$49.00
W0373259 MULTIFLOW ASSY KTM
$66.00
W0373306 DOOR BIN FC BOTTLE TF70 KEL
$71.00
W0373319 EVAPORATOR FF TF70 N
$71.05
W0373363 DRAWER CRISPER FR TF70 WH ASY
$82.00
W0373369 DRAWER C/COVER TF70 K ASSY
$83.00
W0373647 REAR HOUSING PCB COVER
$173.00
W0373789 DOOR PACKED FZR KTM4602WA-R
$303.00
W0373863 DOOR PACKED FC KTM4602WA-R
$431.00
W0374077 DOOR BIN FC SHALLOW 70 EL
$90.00
W0374200 SHROUD FAN
$58.00
W0374786 COVER SCREW
$4.00
W0374817 SCREW TRILOB M6X18
$4.00
W0374823 COVER FOOT LEFT HINGE WHITE
$4.00
W0374827 COVER TOP HINGE RIGHT WHT
$4.00
W0374837 CLAMP CABLE JIAX-C
$4.00
W0374881 SUPPORT EVAPORATOR LEFT TF
$7.00
W0374882 SUPPORT EVAPORATOR RIGHT TF
$7.00
W0374933 SEAL FOAM
$8.75
W0374937 TERMINAL COVER JIAX-C
$10.00
W0375025 BRACKET MOUNT FAN SURROUND
$16.00
W0375030 TRAY EVAP DRAIN TF70W
$16.50
W0375117 CAPACITOR RF 4UF-6.3MM
$24.00
W0375170 SWITCH DOOR
$28.00
W0375453 DOOR BIN FLEX 1/2 TF70W EL
$90.00
W0375454 DOOR BIN FZR TF70 KELV
$85.00
W0375496 GASKET FZR TF70
$105.00
W0376379 COMPRESSOR
