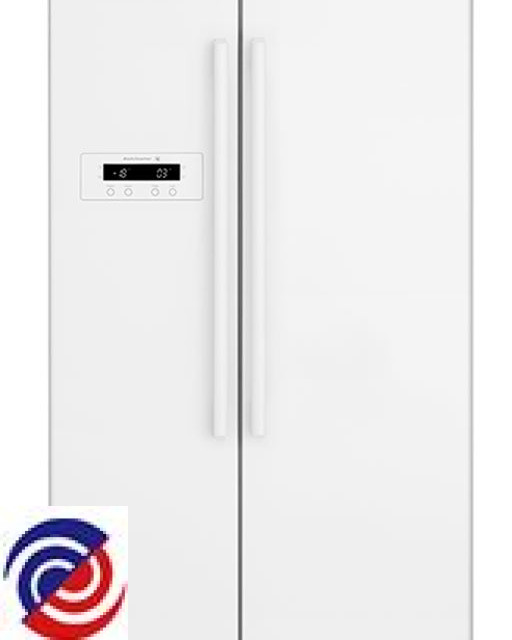

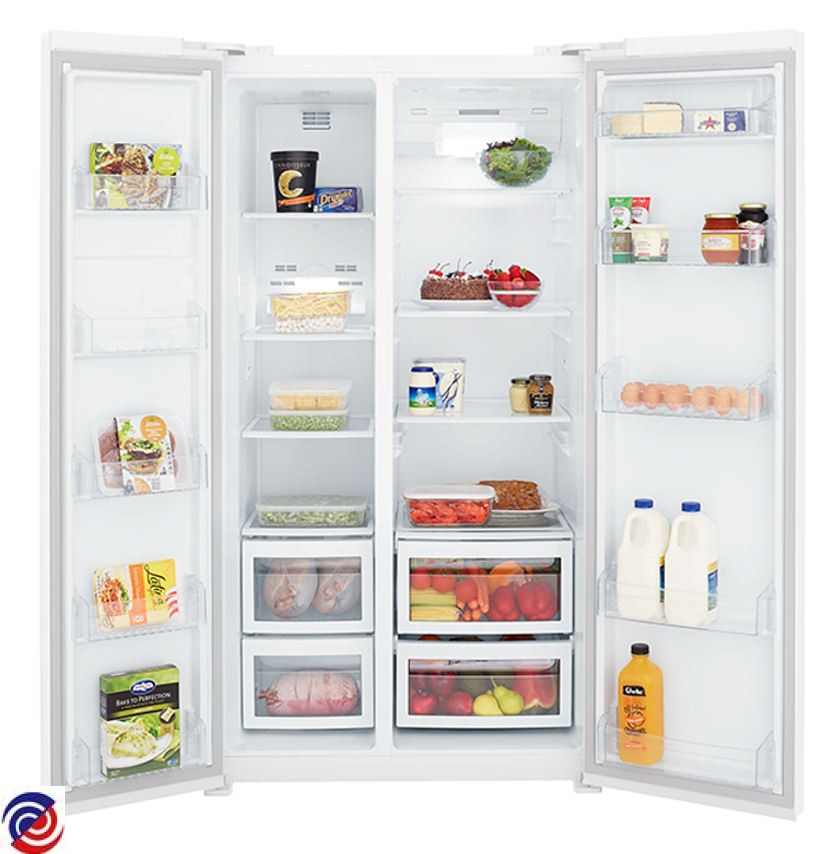

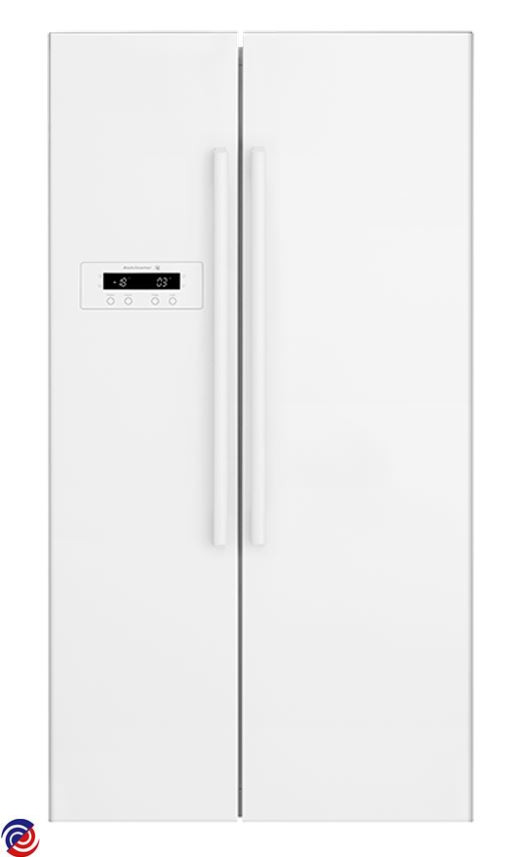

KSE6200WA — 956001641 00
KELVINATOR — Fridge

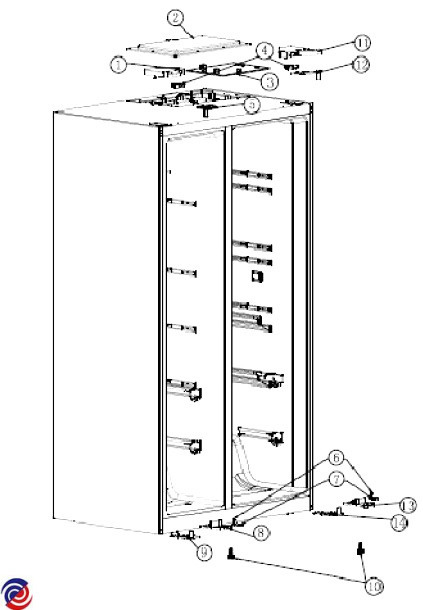

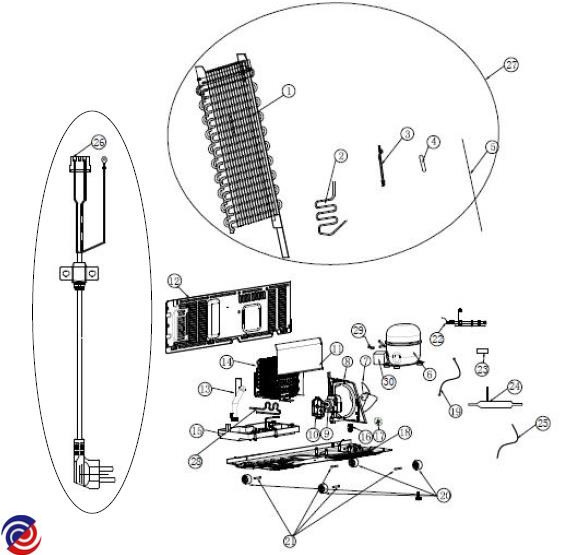

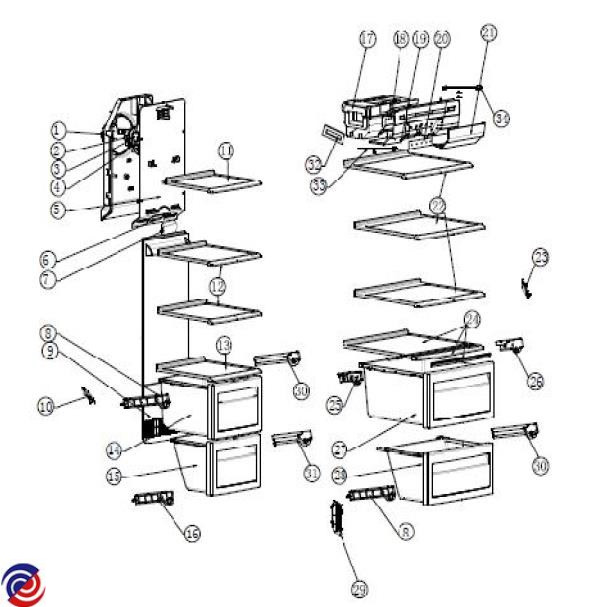

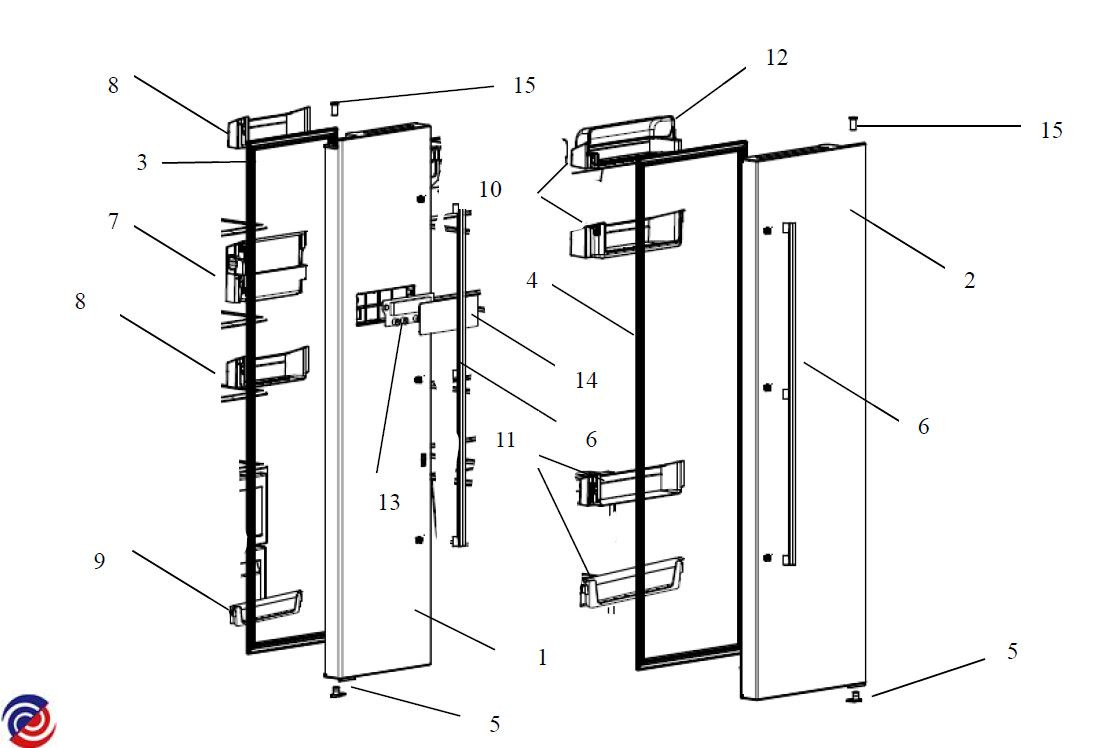

Parts for KSE6200WA
W0031545 PCB
$165.00
W0159670 DRIER 12GM(XH9)DBLE/SGLE TAIL
W0031543 POWER CORD AUS
$33.00
W0031544 WIRE HARNESS COMPRESSOR
$17.60
W0031546 WIRE HARNESS FREEZER LED
$16.50
W0031547 LED FREEZER
$14.40
W0031550 SWITCH DOOR LED
$18.90
W0031551 WIRE HARNESS FRIDGE LED
$53.00
W0031553 LED FRIDGE
W0031556 COVER OF DOM
$29.70
W0031558 DISPLAY BOARD DOM KSE6200
$77.00
W0031956 FAN LEAF FREEZER
$34.55
W0031957 REAR COVER FAN MOTOR
$14.70
W0031958 RUBBER RING FAN MOTOR
$7.70
W0031959 RUBBER RING FAN MOTOR
$6.60
W0031960 RUBBER RING FAN MOTOR
$7.70
W0031961 RUBBER RING FAN MOTOR
$7.70
W0031962 COVER FAN MOTOR CONDENSER
$11.00
W0031963 FAN BLADE LEAF CONDENSER
$16.50
W0032748 EPS COMPLETE UPPER AIR CHANNE
$8.90
W0032836 COVER AIR CHANNEL
$8.80
W0032837 COVER UPPER AIR CHANNEL FRZ
$34.95
W0032838 COVER FREEZER AIR CHANNEL (LO
$44.00
W0032840 BRACKET MOTOR
$27.65
W0032841 FRIDGE COVER UPPER AIR CHANNE
$29.70
W0032895 HINGE LOWER COMPLETE (LEFT)
$33.00
W0032898 HINGE LOWER COMPLETE (RIGHT)
$33.00
W0032903 TUBE DRAIN COMPLETE
$42.75
W0032905 GLASS SHELF
$60.05
W0032906 DRAWER COMPLETE FRIDGE UPPER
$66.95
W0032907 DRAWER GUIDE-RAIL COMPLETE LH
$9.90
W0032908 DRAWER GUIDE-RAIL COMPLETE RH
$9.90
W0032909 DRAWER COMPLETE FRIDGE (LOWER
$50.00
W0032910 GUIDE-RAIL COMPLETE (LEFT)
$9.90
W0032911 GUIDE-RAIL COMPLETE (RIGHT)
$9.90
W0032912 DRAWER COMPLETE FREEZER
$50.00
W0032913 DRAWER GUIDE-RAIL COMP FZR UPP
$14.95
W0032914 DRAWER GUIDE-RAIL COMP FZR LOW
$14.95
W0032915 DRAWER COMPLETE FREEZER (LOWE
$50.00
W0032917 HINGE UPPER COMPLETE (LEFT)
$33.00
W0032919 HINGE UPPER COMPLETE (RIGHT)
$33.00
W0032925 TRAY FRIDGE I
W0032926 TRAY FRIDGE II
W0032927 TRAY FREEZER I
W0032928 TRAY FREEZER II
$44.95
W0032930 SCREW ADJUSTMENT
$4.00
W0032931 DAIRY DOOR FRIDGE TRAY
$14.50
W0032932 DOOR FOAMED FREEZER WH
$221.95
W0032936 DOOR FOAMED FRIDGE WH
$274.95
W0032944 GASKET FRIDGE
W0032945 GASKET FZR
$70.45
W0032946 WHEEL BASE
$9.90
W0032970 AXLE WHEEL BASE
$11.95
W0032972 REAR COVER COMPRESSOR
$29.70
W0032988 COVER SENSOR FRIDGE
$8.80
W0032989 COVER SENSOR FRZR
$8.80
W0032991 ICE BOX
$55.00
W0032992 GLASS SHELF FREEZER (UPPER)
$55.00
W0032993 GLASS SHELF FREEZER (LOWER)
$54.95
W0032994 GLASS SHELF -FRIDGE
$54.95
W0032998 COVER POWER MODULE(603)
$29.05
W0032999 COVER FREEZER-LED
$11.00
W0033001 COVER HINGE UPPER LEFT
$11.00
W0033004 COVER HINGE UPPER RIGHT
$11.00
W0033008 COVER HINGE LWR GR (LEFT)
$11.00
W0033010 COVER HINGE LWR GR (RIGHT)
$11.00
W0033011 PAN DRAIN WATER
$22.00
W0033012 FAN BRACKET CONDENSER
$14.30
W0033017 COVER FRIDGE LED
$11.00
W0033207 EVAPORATOR
W0033215 COMPRESSOR
$446.10
W0033216 CONDENSER COMPLETE
$116.05
W0157473 FREEZER FAN MOTOR
$210.05
W0157474 FAN MOTOR CONDENSER
W0157476 E-FLAP
$56.60
W0163190 HANDLE COMPLETE (WHITE)
$29.00
