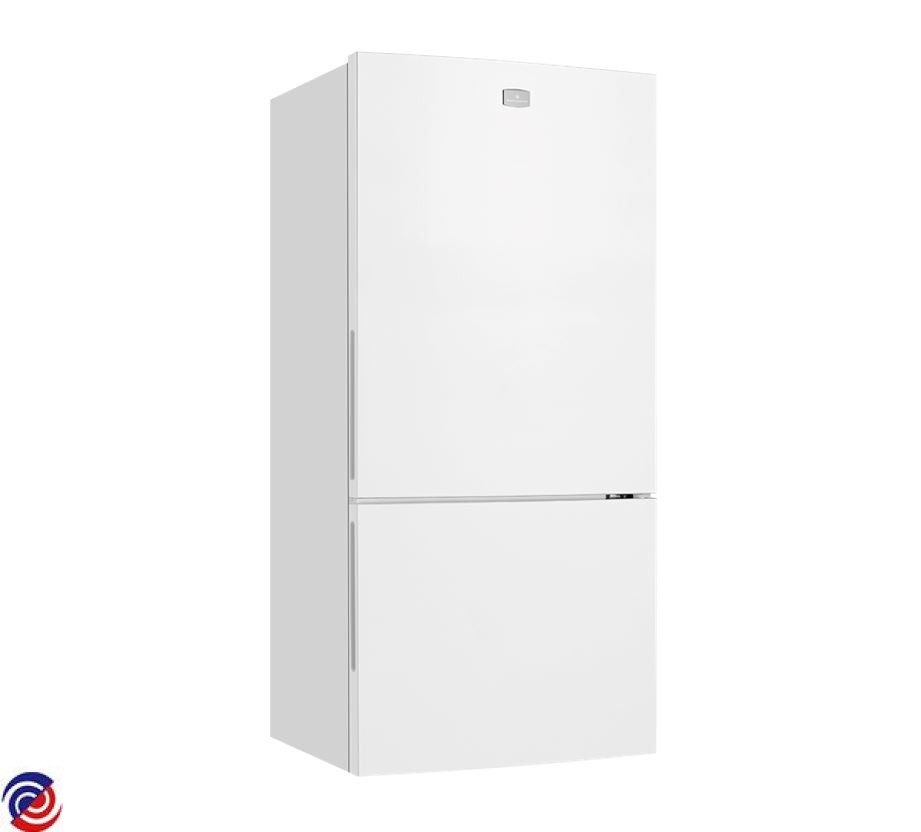

KBM5302WC-R — 925060811 02
KELVINATOR — Fridge

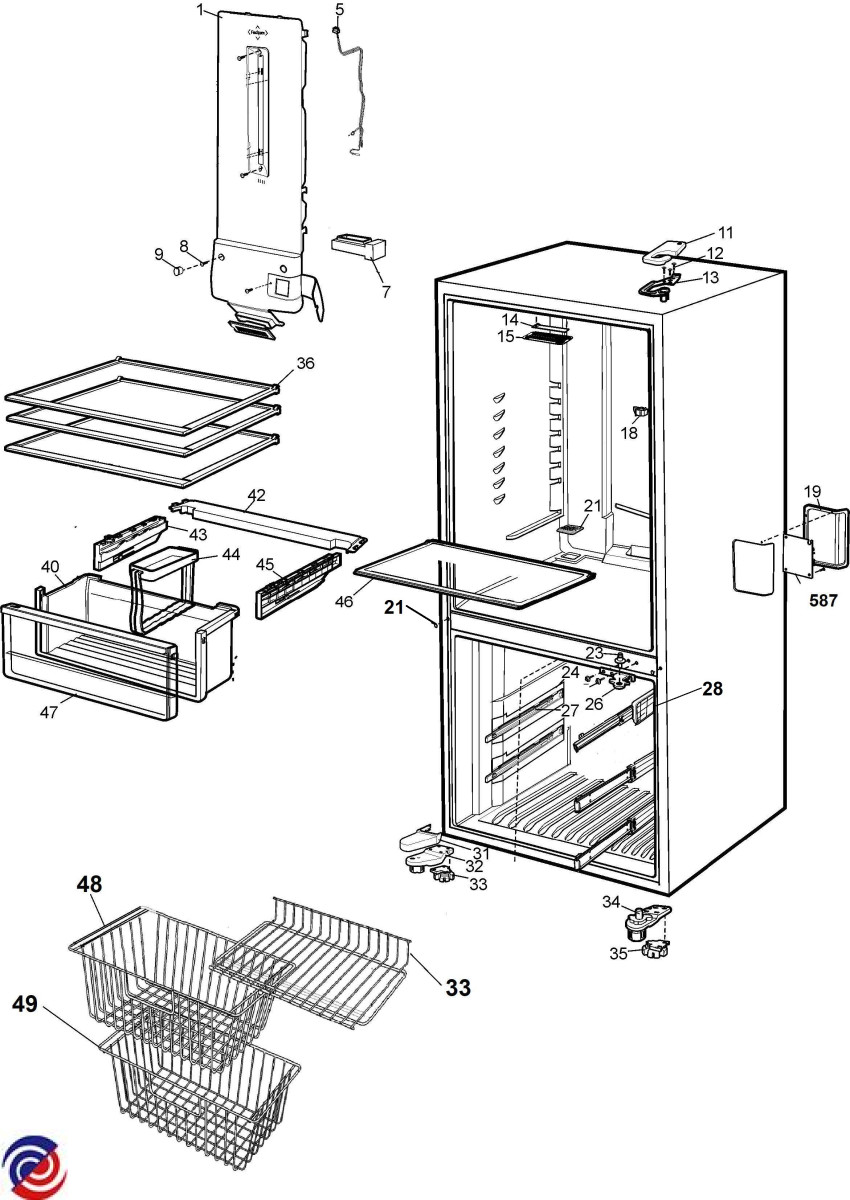

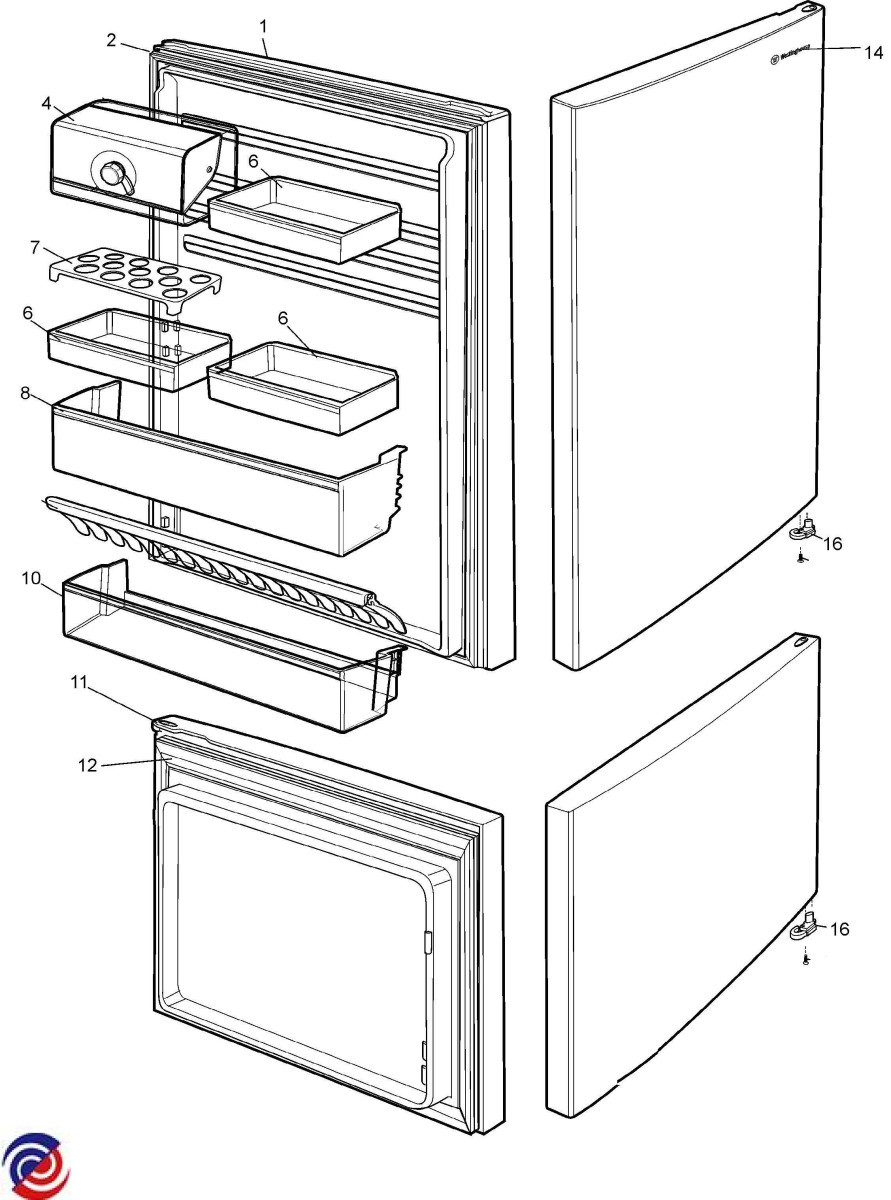

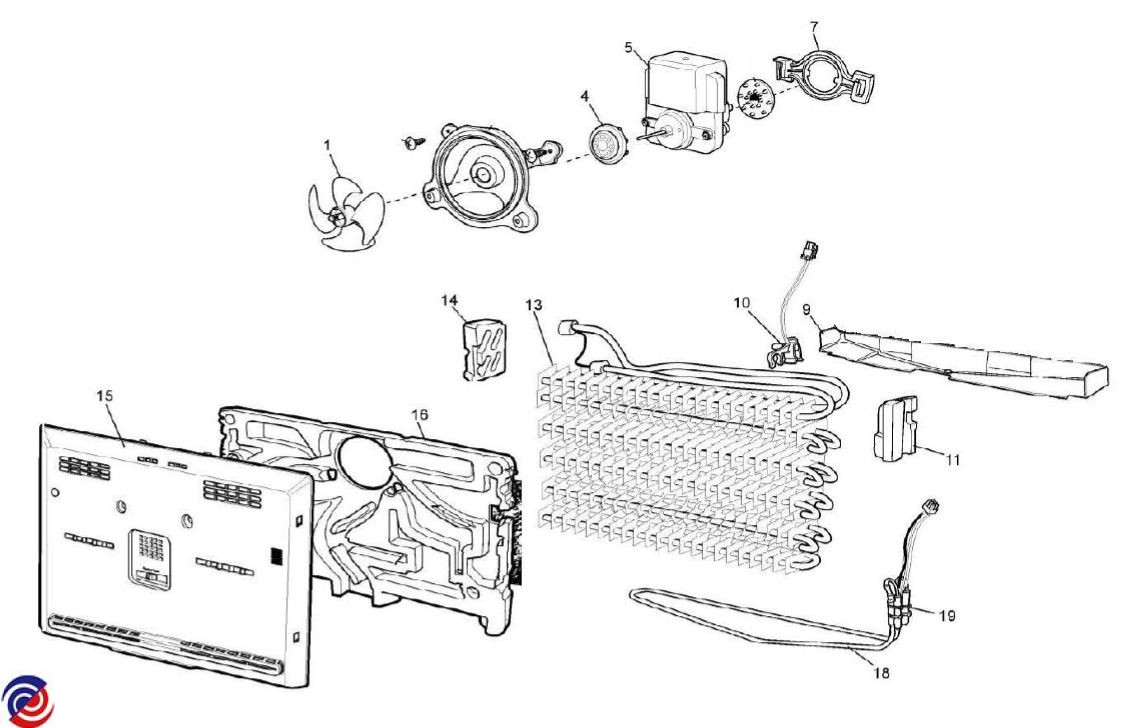

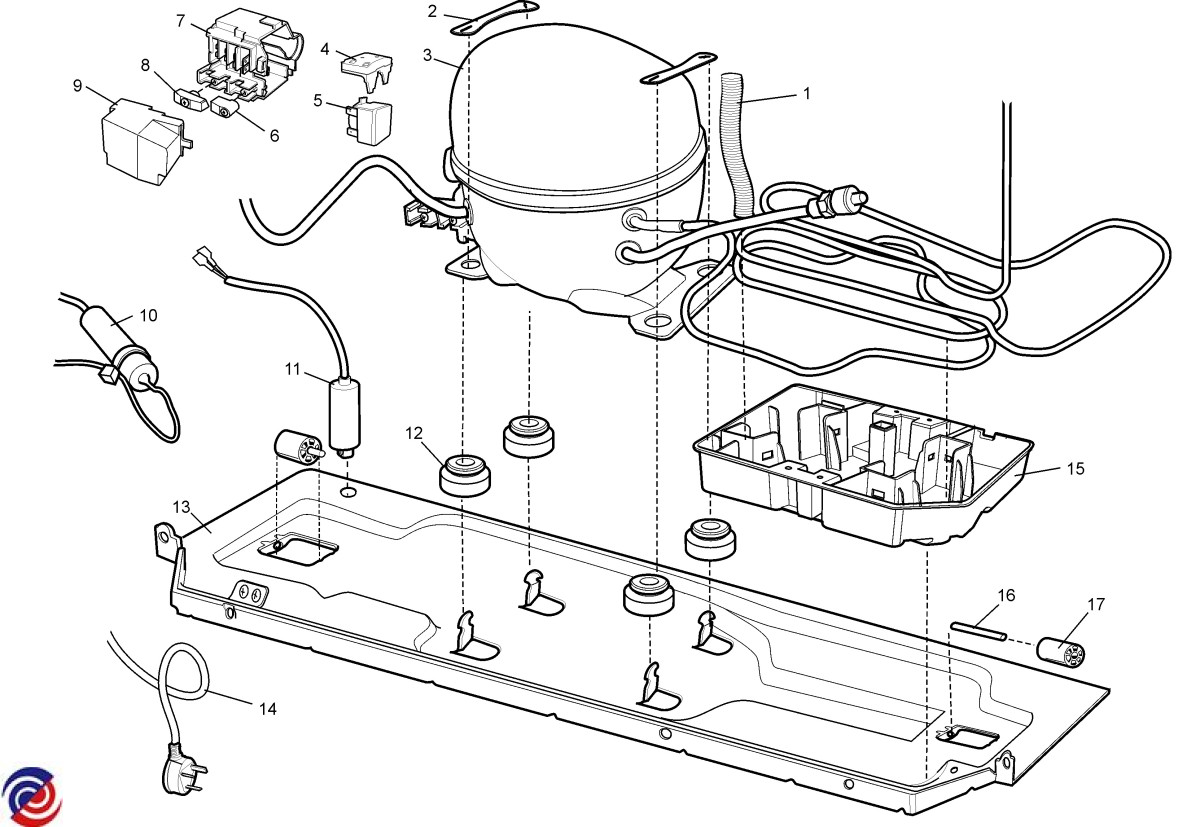

Parts for KBM5302WC-R
W0368660 HEATER RAD DEF R600 172W BF80W
$83.00
W0371479 BOTTOM DOOR BIN FC BOTTLE TF80 EL
$59.50
W0365812 GROMMET COMPRESSOR
$14.00
W0365942 GROMMET FAN MOTOR
W0368006 SCREW TRILOB M5X16
$5.50
W0368021 SCREW TRUSS 4.2X13
$5.50
W0368023 CLAMP NTC EVAPORATOR
$4.50
W0368404 SHROUD FAN BF
$90.00
W0368469 FOOT LEVER
$10.00
W0368701 GASKET FRZ BF80
$116.00
W0368758 RUNNER RAIL CRISPER SLIDE RH
$20.00
W0368866 DRIER 12GM(XH9)DBLE/SGLE TAIL
$30.00
W0368883 RUNNER RAIL CRISPER SLIDE LH
$20.00
W0368898 PAN DRAIN DYN CON
$26.00
W0369890 COMPRESSOR PLATE, ASSEMBLY, 17
W0371464 COVER GRID AIR RETURN BF
$4.00
W0371568 TUBE CORRUGATE PF
$18.00
W0372322 COVER SCREW MULTIFLOW RH
$4.00
W0372381 CLAMP COMPRESSOR
$4.00
W0372389 COVER SCREW MULTIFLOW LH
$4.00
W0372405 SPACER 3 TURN HEATER
$4.00
W0372467 EPS FZ AIR STOPPER
$5.00
W0372499 BAFFLE SLIDE BACK
$7.00
W0372513 BEARING HINGE FZR TOP OPEN
$7.00
W0372590 HINGE TOP RIGHT
$10.00
W0372597 BEARING AUTO CLOSER R TF WHT
$10.00
W0372604 HINGE CENTRE PIN SWING DOOR
$10.00
W0372618 EXTENSION SLIDE INSERT FZR LH
$10.00
W0372766 TRAY EGG 80W
$18.00
W0372799 ROLLER FOOT
$19.00
W0372822 TUBE PROCESS
$21.00
W0372852 CRISPER GASKET 80
$24.00
W0372933 LENS 3 LEDS CLUSTER GALAGA
$26.80
W0372953 TRAY EVAP DRAIN BM/SD 80W
$30.00
W0373078 HINGE CENTRE BASE ASSY
$40.00
W0373297 DOOR BIN FC SHALLOW 80 EL
$68.00
W0373336 CRISPER COVER ASSY BF80 WH
$77.00
W0373394 DOOR BIN FLEX 1/2 TF80W EL
$90.00
W0373452 DRAWER BODY BF80
$92.50
W0373596 MULTIFLOW ASSY BF KLVN
$147.00
W0373618 EPS EVAPORATOR BF 80
$158.00
W0373628 EVAPORATOR FF BF80
$163.00
W0373633 GASKET FC BF80
$168.00
W0373647 REAR HOUSING PCB COVER
$173.00
W0373684 VALVE DRAIN ASSY BF
$195.00
W0373821 DOOR PACKED FZR WHT KEL
$342.00
W0374544 COMPRESSOR EMB66CLC
$630.00
W0374827 COVER TOP HINGE RIGHT WHT
$4.00
W0374881 SUPPORT EVAPORATOR LEFT TF
$7.00
W0374882 SUPPORT EVAPORATOR RIGHT TF
$7.00
W0374890 BAFFLE SLIDER FRONT BF
$6.55
W0374898 TUBE JUMPER H/X 80W EMBRACO
$7.25
W0374998 BEARING HINGE FC TOP TF SL L
$13.85
W0375025 BRACKET MOUNT FAN SURROUND
$16.00
W0375089 TERMINAL BLOCK EMBRACO
$21.00
W0375117 CAPACITOR RF 4UF-6.3MM
$24.00
W0375161 TERMINAL COVER EMBRACO
$27.00
W0375170 SWITCH DOOR
$28.00
W0375210 OVERLOAD PROTECTOR EMBRACO
$33.00
W0375214 STARTING DEVICE QPA-20A
$33.00
W0375331 DRAWER WIRE BASKET MID 80
$55.00
W0375410 COVER EVAPORATOR BF80 ASY 1-Z
$69.05
W0375434 DRAWER WIRE BASKET LOW 80
$81.00
W0375509 HEATER TUBE DRAIN PAN (TYPE M)
$106.75
W0375868 DOOR PACKED FC WHT KEL
$599.00
