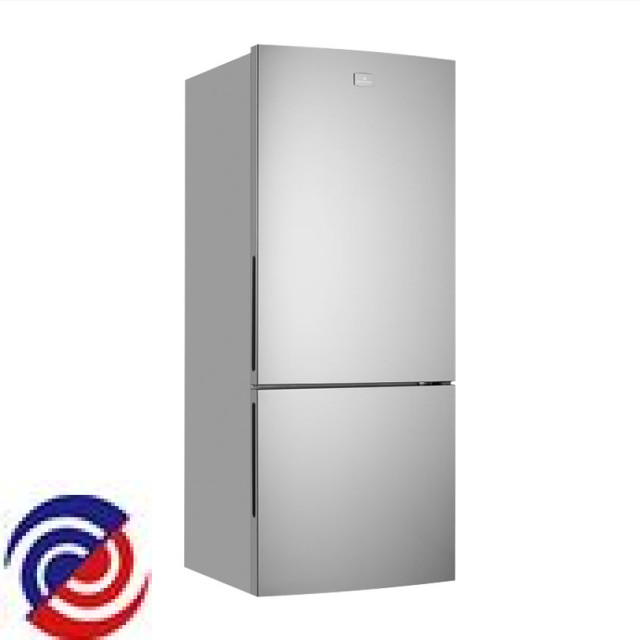

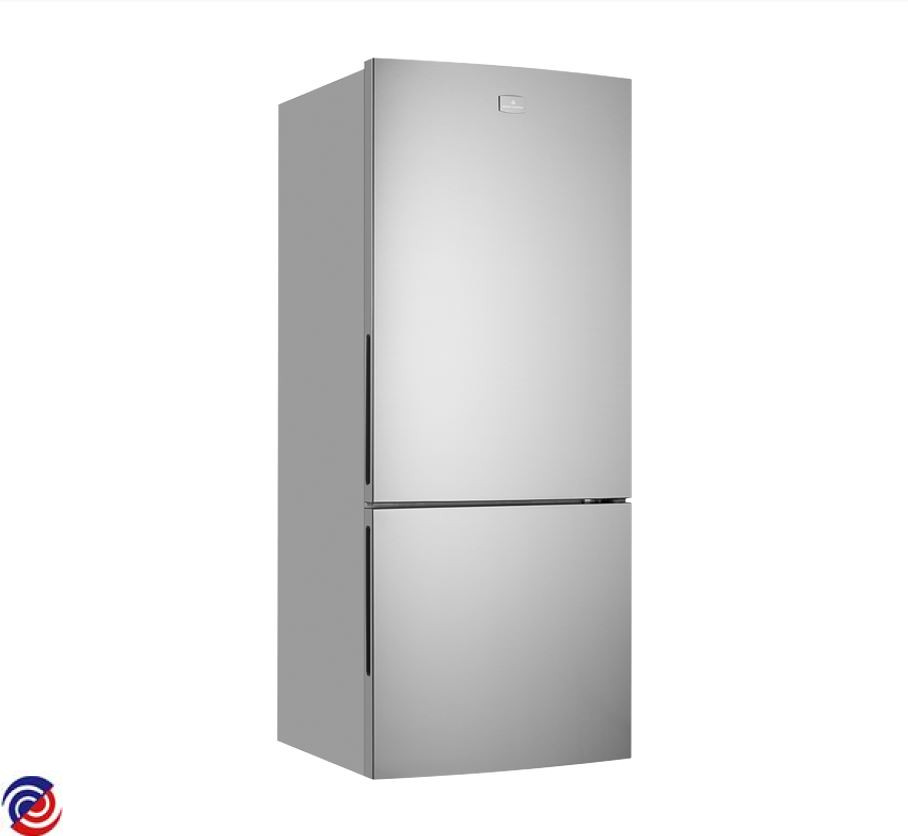

KBM4502AC-R — 925060810 01
KELVINATOR — Fridge
Parts for KBM4502AC-R
W0368023 CLAMP NTC EVAPORATOR
$3.38
W0368323 ELECTROLUX WESTINGHOUSE FREEZER DEFROST HEATER ELEMENT
$75.75
W0373335 CRISPER COVER ASSY BF70 WH
$57.75
W0374077 DOOR BIN FC SHALLOW 70 EL
$67.50
W0365812 GROMMET COMPRESSOR
$10.50
W0365942 GROMMET FAN MOTOR
W0368006 SCREW TRILOB M5X16
$4.13
W0368021 SCREW TRUSS 4.2X13
$4.13
W0368404 SHROUD FAN BF
$67.50
W0368443 TRAY EGG 70W
$13.50
W0368469 FOOT LEVER
$7.50
W0368758 RUNNER RAIL CRISPER SLIDE RH
$15.00
W0368866 DRIER 12GM(XH9)DBLE/SGLE TAIL
$22.50
W0368883 RUNNER RAIL CRISPER SLIDE LH
$15.00
W0368898 PAN DRAIN DYN CON
$19.50
W0369890 COMPRESSOR PLATE, ASSEMBLY, 17
W0371464 COVER GRID AIR RETURN BF
$3.00
W0371568 TUBE CORRUGATE PF
$13.50
W0372322 COVER SCREW MULTIFLOW RH
$3.00
W0372381 CLAMP COMPRESSOR
$3.00
W0372389 COVER SCREW MULTIFLOW LH
$3.00
W0372405 SPACER 3 TURN HEATER
$3.00
W0372467 EPS FZ AIR STOPPER
$3.75
W0372499 BAFFLE SLIDE BACK
$5.25
W0372513 BEARING HINGE FZR TOP OPEN
$5.25
W0372590 HINGE TOP RIGHT
$7.50
W0372604 HINGE CENTRE PIN SWING DOOR
$7.50
W0372618 EXTENSION SLIDE INSERT FZR LH
$7.50
W0372757 TRAY EVAP DRAIN BM/SD 70W
$12.38
W0372799 ROLLER FOOT
$14.25
W0372822 TUBE PROCESS
$15.75
W0372933 LENS 3 LEDS CLUSTER GALAGA
$20.10
W0373054 DRAWER BODY BF70
$27.00
W0373078 HINGE CENTRE BASE ASSY
$30.00
W0373306 DOOR BIN FC BOTTLE TF70 KEL
$53.25
W0373457 EVAPORATOR FF BF70
$75.75
W0373546 GASKET FC BF70
$94.50
W0373596 MULTIFLOW ASSY BF KLVN
$110.25
W0373647 REAR HOUSING PCB COVER
$129.75
W0373684 VALVE DRAIN ASSY BF
$146.25
W0373823 DOOR PACKED FZR D SS KEL
$256.50
W0373902 DOOR PACKED FC SS KEL
$394.50
W0374544 COMPRESSOR EMB66CLC
$472.50
W0374831 COVER TOP HINGE RIGHT GR
$4.13
W0374881 SUPPORT EVAPORATOR LEFT TF
$5.25
W0374882 SUPPORT EVAPORATOR RIGHT TF
$5.25
W0374890 BAFFLE SLIDER FRONT BF
$4.91
W0374902 EPS EVAPORATOR BF 70
$6.00
W0374961 BEARING HINGE FC TOP TF SL R
$8.21
W0374974 CRISPER GASKET 70
$9.00
W0375025 BRACKET MOUNT FAN SURROUND
$12.00
W0375089 TERMINAL BLOCK EMBRACO
$15.75
W0375117 CAPACITOR RF 4UF-6.3MM
$18.00
W0375161 TERMINAL COVER EMBRACO
$20.25
W0375170 SWITCH DOOR
$21.00
W0375210 OVERLOAD PROTECTOR EMBRACO
$24.75
W0375214 STARTING DEVICE QPA-20A
$24.75
W0375273 SHELF WIRE BF70
$31.16
W0375392 DRAWER WIRE BASKET LOW 70
$45.00
W0375398 EVAPORATOR COVER BF70 ASY 2-Z
$48.75
W0375413 DRAWER CRISPER FRONT BF70 KELV
$53.03
W0375453 DOOR BIN FLEX 1/2 TF70W EL
$67.50
W0375509 HEATER TUBE DRAIN PAN (TYPE M)
$80.06
