KWH62HRE — 950001237 00

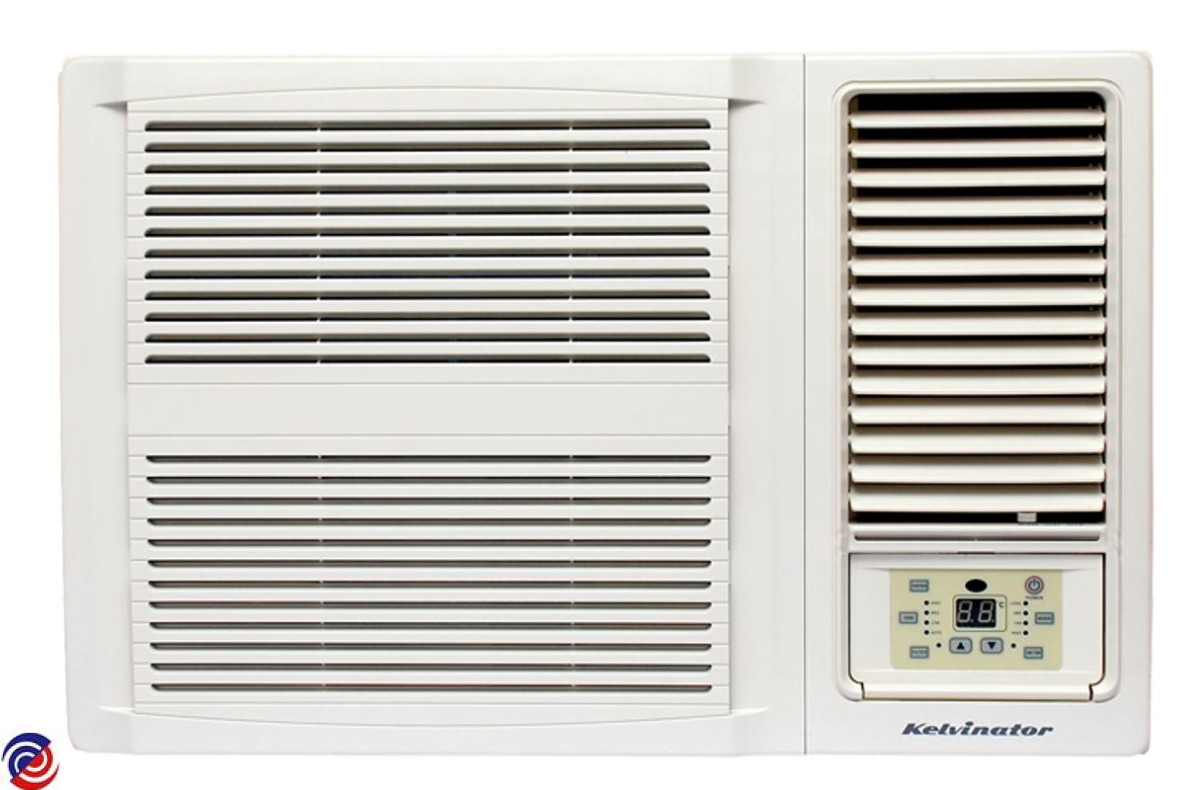

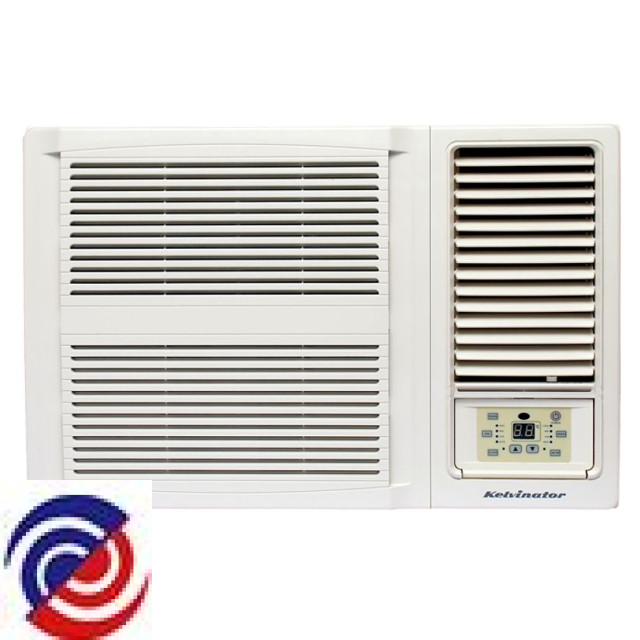

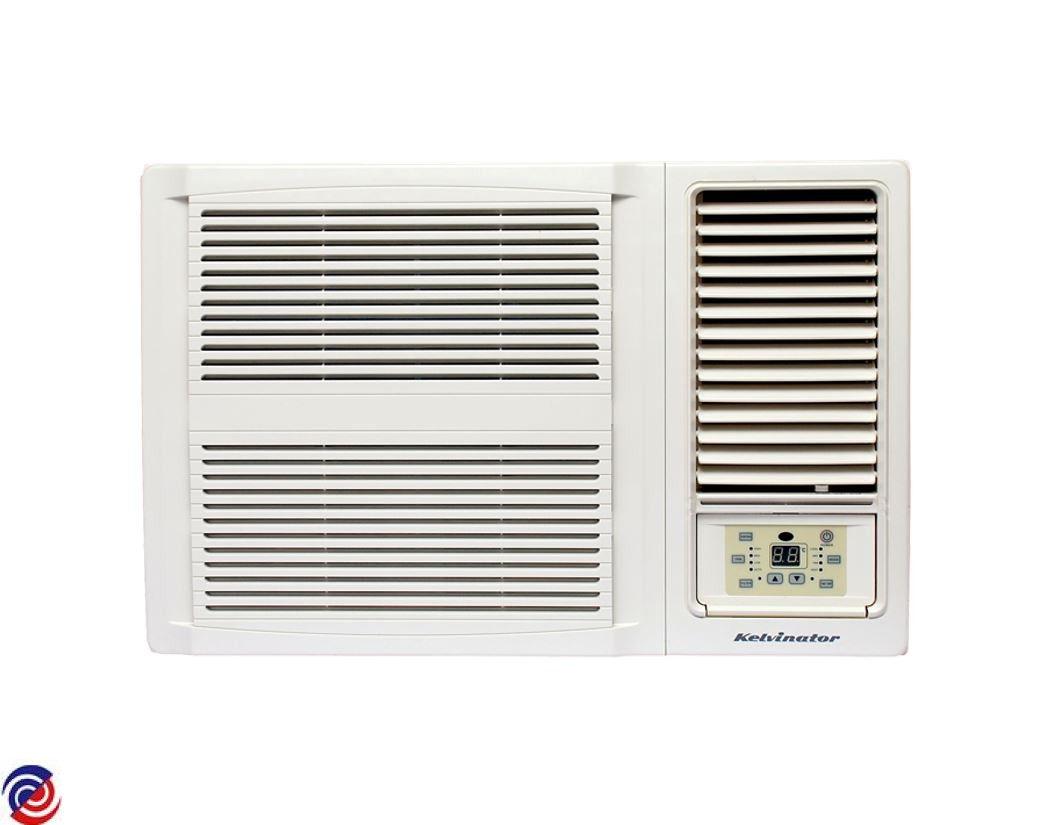

KELVINATOR — Air-Conditioner

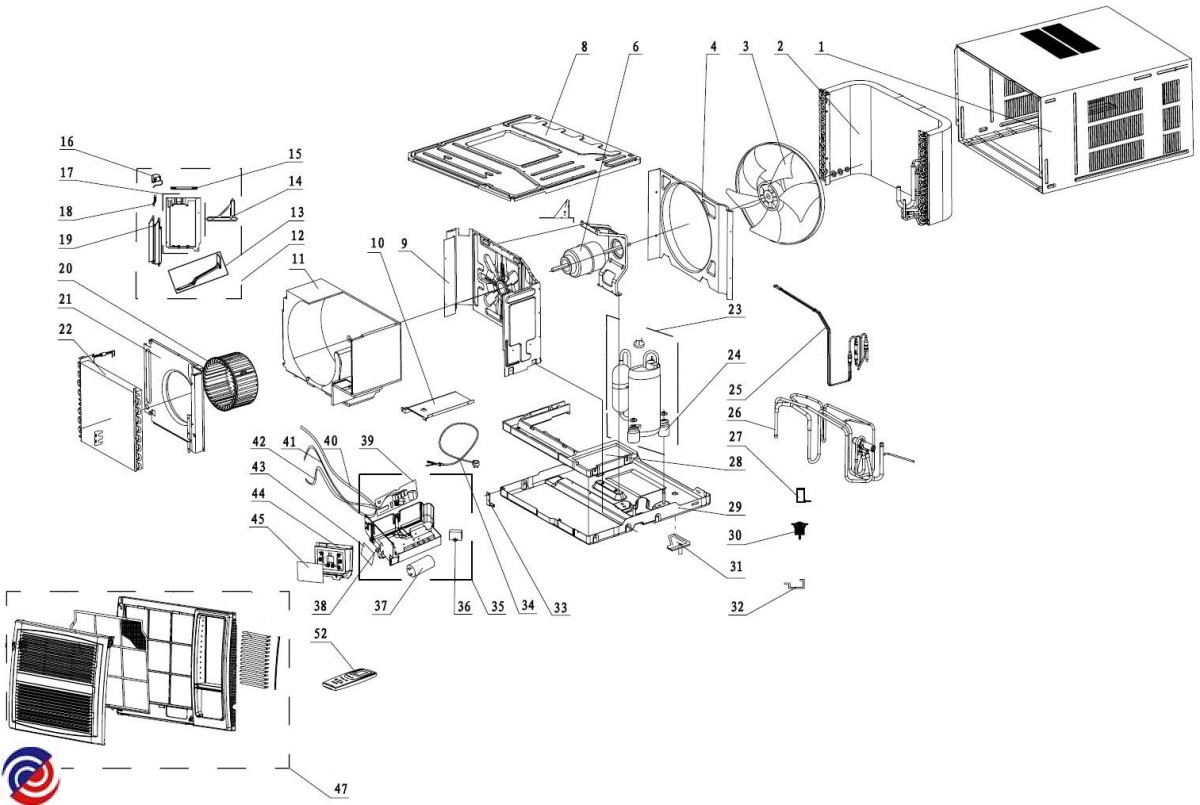

Parts for KWH62HRE
W0012088 EVAPORATOR ASSY
$242.21
W0012148 CONDENSER ASSY KWH62HRC
$271.50
W0012220 CHASSIS, SUB ASSY
$94.88
W0012269 BASE PLATE OF AIR FLUE
$4.95
W0012280 REAR CLAPBOARD KWH18CRC
$33.00
W0012286 COVER FRONT FAN KWH47CRB
$22.28
W0012288 FRONT CLAPBOARD KWH12HRC
$49.50
W0012329 TOP COVER BOARD SUB-ASSY
$44.55
W0013080 CAPILLARY, SUB ASSY
$28.88
W0013110 VALVE, 4-WAY & PRESSURE SWITCH
$303.75
W0014663 VENT FRESH AIR
$15.00
W0016461 SHROUD FAN SHELL EWJ16&18
$33.00
W0016576 TRAY WATER FOAM
$19.35
W0018968 MOTOR LOURVE KWH47HRB
$38.74
W0019422 OUTLET, AIR SUB ASSY
$34.39
W0019506 BOX ASSY, ELECTRIC KWH62HRE
$229.65
W0019531 BOX, ELECTRIC ONLY KWH39CRE
W0020887 CLIP PROTECTOR EWJ16HRA
$3.38
W0021193 BOARD PC MAIN KWH53HRE
W0021740 BOARD, DISPLAY
W0022312 CAPACITOR COMPRESSOR
$33.38
W0022339 CAPAC 7UF 450V 4 SMALL PINS
$12.94
W0023276 SENSOR TEMPERATURE
$33.00
W0023277 SENSOR TEMPERATURE
$33.04
W0023280 SENSOR TUBE TEMP
$33.04
W0024865 VALVE 4 WAY
$43.54
W0026654 DECAL
$8.74
W0026846 COMPRESSOR GASKET
$5.78
W0036041 COMPRESSOR KWH62CRE
$346.99
W0045930 CLIP RETAINING CHASSIS
W0065196 VALVE DRAINAGE
$43.09
W0069477 BLADE FAN CENTRIFUGAL
$46.50
W0069630 FAN AXIAL FLOW
$68.48
W0070000 LOURVE SWING
$41.18
W0070095 LEVER SWING
$8.70
W0070097 LINKAGE SWING MECHANISM
W0070098 FRAME SWING MECHANISM
W0089840 MOTOR FAN
W0115384 POWER CORD 15A
W0138648 CRANK LOUVER
$8.63
W0274875 HOLDER REMOTE CONTROL
W0283019 DRAIN CORNER PLASTIC
$3.38
W0283226 CABINET ASSY
$581.21
W0284183 PANEL, CONTROL
W0284434 PANEL FRONT ASSY
