KWH62HRB — 950132762 00
KELVINATOR — Air-Conditioner

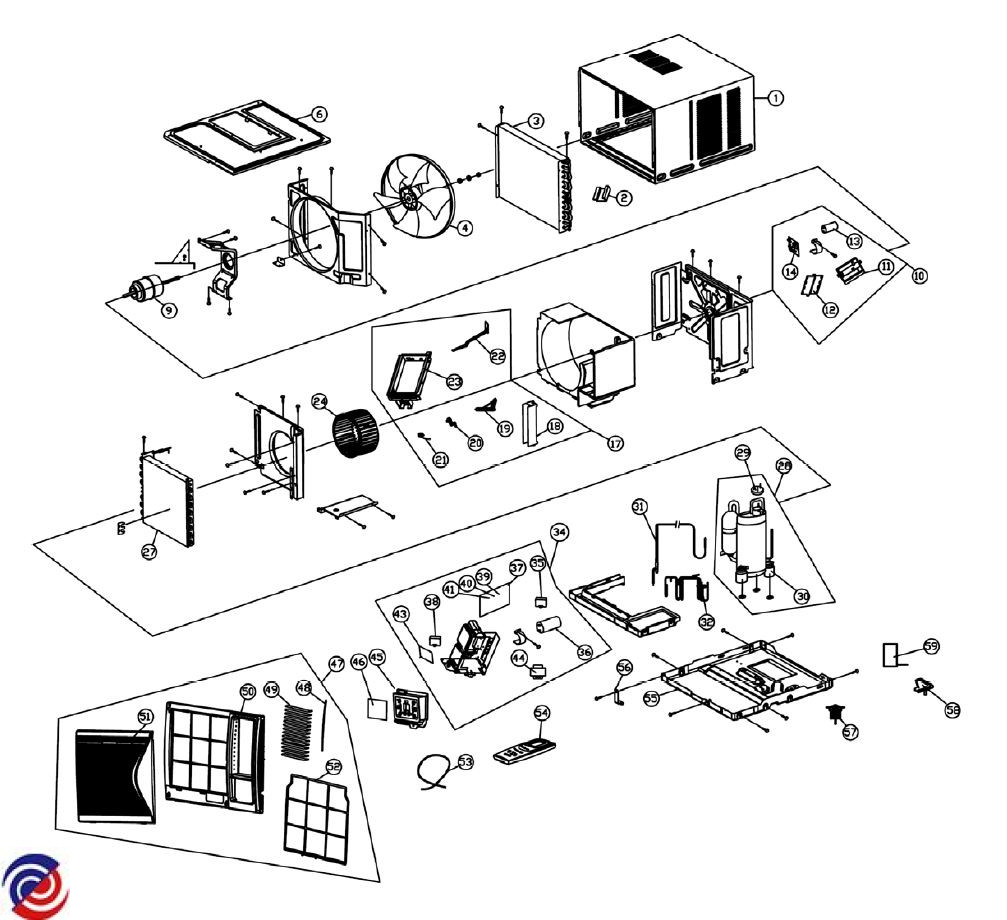

Parts for KWH62HRB

No image available
W0012094 EVAPORATOR ASSY KWH53HRB
$209.96
No image available
W0012149 CONDENSER ASSY
$235.13
No image available
W0012222 CHASSIS SUB ASSY
$94.88
No image available
W0012328 TOP COVER BOARD SUB-ASSY
$44.55
No image available
W0013075 CAPILLARY SUB-ASSY
$15.68
No image available
W0014547 LOUVRE HORIZONTAL
No image available
W0014663 VENT FRESH AIR
$15.00
No image available
W0014664 LINKAGE HORIZONTAL AIR GUIDE
$3.38
No image available
W0015161 FILTER
$31.24
No image available
W0016465 CHASSIS CLAMP KWH53HRB
No image available
W0018015 CABINET ASSY KWH53HRB
No image available
W0018968 MOTOR LOURVE KWH47HRB
$38.74
No image available
W0019413 GRILL FRONT
No image available
W0019417 PANEL FRONT ASSY
$80.93
No image available
W0019490 BOX ELECTRIC
$57.75
No image available
W0019491 BOX CONTROL ASSY
$224.96
No image available
W0019492 BOX CONTROL ASSY
$224.93
No image available
W0019591 BOARD DISPLAY LCD
$15.90
No image available
W0019792 DRAIN CORNER PLASTIC
No image available
W0020887 CLIP PROTECTOR EWJ16HRA
$3.38
No image available
W0020945 FRAME FRONT CASE
No image available
W0021133 BOARD SOFT STARTER ASSY
No image available
W0021186 BOARD MAIN
$97.50
No image available
W0021739 BOARD DISPLAY
$123.56
No image available
W0022306 CAPAC 60UF 450V 4 PIN COMPRESS
$35.14
No image available
W0022343 CAPAC 6UF 500V 4 SMALL PIN FAN
$8.55
No image available
W0022346 CAPAC 98UF 330 V START 6 PIN
$65.18
No image available
W0023276 SENSOR TEMPERATURE
$33.00
No image available
W0023277 SENSOR TEMPERATURE
$33.04
No image available
W0023280 SENSOR TUBE TEMP
$33.04
No image available
W0024865 VALVE 4 WAY
$43.54
No image available
W0026654 DECAL
$8.74
No image available
W0036044 COMPRESSOR & FITTINGS
$290.40
No image available
W0036337 OVERLOAD PROTECTOR KWH62HRB
No image available
W0053373 4-WAY VALVE ASSY KWH53HRB
$173.25
No image available
W0065194 VALVE DRAINAGE
$34.65
No image available
W0069477 BLADE FAN CENTRIFUGAL
$46.50
No image available
W0069633 BLADE FAN
No image available
W0070000 LOURVE SWING
$41.18
No image available
W0070097 LINKAGE SWING MECHANISM
No image available
W0089843 MOTOR FAN
$177.38
No image available
W0093572 OUTLET AIR SUB-ASSY
$24.75
No image available
W0093655 ELECTRIC BOX COVER
$8.25
No image available
W0096134 SWING BLADE SUPPORT KWH47HRB
$10.73
No image available
W0102061 REMOTE CONTROLLER KWH47CRB
No image available
W0115384 POWER CORD 15A
No image available
W0118634 TRANSFORMER
$52.46
No image available
W0119446 RELAY 841-S-1A-D 200V/240V TUV
No image available
W0138648 CRANK LOUVER
$8.63
No image available
W0142556 COMPRESSOR GASKET KWH62HRB
$18.98
