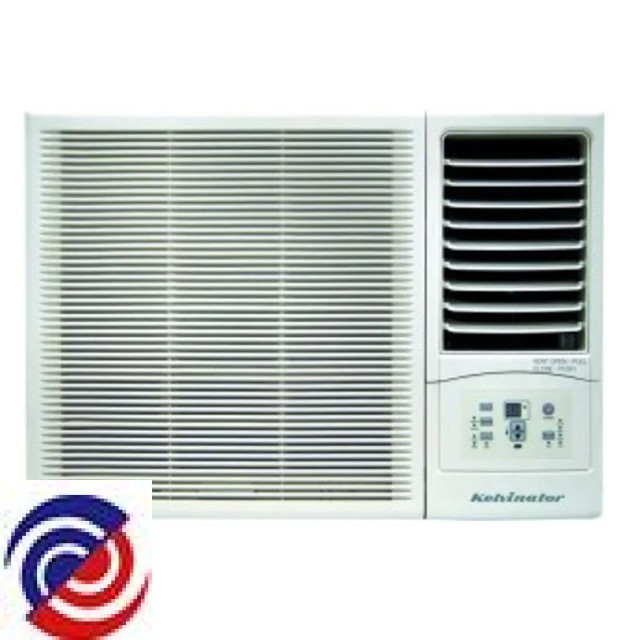

KWH62HRA — 950001080 00
KELVINATOR — Air-Conditioner

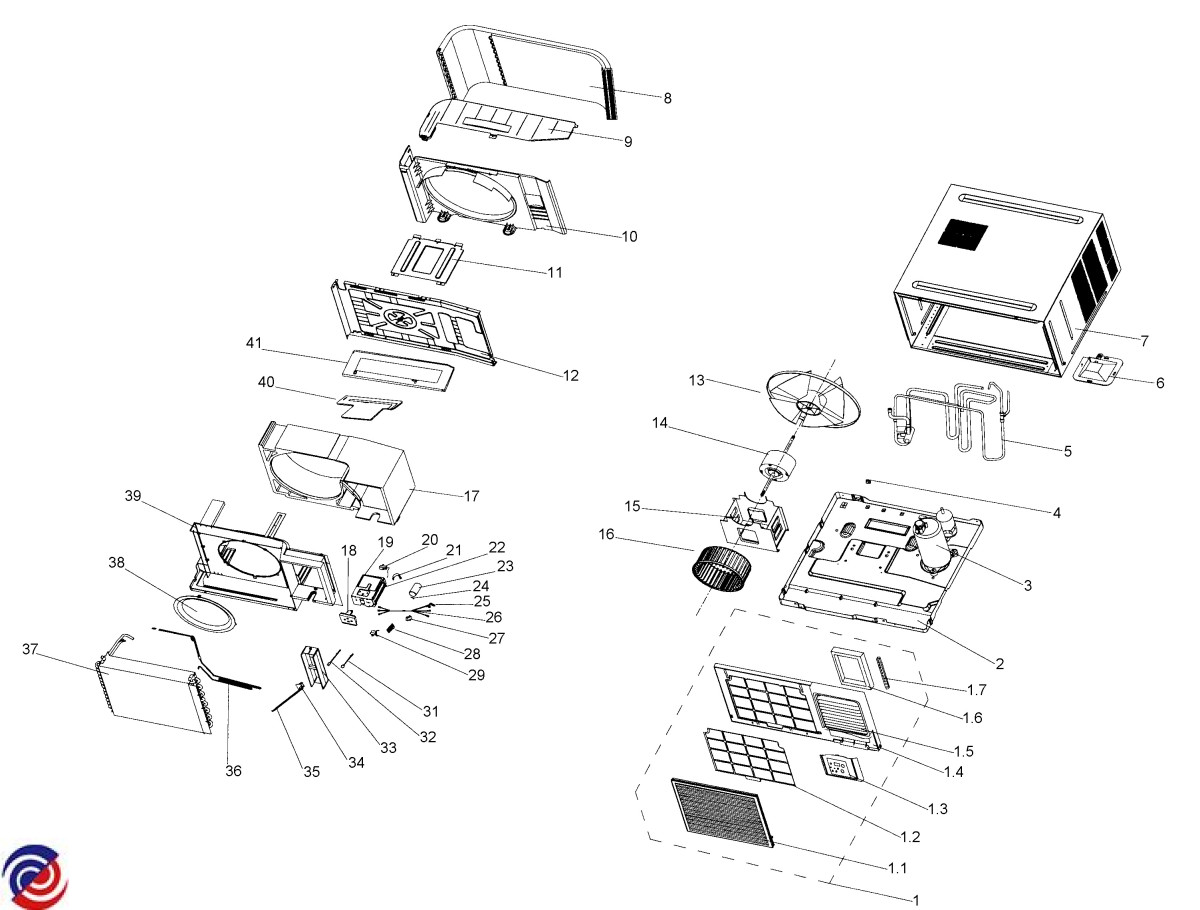

Parts for KWH62HRA
W0101531 FILTER AIR
$21.90
W0101537 BLADE FAN
W0016797 SENSOR TEMP EVAPORATOR TEMP
$40.00
W0021134 PANEL DISPLAY
$24.85
W0021157 FAN SCROLL HOLDER EWH16CR
$55.00
W0068324 WASHER FOR WIRE JOINT ESD09HRA
W0069051 MOTOR EWH21HRA
W0069298 CLAMP CAPACITOR
W0093670 BLADE FAN
$54.90
W0093685 REAR COVER KWH47CRA
W0093687 FRESH AIR DOOR KWH47CRA
W0093688 FRESH-AIR-DOOR LEVER KWH47CRA
W0093689 CONNECTING BAR KWH47CRA
W0093701 SURROUND FAN OUTDOOR
W0093866 COVER. ELECTRIC CONTROL
W0093867 SUPPORT STRAP KWH47CRA
W0093868 HOLDER. FAN MOTOR KWH47CRA
W0093880 CHASSIS
W0093881 CABINET
W0093930 WIRING CLIP KWH62CRA
W0093980 BOARD MAIN
$116.15
W0094043 COMPRESSOR
$385.00
W0094060 CONDENSOR ASSY KWH62HRA
$407.00
W0094061 EVAPORATOR KWH62HRA
$275.00
W0094154 FOUR-WAY VALVE ASSY KWH62HRA
W0094155 CAPILLARY ASSY
W0094246 FOAM. FAN BASE KWH47CRA
W0094252 CONTACTOR KWH62CRA & HRA
W0094299 SOFT-START CONTROLLER KWH62
W0094335 CAPAC 60UF 450V 4PIN COMPRESS
W0094350 CAPACITOR. FAN KWH53CRA
W0094354 POWER CORD
W0094376 BOARD DISPLAY
$68.45
W0094683 PAN DRAIN
$24.90
W0096059 REMOTE CONTROL
$100.00
W0101314 RUBBER PLUG
W0101317 LOUVER MOTOR
W0101390 TRANSFORMER
W0101440 ELECTRIC CONTROL BOX
$77.00
W0101441 AMBIENT TEMP SENSOR EWH12CRA
W0101442 EVAP TEMP SENSOR EWH12CRA
W0101456 FRONT FRAME EWH16CR
W0101458 COVER CONTROL BOX
$4.50
W0101530 GRILL FRONT
W0101532 LOUVRE HORIZONTAL
$18.30
W0101536 AIR GUIDE EWH16CR
W0101538 LOURVE VERTICAL
$15.40
W0101541 FAN SCROLL EWH16CR
W0101542 FRONT COVER EWH16CR
W0101555 FRONT BOARDING
W0101908 FRAME FOAM FRONT
$10.00
